                      F2114 gsm gprs modbus modem (DTU) with I/O



F2114 GPRS IP MODEM is a kind of cellular terminal device that provides data transfer function by public GPRS network.
It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It has low power consumption, 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.
Ideal for M2M fields, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, etc.

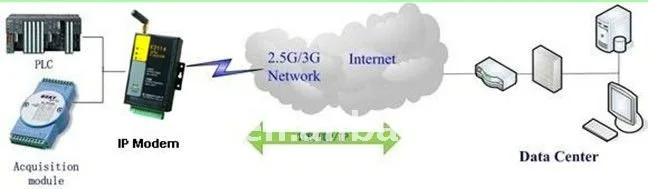

 sketch for F2114.jpg



Design for Industrial Application

u       High-powered industrial cellular module

u       High-powered industrial 32 bits CPU

u       Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest

u       Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function

u       Housing: iron, providing IP30 protection

u       Power range: DC 5~35V

Stability and Reliability

u       Support hardware and software WDT

u       Support auto recovery mechanism, including online detect, auto redial when offline to make it always online

u       RS232/RS485/RS422 ports:15KV ESD protection

u       SIM/UIM port: 15KV ESD protection

u       Power port: reverse-voltage and overvoltage protection

u       Antenna port: lightning protection(optional)

Standard and Convenience

u       Adopt terminal block interface, convenient for industrial application

u       Support standard RS232/RS485 ports that can connect to serial devices directly

u       TTL logic level RS232 interface can be customized

u       Support intellectual mode, enter into communication state automatically when powered

u       Provide management software for remote management

u       Support several work modes

u       Convenient configuration and maintenance interface



High-performance

u       Support TCP server and support multi TCP client connection(optional)

u       Support double data centers, one main and another backup

u       Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.

u       Support multi data centers and it can support 5 data centers at the same time

u       Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout

u       Support dynamic domain name(DDNS) and IP access to data center

u       Design with standard TCP/IP protocol stack

Support APN/VPDN





Product Specification



Cellular Specification



Item

Content

Cellular Module

Industrial cellular module

Standard and Band

EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional)

Compliant to GSM phase 2/2+

GPRS class 10, class 12(optional)

Bandwidth

85.6Kbps

TX power

GSM850/900: <33dBm

GSM1800/1900: <30dBm

RX sensitivity

<-107dBm



Hardware System



Item

Content

CPU

Industrial 32 bits CPU

FLASH

512KB (Extendable)

SRAM

256KB(Extendable)



Interface Type



Item

Content

Serial

1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection

Data bits: 5, 6 ,7, 8

Stop bits: 1, 1.5, 2

Parity: none, even, odd, space, mark

Baud rate: 110~230400 bps

Indicator

"Power", "ACT", "Online"

Antenna

Standard SMA female interface, 50 ohm, lighting protection(optional)

SIM/UIM

Standard 3V/1.8V user card interface, 15KV ESD protection

Power

Terminal block interface, reverse-voltage and overvoltage protection

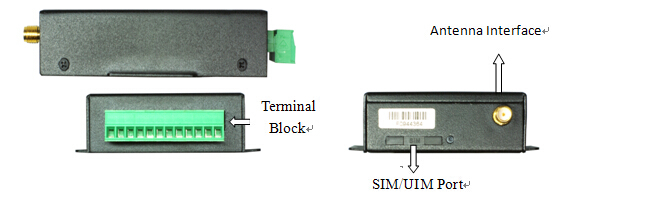

F2114 BLOCK.jpg

Power Input

Item

Content

Standard Power

DC 12V/0.5A

Power Range

DC 5~35V

Power Consumption

Working States

Power Consumption

Communication

50-80mA@12VDC; 115-150mA@5VDC

Standby

20mA@12VDC; 35mA@5VDC

Sleep

8mA@12VDC; 18mA@5VDC

Timing Power Off

0.6mA@12VDC; 1mA@5VDC

Physical Characteristics

Item

Content

Housing

Iron, providing IP30 protection

Dimensions

91x58.5x22 mm

Weight

205g



Environmental Limits



Item

Content

Operating Temperature

-25~+65ºC (-13~+149℉)

Extended  Operating Temperature

-30~+75ºC (-22~+167℉)

Storage Temperature

-40~+85ºC (-40~+185℉)

Operating Humidity

95% ( unfreezing)
