F4-1325 cnc router wood machine

Feedback Ratings
  • 1-2 Sets
    $13,000.00
  • 3-4 Sets
    $12,800.00
  • >=5 Sets
    $12,500.00
Model Number:
F4-1325
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $17,800.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
380V/220V or Customer made, AC380/3PH/50HZ
Dimension(L*W*H):
3500*1840*1900mm
Certification:
CE ISO9001
Warranty:
2 Years
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Control system:
Syntec
Spindle:
4.5KW*2
Unloading Speed:
15m/min
Driving system:
Leadshine servo motor(Japan Yaskawa for option)
Drilling bank:
Italian FAM
Spindle speed:
18000r/min
Keywords:
carved wood
Power(W):
25kw
Weight:
2000kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
370X228X210 cm
Single gross weight:
2000.0 kg
Package Type:
Plywood Package
Lead Time :
Quantity(Set) 1 - 5 6 - 20 >20
Est. Time(days) 20 30 To be negotiated
Product Description
F4-1325

Product Application

#If you are looking for a machine for nested-based manufacturing but your choices are limited by budget, then this A2 NESTING will be your perfect investment for great growth.
#The adoption of the world's top-grade components as a result of our constant pursuit of quality means you can spend less money but get bigger value in one compact package.

#Equipped with two spindles, this machine allows you to carry out cutting and grooving without having to change tools. It also carries a drill bank that will give you the versatility for your work.
#When combined with Cabinet Vision Advanced to optimize the machining process, this machinemarries productivity and flexibility, enabling you to carry out nesting and drilling in all kinds of shapes and responding to every need.

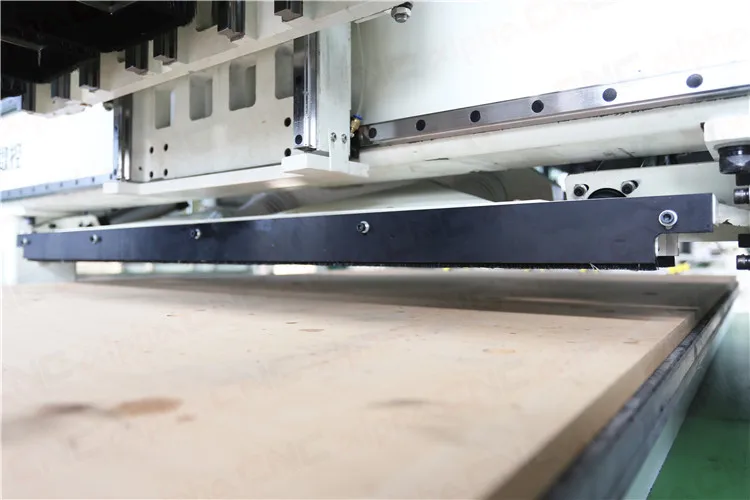

#This machine comes with a pusher/sweeper that pushes the worked pieces off the main work table and cleans the surface at the same time, which allows the operator to remove the pieces with ease and dramatically reduces down time.
#Can be used as a stand-alone solution or part of the automatic panel furniture production cell-choose from our range of processing centers to lift your game and remain competitive.
#Option: Automatic loading system

Main Features


# 6KW*2+4.5KW*2 HQD/CC air cooling spindle(Italian HSD for option)

#Taiwan Syntec Controller

#Leadshine servo motor(Japan Yaskawa digital servo motor for option)

#Japan Shimpo gear reducer

#Taiwan PMI square rail 25mm

#The whole machine frame machined by cnc center

#German WMH Herion helical rack pinion

#Fuling inverter(Taiwan Delta inverte)

#German Igus cable

# Double layer vacuum table

#Position cylinder

#Tool calibration

#7.5kw vacuum pump(German Becker for option)

#France Schneider Low-voltage electrical components

#Loading roller

#Taiwan AirTAC electromagnetic valve

#Tempering process

#Sandblasting process

#Automatic lubrication system

#Dust collector

#Automatic loading system for option
Descriptions
                                                                     Parameters
Model
F4-1325
Working area
2440*1220*50mm
Traveling Size
2500*1260*200mm
Table Size
2440*1228mm
Unloading Speed
15m/min
Transmission
X/Y PMI Rack and Pinion;Z TBI Ball Screw Drive
Table Structure
Vacuum Table
Spindle Power
6.0KW*2
Spindle Speed
18000r/min
Traveling Speed
40m/min
Working Speed
18m/min
Drive System
Leadshine servo motor(Japan Yaskawa for option)
Voltage
AC380/3PH/50HZ
Controller
Syntec

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

1325 4*8 feet wood panel mdf particleboard door cabinet furniture aluminum woodworking cutting milling carving ATC cnc router
Sample
Detailed Images

Gantry

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.

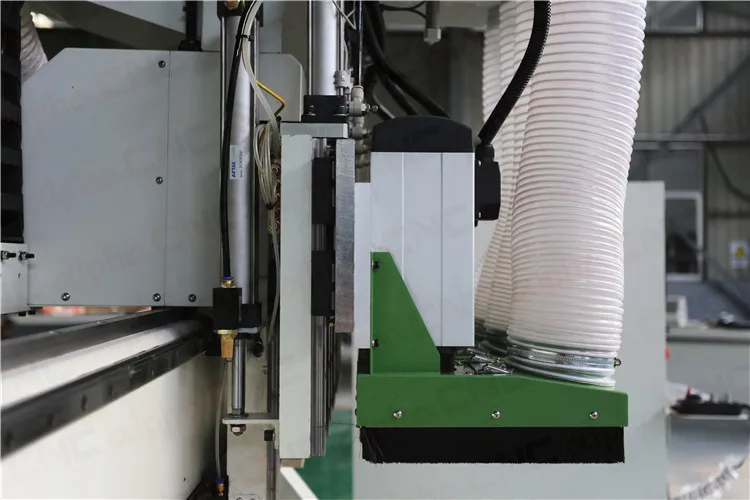

9kw High Frequency Automatic Tool Changer Spindle

The Alpha ATC CNC Router machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.


Drive Motors

Brand: Yaskawa  Servo Motor
Origin: Japan

The Alpha ATC Series CNC Router utilizes digital AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance - therefore, reducing any maintenance downtime.

Syntec 6MD Bus Communication Controller &Hand-held Pulse Generator

-Better than Syntec 6MB, not easy to get broken

.-Support high resolution axis motor

-Simple distribution -Easily install

-Better performance

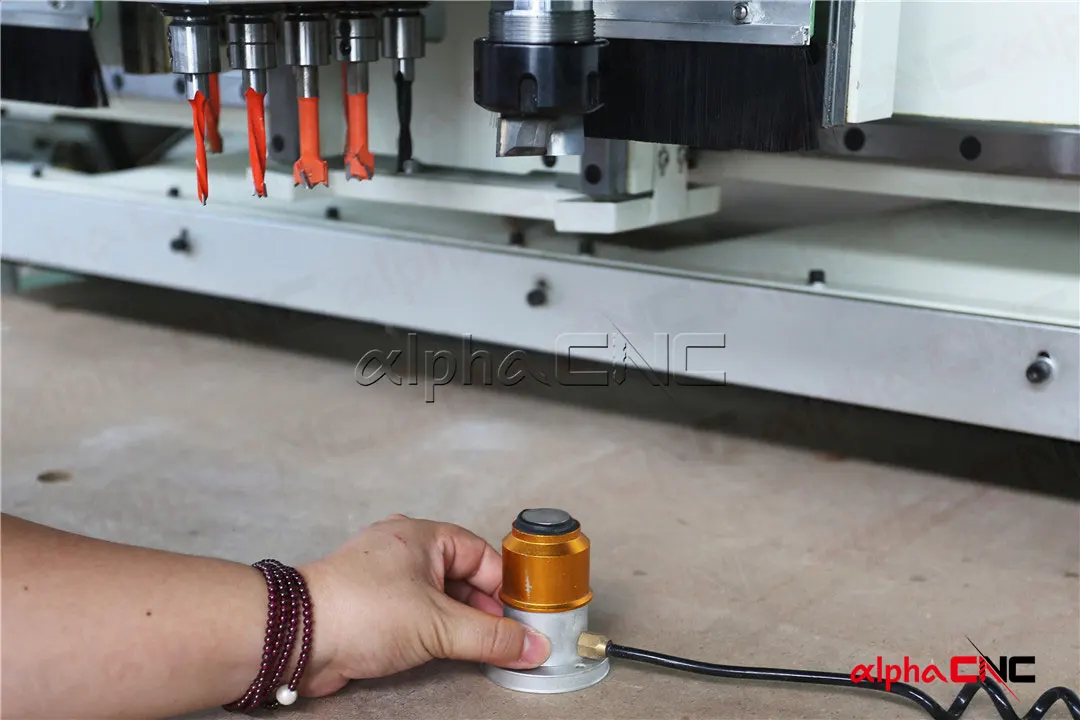

CNC Tool Calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

Pneumatic Material Alignment Stops

The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.

PMI square rail&High quality helical rack pinion


The machine adopts Taiwan PMI square rail, which is more durable. And the use of high quality helical rack pinion, makes it high precision.


Automatic lubrication system

The function of the automatic oil pump is mainly to perform regular quantitative oiling on the easily wearable guide rail, ballscrew and the rack gear. It is by the digital controller to control the lubrication pump working cycle; lubrication time and intermittent time.


Optional Parts


Becker Rotary Vane vacuum pumps

Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.

4-Axis Rotary Axis

The addition of  4-axis rotary table assembly adds greater functionality to the machine's capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.

HSD Aggregate Tool

Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3700 (L) * 2280 (W) * 2100 (D)
Weight
2500KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
