F8913 Low Cost ZigBee Wireless Module RS485

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Units | 1 Unit/Units F8913 Low Cost ZigBee Wireless Module RS485 (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Four-Faith
Model Number:
F8913
MCU:
Industrial ZigBee Platform
Communication Protocol:
IEEE 802.15.4
Band:
ISM2.4-2.5GHz
Indoor/Urban Range:
90m(With PA)
Outdoor/RF Line-of-Sight Range:
2000m(With PA)
Transmit Power:
100 mw (+20dBm) (With PA)
F Data Rate:
250Kbps
Channels:
11 to 26
Max serial buffer size:
300 Bytes
Product name:
F8913 Low Cost ZigBee Wireless Module RS485
Supply Ability
Supply Ability:
10000 Unit/Units per Week F8913 Low Cost ZigBee Wireless Module RS485
Packaging & Delivery
Packaging Details
Standard Four-Faith Board
Port
Xiamen port
Lead Time :
Shipped in 3 days after payment
Product Description

F8913 Low Cost ZigBee Wireless Module RS485.

● ZigBee Module Support UART
● ZigBee Module Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest
● ZigBee Module Supply 5 I/O channels,compatible 3 analog inputs and 2 pulse input counters
● ZigBee Module Support ZigBee wireless data transmission
● ZigBee Module Support Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh network

                                                                                Product Specification
                                                                                     F8913 Model Sheet
Model
Content
F8913-N-MS
Without PA,SMT
F8913-E-MS
With PA,SMT
F8913-N-NS
Without PA,DIP
F8913-E-NS
With PA,DIP
                                                                                          ZigBee Specification
Item
Content
MCU
Industrial ZigBee Platform
Communication Protocol and Band
IEEE 802.15.4 ISM2.4~2.5GHz
Indoor/Urban Range
30m 90m(With PA)
Outdoor/RF Line-of-Sight Range
500m 2000m(With PA)
Transmit Power
2.82 mw (+4.5dBm) 100 mw (+20dBm) (With PA)
RF Data Rate
250Kbps
Receiver Sensitivity
-97dBm -103dBm (With PA)
Network Topologies
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Channels
11 to 26
Max serial buffer size
300 Bytes
                                                                                           Interface Type
Item
Content


UART
Data bits: 8
Stop bits: 1, 2
Checksum: none,odd,even
Baudrate: 300, 600, 1200, 2400, 4800, 9600, 19200, 38400,57600, 115200 bps
Antenna
U.FL RF connector, impedance 50 ohm
Package
Support 2.0mm spacing stamp hole for SMT and 2.0mm spacing through-hole pins simultaneous
                                                                                            Power Input
Item
Content
Recommended Power
DC 3.3V/0.1A
Power Range
DC 2.0~3.6V
Physical Characteristics
Item
Content
Dimensions
37.5 x 22.1 x 2.8 mm
Weight
3.5 g
                                                                                     Environmental Limits
Item
Content
Operating Temperature
-40~+85ºC (-104~+185 ºF)
Storage Temperature
-40~+125ºC (-104~+257ºF)
Operating Humidity
95% ( unfreezing)

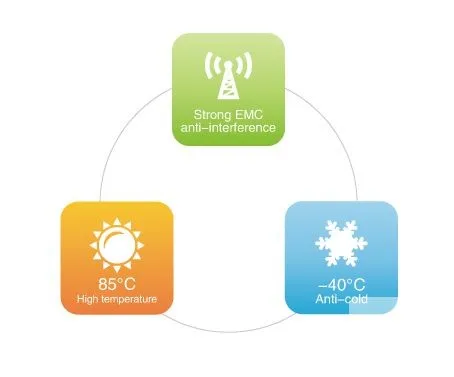

Environmental Adaptability.

Designed for harsh and unattended environment.

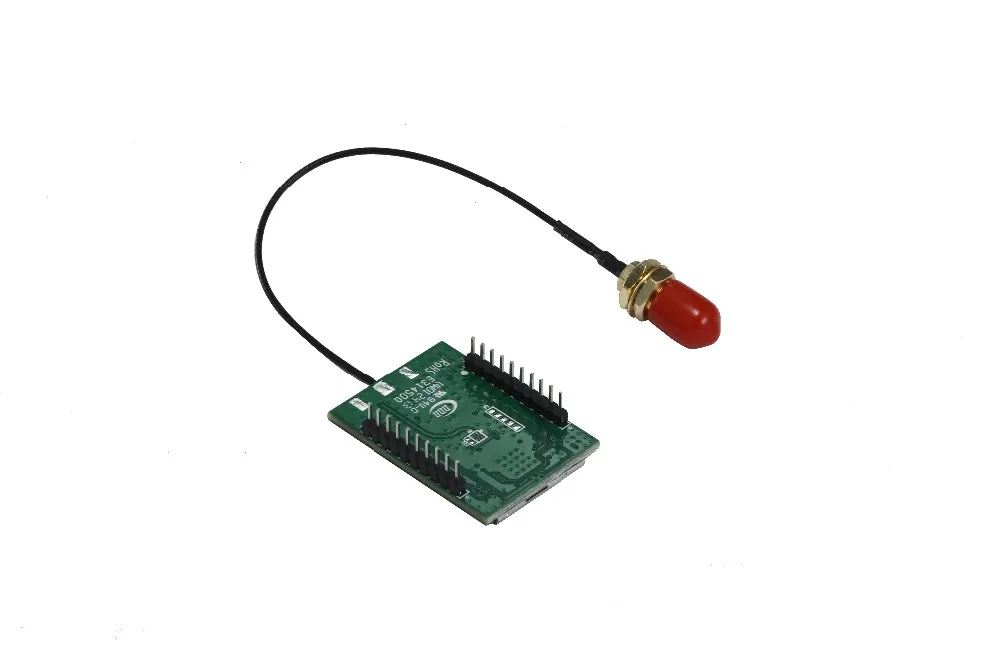

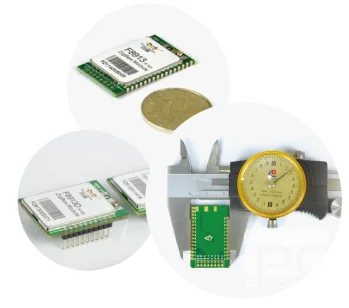

ZigBee Module Small Size, Easy to Embed.

ZigBee Module Small size, light weight, easy for embedded development. Support UART hole, SMT hole, DIP hole..

Low Power Consumption, Long Continuous Working Time.

Supports multi-sleep and trigger modes, power consumption of deep sleep is less than 0.5uA.

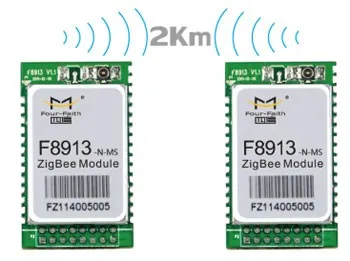

2KM Communication Distance.

Point to point communication of ZigBee module is up to 2KM, support multi-level relay route, is helpful for creating large networking of long distance.

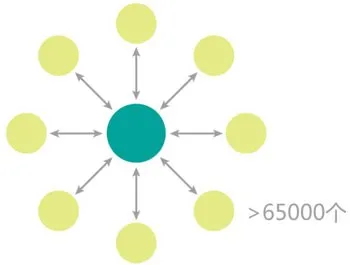

Large Network Capacity.

Network capacity up to 65,000 nodes, hardened steel consumption monitoring, agricultural irrigation and other large projects application.







Modules Can be Remotely Configured, Batch Management, Greatly Reducing the Intensity of Work.

Modules Can be Remotely Configured, Batch Management, Greatly Reducing the Intensity of Work.






Compatible with a Variety of Industrial Applications Protocols.

Support for smart home, digital oilfield industry and other rich application protocols.




Strong Project Adaptable, Flexible in Use.

Integrated transparent transfer, API, AT mode, working mode of ZigBee module can be configured according to the project needs.

Support analog and digital data automatic acquisition and reported, no need for secondary development, shorten the project development cycle.

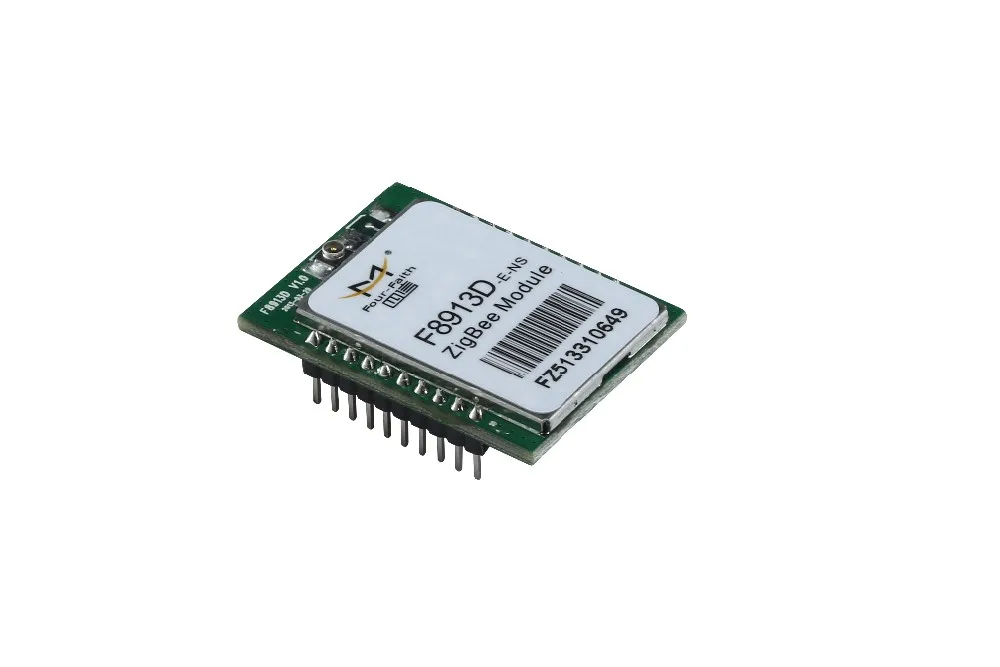

Detailed Images
Packing & Delivery

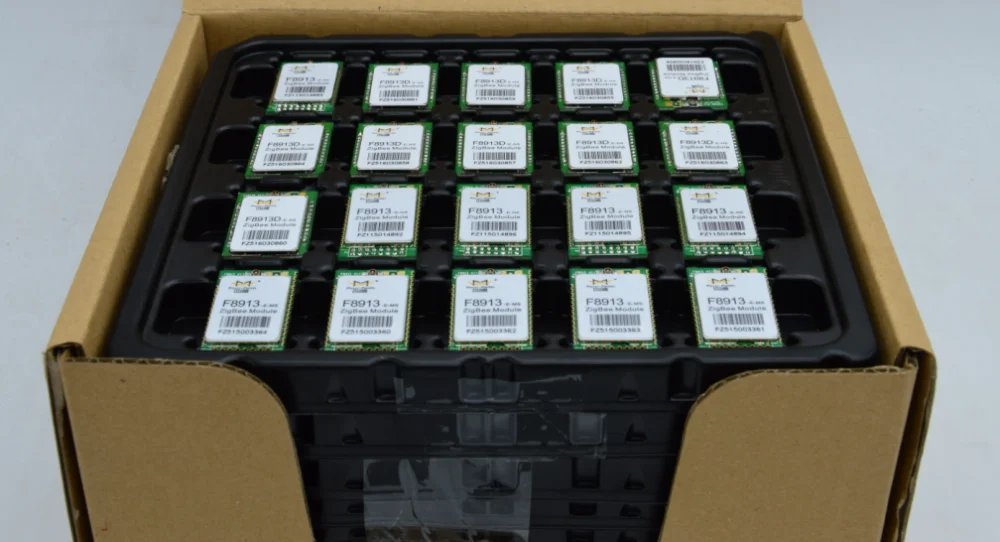

Individual Packaging.

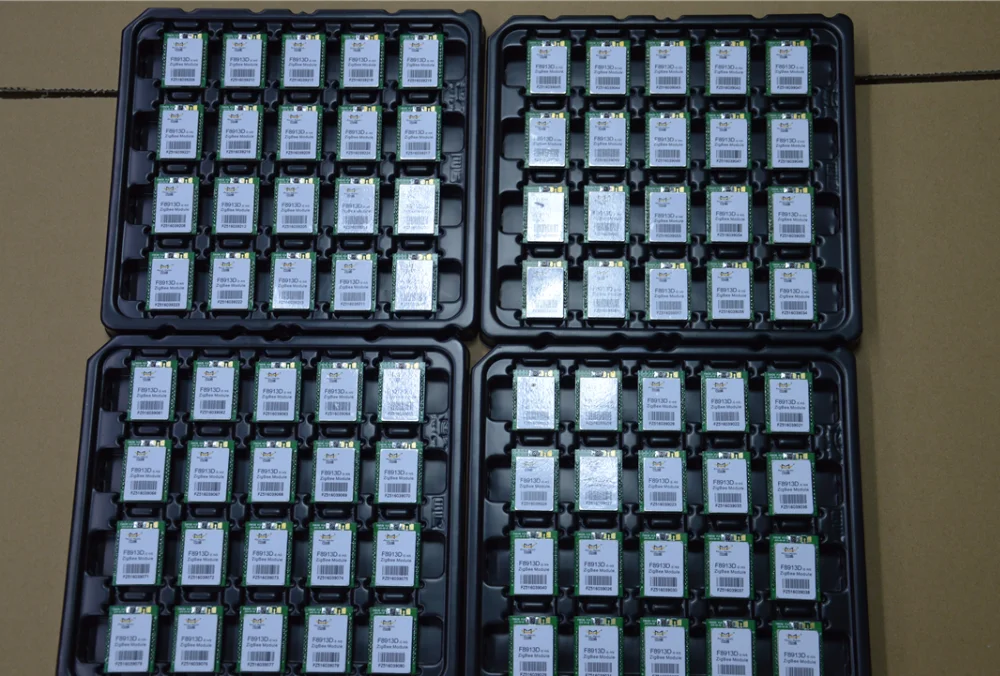

Industrial Packaging.

Exhibitions
HK Electronics Exhibition 2010.

Singapore CommunicAsia 2016.

Germany Embeddedworld 2016.

Sviaz Expo CommMoscow 2013.

Applications
Certifications

                     CCC

                       CE

                        FC

                          ISO

                    ROHS

                       SGS
