FCC/CE/RoHs E18-MS1-IPX 2.4GHz CC2530 Wireless Zigbee Smart Home Automation Module

Feedback Ratings
  • 10-99 Pieces
    $3.70
  • >=100 Pieces
    $3.20
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Ebyte
Model Number:
E18-MS1-IPX
Size:
20.8 * 14.1mm
Frequency:
2.4GHz(2405 ~ 2480MHz)
RF IC:
CC2530
Install Style:
SMD
Power:
4dBm(2.5mW)
Distance:
200m
Supply voltage:
2.0-3.6V DC
Interface:
SPI
Antenna type:
IPX
Key words:
Zigbee Smart home module

Packaging & Delivery

Selling Units:
Single item
Single package size:
19X13X16 cm
Single gross weight:
0.12 kg
Package Type:
Antistatic bag. Antistatic sponge. Corrugated case.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 50 51 - 500 >500
Est. Time(days) 2 3 To be negotiated

FCC/CE/RoHs E18-MS1-IPX 2.4GHz CC2530 Wireless Zigbee Smart Home Automation Module

Product Description



[ Model ]:E18-MS1-IPX



[ Interface ]:SPI(SMD)



[ Power ]:4dBm



[ Distance ]:200m



[ Antenna type ]:IPEX Antenna



[ Frequency ]:2.4GHz(2405 ~ 2480MHz

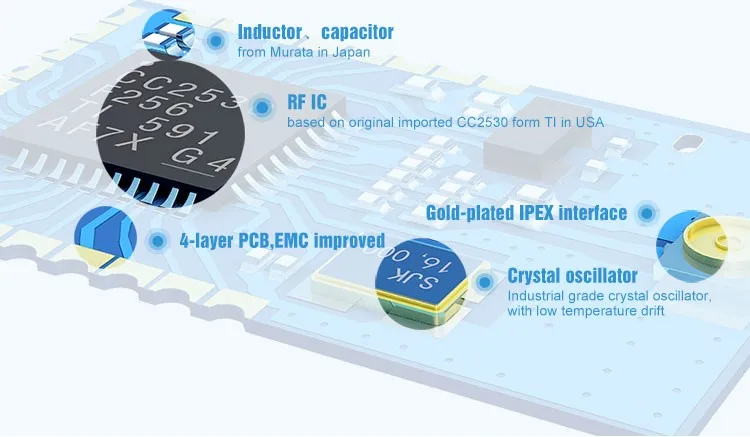

[ Feature ]:E18-MS1-IPX is based on original imported RF chip CC2530 form TI inAmerica.
The IC chip is integrated with 8051 microcontroller and wireless transceiver, and applicable to ZigBee design and 2.4GHz IEEE 802.15.4 protocol.
All the IO ports are led out by the module,which means that multi-aspect development is realizable.





Electrical parameter





No.

Parameter item

Parameter details

Description

1

RF IC

CC2530

TI

2

Size

20.8 * 14.1mm

(Without antenna)

3

Weight

1.2g

(Without antenna)

4

Frequency

2405 ~ 2480MHz

2.4GHz IEEE 802.15.4 protocol;

5

PCB technology

4 layers

SMT, ENIG,Lead-free

6

Connector

3 * 8 * 1.27mm

SMD

7

Supply Voltage

2.0 ~ 3.6V DC

Notes: the voltage higher than 3.6V is forbidden

8

Communication level

0.7VCC ~ 5V

VCC refers to the supply voltage

9

Operation Range

200m

Test condition: Clear and open area, 4dBm,antenna gain: 5dBi ,height: 2m,Air date rate: 250kbps

10

Power

4dBm

About 2.5mW

11

Air data rate

250kbps

-

12

Sleep current

1.2uA

MCU in sleep,wireless closed,VCC=3.3V

13

Transmitting current

28mA@4dBm

Power supply capacity must be greater than 300mA

14

Receiving current

27mA

Receives an average current

15

Communication interface

I/O

See details in Pin definition

16

Transmitting length

1~103 bytes

For one package

17

Receiving length

1~103 bytes

For one package

18

RSSI support

Available

Please see more details in IC Datasheet

19

Antenna type

IPEX

IPEX antenna pedestal

20

Operating temperature

-40 ~ +85

Industrial-grade

21

Operating humidity

10% ~ 90%

Relative humidity, without condensation

22

Storage temperature

-40 ~ +125

Industrial-grade

23

Sensitivity

-97dBm@250kbps

More details please see IC Datasheet

Product feature



Pin Definition

Test Report

Company Information

Chengdu Ebyte Electronic Technology Co.,ltd is a high-tech company, which focus on wireless transmission.
Our company owns a number of independent R&D products.and unanimously approved customers.
The wireless products which R&D by our team including UART/SPI module, RS232/485 DTU, wifi module, bluetooth module and antenna. In which, lora and zigbee module are our core competence.
With powerful R&D team, our company can provide customers with perfect After-sales service and technical assistance.



Packaging & Shipping

1. Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS,normally it will take 3-7 working days to arrive in most countries.

2.We can also help you ship  the goods by air line,then you need to go to Air port totake it ,it takes about 2-7 days to arrive ;

3.If goods are large quantity and you not need the goods so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive.

4.We can accept the payment method such as Paypal/Credit card/ L/C and T/T
