FEETECH FT6560M 60kg RC servo for Emotional escort robot 1:5 RC CAR

FOB Reference Price:Get Latest Price
$23.00 - $25.00 / Piece | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Car
Power:
Battery
Material:
METAL
Scale:
1:5
Radio Control Style:
RC Model
Place of Origin:
Guangdong, China
Brand Name:
fitec
Model Number:
FT6560M
large 30kg metal gears servo:
1:5 car
metal gears:
for ROBOT
Bearring:
2BB
TORQUE:
60KG
Color:
Yellow
Certificate:
ROHS
Product name:
60kg digital servo
Function:
Remote control
Description:
large size
Feature:
big scale
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day servo 25kg

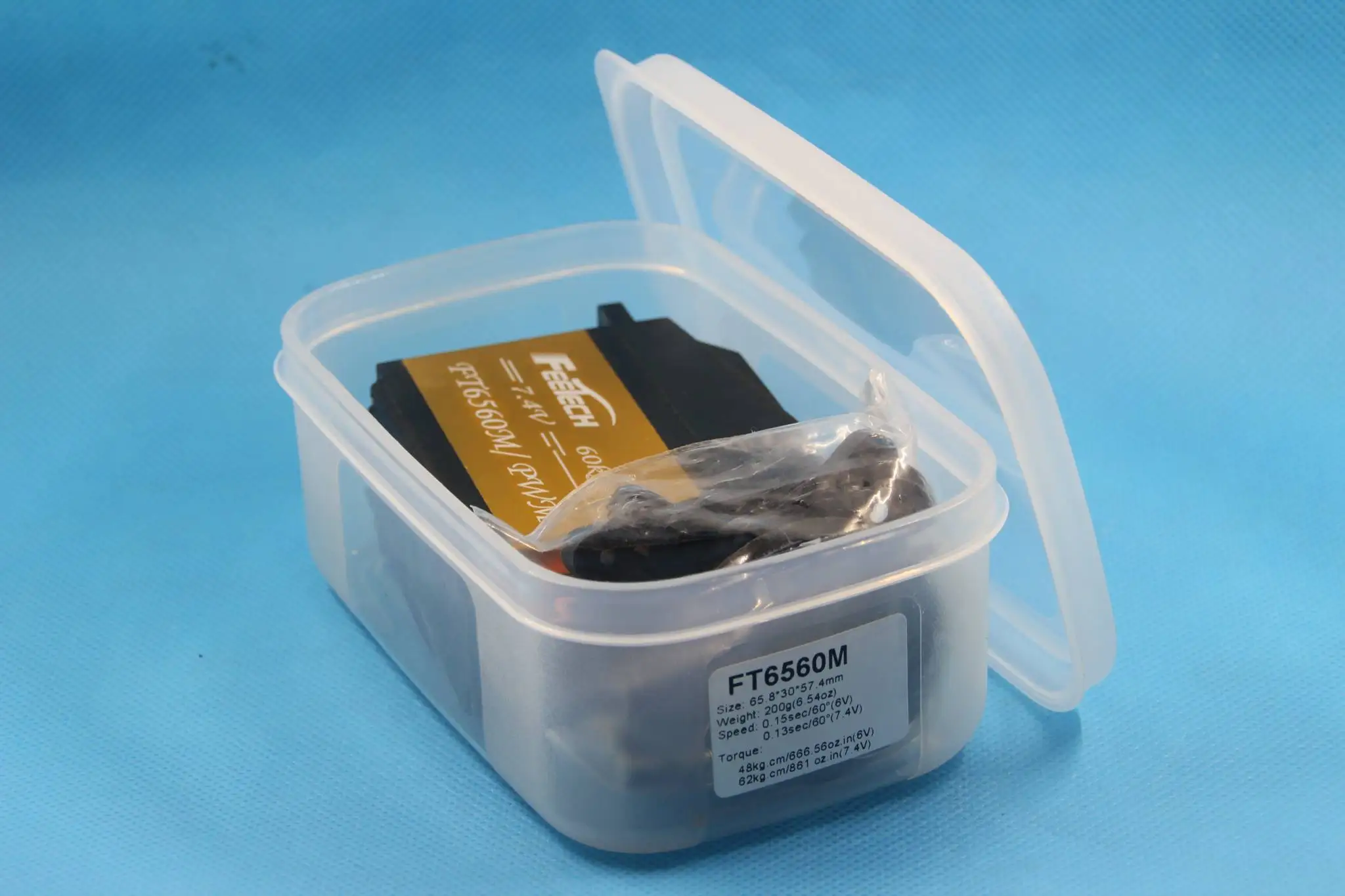

Packaging & Delivery
Packaging Details
-Servo*1PCS
-Servo arm*1 bag
-GW:199g
Port
HongKong,ShenZhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description

Product Description

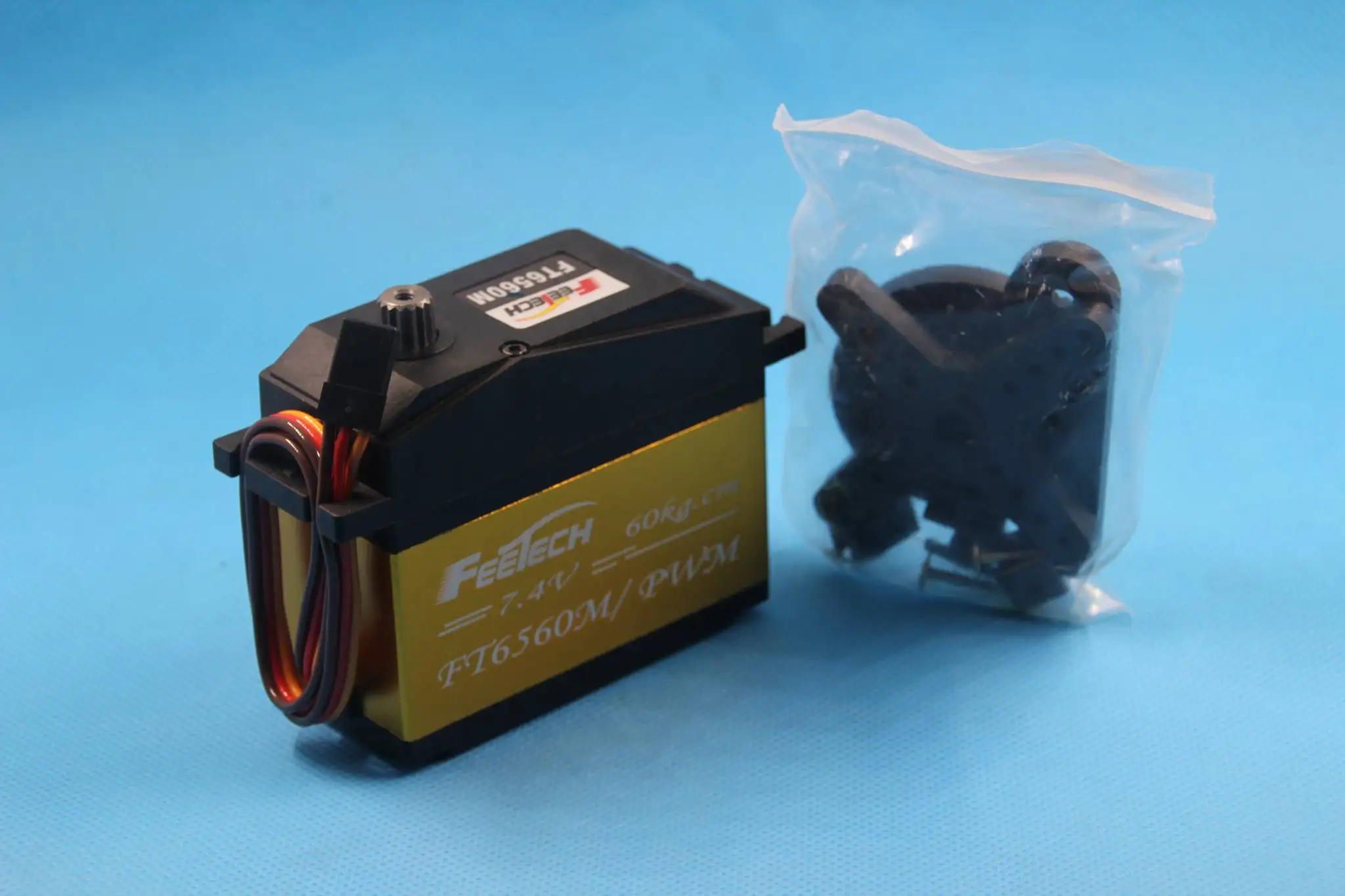

FEETECH FT6560M 60kg RC servo for Emotional escort robot 1:5 RC CAR

-Large digital metal gears servo 2BB

-Operating Voltage:6-7.4Volts

-Interface: (like JR)

-Wire length: 25cm

  0.15sec/60degree (6V)
0.13sec/60degree (7.4V)

48kg.cm/382.6oz.in(6V)
65kg.cm/459.1oz.in(7.4V)

-Large digital metal gears servo 2BB
-Operating Voltage:6-7.4Volts
-Interface: (like JR)
-Wire length: 25cm
0.15sec/60degree (6V)
0.13sec/60degree (7.4V)
48kg.cm/382.6oz.in(6V)



65kg.cm/459.1oz.in(7.4V)

Model Type:Digital Servo FT6560M
Motor Type:Cored
Case material:Aluminum Mddle Case
Gear material:Titanium
Bearing Type:2BB
Weight:200g
Dimension:65.8X30.2X57.4mm
Operation Voltage:6-7.4V
Torque:48kg-cm/6.0V; 60kg-cm/7.4V

Speed:0.15sec/60°/6.0V; 0.13sec/60°/7.4V
Pulse Width:900-2100μs
Dead band width:2μs
Interface Type:JR / FT / JST1.5 / JST2.0 / Other
Operating Temperature:-20 to 60 centigrade
Splining:25T
Wire Length:Based on your requirement
Waterproof:Yes
Certification:CE & FCC
Application:RC Airplane, Heli, Car, Boat, Robot and Retract Landing Gear(magnetic sensor 38kg servo)
Service:Lifetime Warranty. Customized and OEM are available.


If you have any other requirement, pls feel free to tell us. Thanks.

Feature:

-----CNC metal On the cover In the shell
-----High-precision Taiwan-made aluminium gears with hard anodizing
-----High Voltage Core Digital Servo
Dead band:4μs
Working frequence:1520μs / 330hz
Motor:Core
Operating Speed6.0v0.15 sec/60°
Operating Speed7.4v0.13 sec/60°
Stall Torque 6.0v48 kg.cm
Stall Torque 7.4v62 kg.cm
Dimensions:65.8X30.2X57.4mm
Weight:200 g
Wire/Color:JR 265 mm/ -Brown +Red S Orange
Bearing:2BB

Pictures:









Packaging & Shipping

Packing

Gift packing



Shipping
Generally, shipping by air express(such as DHL, FedEx, EMS, UPS or TNT and so on)  according to your requirements. Freight Collect is also available.

Tracking

We will keep you updated with the tracking no. as soon as possible.




Our Services





Warranty Procedure

As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.

Warranty Period

All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
