H.264/H.265, Main Profile / High Profile / Baseline Profile
MP3 & AAC-LC/HE audio compression
720, 720P, 1080P
1 x H D M I 1.3a version
Noise reduction, Sharpen, Filtering
RJ45, 100/1000M Full
DC Power input:
12V or 5V by Micro-USB
Packaging & Delivery
Single package size:
Single gross weight:
1 - 10
To be negotiated
FMUSER H.264/H.265 HD HEVC IPTV Encoder, HD Video Encoder, Support HLS M3U8 ffmpeg VLC, HTTP RTSP RTMP RTMPS UDP ONVIF for Youtube, Facebook, Wowza Live Streaming, LAN Connection FBE-200-H.265-LAN
H.265 saves about 30% bandwidth than H.264 on the same condition, this device supports both H.264 and H.265.

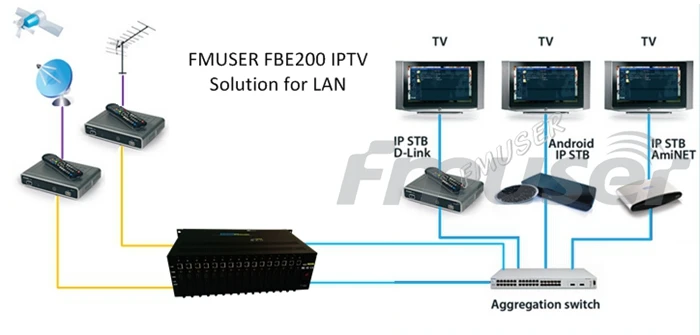

FMUSER FBE200 is high integration and cost-effective design make this device widely used in variety of digital distribution systems, such as construction of professional broadcast level IPTV&OTT system, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment, Streaming Live Broadcast etc.
The FMUSER FBE200 H.264/H.265 IPTV Streaming Encoder supports 1 audio and HD video collection by input simultaneously for option. You can choose to use the HD or 3.5mm stereo for audio line in.
Each channel of HD input supports 3 IP streams output with two different resolutions(one higher resolution, one lower resolution) for adaptive bitrate, each group of IP stream supports two kinds of IP protocols output (RTSP / HTTP/ Mulitcast / Unicast / RTMP / RTMPS).
FMUSER FBE200 IPTV Encoder can deliver H.264/H.265 encoding video streams with more channels of independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server(FMS), Wowza Media Server, Windows Media Server, RED5 and some other servers based on UDP / RTSP / RTMP / RTMPS / HTTP / ONVIF protocols. Of course it support VLC decode.
FBE200 is compatible with most of streaming platforms, Live Broadcast On Any Streaming Service like WOWZA, FMS, Red5, Youtube Live, Facebook live, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedia...
We also have SDI versions, 4 in 1 or 16 in 1 encoder in professional 19' Rack chassis, please feel free to contact us if you need them.
If you want to promote your own brand, we can also do OEM for you.
**We reserve the right to upgrade the appearance or functions of the product without extra notice.
--Video Compression support H.264/H.265, Main Profile / High Profile / Baseline Profile
--Audio Compression support MP3 & AAC-LC/HE audio compression
--Bitrate CBR / VBR16Kbit/s--12Mbit/s
--Streaming resolution up to 720, 720P, 1080P
--GOP frame rate settings supported
--Insertable of logo and Scroll Caption(OSD)
--Adjustable of audio gain
--Capable of image parameter settings
--Support up to 3 stream at a same time
--Switchable of audio output mode: Left, right and Stereo
--Configurable of Multi-rate, Multi-resolution, Multi-protocol
--Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
--Support multiple equipments display at the same time on one computer
--Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.
--Digital TV Broadcasting System
--RJ45 Digital TV Programs Transmission
--Hotel TV System
--Head-end system of Digital TV branch network
--CATV Broadcasting system
--Edge side of Digital TV backbone network
--IPTV and OTT headend system
--Replace HD Video Capture Card
--Hotel TV system
--Streaming Live Broadcast
--NVR,Net Video Recorder
IP output over RTP / RTSP / RTMP / RTMPS / HTTP -- Transfer through internet or LAN
FMUSER FBE200 support a secure live and on-demand streaming both within and outside their corporate networks. Empowers enterprises to personalize engagement, reduce travel costs, extend their reach, and boost sales through video streaming.
Network management system is applied to control and manage parameters and setting, etc. It centralizes encoders through network easy.
About Latency/Delay, we have done a test:
Computer #1 ouputs HD to Fmuser FBE200 encoder.
Computer#2 uses VLC to play the video from encoder. VLC sets 300ms of cache. Latency results under different protocols: RTSP :240ms -250ms UDP:240ms-250ms HTTP: 2000ms-3000ms RTMP/RTMPS: depends on the cloud platform server ,sometime it is over 1-2 minutes
1pcs FBE200 H.264/H.265 IPTV streaming encoder HD in
