FN-LINK Hot Sell Manufacture RTL8723 IC SMT 2.4Ghz 150Mpbs USB 1x1 MIMO Wifi Bluetooth Combo Module

Feedback Ratings
US $2.60 / Piece |2000 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FN-LINK
Model Number:
F23BUUM13-W2
WIFI Standard:
IEEE802.11b/g/n +BLE4.0
Operating Frequency:
2.4GHz
Interface Type:
USB
DATA Rates:
150Mbps
Antenna:
External Antenna
Security:
WEP,TKIP,AES,WPA,WPA2
OS Support:
Android /Linux
Main Chipset:
RTL8723BU

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X27X22 cm
Single gross weight:
2.0 KG
Package Type:
Blister Package Take-up Package Vacuum Package
Lead Time :
Quantity(Piece) 1 - 2000 >2000
Est. Time(day) 20 To be negotiated
Product Description

Introduction

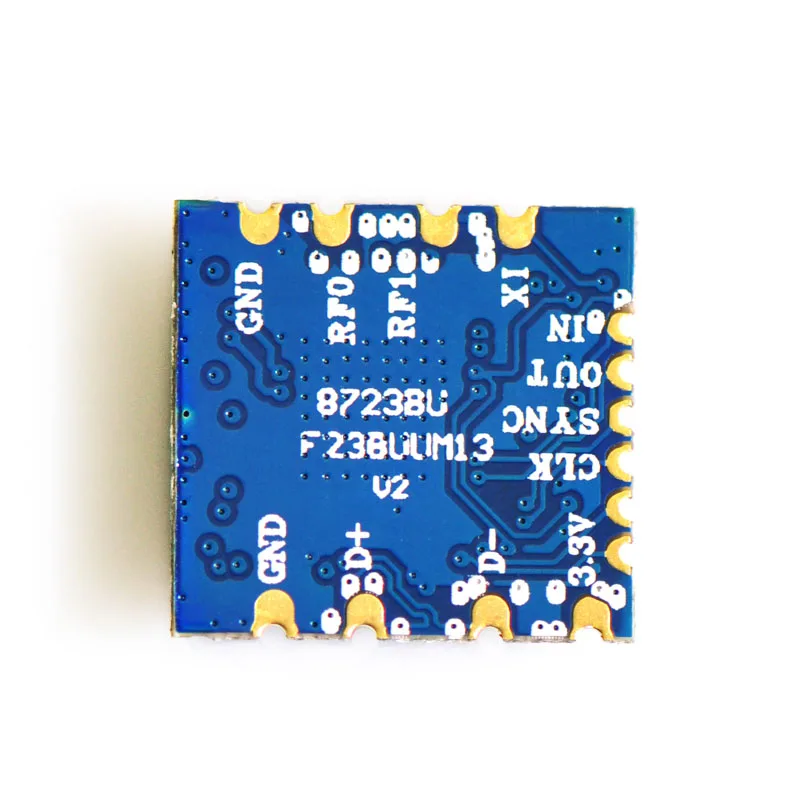

F23BUUM13-W2 is a small size and low profile of WiFi + BT Combo module with LGA (Land-Grid Array) footprint, board size is 12mm*12mm with module thickness of 2mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for WiFi to connect with host processor and high speed UART interface for BT.

It also has a PCM interface for audio data transmission with direct link to external audio codec via BT controller. The WiFi throughput can go up to 150Mbps in theory by using 1x1 802.11n b/g/n MIMO technology and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.0.

F23BUUM13-W2 uses Realtek RTL8723BU, a highly integrated WiFi/BT single chip based on advanced COMS process. RTL8723BU integrates whole WiFi/BT function blocks into a chip, such as SDIO/UART, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.

Features

 Operate at ISM frequency bands (2.4GHz)
 USB for WiFi and UART for Bluetooth
 IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i
 Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode
 Fully qualified for Bluetooth 3.0
 Fully qualified for Bluetooth 4.0 Dual mode
 Full–speed Bluetooth operation with Piconet and Scatternet support
 Enterprise level security which can apply WPA/WPA2 certification for WiFi.
 WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates

Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Detailed Parameters
Model No
F23BUUM13-W2
Main Chipset
RTL8723BU
WIFI/BT Interface
USB
WIFI Standars
IEEE802.11b/g/n +BLE4.0
Date Rates
150Mbps
Certification
RoHS,REACH
RF Antenna
External Antenna
OS Supported
Android /Linux
Operating Frequency
2.4GHz
Operating Voltagc
3.3V
Dimensions
L x W :12.9x12.19mm
RF Chains
1T1R
Operating Temperature
-20°C to 70°C
Storage Temperature
-40°C to 80°C
Note

Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
skype: yinbinisben
