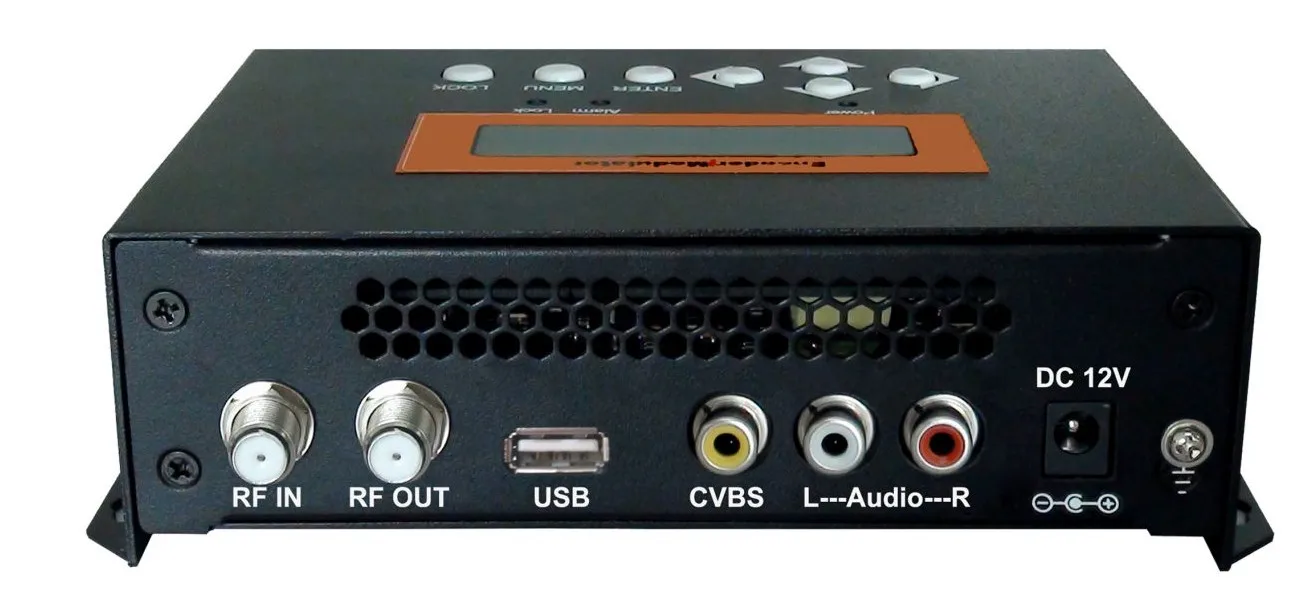

FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA in; RF out) with USB Upgrade for Home Use

$599.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Samples: $599.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $599.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
FMUSER
Model Number:
FUTV4622A DVB-T MPEG-4
Application:
IPTV
Video Encoding:
H.264 MP_L 3.0
Output Level:
-14~ +6dBm
USB (External USB Disk):
System upgrade
Transmission Mode::
2K, 8K

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X30X5 cm
Single gross weight:
5.0 kg
Package Type:
box
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 5 To be negotiated



 FUTV4622A DVB-T MPEG-4 AVC/H.264 SD Encoder Modulator (Tuner,CVBS/RCA in; RF out) with USB Upgrade for Home Use

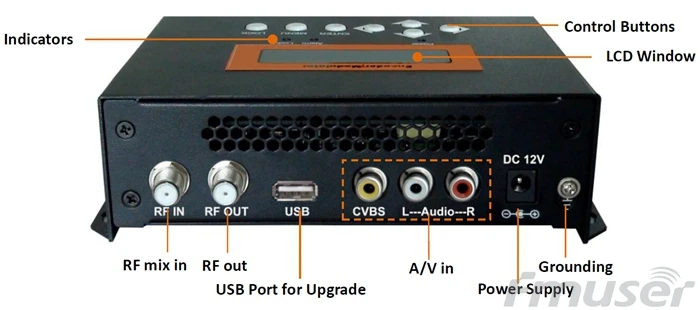

Input:Tuner, CVBS   Output:DVB-T   Inner Function:USB



Overview

FMUSER FUTV4622A SD encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert analog audio/video signals into DVB-T RF out.

The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by a DVB-T standard TVs or STBs etc.




Principle Chart




Technical Specifications





Encoding Section

Video

Encoding

H.264 MP_L 3.0

Interface

CVBS*1 (RCA)

Resolution

Input

Output

480_60i

480_30p

576_50i

576_25p

Aspect Ratio

4:3

Bit rate

1.000~18.000 Mbps

Audio

Encoding

MPEGI layer 2

Interface

Analog Stereo/Mono (Unbalanced RCA)

Sample rate

48KHz

Bit rate

64, 96,128, 192, 256, 320kbps







DVB-T Modulator Section

Standard

DVB-T COFDM

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode:

2K, 8K

MER

>=31dB

RF frequency

142.5~858 MHz, 1KHz step

RF output level

-14~ +6dBm, 0.1db step

System

RF mix in ATT

10 dB

Management

Local LCD + control buttons

Language

English

LCN Insertion

yes

Upgrade

USB

General

Power supply

DC 12V

Dimensions

183*110*50mm

Weight

< 1kg





Typical Applications




Technical Comparison between NDS3522A and NDS3556 (SD, DVB-T Version)




Items

FUTV4622A

FUTV4656 (SD, DVB-T )

Video Encoding

H.264 MP_L 3.0

MPEG-2 MP_ML

Resolutions

Input and output scanning format and frame rate change

Input and output scanning format and frame rate  keep the same

Audio bit rate

Up to 320kbps

Up to 384kbps

MER

>=31dB

>=42dB

RF Frequency

142.5~858 MHz

30~960MHz

Output Level

-14~ +6dBm

-16~ -36dBm

Transmission Mode:

2K, 8K

2K, 8K (8K is optional as per ordered)

USB (External USB Disk)

System upgrade

System upgrade, TS record and playback
