FUTV4656H DVB-T/DVB-C(QAM)/ATSC MPEG-4 AVC/H.264 HD Encoder Modulator (Tuner,HDMI in; RF out) with USB Record/Save/Playback/Upgrade for Home Use











Overview


FUTV4656H series encoder & modulator is FMUSER’s consumer electronics which allow audio/video signal input in TV distributions and video recorded and playback from a USB port with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

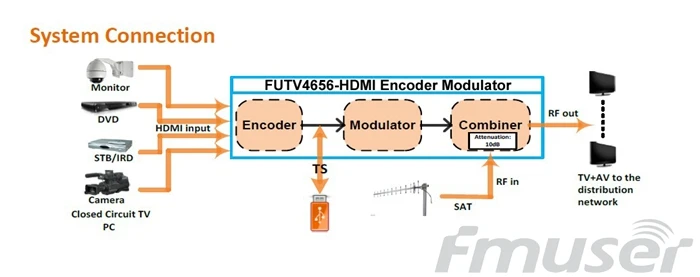

It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T/DVB-C/ATSC RF out.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by a DVB-T/DVB-C/ATSC standard TVs or STBs etc.





Technical Specifications

Encoding Section

HDMI

Video

Encoding

MPEG-4 AVC/H.264

Interface

HDMI*1

Resolution

1920*1080_60P,1920*1080_50P;

1920*1080_60i, 1920*1080_50i;

1280*720_60p, 1280*720_50P

Bit rate

0.500~19.500 Mbps

Audio

Encoding

MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC available )

Sample rate

48KHz

Bit rate

64, 96,128, 192, 256, 320, 384kbps

Modulator Section

DVB-T




Standard

DVB-T COFDM

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM,

Code rate

1/2, 2/3, 3/4, 5/6, 7/8.

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode:

2K, 8K

MER

>=42dB

RF frequency

30~960MHz, 1KHz step

RF output level

-16~ -36 dBm (71~91 dbuV), 0.1db step

DTMB




Standard

GB20600-2006

FFT

1,3780, 1+pilot

MER

>=42dB

FEC

0.4, 0.6, 0.8

Frame Mode

420, 595, 945, 420var, 945var

Interleaving

240, 720

RF frequency

30~960MHz, 1KHz step

RF output level

-16~ -36 dBm (71~91 dbuV), 0.1db step

Constellation

4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM

DVB-C




Standard

J.83A (DVB-C), J.83B, J.83C

MER

>=43dB

RF frequency

30~960MHz, 1KHz step

RF output level

-16~ -36 dBm (71~91 dbuV), 0.1db step

Symbol rate

5000-9000 Ksps




J.83A

J.83B

J.83C

Constellation

16/32/64/128/256QAM

64/ 256QAM

64/ 256QAM

Bandwidth

8M

6M

6M

ATSC




Standard

ATSC A/53

MER

>=42dB

RF frequency

30~960MHz, 1KHz step

RF output level

-16~ -36 dBm (71~91 dbuV), 0.1db step

Constellation

8VSB

ISDB-T




Standard

ARIB STD-B31

Bandwidth

6M

Constellation

DQPSK,QPSK, 16QAM, 64QAM

Guard Interval

1/32, 1/16, 1/8, 1/4

Transmission Mode

2K, 4K, 8K

MER

>=42dB

RF frequency

30~960MHz, 1KHz step

RF output level

-16~ -36 dBm (71~91 dbuV), 0.1db step

System

Management

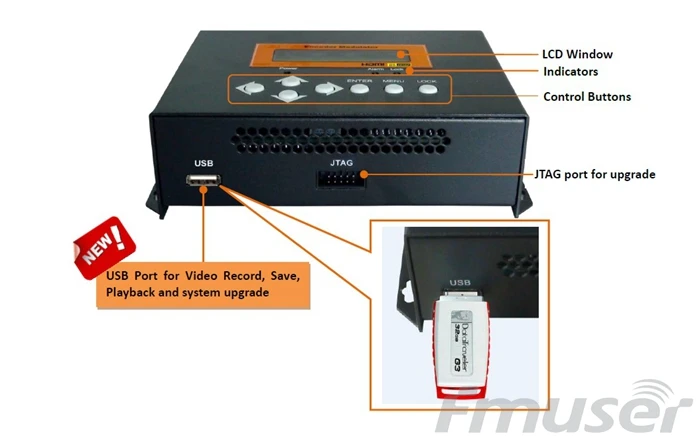

Local control: LCD + control buttons

Language

English

LCN Insertion

yes

Upgrade

JTAG

General

Power supply

DC 12V

Dimensions

153*110*50mm

Weight

< 1kg

Operation temperature

0~45C



Technical Comparison



Main Features

FMUSER FU4656/FU4657

Competing Products

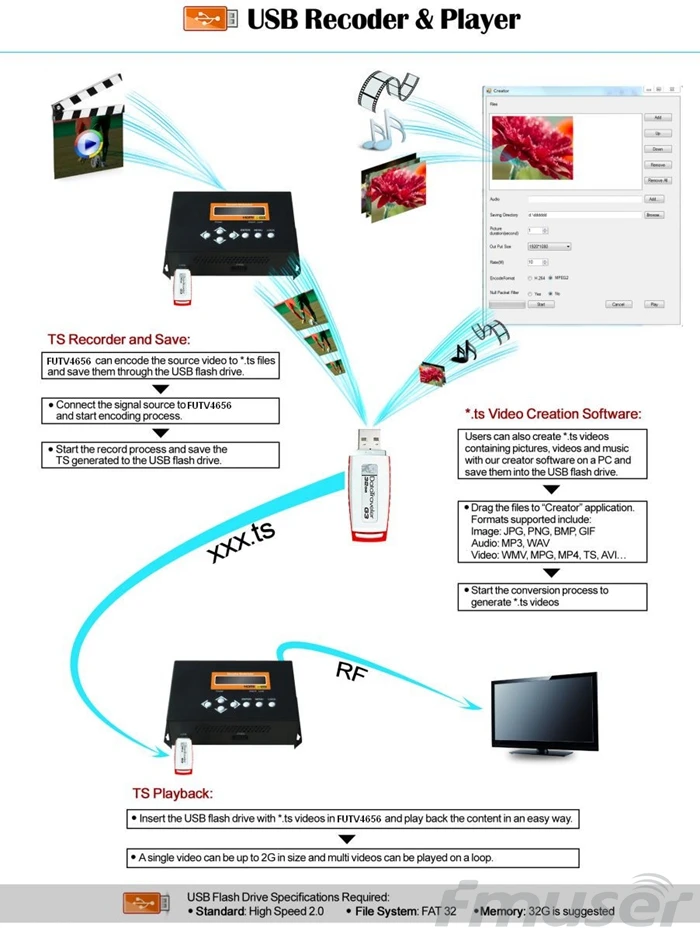

Record TS to USB memory

Yes (FU4656)

No

*.ts files play-mode supported

Both Multi/Single files loop

Support HD&SD video play

Single file loop

Support only SD video play

TS Creator.exe

HD video to HD video transform

Null Packet Filter, effect bit rate up to 90%

Support output video size, rate, and format control

HD video to SD video downscale

No Null Packet Filter, effect bit rate only around 50%

Single video length

2-3 Hours HD/SD

40 Minutes SD
