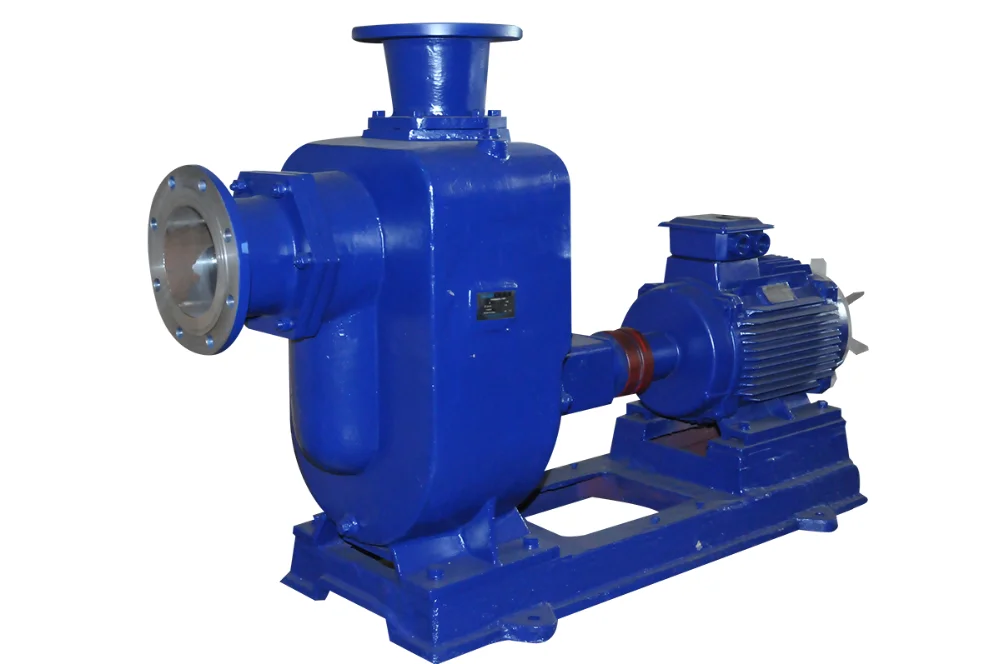

FZB Series Fluorine Lined Self-Priming Centrifugal Pump

FOB Reference Price:Get Latest Price
$588.00 - $638.00 / Sets | 1 Set/Sets (Min. Order)
Horsepower:
10HP
Maximum Flow Rate:
12.5m3/h
Maximum Head:
45m
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SHGTO
Model Number:
50FZB-45L
Structure:
Single-stage Pump
Usage:
Water
Application:
Maritime
Power:
Electric
Pressure:
Low Pressure
Standard or Nonstandard:
Nonstandard
color:
Customized
Material:
cast iron
Impeller:
F46
Shaft:
3Cr13
Voltage:
220V/380V/415V
Speed:
2900rpm/min
Motor Power:
7.5kw
Packing:
plywood case
Delivery time:
15 working days
Supply Ability
Supply Ability:
10 Set/Sets per Day
Packaging & Delivery
Packaging Details
plywood case
Port
Shanghai,Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated
Product Description

Product Application

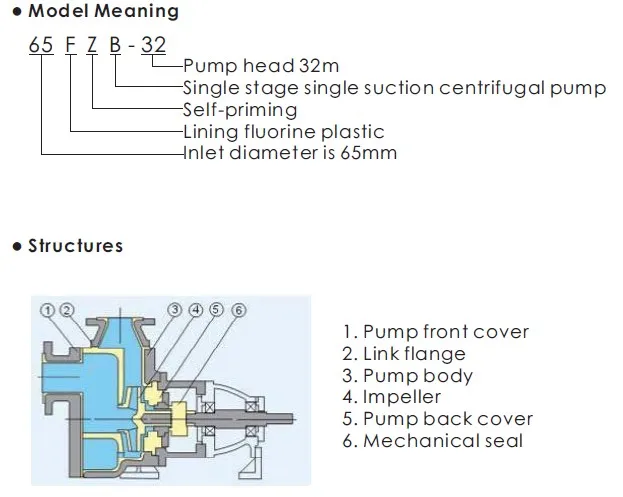

FZB Series Fluorine Lined Self-Priming Centrifugal pump:
▶flow components are made by fluorine plastic;
▶adopts advanced externally mounted bellows mechanical seal;
▶easy adjustable;
▶self priming height: 3~4m (for water);
▶widely used in pickling process, acid and alkali production, chemical, pesticide, papermaking and electronic industries;
▶operation temperature: -20~120℃

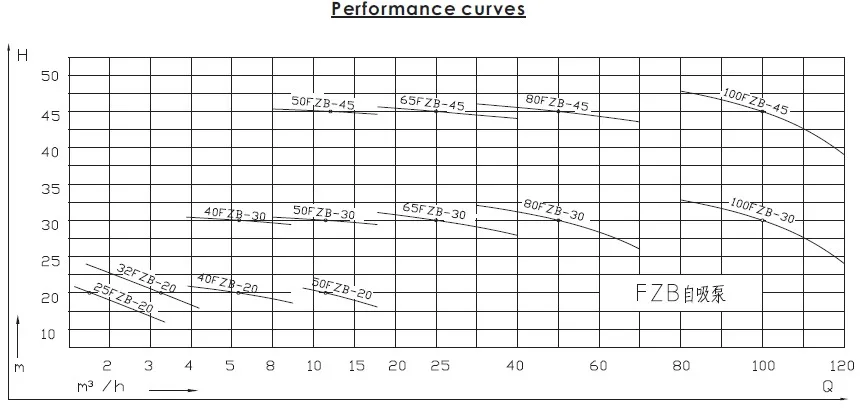

Performance



Motor
Motor power
kw
7.5
Speed
rpm/min
2900
Voltage
v
220/380
Ingress protection
~
55
insulativity
~
F

Main performance parameters
capacity

m3/h
12.5
head
m
45

Material
pump casing
cast iron
impeller
F46
Packing & Delivery
Packaging
Size
123(L) *  456(W) *  789(D)
Weight
42~4000kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
42~4000kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pefilm for packing or pack it according to customers' special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
