Factory Direct OEM/ODM Dvr SDK Hi3521 mainboard/motherboard dvr API pcb board

  • 10-199 Pieces
    $28.00
  • 200-599 Pieces
    $25.00
  • >=600 Pieces
    $15.00
Type:
DVR
Channels:
4
$
- +
available
8
$
- +
available
16
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 240 Pieces)
Customized packaging (Min. Order: 240 Pieces)

More

Graphic customization (Min. Order: 240 Pieces) Less
Samples: $150.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $150.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SZSUNTEX
Model Number:
ST 4003A
Product Name:
4 CH dual SD Card mobile DVR
Video Compression:
H.264
Resolution:
1080P/960P/720P/D1/CIF
Video Input:
4 CH Video Input
Video Output:
2 CH Video Output(CVBS+VGA)
Playback:
4 CH Palyback
Storage:
2*128GB SD Card
Power Input:
8V~36V
Size:
150mm*147mm*40mm
Certification:
CE,FCC, RoHS

Packaging & Delivery

Selling Units:
Single item
Single package size:
12.67X8.46X2.12 cm
Single gross weight:
0.400 kg
Package Type:
Paper box or as customer's requests
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 200 >200
Est. Time(days) 5 To be negotiated
Product Profile


Features


(1) HIS Solution,H.264 Compression, Multiple stream recording, 4ch real-time 720P AHD/TVI/CVI input/4ch non real-time 1080P AHD/TVI/CVI input

(2) High quality real time recording, 1080P/960P/720P/CIF/HD1/D1 Optional

(3) 8-36V wide voltage,Provide reverse voltage/overload/short circuit protection

(4) Support 12V DC/3Amp voltage output , power supply for Camera/Screen etc;

(5) Max TWO 128GB SD Card Mirror Recording,protect DVR from shock & Dust damage;

(6) Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, and ensure data integrity

(7) ACC Delay off,can set 24 hours;

(8) Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 10-15s.

(9) Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;

(10) Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;

(11) Support GPS/BD,3G/4G Module Optional, WIFI extend/HOT;

(12) Strong Network,device configure via IE Web,

(13) Support Monitoring,Intercom, PTZ, Alarm,Over speed etc through remote control platform;

(14) 4ch Alarm input (Door Open,Light,Turn direction,brake,reverse etc)

(15) 2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut off;

(16) High level aviation interface,easily installation and better shockproof, more stable;

(17) Strong Stable Application,Support Real-time monitor, talk-back,playback,record,picture snap etc;

(18) Updated through SD or Remote Automatic updating,more stable and convenient;

(19) Support Phone Remote Monitor,3G Phone Calling etc;

( 20) Support PTZ/Oil Sensor/LED Advertisement Panel etc;

Functions

(1) Internal and external conditions of the vehicle can be monitored remotely through 3G/4G/WIFI function. For example,monitoring and viewing the behavior of driver and passengers in real time.

(2) Through the GPS function, remote monitoring and viewing driving route and location in real time.

(3) Fuel level sensor , prevent from stealing oil , and support fuel alarm.

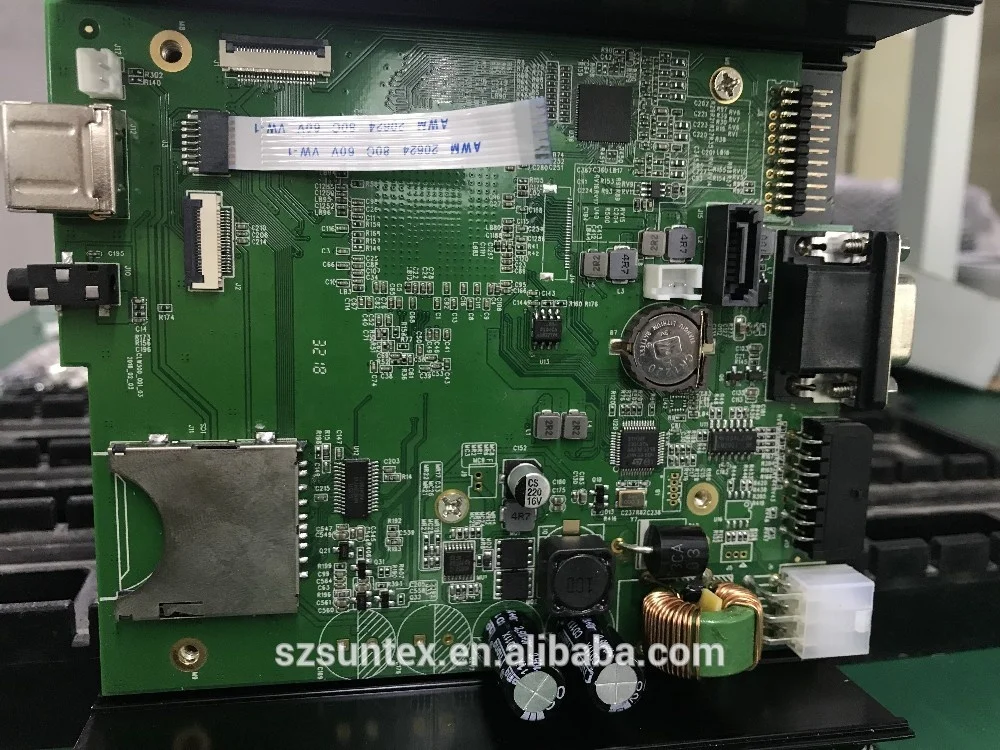

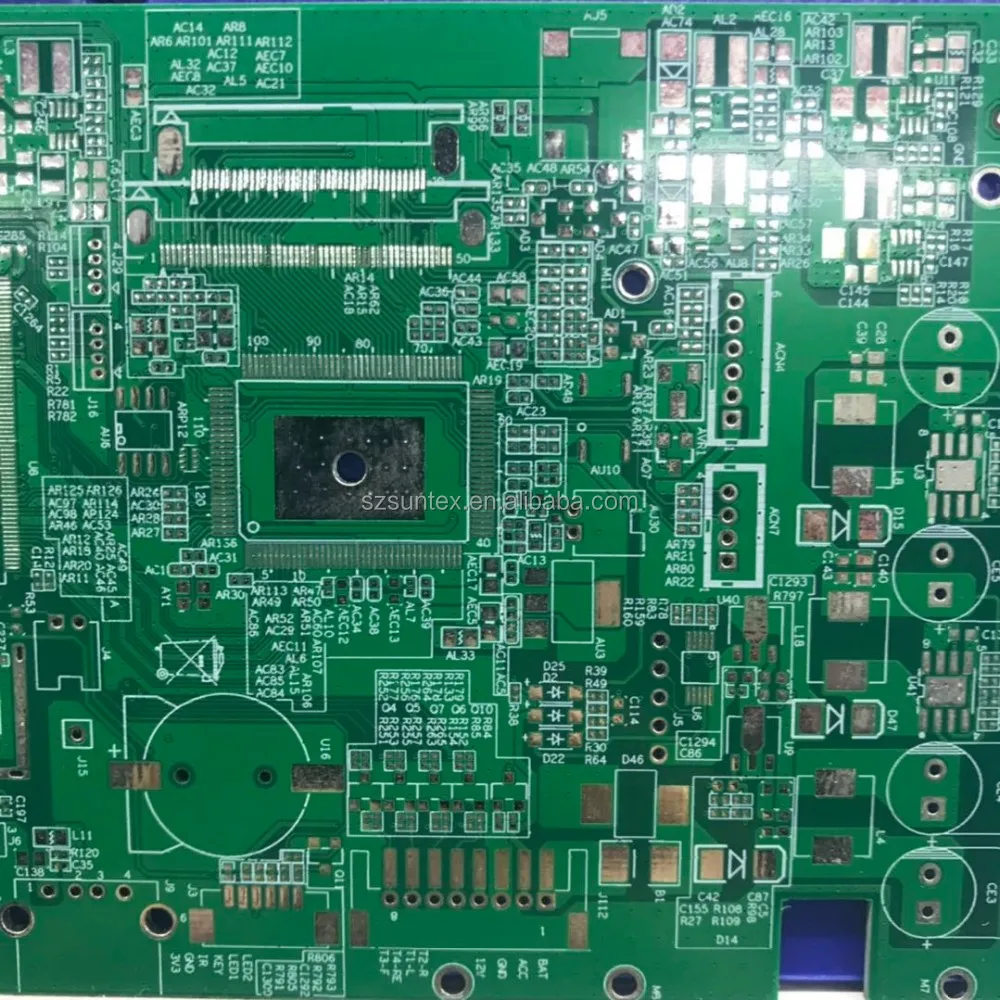

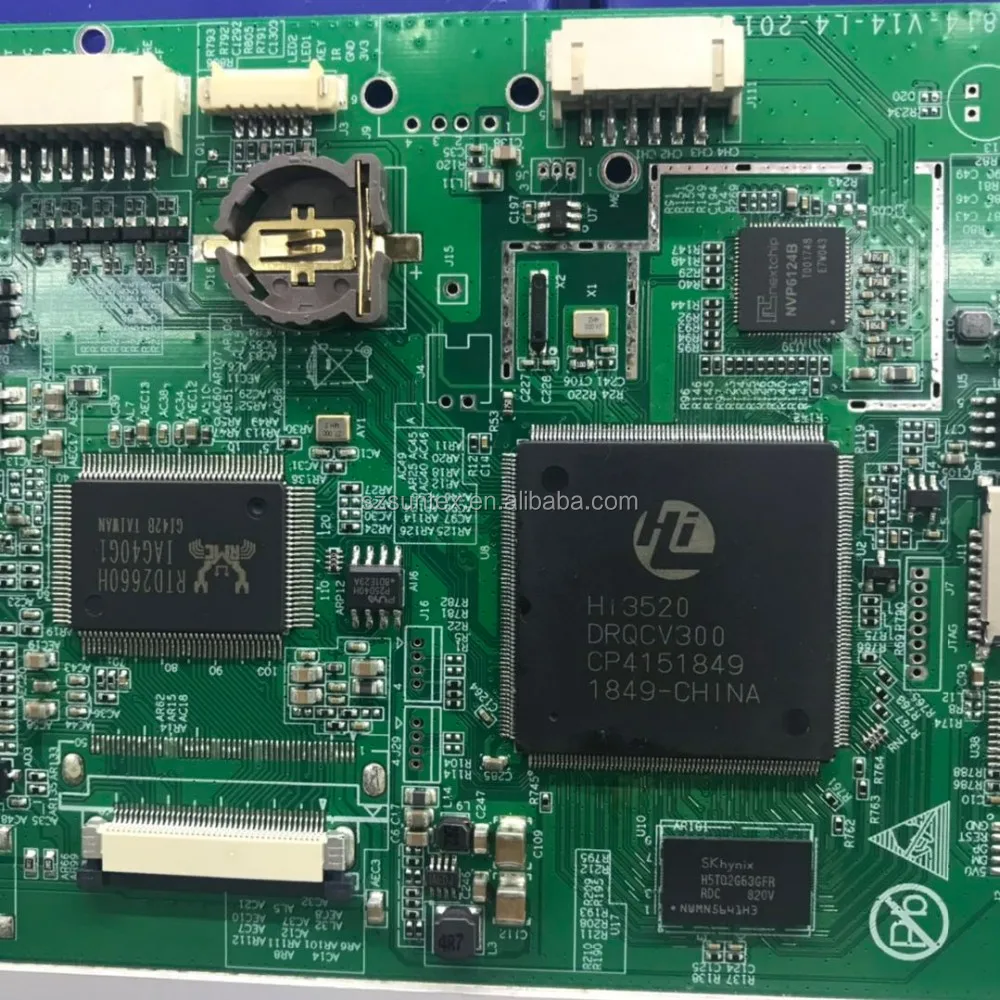

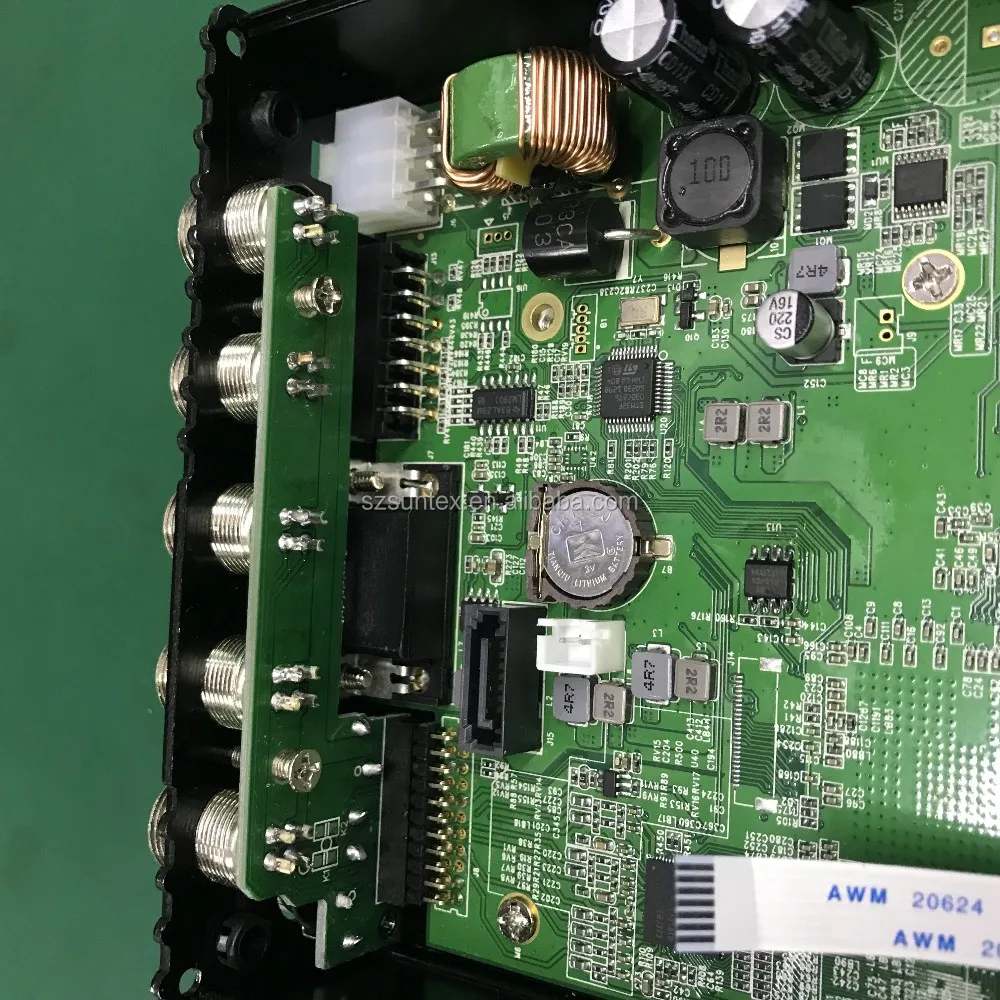

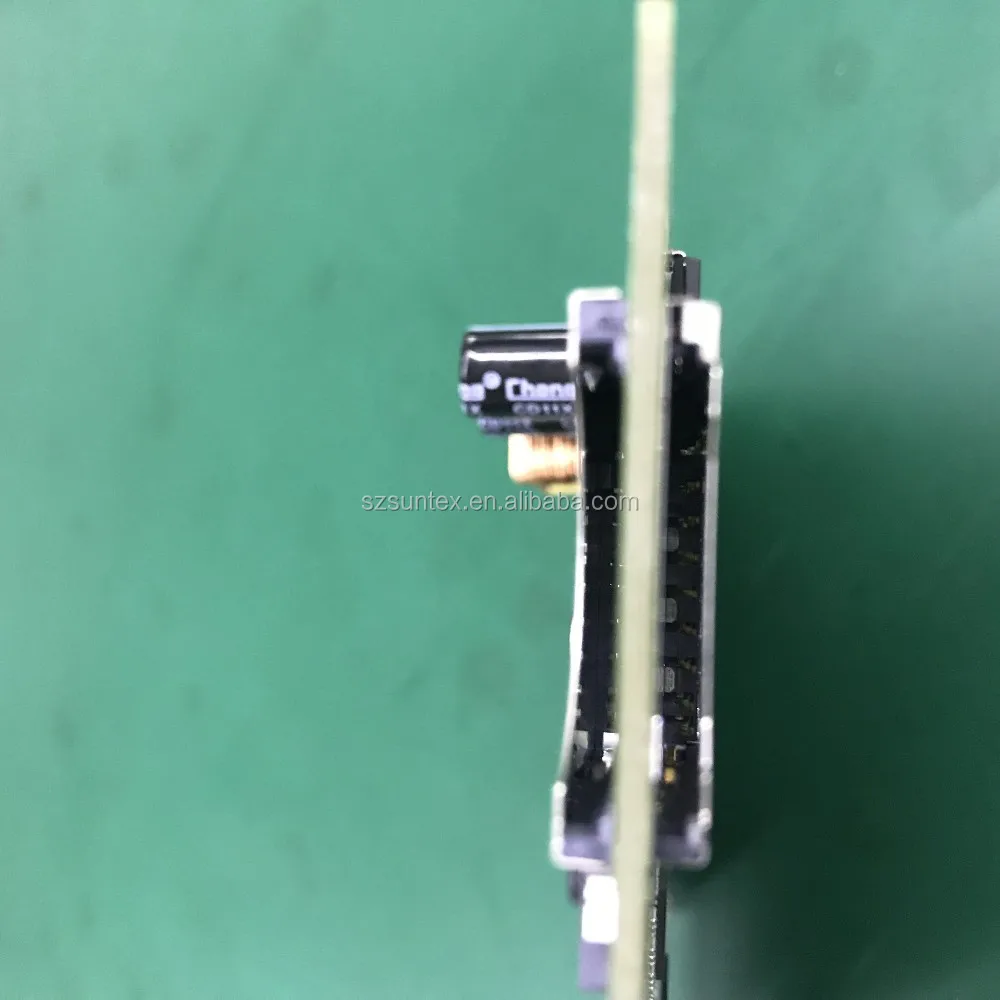

Detailed Picture
Product Description
Item
Specification
OS
Linux
Language
Chinese/English/Others( can be customized)
Video Compression
H.264
OSD
Overlays information such as date time and vehicle ID








Video Record System
Video Input
4CH* 1080P
Video Output
2CH video output(1 CH AV video, VGA output for optional)
Preview
Support 1 channel and 4 channels preview
Resolution
Support 1080P/960P 720P/D1/CIF, MAX: 4 channel 1080P
Record Mode
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported
Audio
Audio Input
4 channel
Audio Output
1 channel

Alarm Input
4CH IO Alarm Input, Support alarm linkage function

Alarm Output
2CH Relay Alarm Output, Support the linkage acousto-optic alarm, cut off fuel oil/power, etc.



Communication Interface

1 CH RS232, support extension device, such as POS machine, Oil Fuel sensor, LED advertising screen, etc.
1CH 485 interface, can connect PTZ, etc.


Wireless transfer

Support Built-in 3G network, WCDMA, CDMA2000, TD-SCDMA compatible with GPRS, EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE


         Video Storage
Storage
2* 128GB SD Card mirror recording to protect data from loss
Upgrade
Support USB flash disk updating SD card upgrade, OTA remote upgrade automatically



       Video Playback
Video Search
Search video by Record Time/Record Type etc.
Playback
Max support 4CH Replay/Stop/Fast Forward/Fast Reverse at same time
Support × 2, ×4, ×8, ×16. Fast forward or fast backward play



  Voltage & Power Consuption
Power Management
Adaptive wide power input, support Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection.Support Time Setting/Delay power off
Voltage Input
DC: +8V ~ +36V
Voltage Output
+12V 2.5A
Power Consuption
Normal Working < 5W
Working Environment
Temperature
-20℃ ~ 70℃
Humidity
20% to 80%
Others
Size
15 CM(D)* 14.7CM* 4CM(H)
Net Weight
0.85Kg
