Factory Direct Sale 5v/10w Silicone Rubber Heater Usb Powered Heater Silicone Rubber Heating pad

FOB Reference Price:Get Latest Price
$1.50 - $15.00 / Pieces | 1 Piece/Pieces (Min. Order)
Power(W):
1w/cm2
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Graphic customization (Min. Order: 10 Pieces)

More

Customized packaging (Min. Order: 10 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Band Heater
Power Source:
Electric
Dimension(L*W*H):
customized
Weight:
according to the size
Warranty:
one year
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Overseas third-party support available
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
VINSON
Voltage:
12V-480V
Certification:
CE, Rohs,ISO9001
Thickness:
1.5mm -3mm
Operation temperature::
250 ℃
Heating element:
Ni-Cr or FeCrAl
Shape:
customized
thermostat:
with or w/o
Lead wire:
300-1500mm
3M self-adhesive:
with or w/o
Supply Ability
Supply Ability:
2000 Piece/Pieces per Week usb powered silicone rubber heater
Packaging & Delivery
Packaging Details
Plastic bag+ Carton box of Factory Direct Sale 5v/10w Silicone Rubber Heater Usb Powered Heater Silicone Rubber Heating pad
Port
Shanghai port of Factory Direct Sale 5v/10w Silicone Rubber Heater Usb Powered Heater Silicone Rubber Heating pad
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Product Description

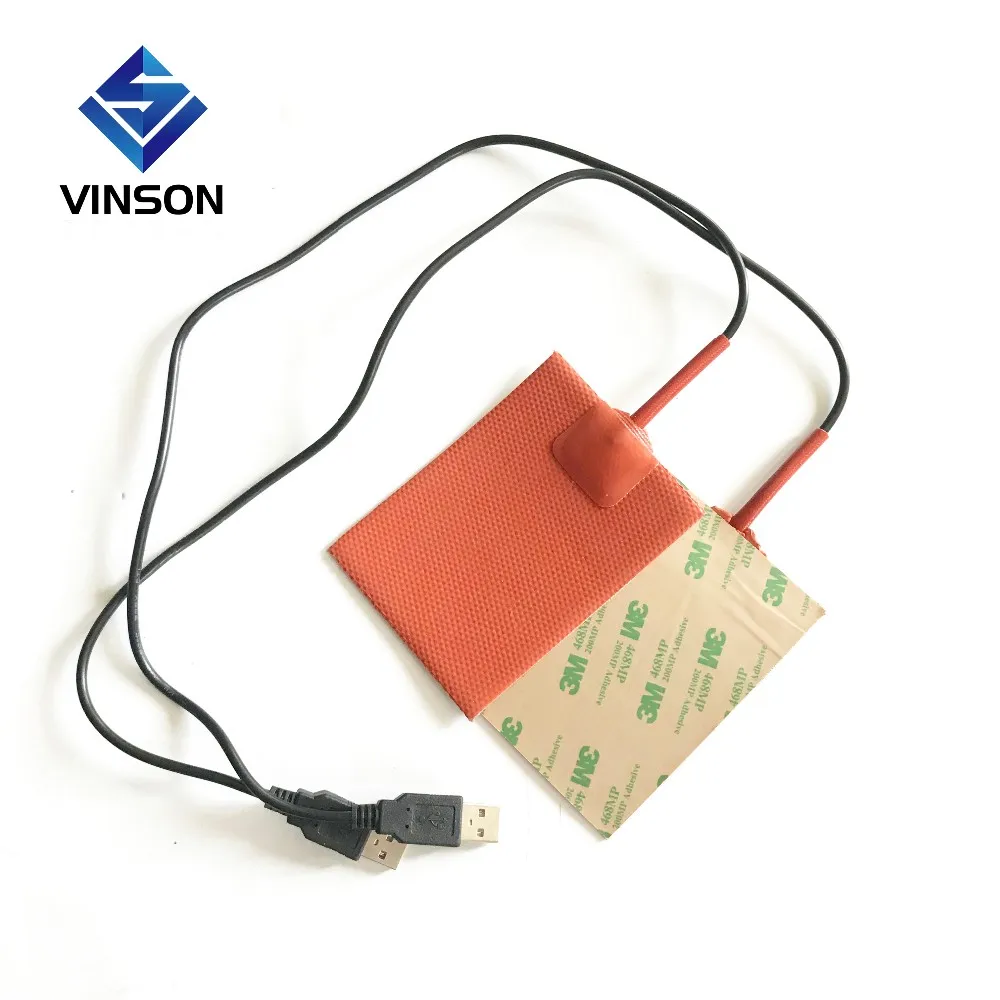

Factory Direct Sale 5v/10w Silicone Rubber Heater Usb Powered Heater Silicone Rubber Heating pad

Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements. Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.

Maximum temperature resistant of insulant
300°C
Maximum Operating Temperatures
 250 °C
Power deviation
8%
Insulating resistance
≥ 5 MΩ
Compressive strength
1500V/5
Width
20mm-1000mm
Length
25mm-1000mm
Fast heat diffusion, Uniform heat transfer, Directly heat objects on;high thermal efficiency, high strength, long service life,work safe uneasy for ageing.
Capacity
Size
Temperature controller
Power
25 liter
125mm x 800mm
30-150°C
300W
50 liter
125mm x 940mm
30-150°C
500W
105 liter
125mm x 1300mm
30-150°C
800W
200 liter
180mm x 1665mm
30-150°C
1500W

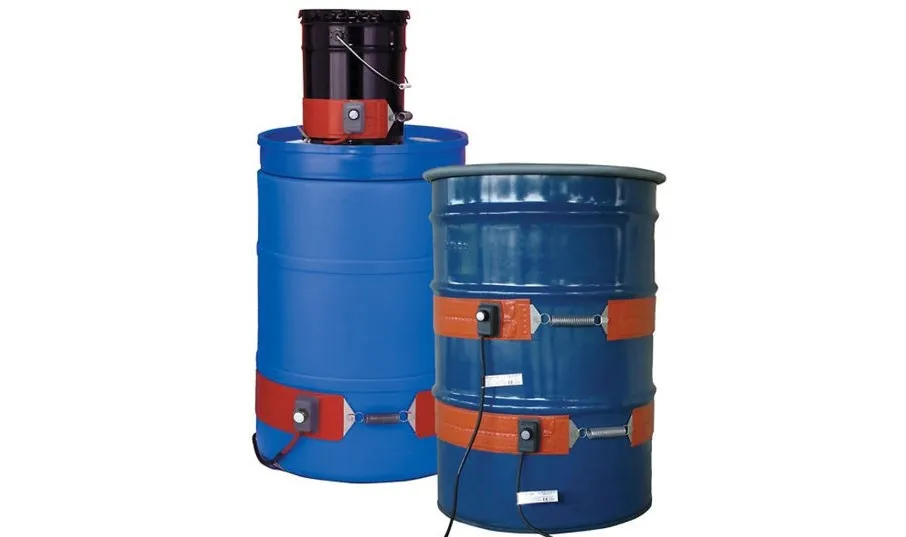

Applications of Diesel Oil Heater
Outdoors telecommunication equipment
Industrial equipment, pipelines, barrels, tanks, etc.
Medical equipment and devices
Outdoors electronic devices
Thermal imaging of imaging equipment
Case protection under cold and moist environment
Industrial ovens and thermal processing equipment
Ventilator supports
Laminating equipment
Vessels
Certifications
Detailed Images

Advantages of silicone rubber heater:


•Dimensional stability
•Economical
•Excellent Dielectric Properties
•Superior Heat Transfer
•Uniform Heat Output



Specifications:


• Sizes: up to 36" wide (consult factory)

• Standard Thickness: 0.030", 0.043", 0.056''

• Maximum Operating Temperature: 400°F (204°C) intermittent

• Minimum Operating Temperature: -60°F (-50°C)

• Maximum Watt Density: 60 watts/in²

• Maximum Voltage: 600 volts

• Wattage Tolerance: standard +5% -10%

Mounting Methods:


 • Pressure Sensitive Adhesive Surface (PSAS)
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding




Packing & Delivery
Packaging
Size
40(L) * 30 (W) * 30 (D)
Weight
30KG of Factory Direct Sale 5v/10w Silicone Rubber Heater Usb Powered Heater Silicone Rubber Heating pad



Packaging Details



The normal package is Carton box(Size: L*W*H). for Fiberglass Reinforced Silicone Rubber Heater Blankets 120 VAC
Packaging
Size
120 (L) * 120 (W) * 120 (D)
Weight
300KG of Factory Direct Sale 5v/10w Silicone Rubber Heater Usb Powered Heater Silicone Rubber Heating pad



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
