Factory Outlet 75-110mm PPR Pipe Welding Machine

FOB Reference Price:Get Latest Price
$14.50 - $20.75 / Sets | 1 Set/Sets (Min. Order)
Model Number:
20-36 20-75 20-110
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Hesu
Voltage:
220V
Power:
600-1200W
Frequency:
50 /60HZ
Welding Area:
20-110mm
Dimensions:
20-110
Weight:
differ
Usage:
plastic pipe welding
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
welding machine
Application:
PPR connection
Ambient temperature:
240-280℃
Rated Voltage:
220V
frequency:
50 /60Hz
Working temperature:
260 ± 5% °C
Insulation resistance:
≥1MΩ
Leakage current:
≤4mA
Material:
Aluminum Alloy
Function:
butt fusion
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard shipping package
Port
Shanghai / Qingdao/ Tianjin Port
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Video Description
Product Description

Factory Outlet 75-110mm PPR Pipe Welding Machine

Product Name
 welding machine
Application
  PPR connection
Rated Power
600-800W
Voltage range
AC 120V
frequency
 50/60 HZ
Working temperature
240-280° C
nominal outside diameter(mm)
Hot melt depth   (mm)
heat-up time (s)
processing Time(s)
cooling time (min)
20
14
5
4
3
25
16
7
4
3
32
20
8
5
4
40
21
12
6
4
50
22.5
18
6
5
63
24
24
8
6
75
26
30
10
8
90
32
40
10
8
110
38.5
50
15
10

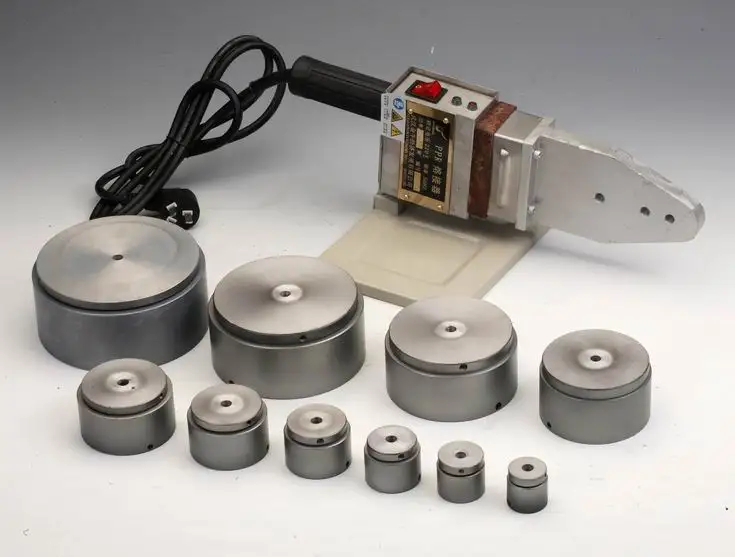

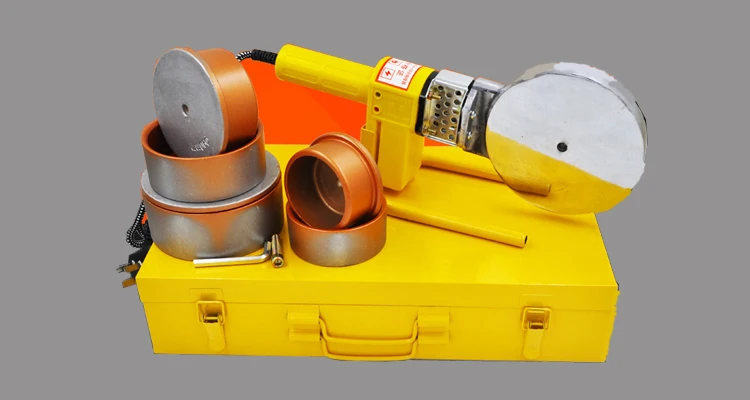

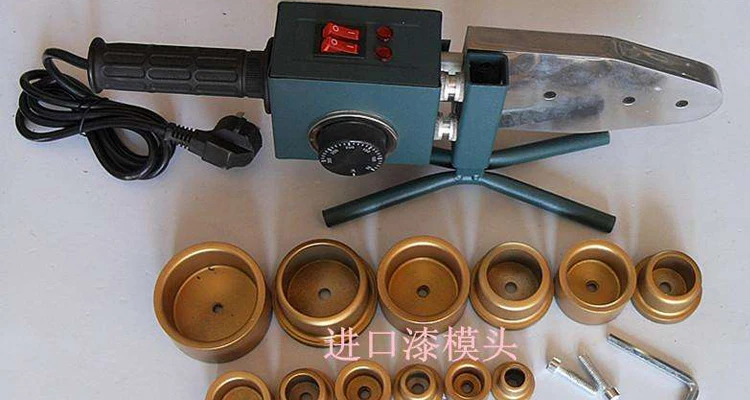

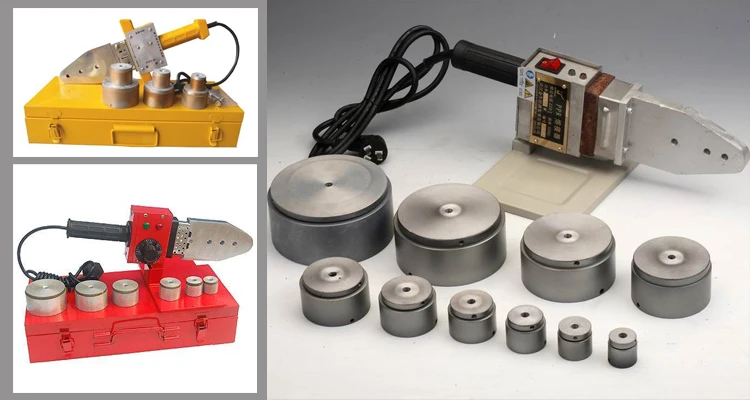

Products Show

The method of use:

Ⅰ: Place the fusion splicer on the base, install the corresponding heating die according to the required pipe specifications, and tighten with the hex. Generally small at the front end is big at the back end.

Ⅱ:Turn on the power (note that the power supply must have a grounding protection wire), the heating indicator light is on, after a few minutes of heating, the heating indicator light is off, the constant temperature indicator light is on, so after two cycles, it indicates that the fusion splicer enters the computer to automatically control the temperature. Status, you can perform the welding operation.

Ⅲ:Cut the pipe vertically with a pipe cutter, and push the pipe and pipe fittings into the die without rotating the screw, and operate according to the following table. Immediately after the heating time, the pipe and the pipe fittings are removed from the die at the same time. The non-rotating straight line is evenly inserted into the desired depth to form a uniform flange at the joint.

Note:

if the operating temperature is lower than 5 ° C, heating time be prolonged by 40%.Special reminder:

1. In order to be safe, the power socket with ground wire must be inserted into the power socket and the power supply is stable. The bottom line is well grounded!

2. The user shall not change the structure of the plug of the power cord without permission. In case of any failure, the user shall start up the power line and repair it by himself.

Hand-Rotating Butt Welding Machine (Y) Type

Full Automatic Multifunction Elector Machine

Hydraulic butt welding machine160/200/250

Our Company


Hesu Piping is a professional manufacturer and exporter of plastic pipes and fittings for more than 10 years,which can provide complete ranges and provide integrated system solutions to all kinds of piping assembly problems for home,industry,agriculture.

Hesu Piping's main products is HDPE,PPR,PVC,UPVC,CPVC,MPVC pipes&fittings,manifold,valves,pipe tools ect which is over 1000 different types.The products are widely used in water supply,floor heating,  and has good feedback in home and abroad.Currently,Our products has been exported to East Europe,middle east,South Africa,South America, Southeast Asia etc.

Our Certifications


Our Exhibition
Packing & Delivery
Packing Details : pcs/package
Delivery Details : Within 15 days after payment

PACKING

We take care of goods,put fittings into nylon bags then out of carton.For pipes we put end cap ,and packing with nylon bags.

OEM packing :We can make packing according to your order,and plating the carton according you need.
