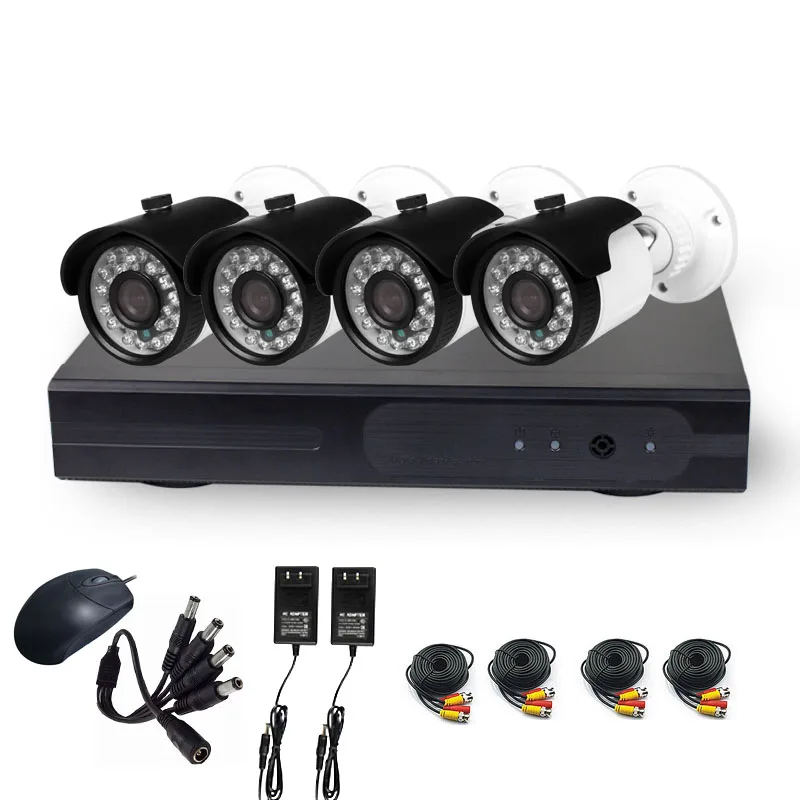

Factory Wholesale Outdoor Bullet IR Night Vision 4ch Channel AHD Camera CCTV DVR Kit 1080P

FOB Reference Price:Get Latest Price
$69.10 - $77.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
XONZ
Model Number:
XZ-KH5104-VX/24S4
Type:
Analog Camera
Style:
Bullet Camera
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Resolution:
1920*1080
Lens:
3.6mm
Product Name:
AHD Camera DVR Kit
Image Sensor:
1/4 CMOS
Keyword:
4CH DVR kits
Certificate:
CE FCC RoHS
Warranty:
Two Years
IR Distance:
15-20 Meters
Power:
DC12V
Camera type:
Bullet AHD Camera
Technology:
NetWork
Supply Ability
Supply Ability:
60000 Unit/Units per Month 2000pcs per day
Packaging & Delivery
Packaging Details
XONZ nature package;
ODM/OEM are acceptable
Port
Shenzhen/Hongkong
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 5 To be negotiated

Factory Wholesale Outdoor Bullet IR Night Vision 4ch Channel AHD Camera CCTV DVR Kit 1080P



Product Description

Camera Specification

720P progressive scan CMOS

Spport Coaxial HD output, image more clear, delicate

Illumination: 0.01Lux@(F1.2,AGC ON),0L-CUT,CDS external control,Day & Night

Support OSD Menu, setting parameter by your wish (optional)pport D-WDR, adaptive 2D-DNR.

Support UTC, control camera menu by DVR.



Model

XZ-KH5104-VE/24S4

Specifications

Sensor

1080P

TV System

PAL/NTSC

Effective Pixes

1920*1080

Min Illumination

0.01Lux@(F1.2,AGC ON),0LUX with IR

Shutter

AUTO

Day/Night

External control (default) / auto / color / black and white

Synchronization

Internal

Frame rate

1080P@20fps

Video Output

AHD

Lens

3.6mm Fixed (6mm/8mm optional)

IR LEDs

24pcs IR LED

IR distance

15-20 Meters



Exposure

Brightness / exposure mode / gain

AWB

Auto white balance/Manual white balance

D & N

Infrared / internal auto / color / black and white

Video Setting

Contrast / Sharpness / Saturation / Digital Noise Reduction / Video Format / Digital Wide Dynamic

Language

Multi-Language



Working temperature

-20℃  to  60℃

Working humidity

Under 90 %

Power

                                                     DC12V(±20%)

Gross Weight

0.4 KG



DVR specification:

Feature:

• Support TVI,AHD,CVI,CVBS,IPCAM 5in1

• Coaxial Support,MAX. 4CH AHD@1080P/720P;

  TVI@1080P/720P;CVI@1080P/720P;Standard analog video real-time input

• Network support Max. 4CH 1080p IPC input ;

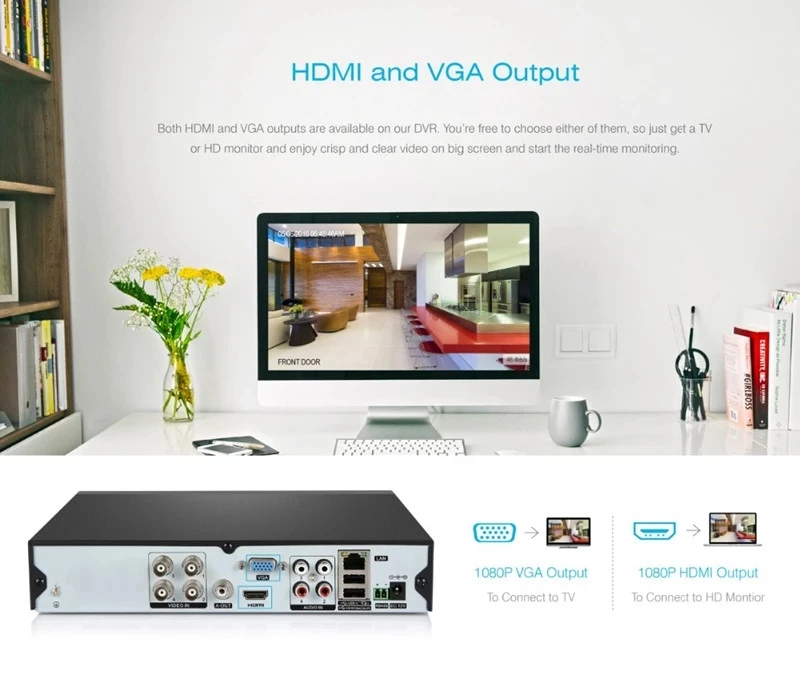

• Support HDMI and VGA output;

• Support Onvif;

• Support web view, PC and Phone device.

• Support query, playback, backup video files

• Support 1 SATA 6TB storage

• CMS provide



Model

XZ-H5104A

Operating system

LINUX

Image coding control

Image coding quality can be adjusted

Dual stream

Support

Video Standard

 H.264

Image playback quality

4CH 720Pplayback/4ch Half-1080Pplayback/1ch 1080P playback

Backup mode

USB and network

Operation method

Mouse

Local login

User name and password

Video save

Local hard drive

Audio/Video Input

DVRmode

Support Max.4CH AHD@1080P/720P; TVI@1080P/720P;CVI@1080P/720P

Mixed mode

Support max. Channel 4,analog channel and IPCAM channel can be switched

IPC video input

Max. 4CH 1080P

Analog video input format

TVI 2.0(720P@25/30/50/60fps,1080P@25/30fps),AHD(720P@25/30fps,

1080P@25/30fps), CVI(720P@25/30fps, 1080P@25/30fps),

CVBS(960H@PAL/NTSC)

Analog video coding resolution

1080P-H(960x1080)@16fps;720P@18fps;960H/D1@25fps

Analog video coding rate

512 Kbps -- 4Mbps

Video output

1×VGA port,1×HDMI port

Audio input

Support 4ch

Audio output

1×RCA audio output

Audio coding

G.711

HDD

HDD port

1×SATA

Max. capacity

Max. 6TB/SATA

External interface

network interface

1×RJ45 10M / 100M Ethernet port

serial interface

1CH RS485 port

USB interface

2×USB 2.0port

Power

DC12V 2A

Power Consumption

≤10W(Without HDD)

Working temperature

-10℃~+55℃

Working humidity

10%-90%

Dimension

DVR:258mm*210mm*42mm

Package:365mm*263mm*75mm

Weight(Without HDD)

Net weight:1.0Kg;gross weight:1.2Kg

Installation method

Desktop



Pictures





Related CCTV kits

4CH 8CH AHD CCTV KIT & 4CH Wireless NVR Kit from XONZ



FAQ

1.Basic Service

1. Any inquiry will be replied within 24 hours
2. Professional manufacturer. Welcome to visit our factory in ShenZhen City
3. OEM/ODM service is offered. Any of your designs are welcomed
4. High quality, fashionable designs, reasonable & competitive price, fast delivery date.

2.After-Sale Service

All products enjoy the 3-year warranty and definitely will be free from maintenance within the warranty period

6.Fast Delivery
Within 3 days for sample order after payment cleared
Within 20 days for mass production after payment cleared

Why choose us

1. Factory direct sales, accept OEM and ODM orders

2. Quality is strictly controlled, at least 48 hours aging test for per unit

3. 24 months  Warranty

4. Professional Tech Team and Best After Sale Service

5. Safety for the delivery

6. Easy installation with the app for iPhone & Android & Computer

7. You are warmly welcome to be our agent abroad

OEM Service

1. Logo

Please offer us your own high resolution logo in JPG format;

There should be two colors at most in the logo;

There should be no gradient effect in the logo;

2. Label

Please offer us your own model numbers,

Other requirements;



3. Packing Box

We will offer you the dimension and the design file;

Please design your own style based on this file then send it back to us;

We will print some samples for your checking;

Payment Terms

1. TT   2. Paypal  3.Western Union

Shipment

1. By TNT, EMS, DHL, UPS or FedEx

2. By our forwarding agent (by air or by sea);

3. By your own forwarding agen

4. By domestic forwarding agents to any city in China.
