Factory custom high capacity 7m length ls screw conveyor machine for power

FOB Reference Price:Get Latest Price
$1,000.00 - $3,500.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Screw Conveyor
Load Capacity:
1.1 to 280 m3 / h
Model Number:
LS120 to LS1250
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Dimensions (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Material:
Stainless Steel, Carbon steelCarbon steel or stainless steel
Material Feature:
Heat Resistant
Structure:
Conveyor System, Conveyor system
Place of Origin:
Hubei, China (Mainland)
Brand Name:
Yiyun
Voltage:
220 v or as a local power source
Power(W):
According to the product demand you choose
Dimension(L*W*H):
Custom size
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support
Type:
flexible screw feeder
Material characteristics:
Heat resistant
Transport material:
Bulk powder
Spiral blade diameter:
100~1250mm
Rotating speed:
13~71turns
Conveyor capacity:
1.4~380m3 / h
Screw conveyor shape:
Tubular or U-shaped
Supply Ability
Supply Ability:
130 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packaging (carbon boxes, wooden cases, pallets or according to customer requirements)
Port
shanghai ,guangzhou ,tianjin,qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

The LS type screw conveyor series is designed and manufactured according to ISO1050 standard. It conforms to the professional standard of ZBJ81005.1-288. Its structure is novel, the head and tail bearings are moved outside the casing, and the intermediate suspension bearing adopts two structures of rolling and sliding interchangeability. The dustproof sealing device is provided, and the discharging end is provided with a cleaning device; the inlet and outlet material device is arranged flexibly, the whole machine has low noise, strong adaptability and convenient operation and maintenance. It has the characteristics of small resistance, strong seal wear resistance and so on. The bearing materials used for hanging bearings are cast copper, alloy wear-resistant cast iron, copper-based graphite, self-lubricating tile and other materials for your choice.
LS type screw conveyor has a spiral diameter of 100-1250mm, a total of 11 kinds of specifications, length of 4-70M, every 0.5M for the first gear, the selection should meet the standard nominal length, special needs can be selected in the optional accessories Make an order request.

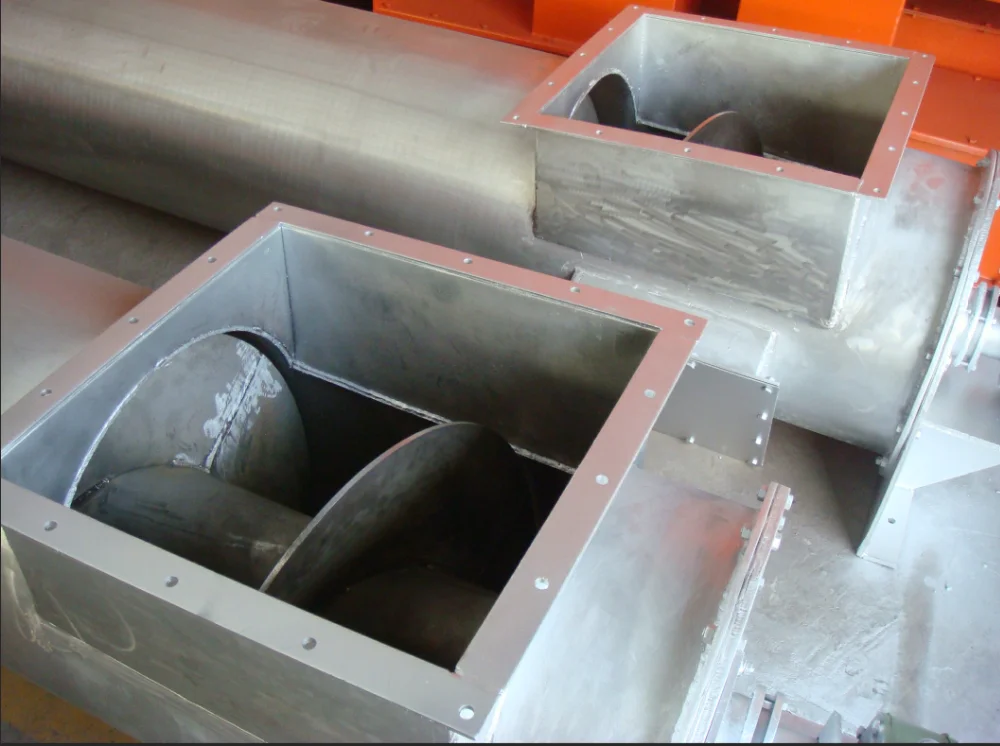

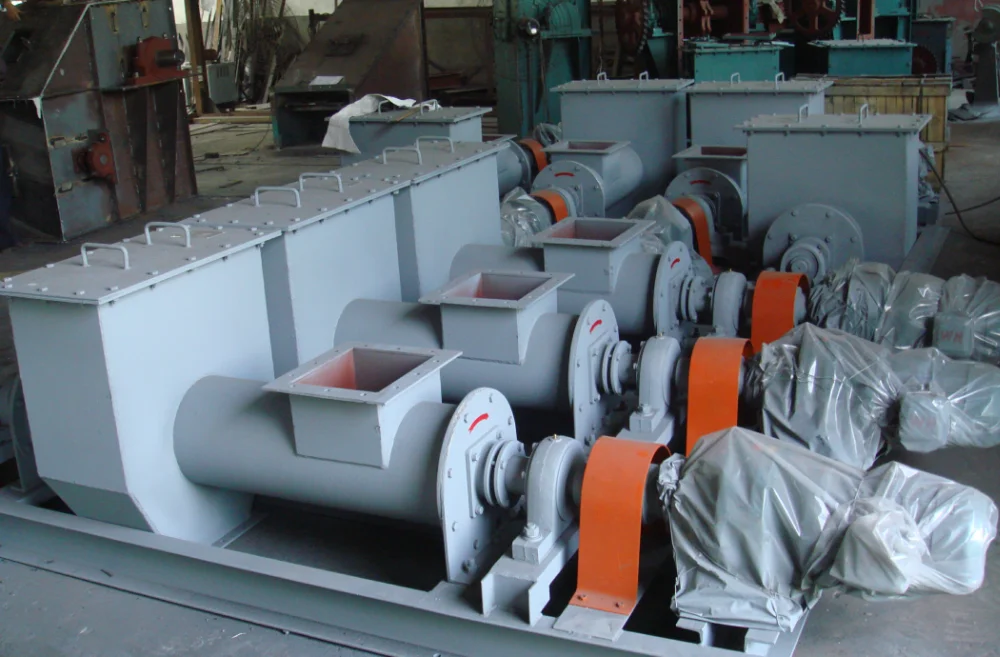

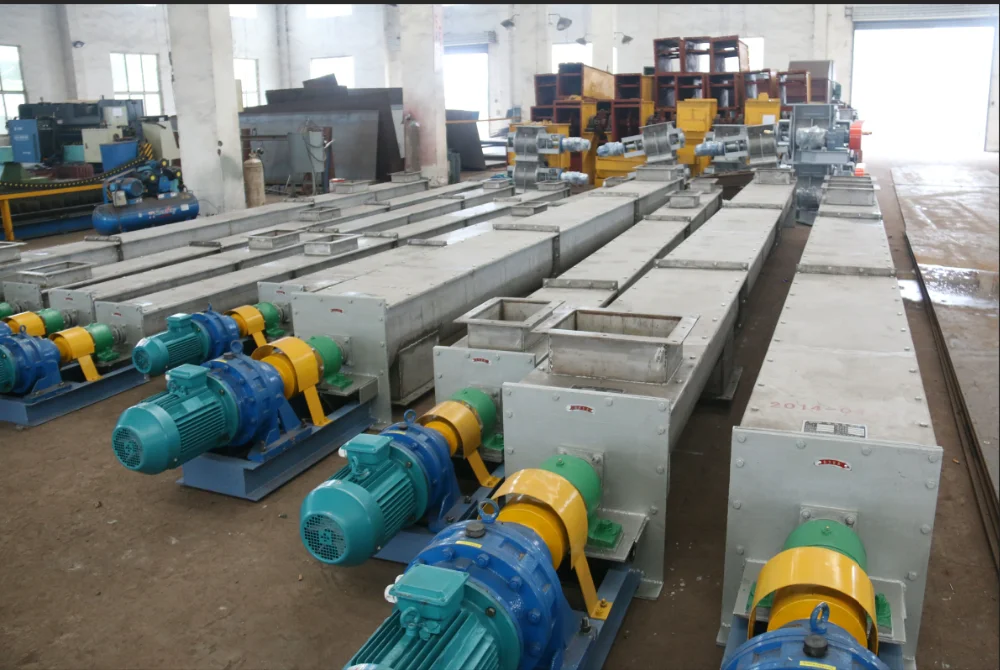

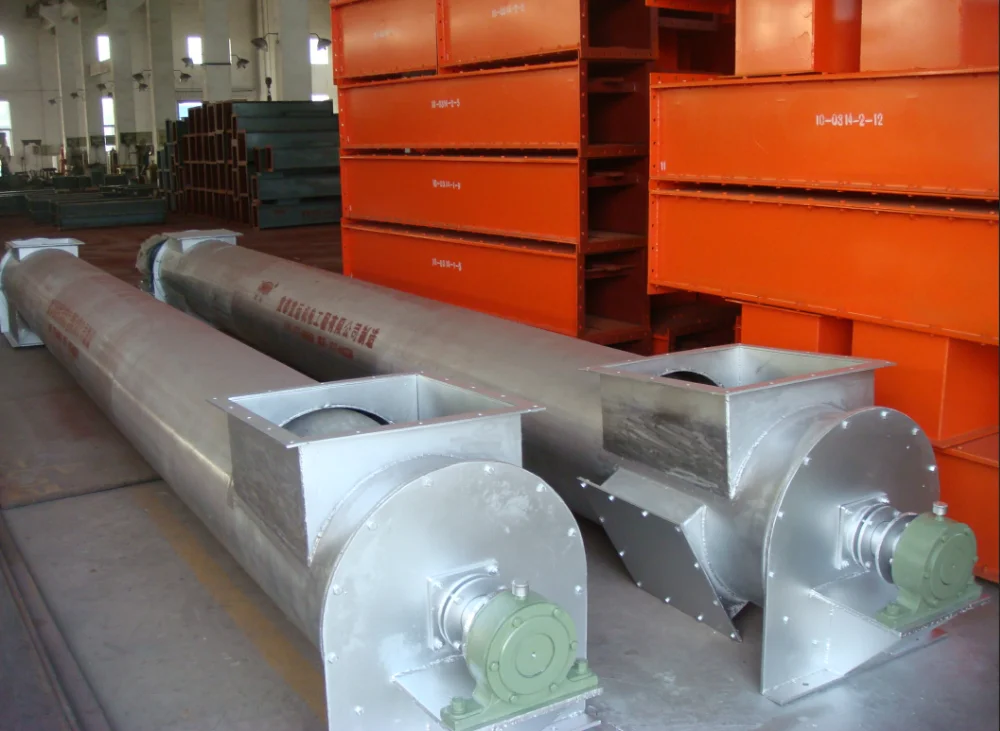

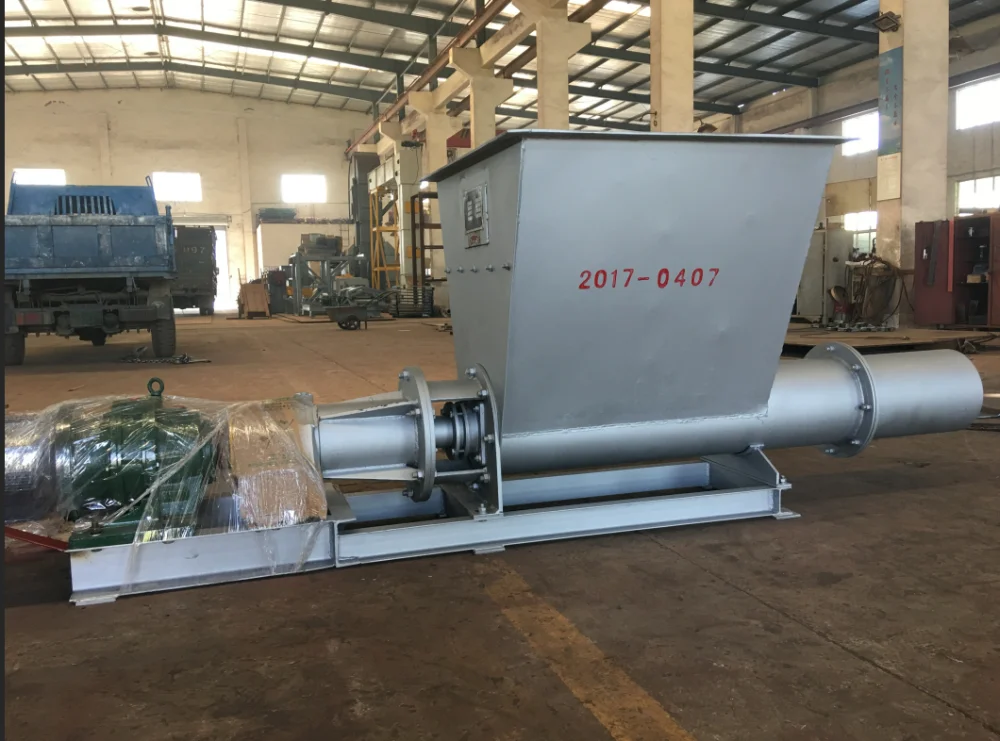

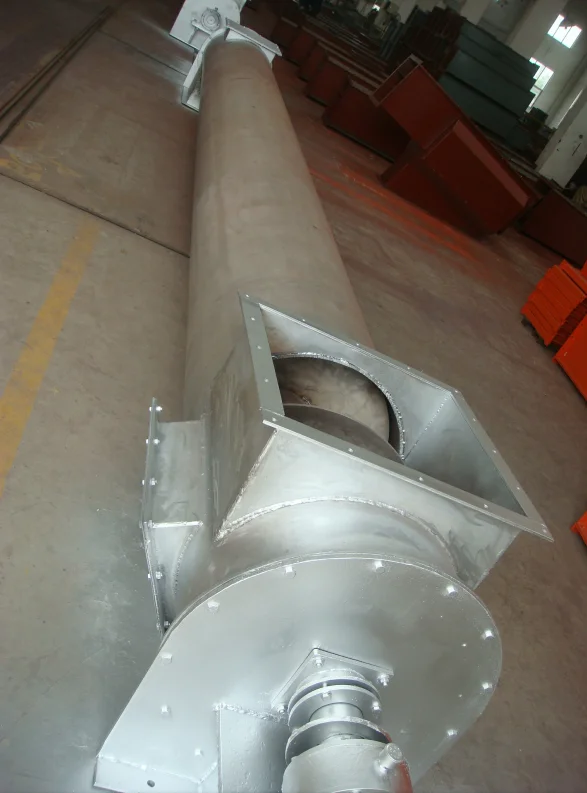

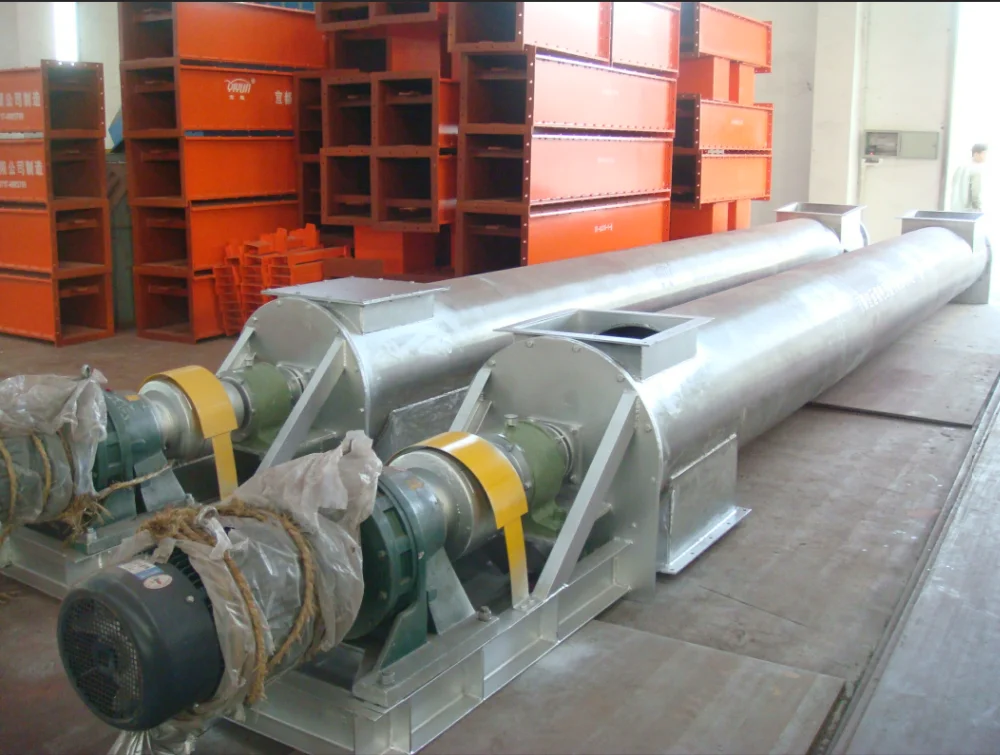

Detailed Images
Packing & Delivery


Packaging Details:Yiyun Electromechanical promises to give you a standard export package. In the container, the spare parts will be packed in wooden boxes.
port:guangzhou,shanghai,qingdao
customized product

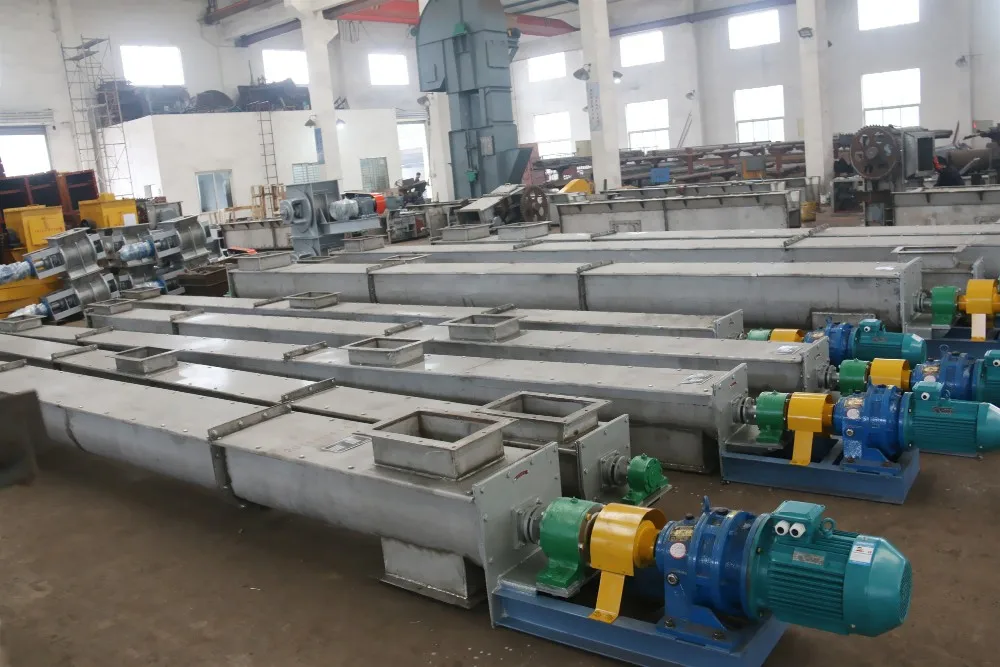

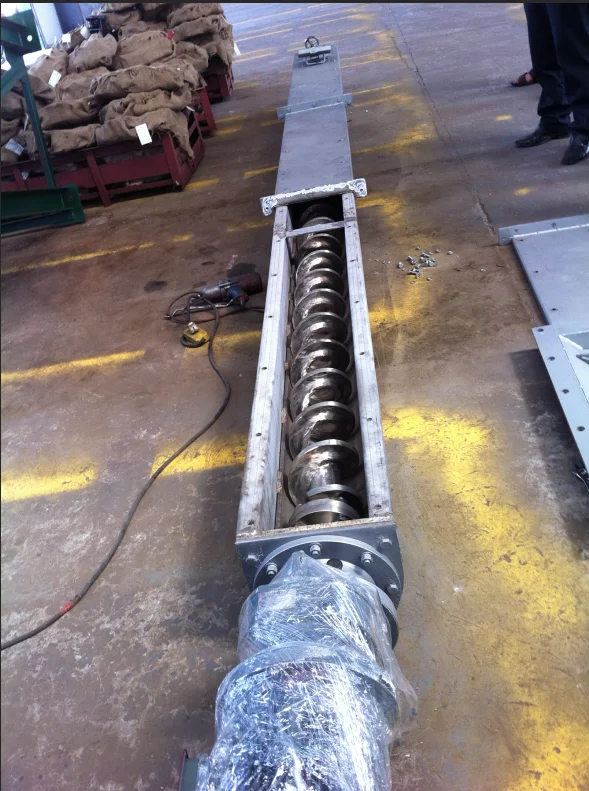

Professional custom stainless steel industry u-type screw conveyor

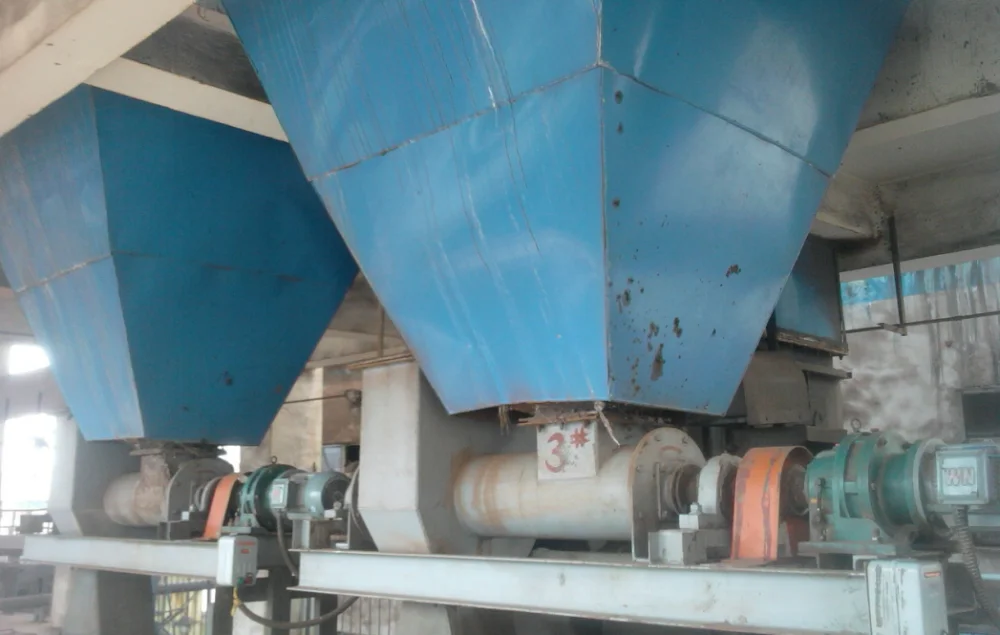

Scope of application

Rotary conveyors are used in many industries, such as building materials, chemical engineering, coal, grain, oil, and feed. Suitable for horizontal or inclined conveyor powder, non-scale and small particle block materials, such as grain, Ding, coal, flour, cement, fertilizer and so on. It does not convey materials that are prone to deterioration, viscosity, and agglomeration; the ambient temperature is -20 to 50 ° C, and the temperature of the conveying material is ≤ 200 ° C.

Can be used in: food processing, pharmaceuticals, powders and energy, petrochemicals, chemicals, mining and minerals, feed processing, plastics and waste incineration etc.


advantage:
1. Ideal delivery method: dry to semi-fluid bulk material - free flowing to slow
2. Use multiple feed and discharge ports to efficiently distribute bulk materials to various locations
3. It can completely seal dust, corrosive or dangerous materials inside the equipment.


Supply capacity:

Supply capacity:1000 Unit/Units per Month



Drive device option:
he machine is driven by a series of cycloidal pinwheels, gears and other reducers. There are two methods: single-end drive (C1 method) and double-end drive (C2 method). The length of the screw machine is <35m according to the C1 method. End drive. The intermediate suspension bearings of the screw machine are divided into rolling suspension bearings (M1 manufacturing method) and sliding suspension bearings (M2 manufacturing method). When the temperature of the conveying material is ≤80°C, the M1 method is generally adopted. When the temperature of the conveying material is >80°C or the wet material is transported, the M2 method should be used.


Structure:

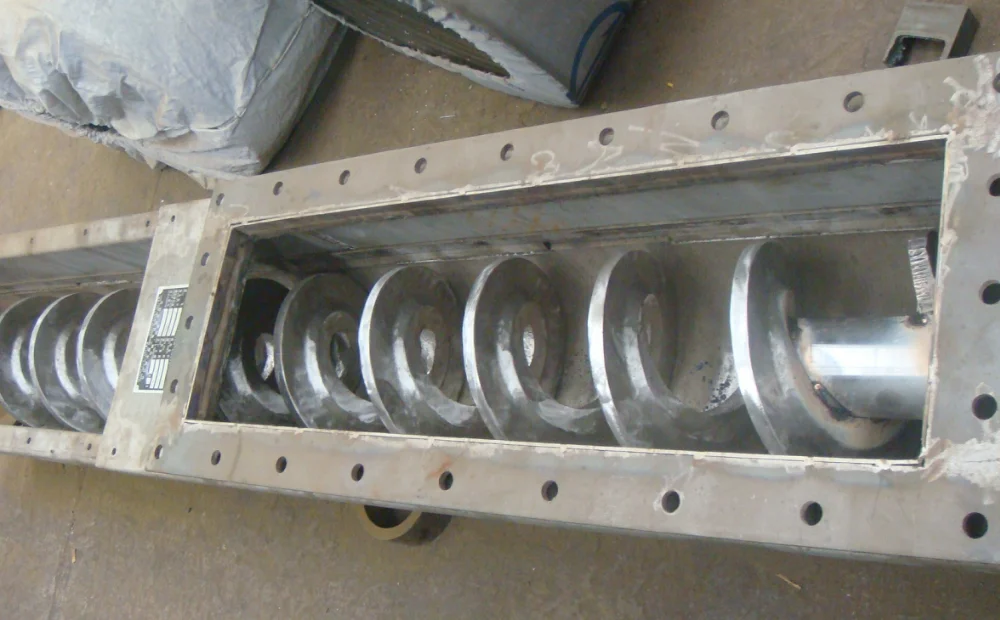

The screw conveyor consists of a drive unit (motor, reducer, coupling or drive chain), drive shaft and blades, housing, cover plate, feed port, discharge port and bearing.

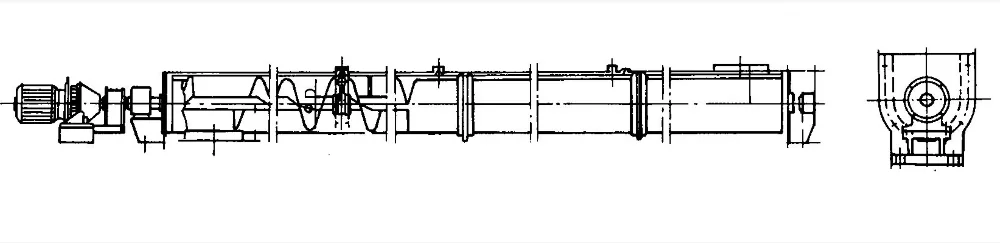

Drawing:

Related Products


Single tube screw feeder

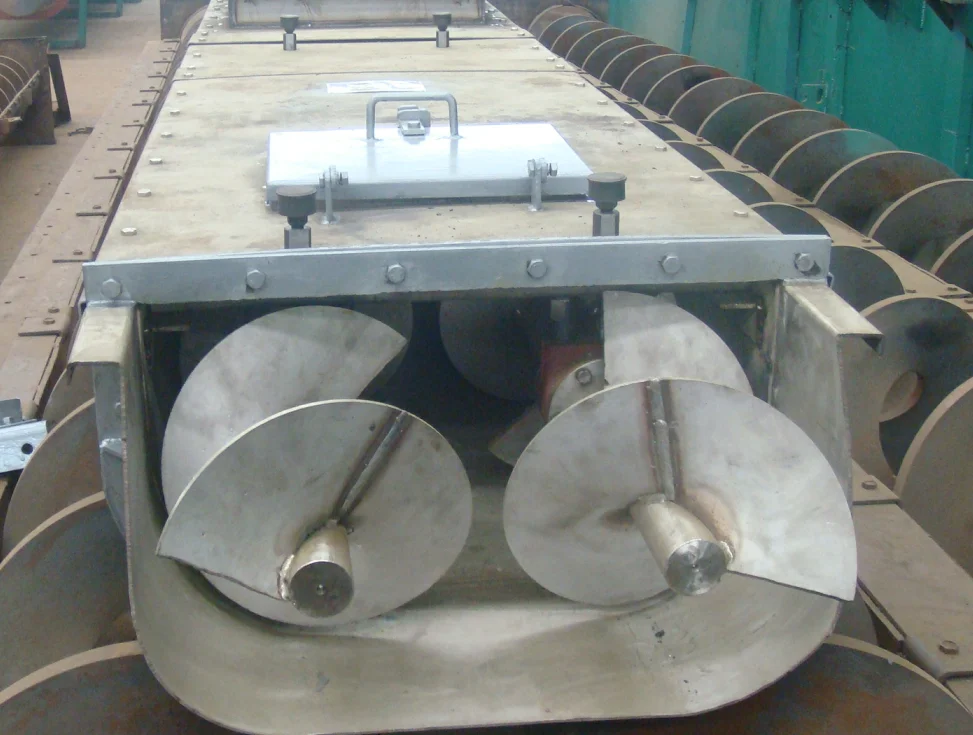

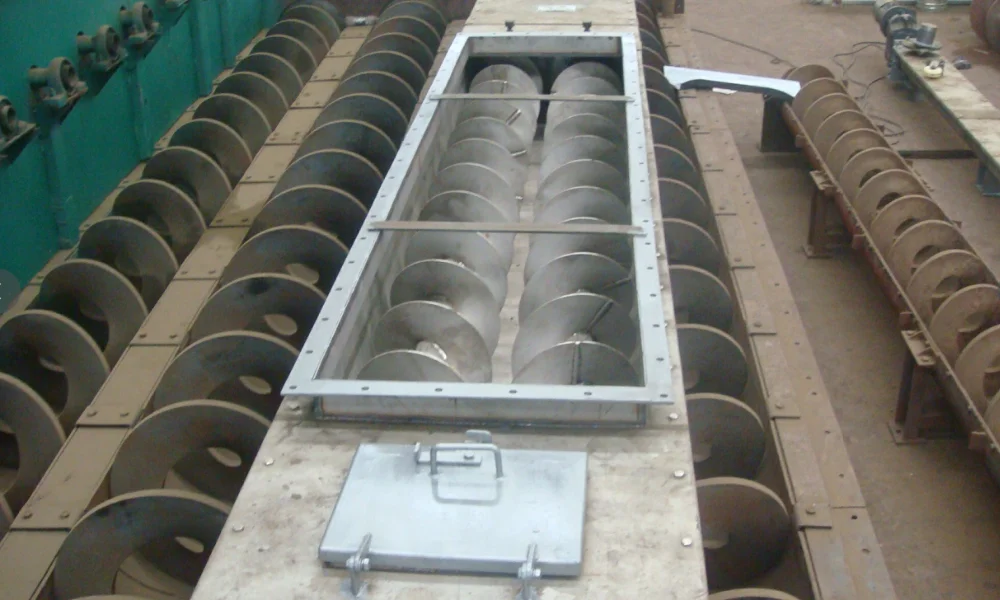

WLS type double shaft screw conveyor



Overflow screw conveyor


WLS type shaftless screw conveyor

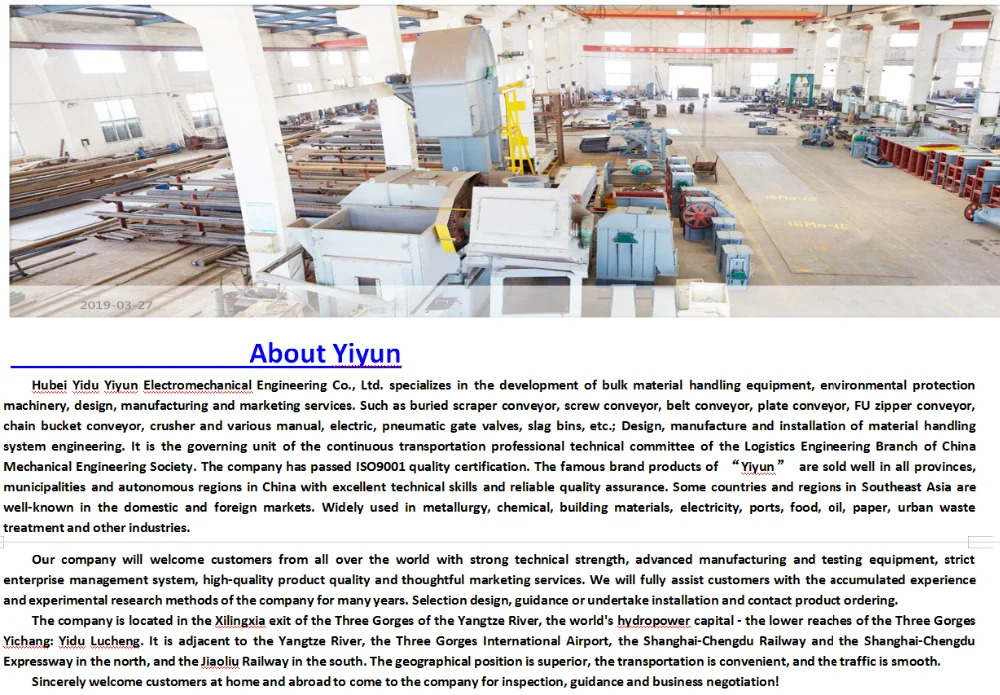

Company Profile
