Factory direct price for carbonated drinks rinser filler capper 3 in 1 machine

FOB Reference Price:Get Latest Price
$25,000.00 - $30,000.00 / Sets | 1 Set/Sets for carbonated drink filling equipment (Min. Order)
Model Number:
CGFD18-18-6
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bags, Bottles, Cans, Cartons, Pouch, Stand-up Pouch
Packaging Material:
Plastic
Type:
Filling Machine, 3 In 1 Unit
Condition:
New
Application:
Beverage, water
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 50Hz 3 Phase or by order
Power:
4KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Reliable
Dimension(L*W*H):
2450*1900*2300mm
Weight:
3000KG
Certification:
CE ISO SGS
Product Name:
carbonated drinks rinser filler capper 3 in 1 machine
Function:
Washing Filling Capping Machine
Material:
Stainless Steel 304
Suitable Bottle:
Plastic Bottle
Bottle Type:
200-2000ML
Operation:
Easy & Stable
Control:
PLC + Touch Screen
Warranty:
2 Years for Spare Parts
Keywords:
Carbonated Drink Filling Equipment
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month for carbonated drink filling equipment
Packaging & Delivery
Packaging Details
For Monoblock Automatic 3 In 1 Bottle Carbonated Drink Filling Equipment we use film package inside, and wooden case package outside, will be delivered by Containers, we will also supply all shipping information to Customers
Port
Shanghai Port
Product Description

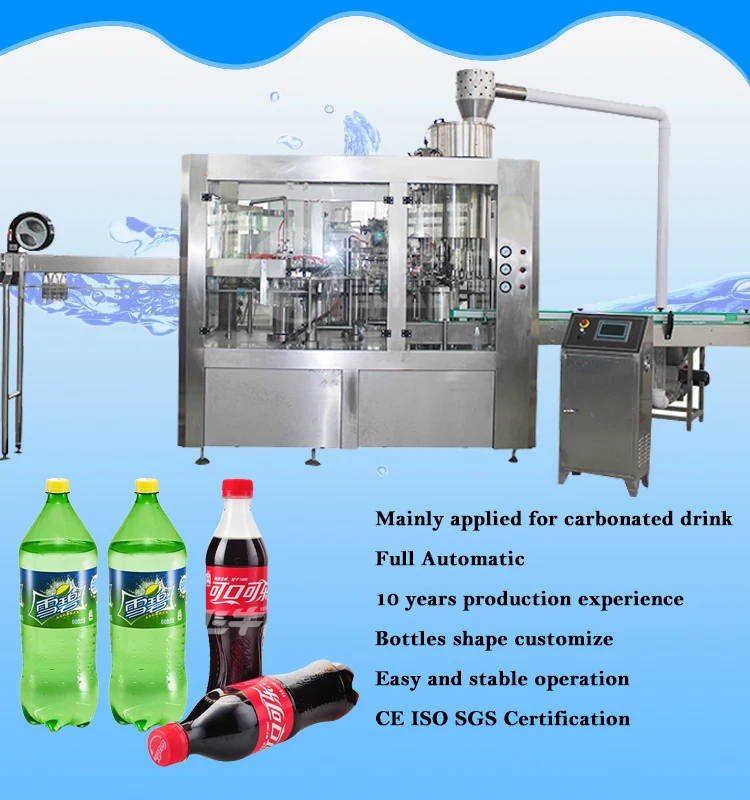

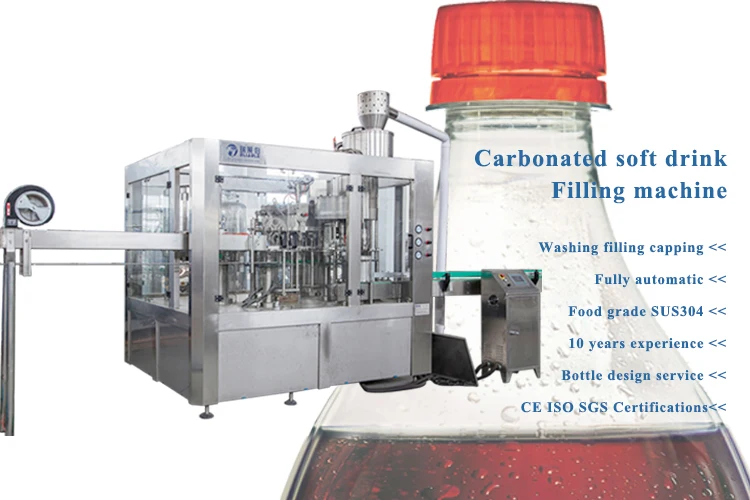

Factory direct price for carbonated drinks rinser filler capper 3 in 1 machine

Quick Details of Carbonated Drink Filling Machine

Item
Monoblock Automatic 3 In 1 Bottle Carbonated Drink Filling Equipment
Liquid Type
Carbonated Drink, Soft Drink , Soda Drink
Filling Type
Isobaric Pressure
Suitable Bottle
200-2000ML
Bottle Cap
Plastic Screw Cap 28MM / 30MM International Standard
Production Capacity
3500-4000BPH
Workers Needed
1skillful technician
Electricity
380V 50Hz 3 Phase  ;  220V 50Hz/60Hz 3 Phase ; or other special voltage
Total Power
4KW
HS Code
8422301090

Brief Introduction of Carbonated Drink Filling Equipment

1.Air Conveyor connects with bottle-in star-wheels. Bottle neck holding transferred.
2. Clamp transferring technology varied bottle types.
3. With little abrasion. Stable Transferring. Easy to change bottles.
4. With ring type pressure bearing hydraulic cylinder.
5 With high filling speed and exact liquid level.
6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.
7.The bottle-out star-wheel is of screw down shape. No need to adjust transferring chain's height to different bottles.
8.Easy to operate and maintain.
9.PLC and transducers and the main electric parts are of world famous brands, such as SIEMENS,OMRON, MITSUBISHI etc.
10.No bottle,No washing,No filling,No capping
Detailed Images

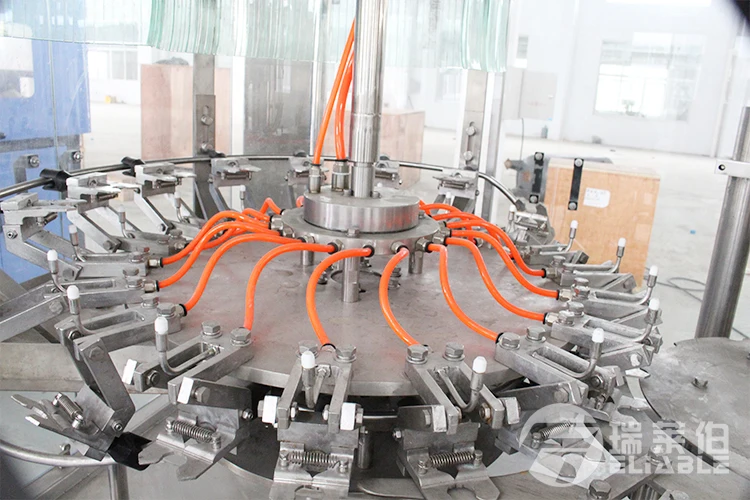

Washing Part of Carbonated Drink Filling Equipment

The bottle is blew into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180°into an upright position, through second bottle pusher into the filling position.

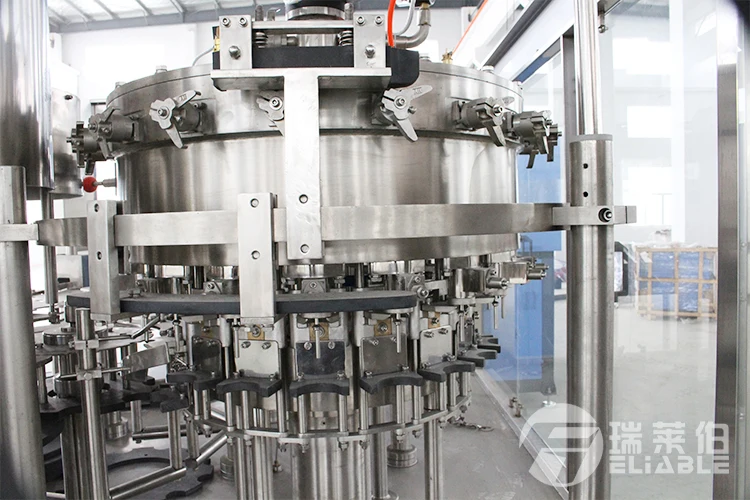

Filling Part of Carbonated Drink Filling Equipment

The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle.

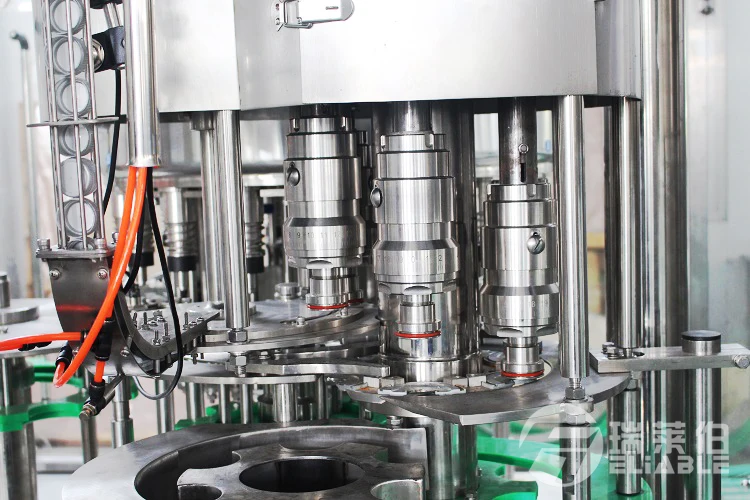

Capping Part of Carbonated Drink Filling Equipment

The capping part consists of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open, the caps will be blew into the cover plate by compressed air.

Technical Data
Model
CGFD8-8-3
CGFD12-12-6
CGFD18-18-6
CGFD24-24-8
CGFD32-32-8
CGFD40-40-10
Rinsing Head
8
12
18
24
32
40
Filling Head
8
2
18
24
32
40
Capping Head
3
6
6
8
8
10
Capacity
1500BPH
2500BPH
4000BPH
7000BPH
8000BPH
10000BPH
Dimension (M)
1.9*1.42*2
2.2*1.6*2.3
2.45*1.9*2.3
2.75*2.18*2.4
4*2.3*2.3
4.55*2.65*2.3
Weight
1.5T
2.2T
3T
4T
8T
12T
Power
3KW
3.5KW
4KW
4.8KW
7.6KW
8.3KW
Voltage
380V
380V
380V
380V
380V
380V
Packing & Delivery

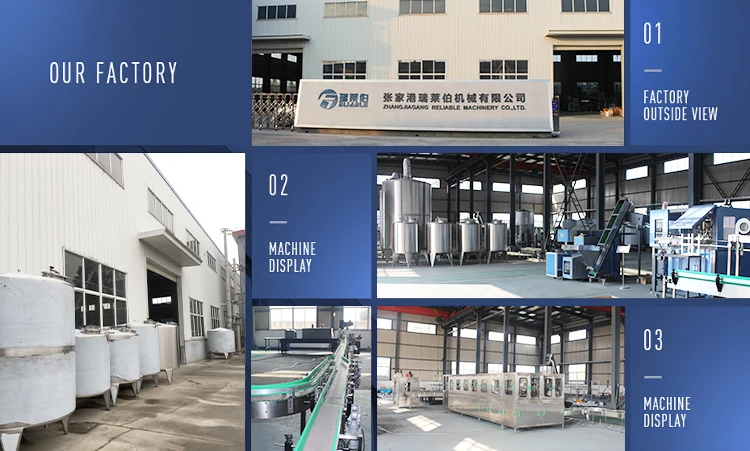

Our Company

RELIABLE supply and manufacture the followings machines for you
1) Water treatment equipment --- RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner, Sea Water treatment.
2) Filling Machine---3 in 1 Washing filling capping---for your water,cabonated drink,
juice,wine,vinegar, milk,tea and so on.
----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
--- PET bottle, Glass bottle, PP bottle and Can
---- Screw cap, Aluminum cap, Grown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer , Manual code printer , Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine--- for making plastic bottle
7) Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.

Reliable Customers
FAQ
Q: What is your factory main processing product?
A: We are Global Professional package machine and a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines, as well as various filling machine for different liquid: drinking water, juice beverage, carbonated soft drink, Wine, Vodka, Beer, Oil. vinegar, Honey, etc.
Q: Where is your factory location?
A: Our factory is located in Zhangjiagang City, Close to Shanghai City and Airport !
Q: What is your factory products delivery time?
A: Normal our products delivery time is 30 working days, if special machine ordered, will be around 45-50 days, also need to be discuss the detailed requirement!
Q:Do you have engineer overseas to support the installation and testing?
A: When the machines arrive your factory, our engineer will come to factory within one month, to finish the machines installation and testing, also training customer's technicians for free!
Q: Do you have agent abroad to support the after sales service?
A: We have agent office in UAE, Middle East, Africa, Spain,Russia.
Q: How you can guarantee your machines quality?
A: Our production flow each steps has quality control, and when machines finish, our engineer test the complete production line more than 2 days ( 8 hours/day) , to ensure the line running well,  also accept customers come to inspect the machines before make balance payment and before shipping!
Q: What is your machines guarantee?
A: Our machines guarantee is two years for spare parts,  with 2 years spare parts shipped with machines together to you, after two years, any parts you need to change, just show us the photo, we will arrange to send to you within 2 days with factory price!
