The continuous belt dryer is mainly composed of heat exchanger, feeding system, discharging system, stainless mesh,
insulation device, connection pipes,fan,maintenance and inspection system, control system etc
Main configurations of Continuous Belt Dryer
1.The heat exchanger can use different materials, such as biomass fuel, natural gas, steam, diesel, coal and more.
2. Feeding and Discharging Conveyor
Made from S304 stainless steel, the charging system, conveyor and belt ensures all drier materials meeting food
3. Inspection & Maintenance System
An inspection door is designed to let users watch the drying condition during operation. It also works as a passage
for regular maintenance.
4. Insulation Boards
The continuous belt dryer implements 5cm thick rock wool boards as they offer a safe working environment,
at the same time, greatly reduces thermal loss, with a thermal efficiency of up to 70%.
5. Control System
When it comes to control system, it effectively monitors and regulates the heating temperature and material
Application of Continuous Belt Dryer
This drying machine has found a wide application in crops drying, traditional Chinese medicine process,
vegetable dehydration, nut manufacture, preserved fruit production, etc.
Crops: Rapeseeds, beans, sesames.
Traditional Chinese medicines: Stevia rebaudianas, honeysuckles, valerian roots.
Vegetables: Cassavas, gingers, chilies, potatoes, mushrooms, garlic, onions.
Nuts: Peanuts, pine nuts, filberts, melon seeds.
Fruits: Pineapples, apples, lemons.
Thickness of the material
The size of input furnace

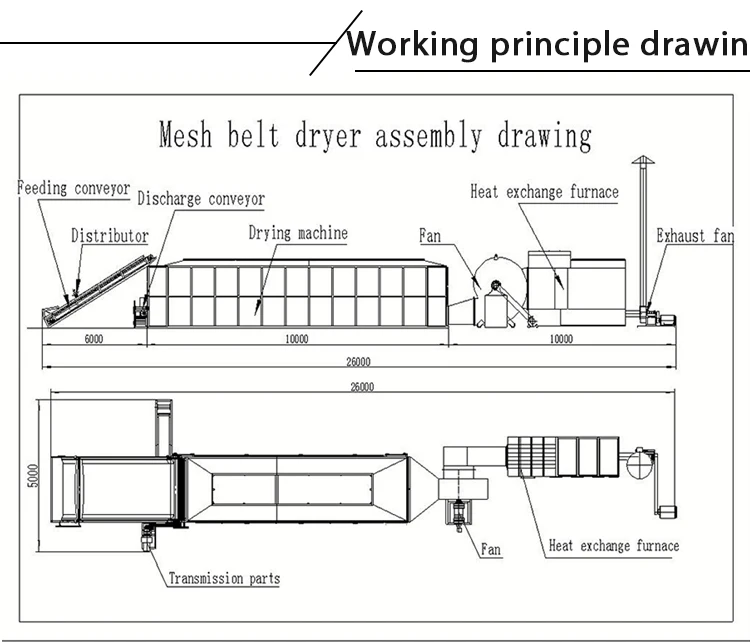

The equipment of chrysanthemum dryer equipment1 Feeding conveyor with distributor
2 Drying equipment 3 Control panel(speed and temperature of dryer can be adjusted)4 Discharging conveyor 5 Connection pipe6.Fan (The volume reach 40000-50000m³/h)
7.Heat exchange (burning chamber,heat exchange pipe, smoke removal fan blower etc )n printer took a galley of type
