Factory price DAF system for Suspended Solid Waste Disposal Waste Water Treatment

Feedback Ratings
$7,990.00 / Set | 1 Set (Min. Order)
Model Number:
AUDF
Processing Capacity:
OEM
$7,990.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
35 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alluniverse
Material:
Wooden box, Stainless steel / carbon steel
Weight:
1100kg
Size:
3.0*1.9*1.9m
Power:
0.55kw
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Capacity:
3-300 m 3 / h
Type:
wastewater/sludge treatment equipment
Application:
petroleum chemical papermaking leather printing food and industry
After-sale Service Provide:
Engineers available to service machinery overseas
Certification:
ISO9001 CE
Color:
according customers demands
Usage:
Pure Water Process

Packaging & Delivery

Selling Units:
Single item
Single package size:
4X2.8X2.8 cm
Single gross weight:
1100.0 kg
Package Type:
Standard Export Packing
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 200 >200
Est. Time(days) 35 To be negotiated
Product Description


Please kind attention :

Nice promotion is undergoing ~~~
Same price, we give you better quality !!
Same quality, we give you best service and best guarantee

Introduction

The technology of dissolved air can be extensively used water supplying and the waste water processing
it can remove effectively undeposited matter with a big capacity and high efficiency ,less land and widely used range
this machine is very suitable to the water processing from petroleum ,chemical ,papermaking ,leather ,printing .food and starch industry

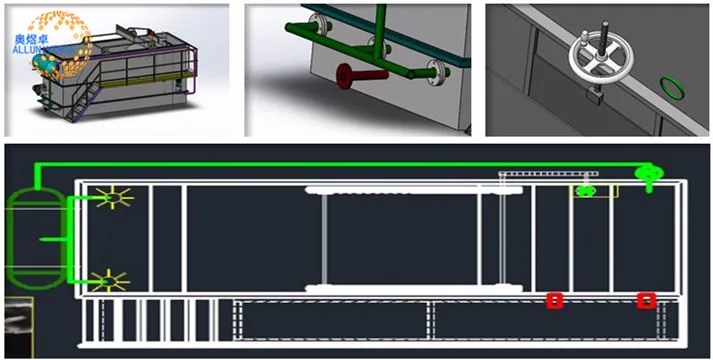

Description of the DAF machine

DAF machine mainly made up of dissolved air flotation system , scraper system and electric control

1) Dissolved air flotation system : Feeding the clean water into dissolved air tank by the backflow pump from the clean water tank. Meantime,air compressor press the air to the dissolved air tank . Release to inside of the tank after mixing air and water by the releaser

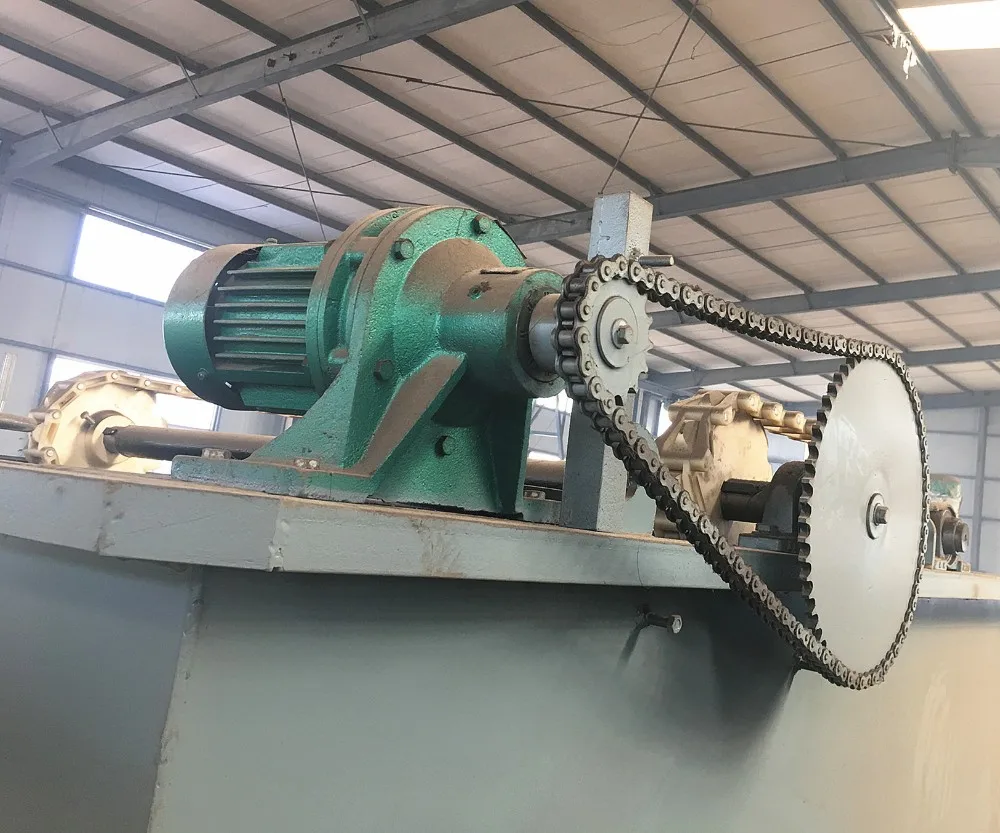

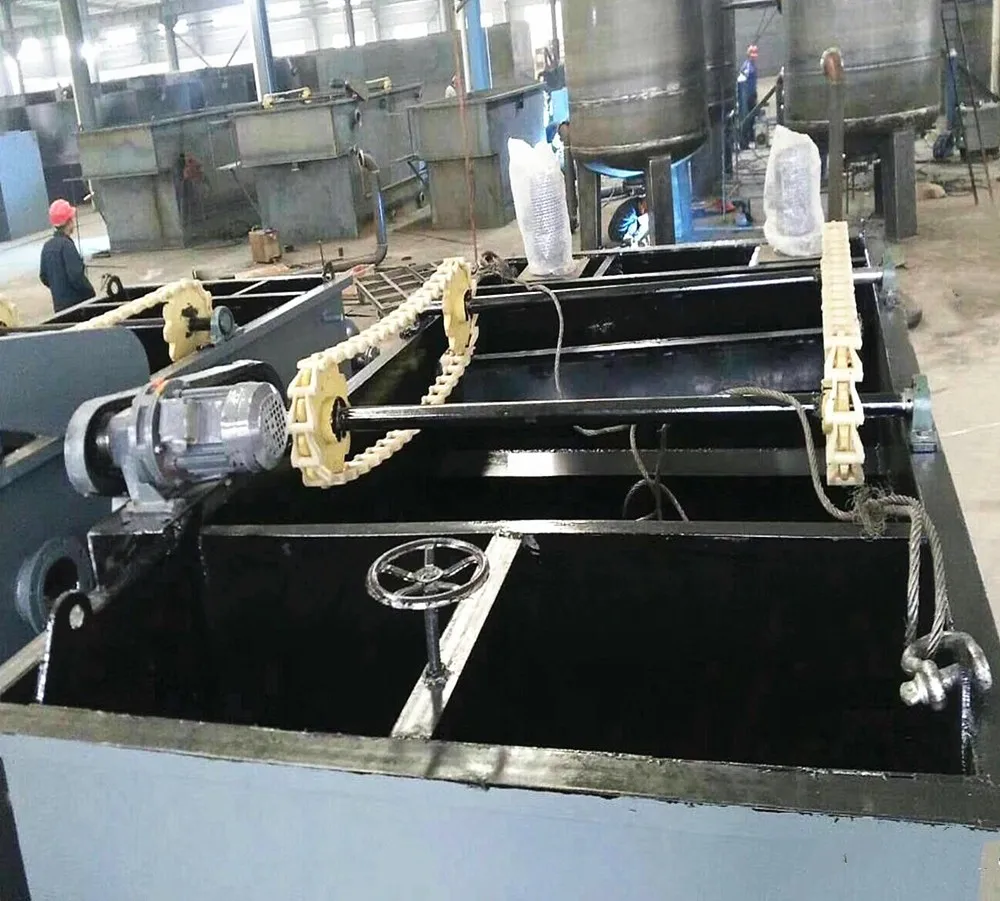

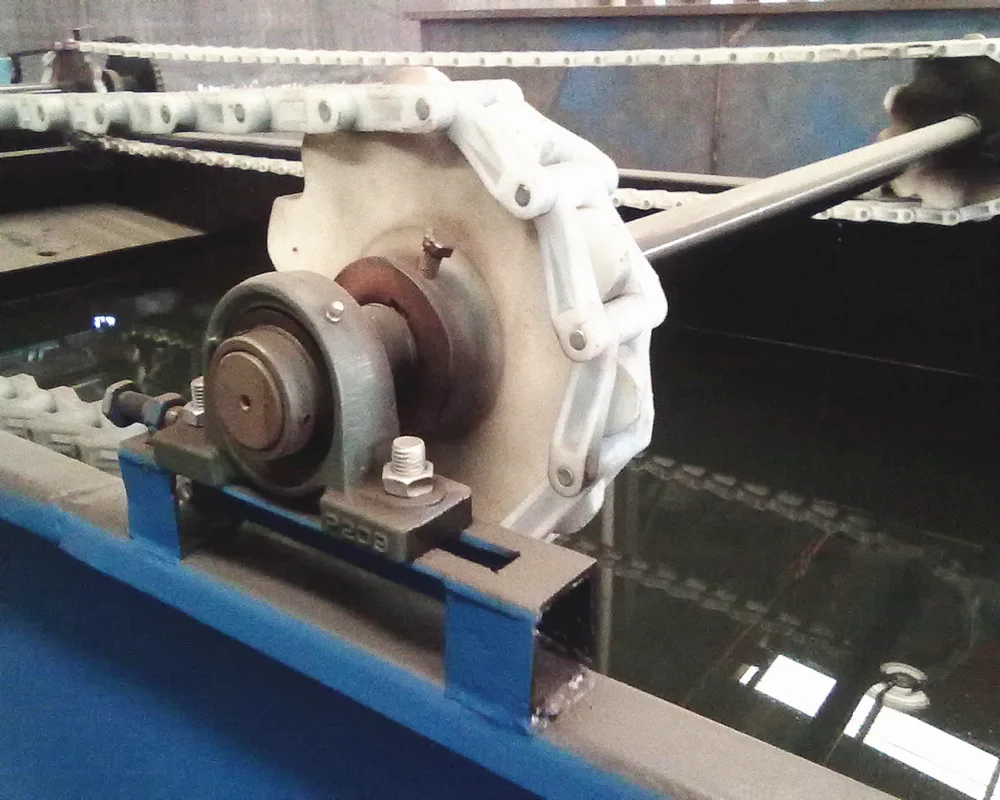

2) Scraper system :scrape the scum floating on the water into the scum tank

3) Electrical Control : The electrical control make the DAF machine reach the best effect

Application

The flotation machine can be used as followed:

1)separate the tiny suspending matter and algae from the surface water
2)Retrieve useful matter from the industrial waste water. For example the pulp
3)Instead of the second sedimentation tank separation and sludge of concentrate water

working principle

The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank.
Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.

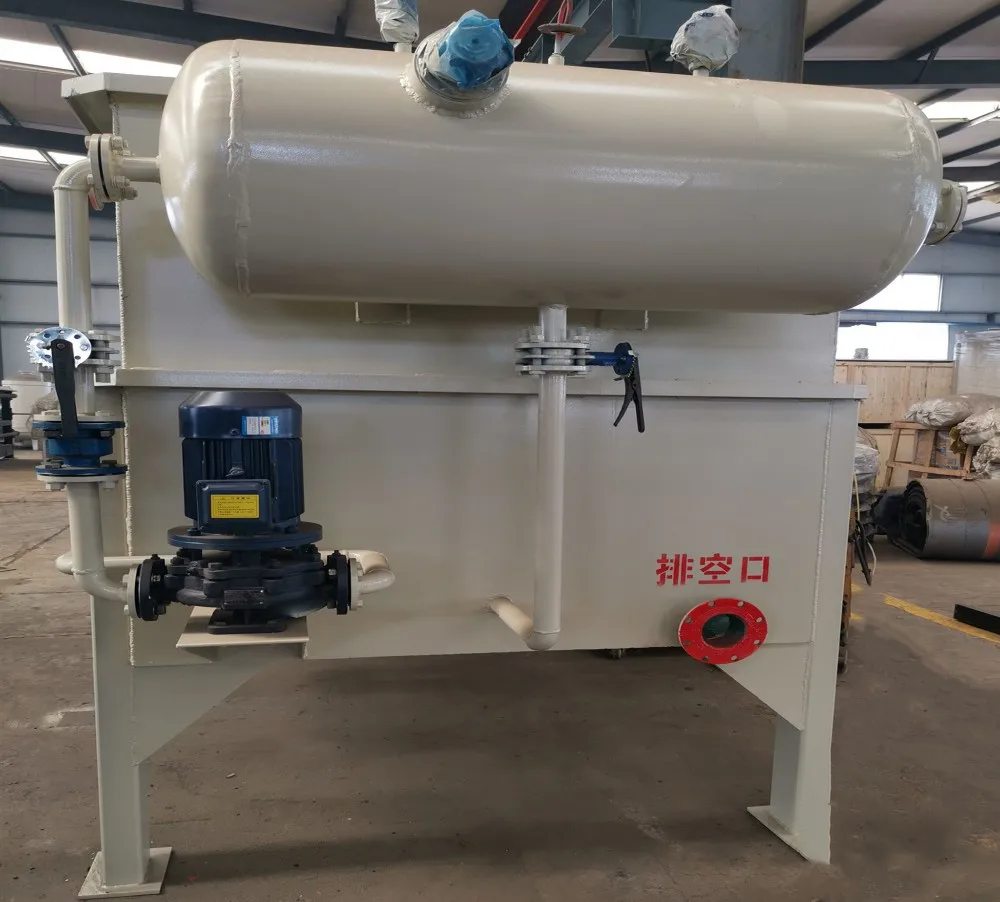

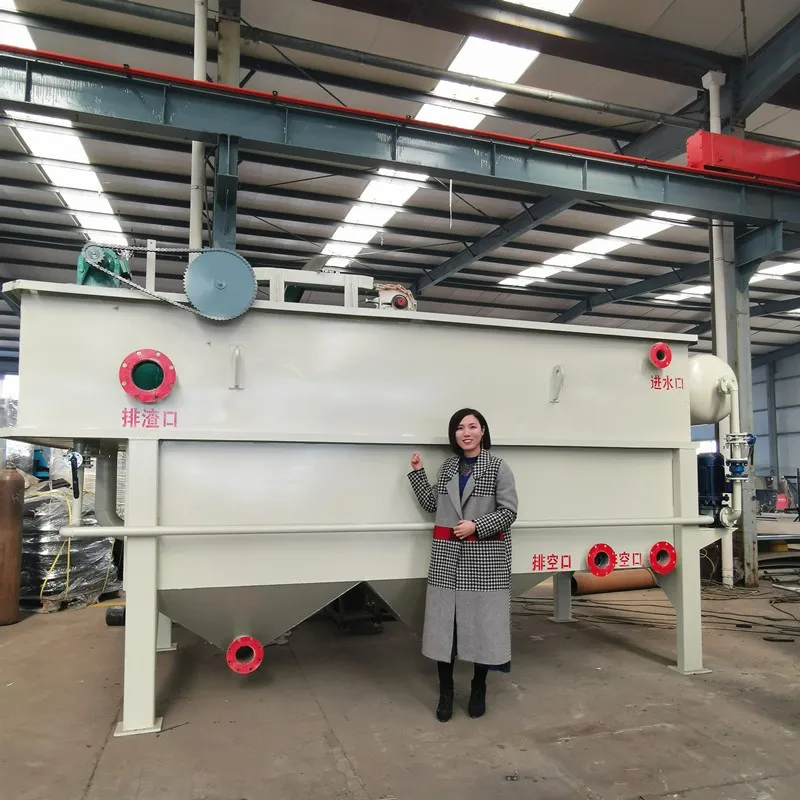

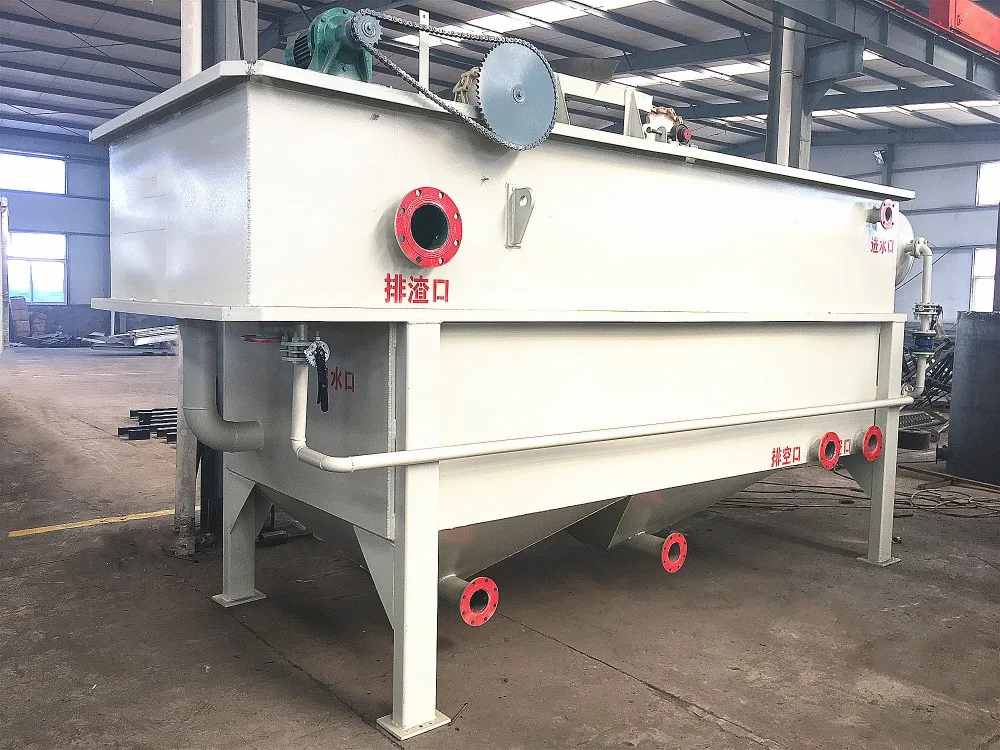

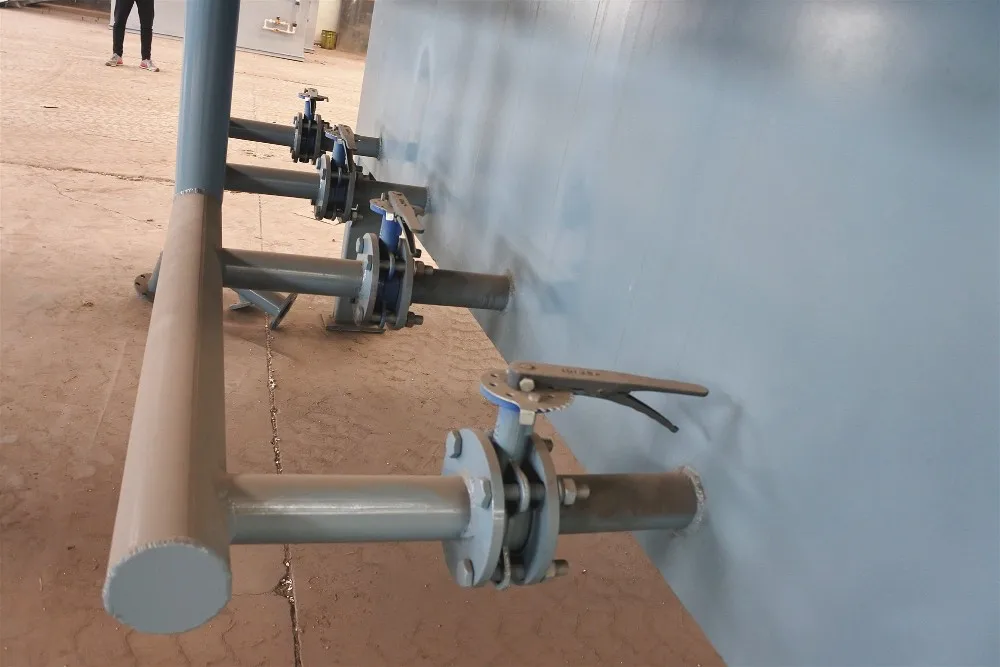

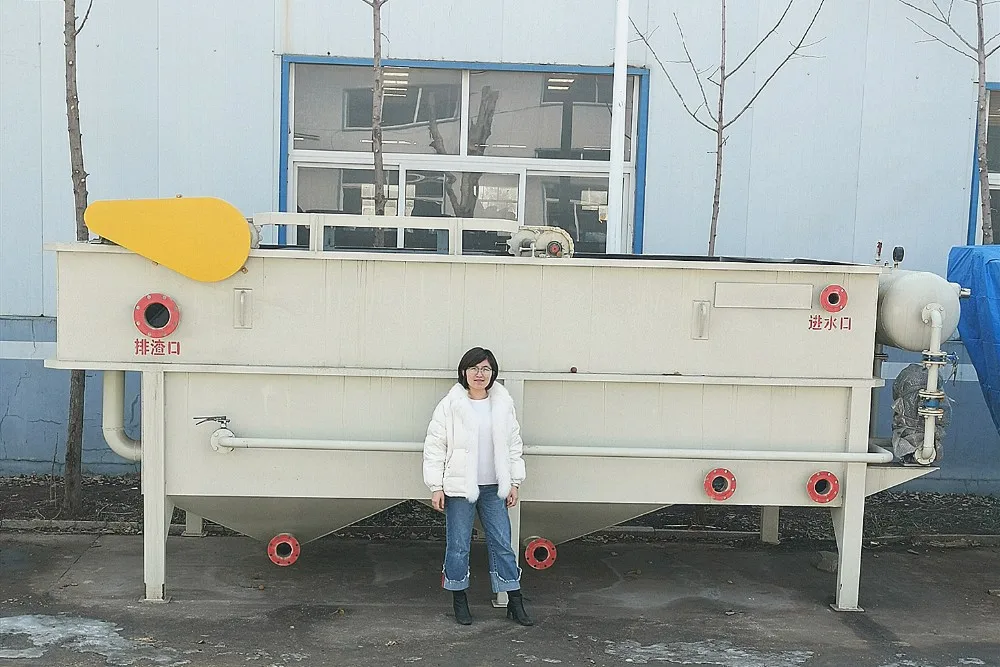

Product details
Why choose us

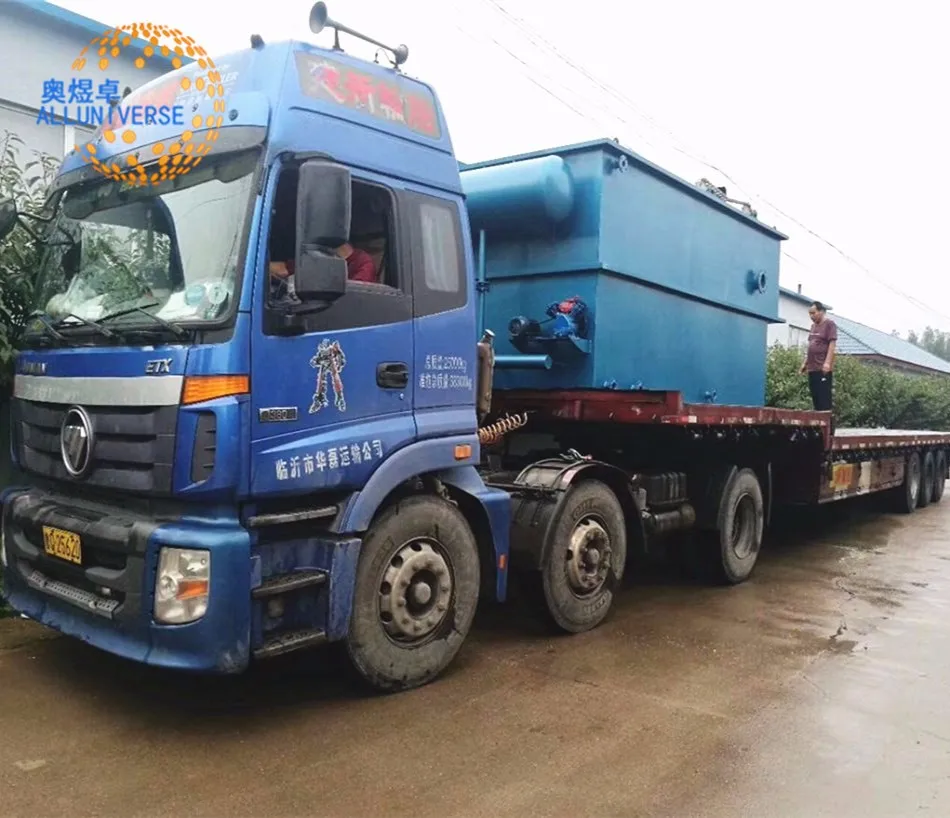

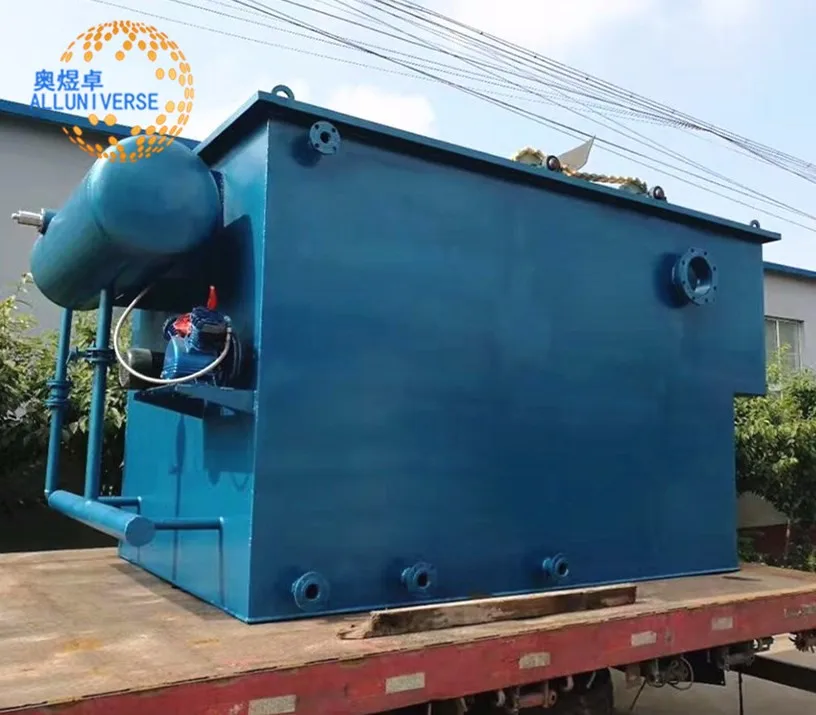

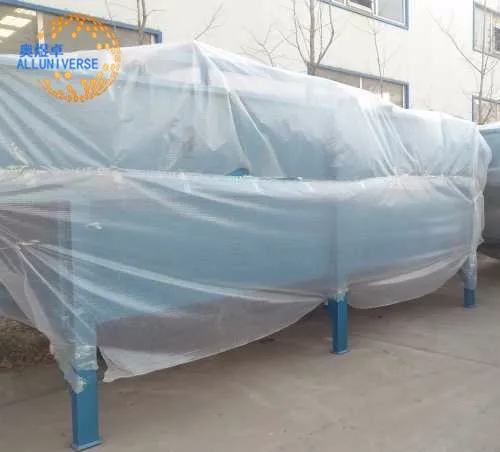

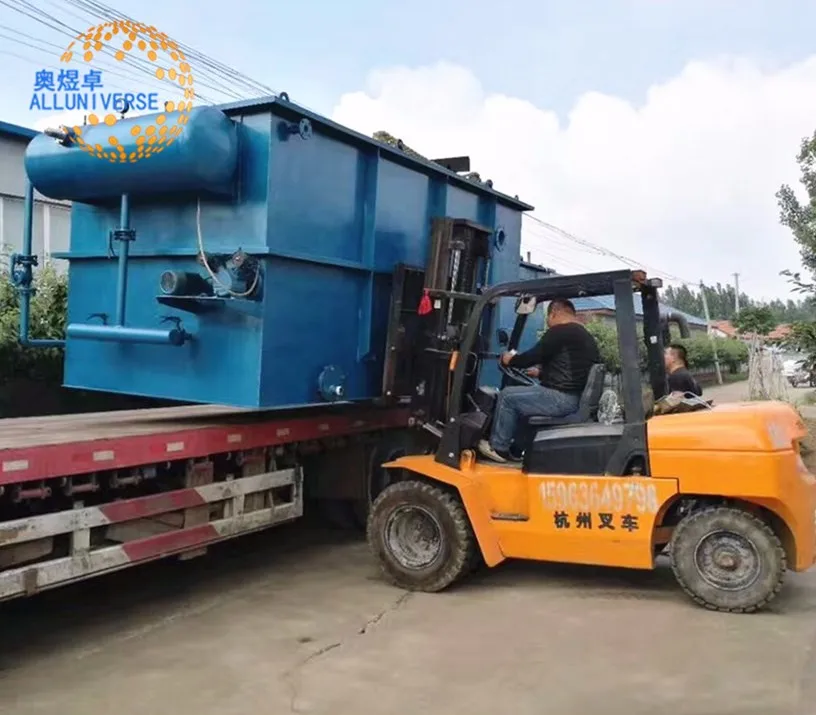

Packing & Delivery

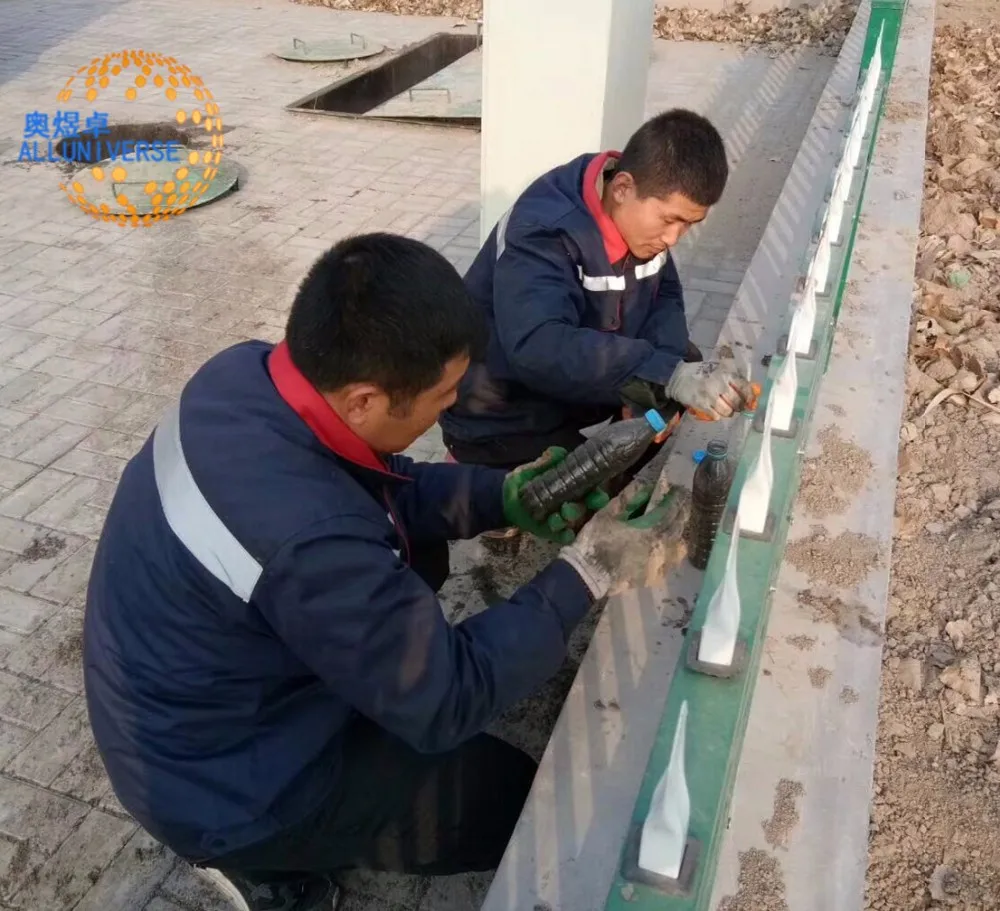

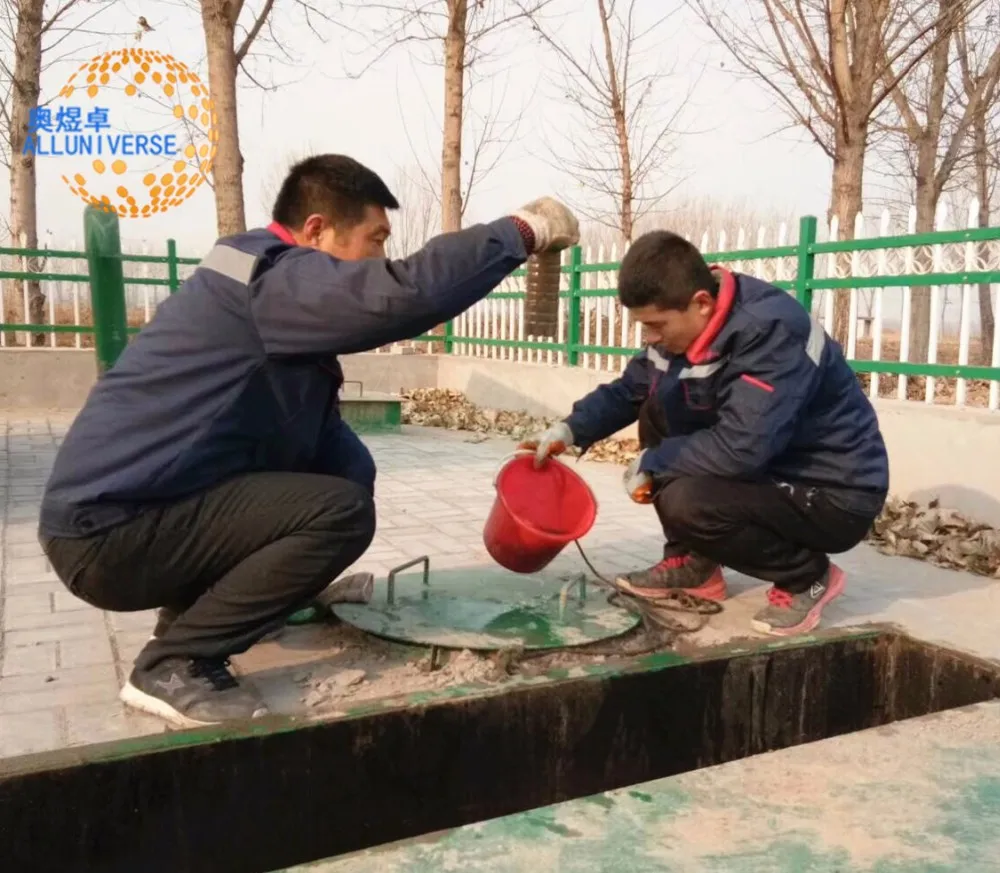

Installation

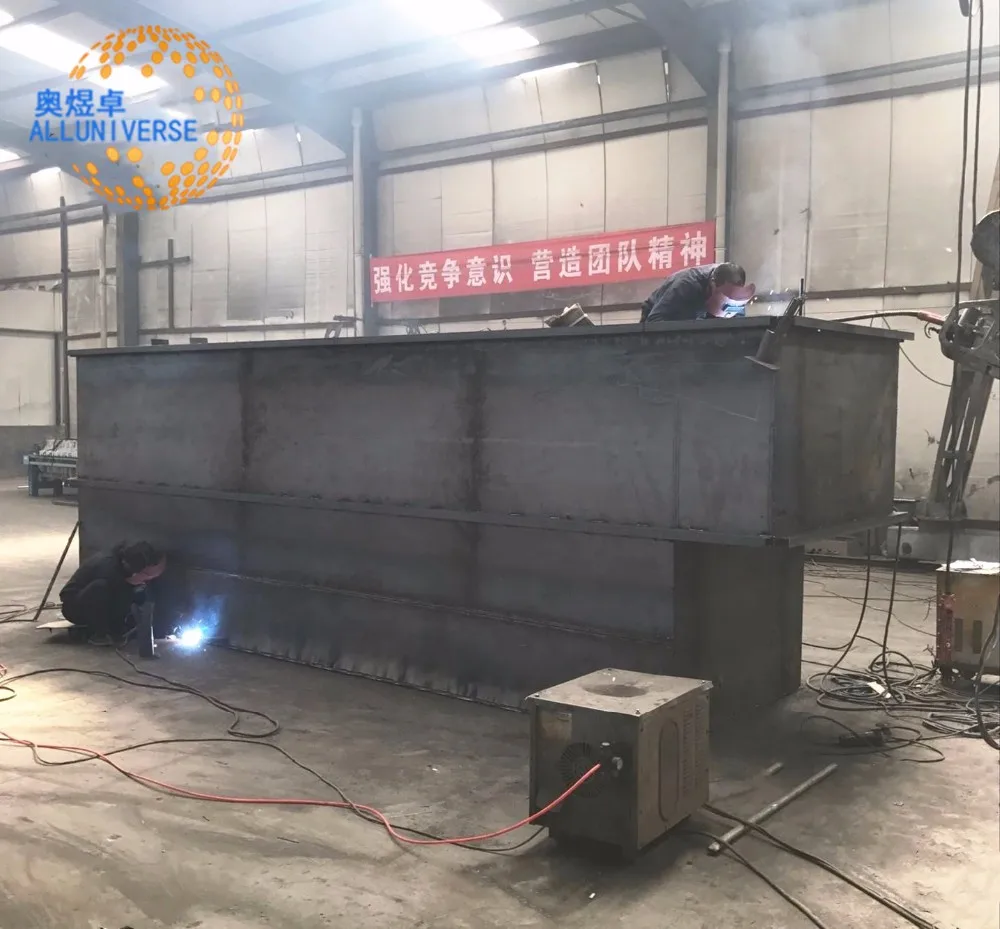

Our Company
Our service
Pre-Sales Service
After-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* We are available 24 hours for customers.
*Service concept: Exceed clients' expectation.
*Presale service: Free comprehensive and detailed *technology consultancy, help client find the most suitable lift or solutions.
*In sale service:guidance of installation and debugging and free training of operation, care and maintenance.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*After-sale service: 12 months warranty service of whole machine and lifetime maintenance;
*Quick responses: inquires or after-sale questions be replied within 24 hours.
*Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply, with only cost charge after guarantee period.
