Factory price NOYAFA brand RJ45 RJ11 BNC cable continuity testing

FOB Reference Price:Get Latest Price
US $30-35 / Unit | 10 Unit/Units (Min. Order)
Supply Ability:
10000 Unit/Units per Week
Port:
shenzhen
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Noyafa
Model Number:
NF-308
Power:
Electronic
Usage:
Wire Fault locator
Product name:
Wire Fault locator
Color:
Blue, Red
Is customized:
yes
Port:
RJ45, RJ11, BNC, USB
Wiremap type:
RJ45, BNC
Tracking type:
RJ45, RJ11, BNC, USB and metal cable
Other function:
Led Flash and Loud Speaker
Power supply:
9V Alkaline battery
Warranty:
1 Year
Packaging & Delivery
Packaging Details
Carton size:48.8x43.5x44.5 cm
Quantity : 30pcs/ctn
Weight: 22.2kg
Delivery Time
3 to 5days after received payment
Product Description

Factory price NOYAFA brand RJ45 RJ11 BNC cable continuity testing

 Features:

1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection .
3. Locate the wiring or connection error.
4. Measure cable length and determine the distance of open circuit and short circuit.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.
Technical indexes:

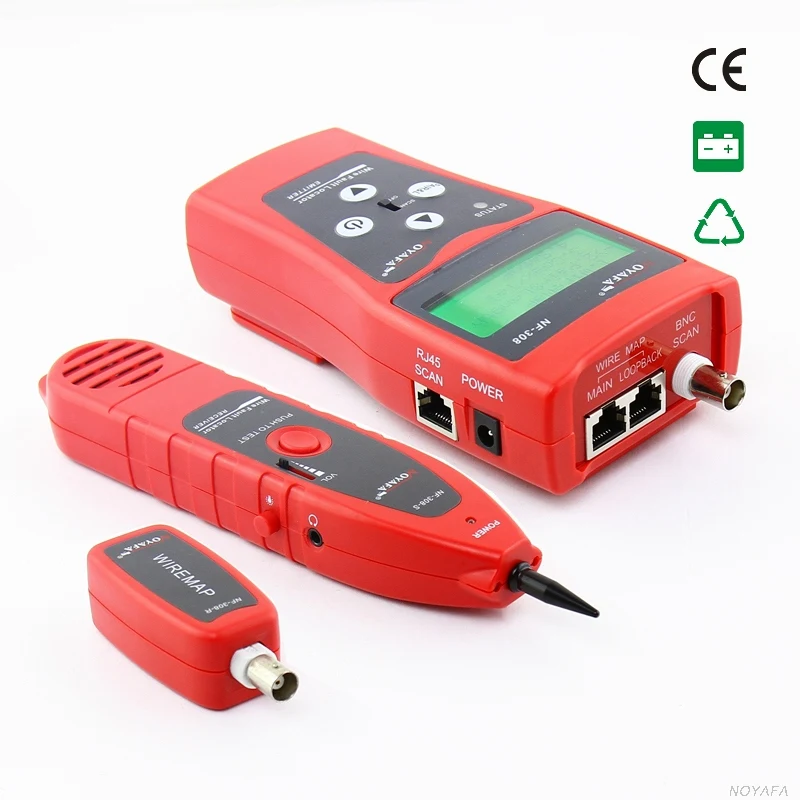

NF-308 Transmitter specifications
IndictorLCD 53x25 mm, with back light
Tone frequency225 Hz
Max. distance of transmission2 km
Max. distance of cable map300m
Max. working currentLess than 70mA
Tone mode2 Tone adjustable
Compatible connectorsRJ11,RJ45,Coacial, USB
Max. signal voltage15Vp-p
Function selection3 position buttons & 1 power switch
Function and faults LCD displayLCD display ( wiremap, Tone, short, , No adapter, Low battery )
Cable map indicationLCD (#1-#8)
Shielded indicationLCD ( #9)
Voltage protectionAC 60V/DC 42V
Battery TypeDC9.0V(NEDA 1604/6F22 DC9V x 1pcs)
Dimension(LxWxD)185x80x32mm
NF-308 Receiver specifications
Frequency225kHz
The Max. working currentLess than 70mA
Earjack1
LED illumination2
Battery TypeDC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD)218x46x29 mm
NF-308 Remote unit specifications
Compatible connectorsRJ11,RJ45,Coacial, USB
Dimension(LxWxD)107x30x24mm







Application:

Packaging & Shipping

 Packing:

 Standard carton :

Carton size:48.8x43.5x44.5 cm

Quantity : 30pcs/ctn

Weight: 22.2kg

Shipping:

 All shiiping way is available .

Our Services

 After-Sale service Commitment



1.Product quanlity

All products are guaranteed on consistency

All products are stabilized after 24-hour aging testing.

All products are 100% inspected PASS before shipment.

All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure, GB4793-1984 Safety

requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.



2. After-sales service Clause

2.1 Responsibility

We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
