Factory price carbon steel pressure vessel 10ton lpg storage tank for sale

  • >=1 Sets
    $14,200.00
Model Number:
CDL5-0.8 CDL10-0.8 CDL15-0.8 CDL20-0.8 CDL30-0.8 CDL50-0.8 CDL100-0.8
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 30 30 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
Forst
Dimension(L*W*H):
Depends
Capacity:
5~100 m3
Weight:
Depends
Product name:
Factory price carbon steel pressure vessel 10ton lpg storage tank
Filling medium:
LAr LOX LN2 LNG LPG
Working Pressure:
0.1-35mpa
Usage:
Liquefied Gas Storage
Product type:
Storing Liquefied Industrial Gase
Volume:
2-150m3
Tank material:
stainless steel and Q235B
Tank volume:
5M3/10M3/20M3/5M3/10M3/15M3/25M3
Warranty:
One Year
Color:
Customers Requirement
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
PE film package, steel structure package,
Port
Qingdao, Tianjin
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 30 30 30 To be negotiated
Product Description

Product Application

Cryogenic tank is essentially a double walled insulated tank, annular space between inner and outer vessel is filled with insulating material and evacuated to a high vacuum to achieve minimum evaporation losses. The cold converter is fitted with pressure building arrangement with automatic pressure build - up regulator.
Cryogenic tank specification
1
Available max. volume
5m3, 10m3, 15m3, 20m3, 30m3, 60m3, 100m3
2
working pressure
8 bar, 10bar, 16bar,25bar,35bar
3
Min Design temperature
-196°C
4
Max Design temperature
+50 °C
5
Total Volume
5.26 m3
6
Effective volume
5 m3
7
Filling Ratio
0.95
8
Inner tank Material
0Cr18Ni9/stainless steel
9
Outside tank Material
Q245-B
10
Diameter
DN 2016
11
Length
5130 mm
12
Empty weight
4015 Kg
13
Suitable
LIN, LOX, LAr, LNG, LCO2
14
Insulation method
vacuum powder or high vacuum multi-layer wrap insulation
15
Medium
liquid argon/ nature gas/ oxygen/nitrogen/ carbon dioxide

Main Features

1. Adopt double-wall vacuum powder thermal insulation technology. Superior quality control system, workmanship requirement and imported key components ensure the reliable and stable quality.
2. Apply high-quality ultra-low temperature thermal engineering expansive perlite as filling. Take helium-spectrum leakage test for complete cryogenic liquid tank. Good thermal-insulating effect, low evaporation loss and long life time.
3. Imported paint makes appearance more beautiful and longer anti-corrosion time.
4. Compact tank structure, advanced piping and flow-process design make operation simpler and safer as well as maintenance and repair easily.
5. Two types: Vertical type and horizontal type. We can design and manufacture cryogenic liquid storage tanks in various volume and pressure grade besides our standard products.

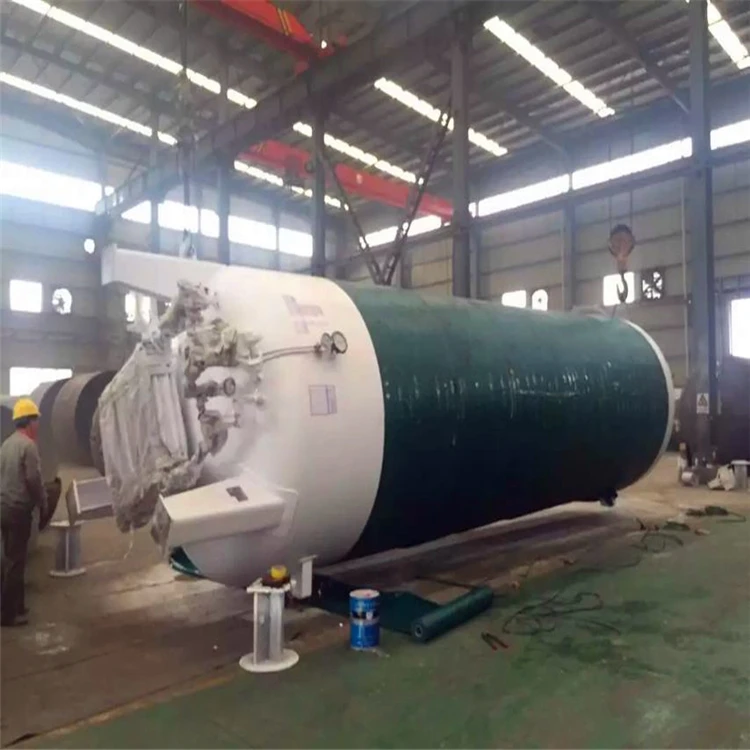

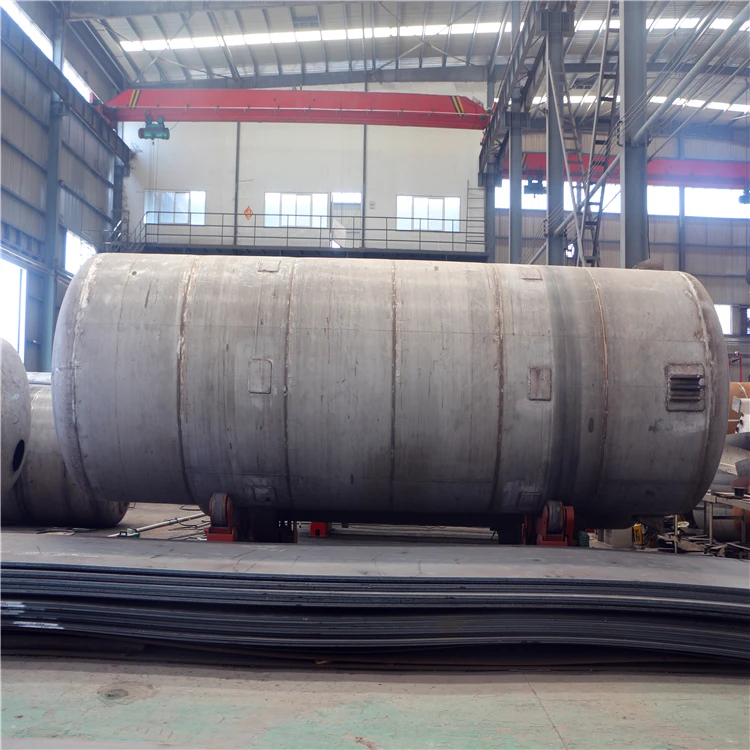

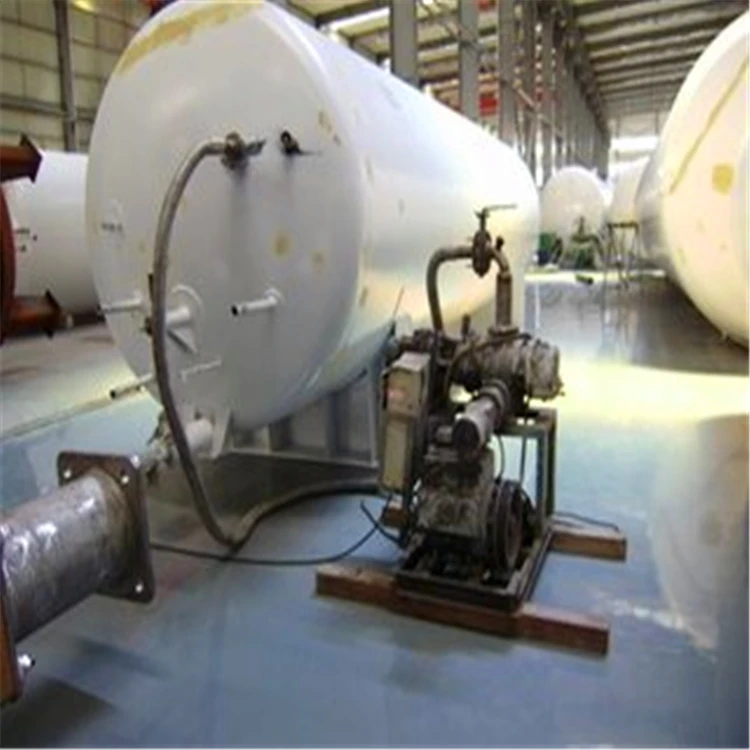

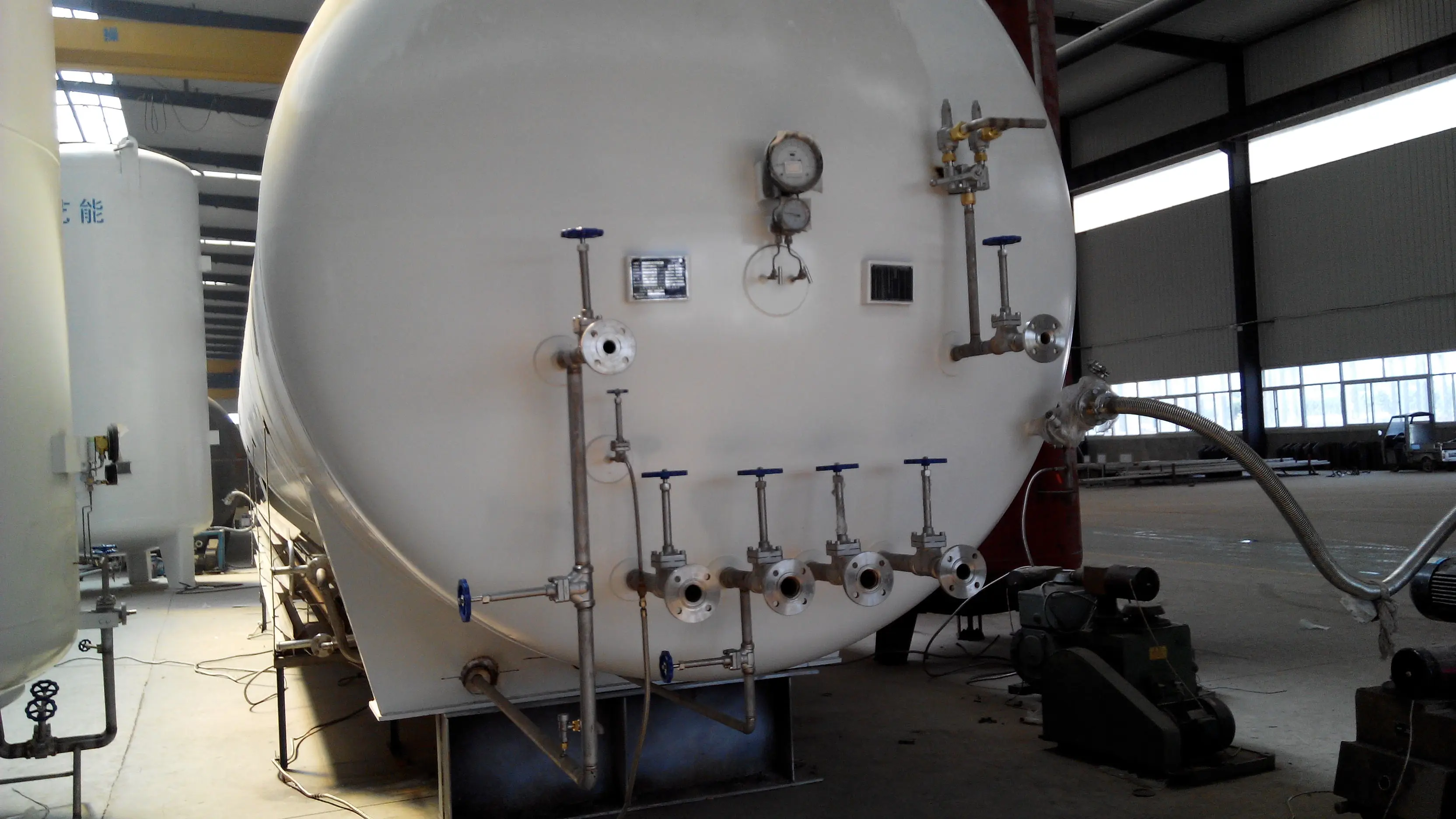

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2100(L) * 2100 (W) *5200 (H)
Weight
3.9 T

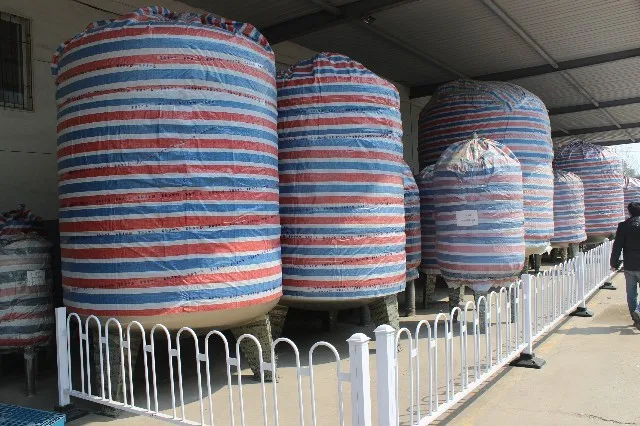

Packaging Details
The normal package is plastic film. If  there is special request, we can provide the plywood box, steel structure or other packages.
