Factory shrimp processing line / Shrimp grading washing machine

FOB Reference Price:Get Latest Price
$20,000.00 - $21,000.00 / Sets | 1 Set/Sets shrimp grading machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
OBS18
Brand Name:
OCEANBLUE
Place of Origin:
Shandong, China (Mainland)
Product name:
Factory shrimp processing line / Shrimp grading washing machine
Capacity:
1600kg/h
Size:
L*W*H =6800*4200*2200 mm
Grading tube:
125*130 mm
quantity of rooler:
18 PS
Material of grading tube:
stainless steel roll
Conveyor belt material:
Plastic steel belt
Width of Conveyor belt:
2000mm
Used for:
Shrimp
Lifting groove materials:
SUS 1.5mm 304 stainless steel
After-sales Service Provided:
Engineers available to service machinery overseas
Type:
seafood processing machine
Supply Ability
Supply Ability:
1000 Set/Sets per Year shrimp grading machine
Packaging & Delivery
Packaging Details
In nude
Port
Qingdao
Lead Time :
25 days after received the down payment
Video Description
Product Description



Application

Headed shrimp ,Headless Shrimp , Phoenis tail shrimp ,cooked shrim pand others .



Capacity (kg / h)Quantity of rooler (PCS)Size (mm)
1600186800*4200*2200

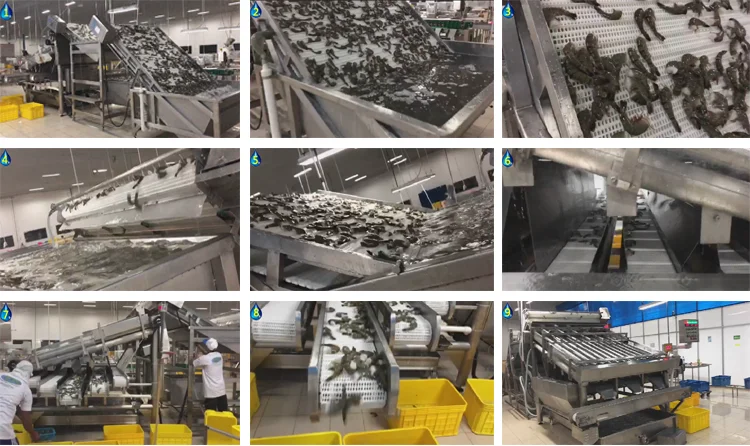

 How to working



With the industry standard of shrimp grading machine this grading machine is made up of three parts:  one-level conveyor, two-level conveyor and screener roller Screener roller is composed of at least two rollers with the shape of big in top and small in bottom.

There are space can be formed between two rollers which selecting the shrimp It finishes the all the grading machine from transporting to selecting automatically and increase the efficiency very much.   The processing equipment adopt numerical to control specification of shrimp, the precision can reach industry standard.





  Chataters

1.Use microcomputer to control it ,so it is easy to adjust the clearance of classified roller accurately and set graded specification

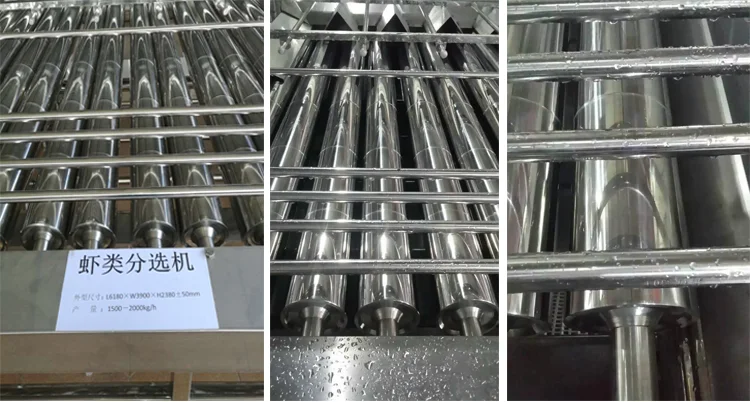

2.Using super smooth rooler to improve granding efficiency and products quality .
3.Has converyor belts in various specifications together various specification products conveniently .
4.The secondary lifting increases the uniformity of shrimp distribution and the accuracy of classification .
5.The lifting part and the entrance part of roller all set cleaning equipment to improve the cleaning capacity .
6.High efficient ,machine is to sort shrimp in 6-8 grades ,Compared with picking shrimps artificially ,machine can improve productivity and reduce labor cost .




Packaging & Shipping

 Packing









Our Services

  Service









Company Information

 About us

Why choose OCEANBLUE Shrimp grading machine ?



1. We have a complete process to control the product quality, from raw material testing to final product testing.


2. With more than 50 engineers working on product R&D areas, we can design and produce customized Shrimp grading machine based on customer's requirement.


3. With many years experience in the industry, our professional sales and after-sales service team can help you solve problems that you may not able to handle by yourself.


4. Our products have been exported to many countries including America, Peru, Columbia, India, Mexico, Philippines, Vietnam, Chile and many other countries, and received positive feedback from customers and markets.



5.We also accept OEM.
