Farm used grain bucket elevator price

  • 1-2 Sets
    $10,000.00
  • >=3 Sets
    $9,000.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Bucket elevator
Material:
Galvanizing steel / carbon steel
Material Feature:
Fire Resistant
Structure:
Bucket elevator
Load Capacity:
50-80T/H
Place of Origin:
China
Brand Name:
TSE ELEVATOR MASTER
Model Number:
TDTG50/28
Voltage:
220V/380V/415V/600V/450V
Power(W):
0.4kW - 45kW
Dimension(L*W*H):
Specific Models
Certification:
ISO CE
Application:
Grain transportation
Product name:
Grain bucket elevator
Warranty:
18 months after sales
Belt material:
Rubber belt / PVC belt
Frame Material:
Carbon Steel Stainless Steel 304/316/galvanizing steel
Usage:
Material Transimission
Name:
Bucket Conveyor
Keyword:
Low Cost grain elevator
Color:
Customers' Request
Feature:
water proof
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X55 cm
Single gross weight:
1500.0 kg
Package Type:
plastic film packing
Picture Example:
package-img
package-img
Lead Time :
30
Video Description
Product Description

Product Application

Grain bucket elevators are powerful mechanism for hauling flowable bulk grain vertically, it is widely used in broad range of flowable materials applications for grain storage silos. The reliable Shelley bucket elevator is designed with reasonable running structure, highly resistant anti-wear steel and high-strength plastic bucket, which makes it easy for installation and longer trouble-free life span.


SPECIFICATIONS FOR ELEVATOR TDTG50/28 (50-80TPH)

Specification 01
of
grian bucket elevator
Net power
Kw
3---18.5KW
Thickness of body
mm
2---4
thickness of head and booth
mm
4---6mm

Main performance parameters
Main performance parameters
m/s
2.5---3.5
Loading capacity (0.75t/m3)
Tons per hour
50--80t
lifting Height
m
3----45m

Options for motor
ABB
220v/380v/415/600
made in China
Semens
220v/380v/415/600
made in China
Normal brand made in China
220v/380v/415/600
made in China

Main Features

1. Bucket elevators are capable for different small particle materials handling, including powder, granular and massive materials
2. Big capacity. The series of bucket elevator has a variety of specifications. The lift range is 10-800 m³ / h.
3. Small power consumption. Use intensive layout of the large-capacity transportation. chain speed medium, to enhance the amount of the capacity. So driving low energy consumption.
4. Long service life
5. High hoisting height. This series of chain hoist speed moderate, smooth operation, and adopts the plate chain high strength wear resistant chain, so can reach high hoisting height (up to 40-50m)
6. Good sealing, less environmental pollution
7. Easy to operation, convenient maintenance, less wearing parts

8.Anti-rotation system used in the elevator , incase there will be cut off of the power,the grain will not be fallen down to the ground.

Certifications
Detailed Images

Machine Parts

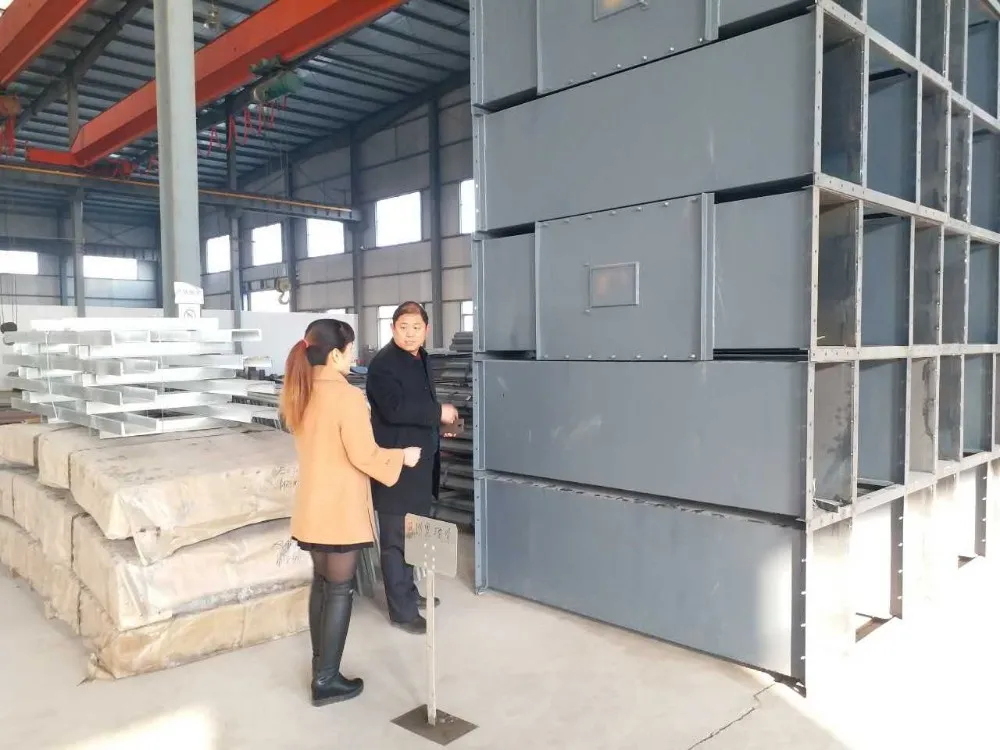

Name: Elevator body

Brand: TSE  ELEVATOR MASTER

Original: CHINA

THE TSE GRAIN ELEVATOR ARE ASSEMBLY TYPE,NO WELDING ON SITE;

The head wheel are fixed with the rubber for safety transportation;

Main Features

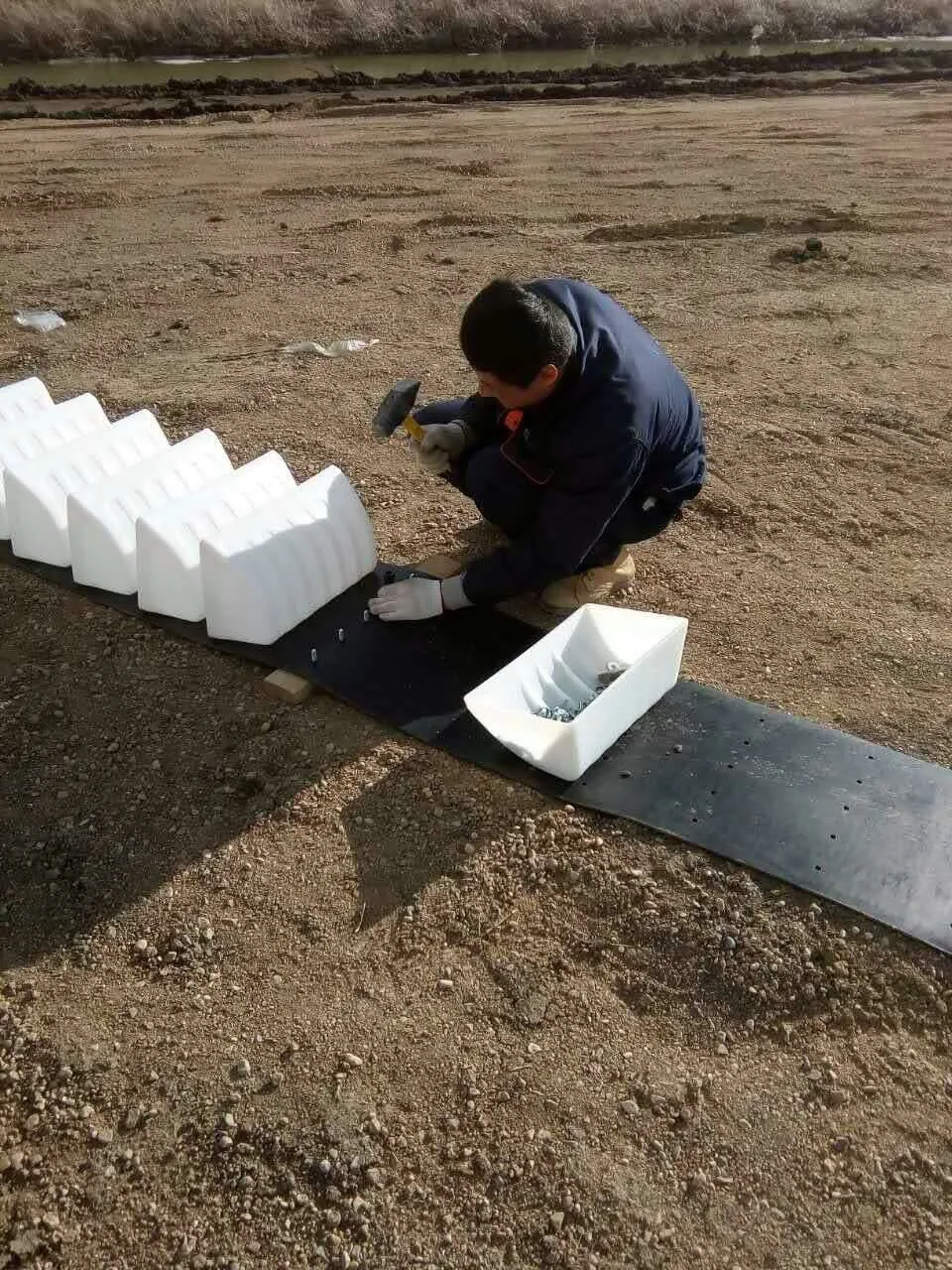

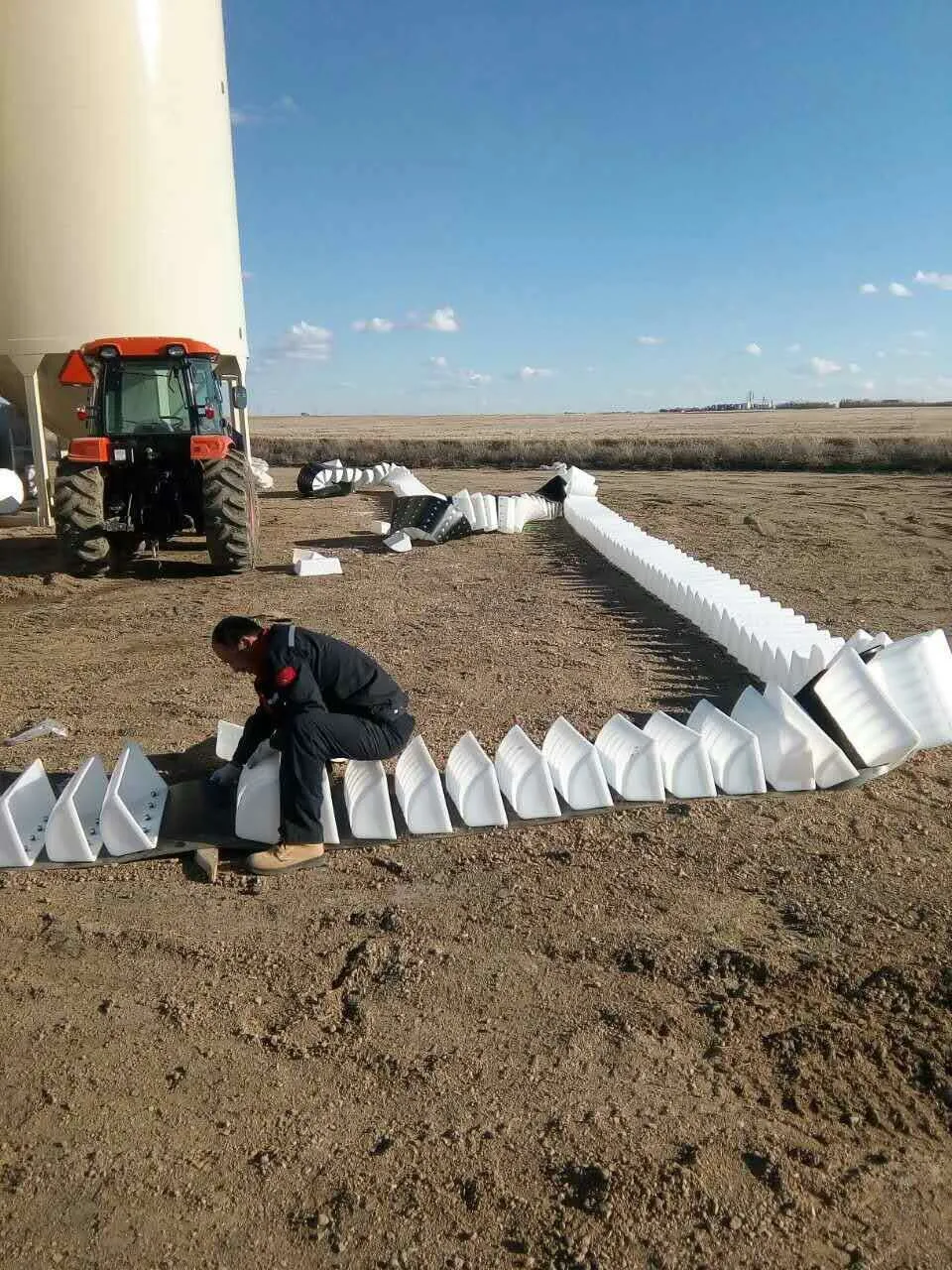

Name: Grain bucket elevator buckets
Brand: TSE GRAIN ELEVATOR MASTER
Original: CHINA
HDPE GRAIN BUCKETS ARE USED FOR THE ELEVATOR,

WHICH CAN HOLD THE GRAINS DURING THE TRANSPORTATION ; HDPE BUCKETS HAVE LONG LIFE FOR SERVICES(6--8 YEARS ,24 HOURS WORKING). FIXING ON THE BELT BY BOLTS.

Machine Parts

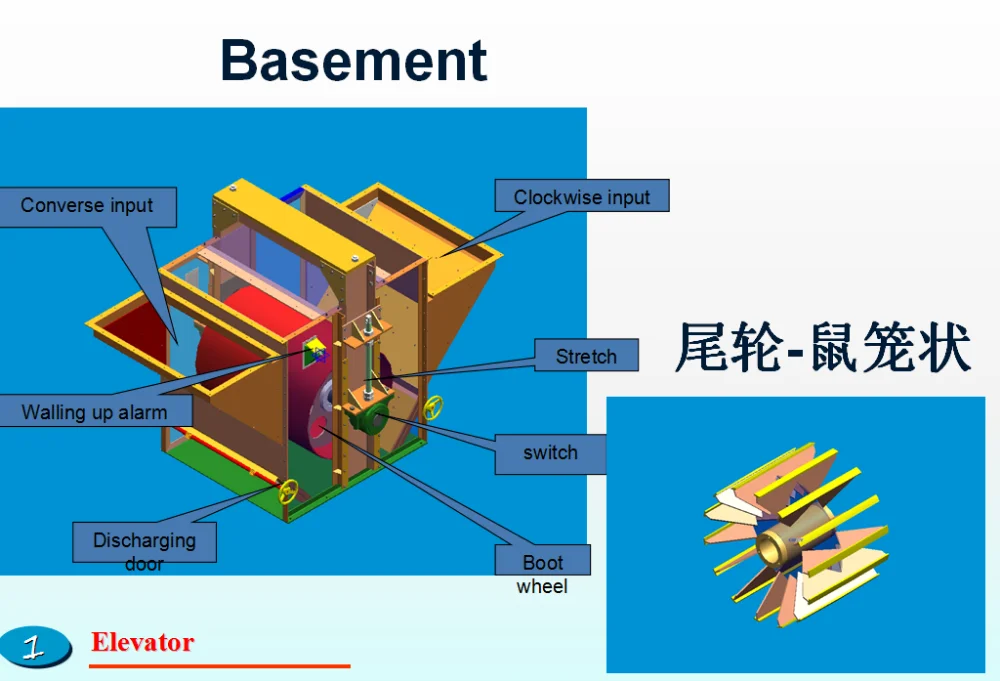

Name:  THE BASEMENT OF THE GRAIN BUCKET ELEVATOR
Brand:  TSE GRAIN ELEVATOR MASTER
Original: CHINA
THE BASEMENT ARE MADE IN THE SHAPE OF THE CAGE, WHICH CAN HELP THE RUBBER OR BELT WORKING ON THE WHEELS MORE SMOOTHLY AND SAFELY.

F

Main Features

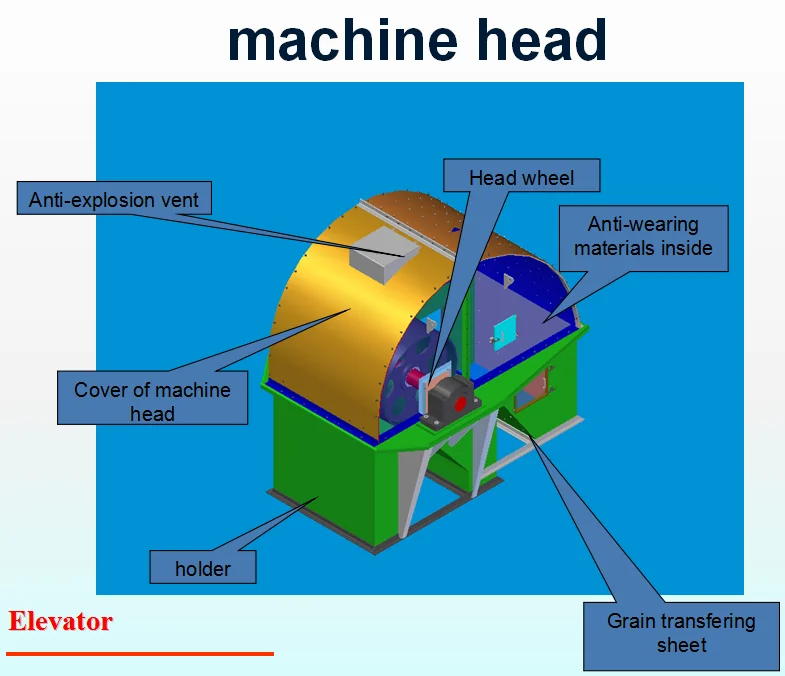

Name: GRAIN ELEVATOR HEAD
Brand: TSE ELEVATOR MASTER
Original: CHINA
THE ELEVATOR HEAD ARE ASSEMBLY TYPE WITH HEAD WHEEL INSDE

THE MOTORS AND GEAR BOX ARE ON THE HEAD

THICKNESS OF THE MATERIALS USED ON THE HEAD MIN.4MM--6MM;

STRONG ENOUGH FOR HOULDING AND WORKING

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory and the elevator operation site

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* sending supervisors to the overseas site for setting up the grain elevator

* sending the worker to set up the grain elevator in overseas.

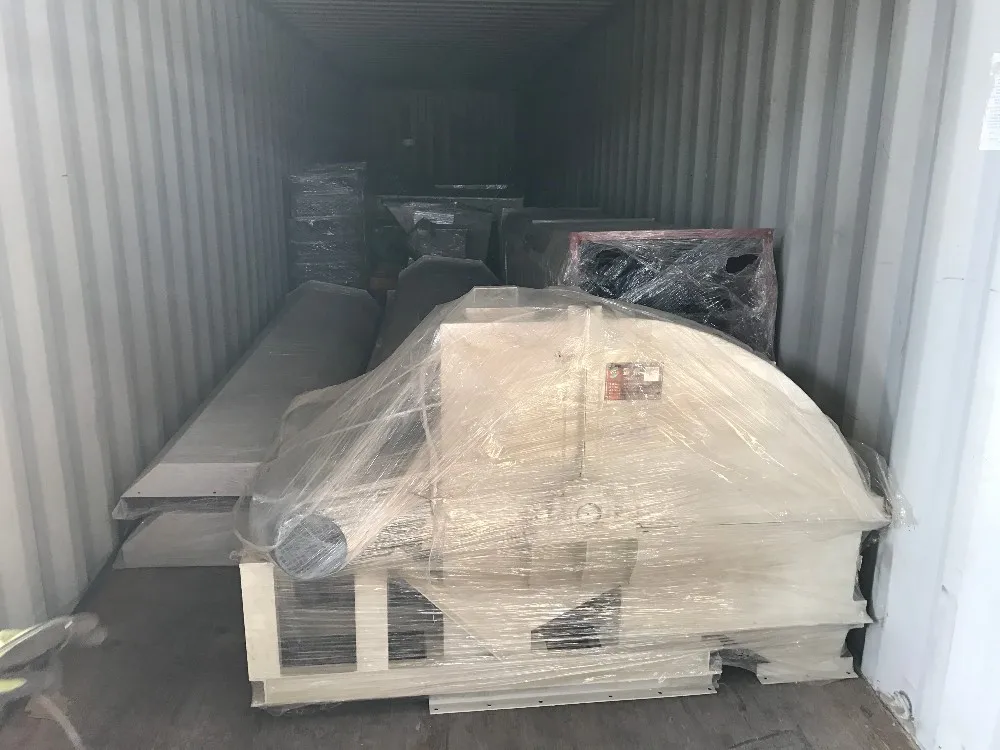

Packing & Delivery
Packaging
Size
2000 (L) * 456 (W) * 789 (D)
Weight
0.2 T



Packaging Details
If export to  oversea  countries,.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
323 (L) * 456 (W) * 789 (D)
Weight
500kg



Packaging Details
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
