Fast Turnkey Customize IoT Gateway WIFI Smart Medical Industrial Security Automobile Electronic PCBA Board Service PCB Assembly

FOB Reference Price:Get Latest Price
$0.10 - $16.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Model Number:
2018052418
Place of Origin:
Guangdong, China
Product name:
PCB Assembly
Service:
Layout,OEM,PCB Making,Component Sourcing,Assembly,Test,Package
Number of Layers:
1-64Layers
Material:
FR4 High TG Aluminium ROGERS
Solder mask:
Green. Red. Blue. White. Black.Yellow
Surface finish:
HASL,OSP,Immersion Gold/Silver,ENIG
Copper Thickness:
1-6OZ, 1oz
Warranty:
2 Years
Application:
Industrial Control,Medical,security ,IoT,Gateway,Internet
Certificate:
CE ROHS ISO9001 ISO14001 ISO13485 TS16949
Brand Name:
HUAXING
Base Material:
FR-4
Board Thickness:
1.6mm
Min. Hole Size:
0.25mm
Min. Line Width:
3mi
Min. Line Spacing:
0.003"
Surface Finishing:
HASL
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Fast Turnkey Customized IoT Gateway WIFI Smart Medical Industrial Security Automobile Electronic PCBA Board Service PCB Assembly
ESD Package with cartons.
Port
Shenzhen;Hongkong;Shanghai
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description

Fast Turnkey Customized IoT Gateway WIFI Smart Medical Industrial Security Automobile Electronic PCBA Board Service PCB Assembly



Product Description

Our Advantages:

1.Factory Area:10000square meters,400workers,13 SMT Lines,5 DIP Lines, 1 X-ray,13 AOI machines,2 Sample test machine.

2.Certification : UL, CE, FCC, RoHS, ISO9001,ISO14001,ISO13485,TS16949

3. Quality Control: IPC-A-610E standard, E-test, X-ray, AOI test, IQC, QC, QA,100% functional test.

4. The warranty period for PCBA: 2 years.

5. Quote within 24 Hours.

PCB Technical Capacity

LayersMass production: 2~58 layers / Pilot run: 64 layers
Max. ThicknessMass production: 394mil (10mm) / Pilot run: 17.5mm
Material

FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) ,

 Halogen-Free, Ceramic filled , Teflon, Polyimide, BT,

 PPO, PPE, Hybrid, Partial hybrid, etc.
Min. idth/SpacingInner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
Max.Copper ThicknessUL certificated: 6.0 OZ / Pilot run: 12OZ
Min. Hole SizeMechanical drill: 8mil(0.2mm)  Laser drill: 3mil(0.075mm)
Max. Panel Size1150mm × 560mm
Aspect Ratio18:1
Surface Finish

HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP,

Immersion Silver, ENEPIG, Gold Finger
Special Process

Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity,

 Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control.




Packaging & Shipping



Our Services

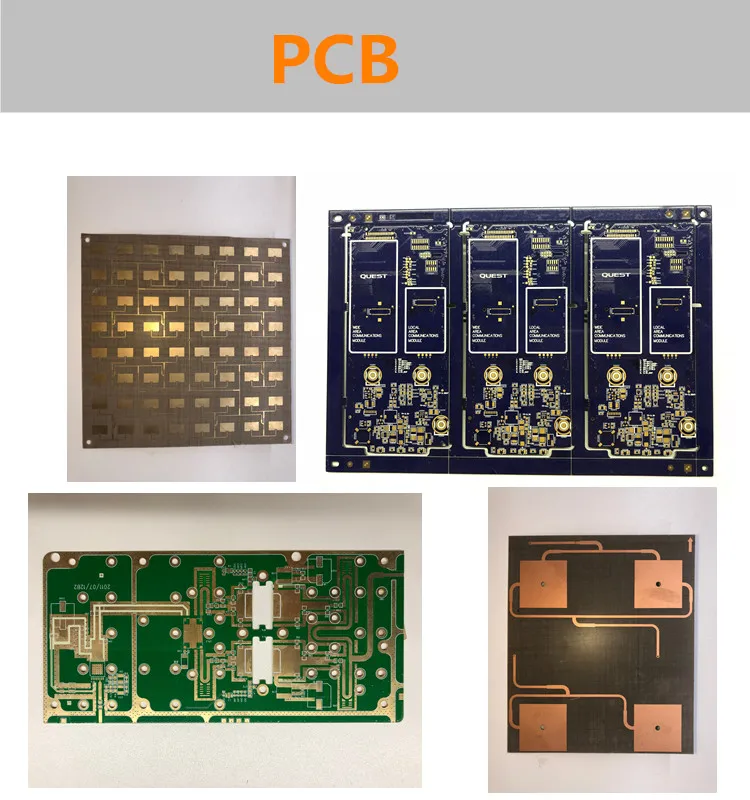

1.PCB Making:We are able to make Rigid, Flexible,rigid-flexible, Aluminium, High TG,ceramic PCB

2.Components Source:We have good supply chain to ensure quality with competitive price.

3.SMT&DIP&OEM Service.

4.Free Programme&Test

5.Product Box /Housing Develop

Company Information
Hua Xing PCBA Founded since 1998, we focus PCB(Rigid, Flex, Aluminium, Teflon, ceramics, HDI...) making, PCB assembly, Components supply chain optimize and sourcing, enclosure develop, function test for 21 years. We have a total of 13 SMT Lines, 5 DIP lines,2 test lines, and 2 packaging lines,13 AOI machines,1 X-RAY machine, 2 sample test machine,our workshop area is 10000square meters. Most of our engineer has over 8 years of experience. We have about 400workers.We have passed ISO9001,ISO14001,ISO13485,TS16949,UL certifications.
FAQ





 1.What is your MOQ?

    We have no MOQ, minimum  qty 1pcs.

 2.How could I can a quotation?

    PCB: Please send us Gerber file.

    PCBA:Please send us Gerber file+BOM

    OEM Product:Please send us Gerber file +BOM+3D file

 3.When did you found your company?

    Hua Xing founded in 1998.

 4.How many workers does your factory have?

    Over 400workers till now.

 5.What is the factory area?

    Over 10000 square meters.

 6.How many produce lines do you have ?

    Hua Xing has 13SMT lines,5DIP lines, 2 Package lines.

 7.What is the lead time for PCB and PCBA?

    For PCB Samples:1-4Ddays;       For PCB Mass production:3-7days

    For PCBA Samples:10-16days    For PCBA Mass production:3-5weeks.

    Depends on the project if complex or not.

 8.What kind of product could you make ?

    We are able to make any product according your Gerber file and BOM requirement,include Internet,Smart wear,IoT&Gateway, Medical, Security, Consumer, LED, industrial control.

 9.How could you ensure quality?

    We will control our quality as IQC,QC,X-ray &AOI device,ICT test,function test, first sample test, if you need, also welcome SGS inspect before shipping.

 10.What is our warranty?

      Our warranty is 2 Years.
