Fastwel VIM554 3U CPCI Audio / Video Input Module, Fastwel 3U Embedded Module, original and new fastwel

FOB Reference Price:Get Latest Price
$500.00 - $1,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
D/C:
VIM
Model Number:
Fastwel VIM554
Type:
According to model
Brand Name:
Fastwel
Place of Origin:
Moscow, Russian Federation
Product Item:
Fastwel VIM554 3U CompactPCI Audio/Video Input module
Operating temperature:
-40°C to +85°C
Application Fields:
Automation control, high-speed data acquisition and processing
Dimension:
130.5 mm * 213.0 mm * 20.32 mm less than 389g
OS compatibility:
Windows 7 (Embedded), 32/64 bit ,Linux 3.2.0
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month Fastwel Compact PCI input module low moq
Packaging & Delivery
Packaging Details
Fastwel VIM554 Compact PCI input module packed in original box
Port
Hong kong
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 60 To be negotiated
One of our business is providing original and new Fastwel products.  For any models from Fastwel please send inquiry to us for competitive prices, payment terms and fast lead time.
Features

Feature - Compact PCI input module

• Form-factor: PICMG CPCI-S.0 R1.0 CompactPCI® Serial Specification 3U;
• System bus: PCI Express x4;
• LED-indication of module's operation modes;
• Power supply: Supplying voltage: +12.0 V, consumed current: no more than 0.8 A;
• Vibration resistance: 5g;
• Single/multiple shock resistance: 100g/50g;
• Dimensions: No more than 130.5 mm х 213.0 mm х 20.32 mm (WxDxH);
• Weight: VIM554-01-R1: 320 g, VIM554-02-R1: 380 g;
• Operating temperature range: Industrial version: from -40°C to +85°C;
• MTBF: 100 000 hours;
• OS: Windows 7 (Embedded) 32/64 bit; Linux 3.2.0

Overview

VIM554 Audio/Video Input Module is implemented in CPCI-S.0 3U standard with support of rear I/O modules. The module is designed for reception of standard definition analog video signals (SDTV) and voice audio signals, their conversion to digital form and their entry into PC system memory.

Specification
Form-factor - Compact PCI input module
PICMG CPCI-S.0 R1.0 CompactPCI® Serial Specification 3U.

System bus  PCI Express x4.

LED-indication - Compact PCI input module
• LED-indication of module's operation modes.

Software monitor
• Overheating protection (module disconnection).

Video path - Compact PCI input module
• For VIM554-01 version: 4x channels;
• For VIM554-02 version: 8x channels;
• Video signal standard: PAL (B, D, G, H, I, M, N), SECAM, NTSC;
• Video signal type: composite (CVBS);
• Connector type and characteristic impedance: MCX (slot), 75 Ohm;
• Input resistance: 75 Ohm;
• Video input type – AC-coupled;
• Video input accepted level: 0.5 V÷ 2.0 V (peak-to-peak amplitude);
• Anti-aliasing filters: yes;
• Input speed per each channel: 25/30 frames per second depending on the video signal standard;
• Output frame format: up to D1;
• Video decoder: TW6869.

Audio path
• For VIM554-01 version: 4x channels (mono);
• For VIM554-02 version: 8x channels (mono);
• Type of audio sources: active microphones, amplifiers, sound cards;
• Power supply of active microphones: +12.0 V/45.0 mA;
• Bandwidth:12 KHz (using the level –3 dB);
• Input stage type: differential;
• Input resistance – No less than 47 KOhm (f=1 KHz);
• Input signal level: up to 2.0 V (root-mean-square value);
• Sampling rate: 8/16/32/44.1/48 KHz;
• Retrieval capacity: 8/16 bit;
• Input stage overload protection: yes;
• Audio decoder: TW6869.

Power supply
• Supplying voltage: +12.0 V;
• Consumed current: no more than 0.8 A.

Resistance to mechanical impact
• Vibration, acceleration amplitude – no more than 5g;
• Single shocks, peak acceleration – no more than 100 g;
• Multiple shocks, peak acceleration – no more than 50g.

MTBF
• No less than: 100 000 hours.

Weight - Compact PCI input module
• VIM554-01-R1- no more than 320 g;
• VIM554-02-R1- no more than 380 g.

Dimensions
• No more than 130.5 mm х 213.0 mm х 20.32 mm (WxDxH).

Operating temperature range
• Industrial version: from –40°C to +85°C.

Humidity - Compact PCI input module
• Up to 80%, non-condensing.

Resistance to cyclic damp heat in case of lacquer coating
• At the ambient temperature of (+55±2)°C and relative humidity of (93±3)%.

OS compatibility
• Windows 7 (Embedded), 32/64 bit;
• Linux 3.2.0.
Application

                                               Mobile

                                Industrial Automation

                                            Communications

                                        Embedded

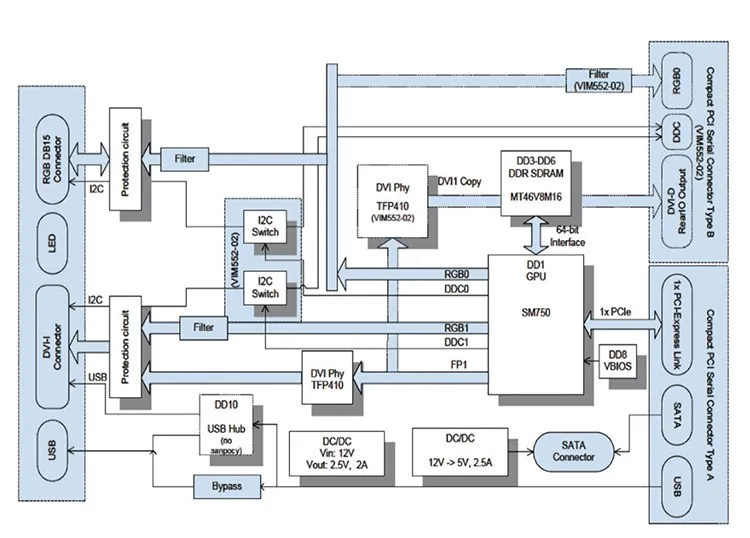

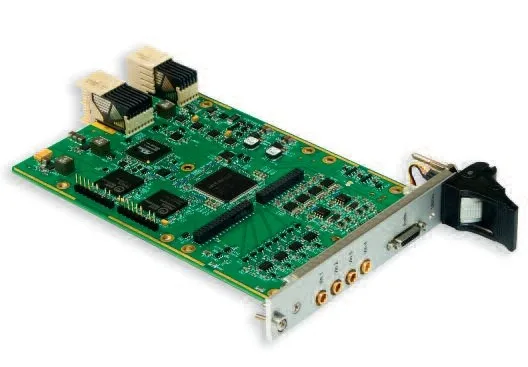

Board Layout
Configuration

2 Configurations for VIM554 - Compact PCI input module


VIM554-01 R1: 4x audio (mono) and 4x video channels, Weight: no more than 320 g;
VIM554-02 R1:
8x audio (mono) and 8x video channels, Weight: no more than 380 g.pact PCI CPU card

Options- Compact PCI input module

Conformal coating

Delivery Checklist - Compact PCI input module

1. VIM554 Audio / Video Input Module;
2. Package
