Fd Machinery Fruit Lyophilizer Food Vacuum Freeze Dryer

$3,240.00 / Set | 1 Set (Min. Order)
Model Number:
TOPT-12D
$3,240.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vacuum Drying Equipment
Place of Origin:
Shaanxi, China
Brand Name:
TOPTION
Voltage:
220V
Power(W):
1070
Dimension(L*W*H):
560*460*(710+430)
Weight:
freeze dryer for home
Certification:
CE ISO
Warranty:
One Year
Model::
TOPT-10A/10B/10C/10D/10E/12A/12B/12C/12D/12E/18A/18B/18C/18D/18E/18S
Cold trap temperature(℃)::
<-55
Vacuum degree(Pa)::
<10
Freeze-drying area(㎡)::
0.08
Water capture capacity(Kg/24h)::
3~4
Material tray(mm)::
D180*3
Material volume put in device (10mm)(L)::
0.8
After-sales Service Provided::
Overseas service center available
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
700X650X970 cm
Single gross weight:
105.0 kg
Package Type:
carton packing box Fd Machinery Fruit Lyophilizer Food Vacuum Freeze Dryer
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Product Description

TOPT series Freezing dryer is a new desktop Freezing dryer device, suit for freeze-dring experiment in laboratory and a small amount production.
The series include: common type, capping type, branch manifold common type, branch manifold capping type.

Product Parameters

Model
Unit
TOPT-10
TOPT-12
TOPT-18
Specification

Topt-press 10B/10D
Ordinary 10A/10C
Topt-press 12B/12D
Ordinary 12A/12C
Top-press
18B / 8D
Ordinary
18A /18C
Freeze-drying area
0.08
0.12
0.08
0.12
0.09
0.18
0.27
Cold trap temp
<-55
Vacuum degree
Pa
<10
Water-capture capability
Kg/24h
3~4
3~4
6
Material tray
mm
¢180*3
¢200*4
¢180*3
¢200*4
¢200*3
¢200*4
¢200*6
Power
w
970
1070
1400
Dimension
mm
565*420*(360+430)
560*460*(710+430)
635*540*(970+430)
Material volume put in device(10mm)
L
0.8
1.2
0.8
1.2
0.9
1.8
2.7
¢12mm penicillin bottle
Pcs
560
920
560
920
990
1320
1980
¢16mm penicillin bottle
Pcs
285
480
285
480
555
740
1110
¢22mm penicillin bottle
Pcs
165
260
165
260
270
360
540
Eggplant shaped bottle 100ml/250ml/500ml/1000ml
10D/ 10C have
10A/10B no
12D/ 12C have
12A/12B no
18D/ 18C have
18A/18B no

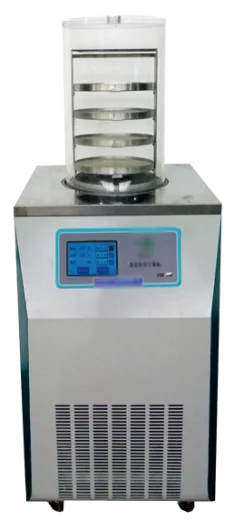

Detailed Images

A:Standard

B:Top-press

C:manifold

D:manifold with top press

E:T-type

freeze dryers

Key Features:
1. Green environment-friendly product to conform to international standard
2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of precooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;
5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and
6. The organic glass cover can help you observe the whole freeze drying process.
7. Stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function
Material Tray:
Common type: specially designed stainless steel sample shelf, the space of common sample tray can be adjusted, the amount of layers can be designed freely; the diameter of material tray is 200mm,amouting to 4 layer, the amount of the material on it is about 1000mL(the depth of the material 10 mm) .
Time of freeze-drying: when the depth of material under 10mm, the time of drying in general is 24 h or so.
Packing & Delivery

Packing:
-Standard wooden case or carton case
-Both neutral and customized packaging can be available.

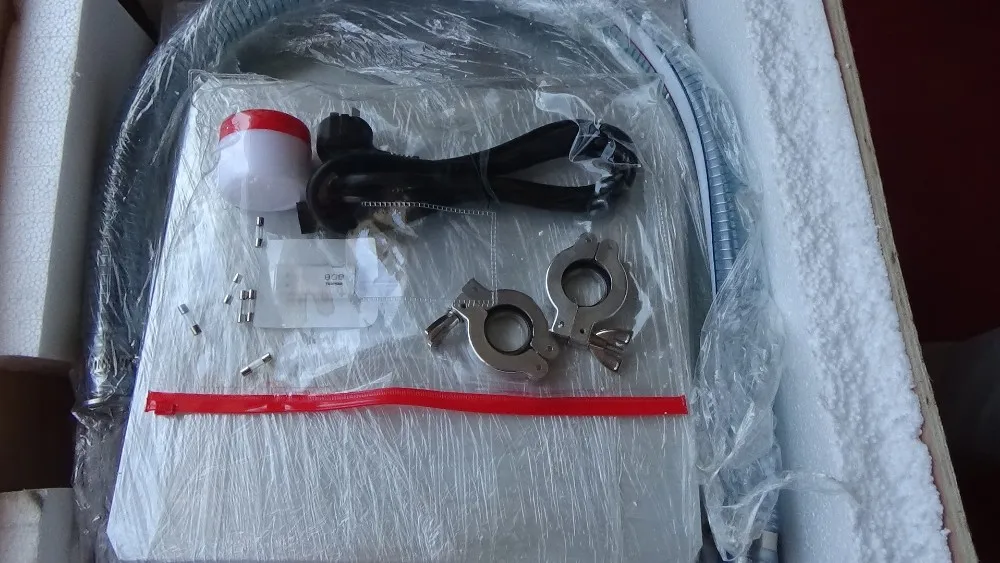

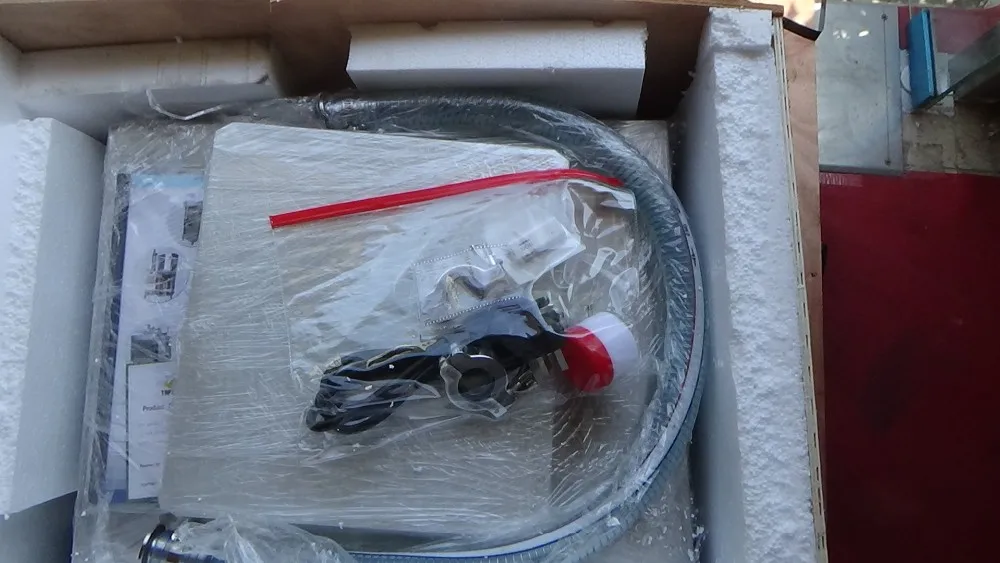

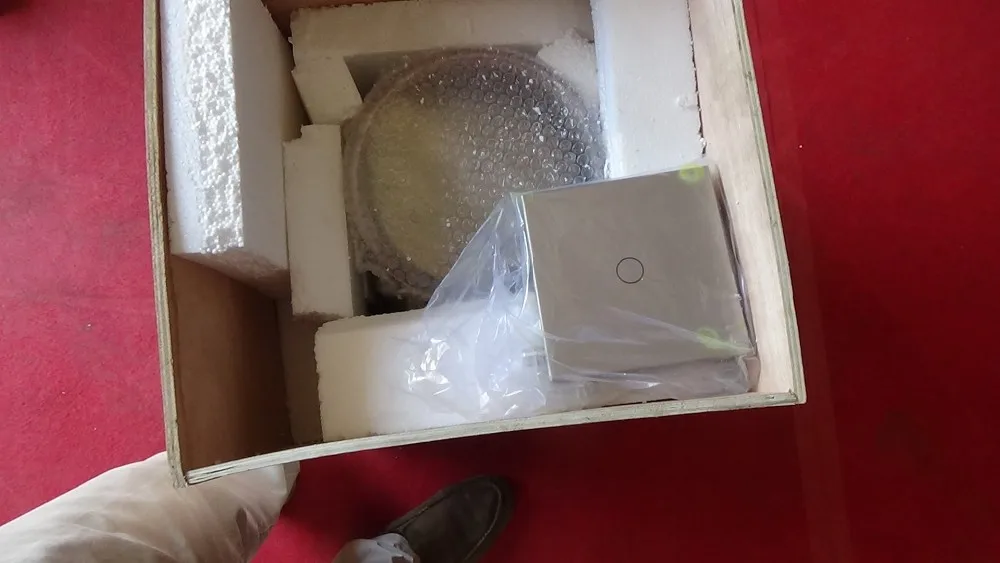

Shipping:
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases
-Both neutral and customized packaging can be available
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent

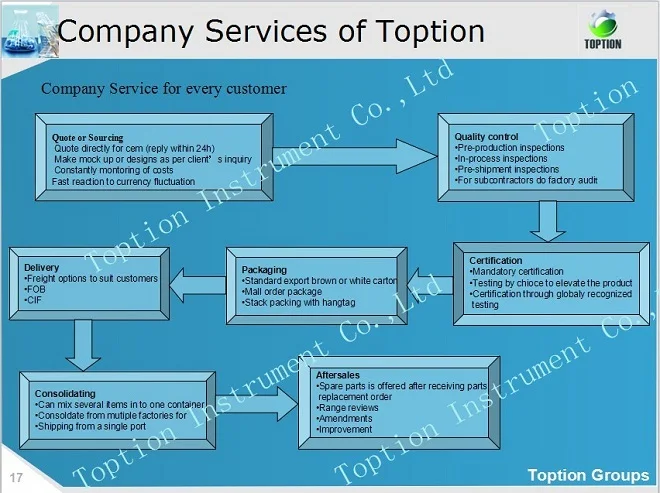

Our Service

Pre-Sales Service:
1. Inquiry and consulting support.
2. Quick response with detailed quotation
3.Confirm price, quantity, shipment, lead time and payment terms)
4.Make order and sealed PI. (Trade assuranceorder is recommend to new clients for securing payment)
After-Sales Service:
1. One year warranty for the products described here.
2. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
3.Reliable quality and thoughtful after-sale service: If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.

Our Company

TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the "ISO9001:2008 Quality Management System"certification and most of our products have passed CE certification,the quality can be assured.

FAQ

Q: What is your MOQ?
A:1 set.
Q: How long is your delivery time?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are not in stock, depending on order quantity.
Q: How to choose suitable equipment ?
A:tell us your work flow and requirements ,then we will recommend you suitable equipment according to yourrequirements, application experience and feedback from our clients.
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken, we will send you a new free part if in the warranty period.
For more details about lab instruments, please feel free to contact us~
