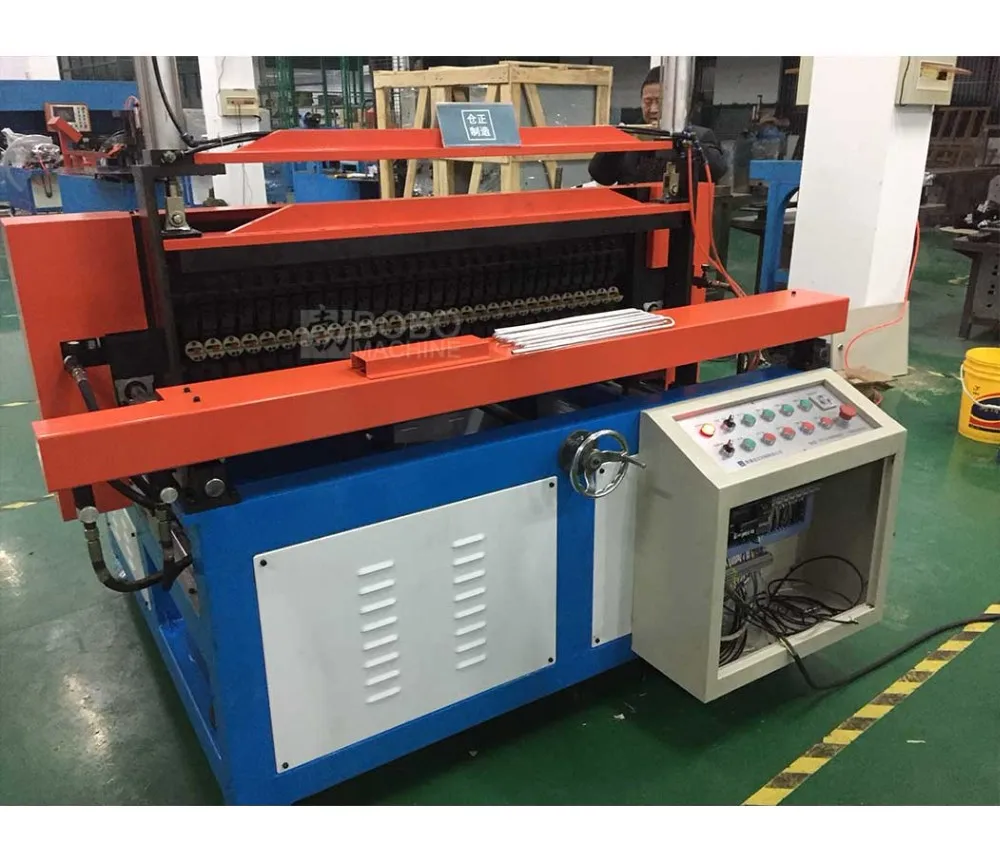

Fin type refrigerator evaporator aluminum copper serpentine tube twisting and flatting machine

  • 1 - 1 Sets
    $30,000.00
  • >=2 Sets
    $16,000.00
Model Number:
CZNY1
Samples:
$10,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
machine (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Tube Material:
Copper / Aluminum / Bundy tube
Tube Diameter:
4-20mm
Head no.:
30
Angle:
30°±2°
Flatting line:
15
Thickness:
5.6mm<H<6.4mm
Motor Power:
3.0KW
Electric System:
380V, 50Hz, 3Phae (Customized)
Dimension:
2300 x2000x 1800 mm
Name:
Fin type refrigerator aluminum copper twisting and flatting machine
Product Certification certification
CE Certified.
Valid from 2016-10-17 until 2049-12-31
Supply Ability
Supply Ability:
20 Set/Sets per Month Fin type aluminum copper tube twisting and flatting machine
Packaging & Delivery
Packaging Details
Fin type refrigerator evaporator aluminum copper serpentine tube twisting and flatting machine is packaged whihin wooden case.
Port
refrigerator condenser evaporator tube twisting flatting machine is delivered Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

Fin type refrigerator evaporator aluminum copper serpentine tube twisting and flatting machine

Component
Brand
1
Pneumatic Components
Delixi
2
PLC
Omron
3
Low voltage electrical appliances
Schneider
4
Detection element
Omron
5
Linear guide, ball screw
Taiwan Shangyin

Main Features

1) twisted flat shape, size should be consistent with Party A product drawings, and all actions need to be completed at one time;
2) Skew angle tolerance is ± 2 degree;
3) Flattened at the aluminum tube shall not be crushed, no burr, and flattened elbow rounded;
4) All the power parts of the equipment must have safety protection equipment to ensure the safe operation of the equipment;
5) Equipment production products pass rate ≥ 99.5%

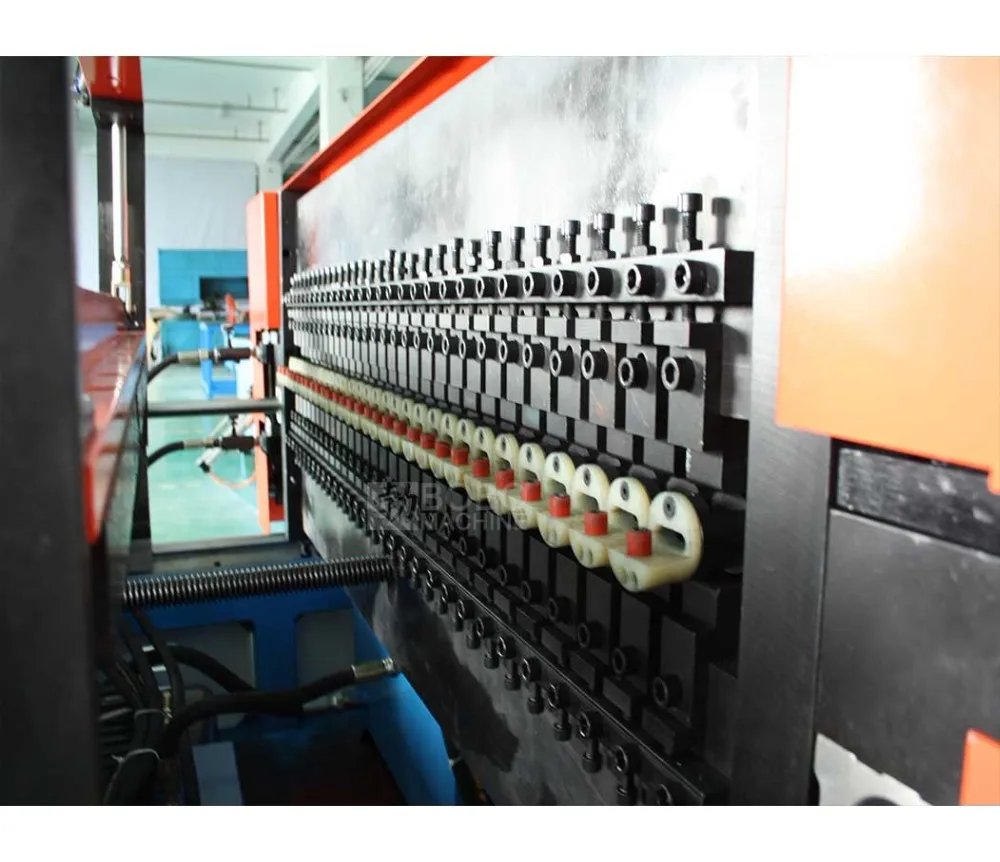

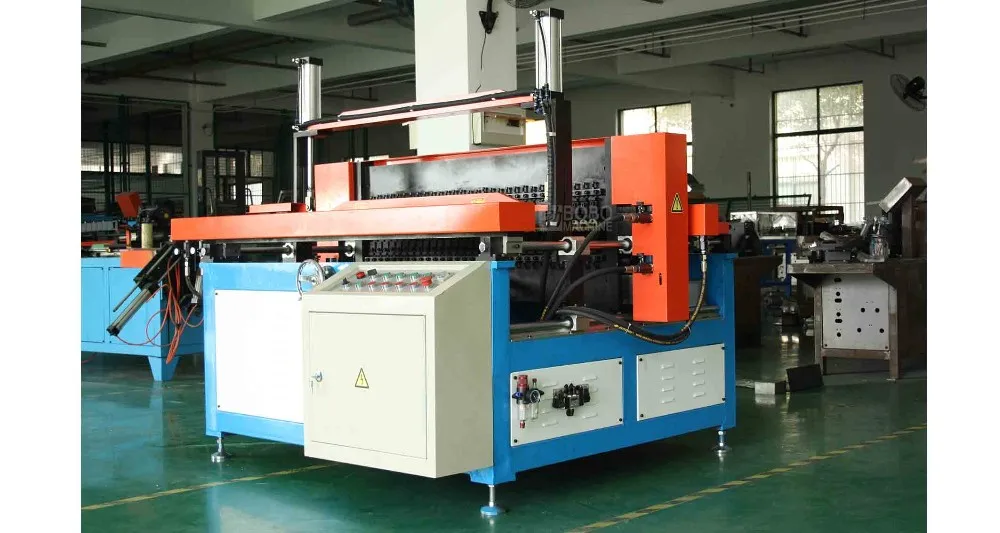

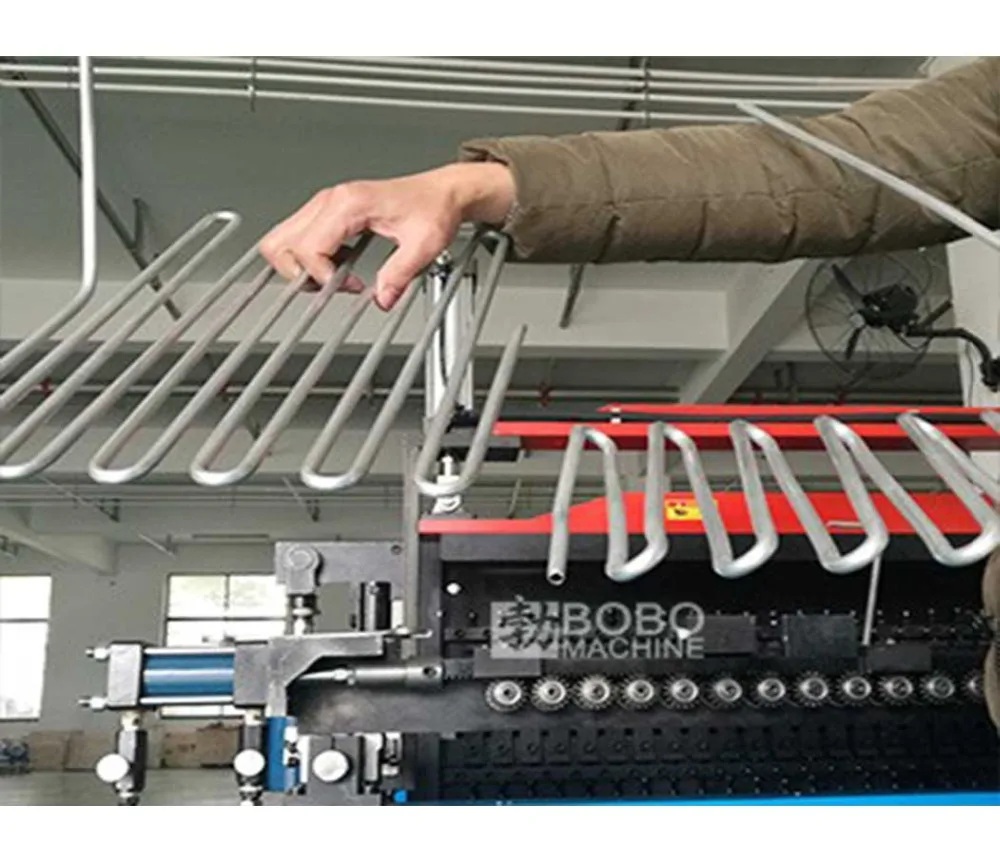

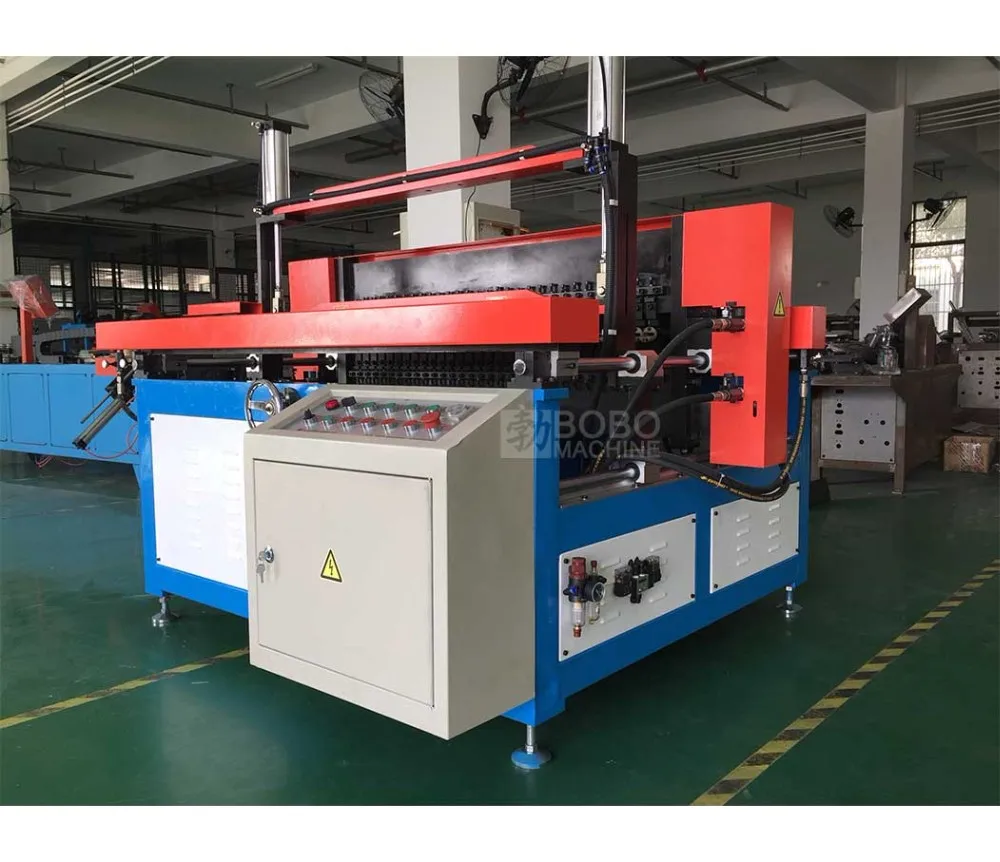

Detailed Images
Our Service

Guarantee

The guarantee period is one year since the date B/L. During this period, we will offer free parts for changing if machine quality problem.
Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.

After-Sales Service

We offer free training here in China. Also we can send technicians oversea for whole line installation and training.
The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer

Packing & Delivery
Packaging
Size
2300 x 2000 x 1800 mm
Weight
1500KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
