Fire Proof Sandwich Panel Steel Building Modular Prefab Standard Living Container House

  • 8 - 15 Sets
    $1,800.00
  • >=16 Sets
    $1,700.00
Material:
Container
Lead Time:
Quantity(Sets) 1 - 8 9 - 16 >16
Est. Time(days) 30 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
WZH
Model Number:
Container House
Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant
Name:
2 floor cheap prefab container house in philippines
Roof/wall:
50/75mm EPS sandwich panel/Rockwool
Window:
PVC Sliding window or aluminum alloy
Door:
EPS/Security/Glass
External Size:
6055mm(L)*2435mm(W)*2591mm(H)
Inner size:
5860mm(L)*2240mm(W)*2500mm(H)
Floor:
Steel Chasis +rockwool + polywood sheet
Corner Post:
3mm steel profile
Floor Load:
2.0 KN/M2 (200KG/M2)
Wind Load:
25m/s (90km/h)
Supply Ability
Supply Ability:
50 Set/Sets per Month prefab shipping container house for sale
Packaging & Delivery
Packaging Details
4 units/bundle, the same dimension as 20'GP container, which is directly shipped to destination port.
Port
Xingang
Lead Time :
Quantity(Sets) 1 - 8 9 - 16 >16
Est. Time(days) 30 50 To be negotiated
Container house

Fire Proof Sandwich Panel Steel Building Modular Prefab Standard Living Container House


Features:

Safty and reliable light steel flexible structural system
Easy to transport, assemble and disassemble, repetitive to use
Good and attractive apperance
Waterproof, soud-insulated, heat preservation, seal, easy to clean and maintenant
Any dimension and customized design are available
Widely modal application, the office, conference room, dormitory, store, factory etc.

Application introduction :

They have been retro-fitted with functional container house accessories. These container home units are transportable and comfortable to live in temporarily or permanently.

They are fitted with power and lighting and can be accessorised to suit your requirements.

Container houses are becoming increasing popular in this new age of sustainable living, as our container houses are constructed from recycled shipping containers. We can design a portable container home to your specific needs.

Detail Specifications and Introduction of the container houses :
Name

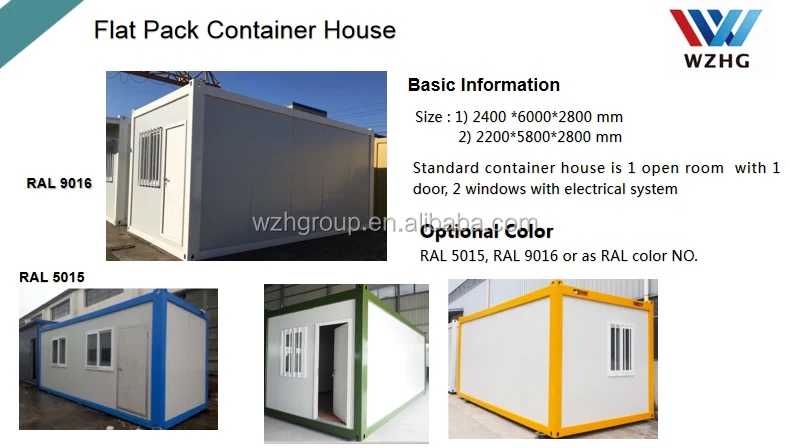

20ft flat pack container house , container homes
External Size
6055mm*2435mm*2896mm
Color
White , Blue , Grey or other RAL color





Steel frame
Roof :
Galvanized roof beam:3mm thickness,
Galvanized sub-beam:C90, 2mm thickness
Floor :
Galvanized floor beam:3.5mm thickness,
Galvanized sub-beam:steel square tube, 1.8mm thickness
Corner :
Corner post:3mm thickness

Floor
Glass Magnesium Board
PE water proof film
Roof
Galvanized color steel plate
Glass wool, single faced aluminum foil+ Moisture sealer
Profiled color steel plate ceiling
Wall
50/75 EPS sandwich panel , Glass fiber  sadnwich panel and PU sandwich panel
Door
Steel door
Window
Upvc window frame and sliding widow
Electrical
Socket , Switches , Lights , electrical wire , industrial socket ,Sunken distributer etc.
Others
Drainage channel / Decoration Line

Technical data of the container house

Load ( KN/M2)
 Base plate : 3.0   Roof panel : 1.5    Wind force :0.6
Soud insulation (db)
Base plate :30-35   Roof panel :30-35  wind force : 20-25
Heat Insulation coefficient ( W/M2K)
Base plate :0.46   Roof panel : 0.64  wind force : 0.47
Weight (kgs) /unit
1800
Floor plans

There is the different variours house layout

The below one is just for your reference only . If you have the new project , welcome to show us ,we can custom made as your request .

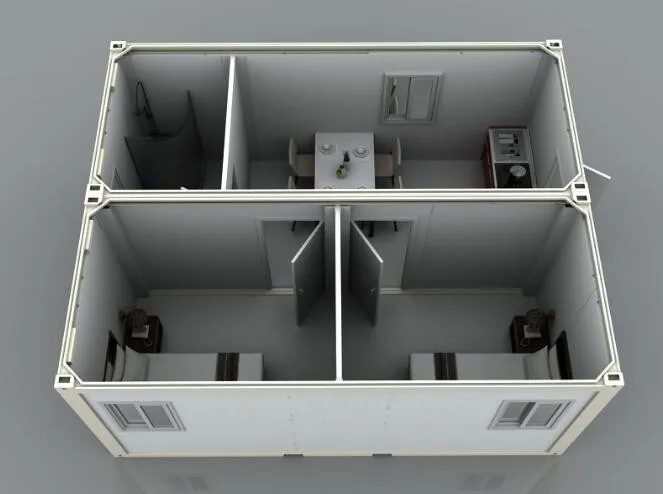

2 bedroom with the bathroom and kitchen

Use 2*20ft container house combined together to be the large area and to finish the house layout

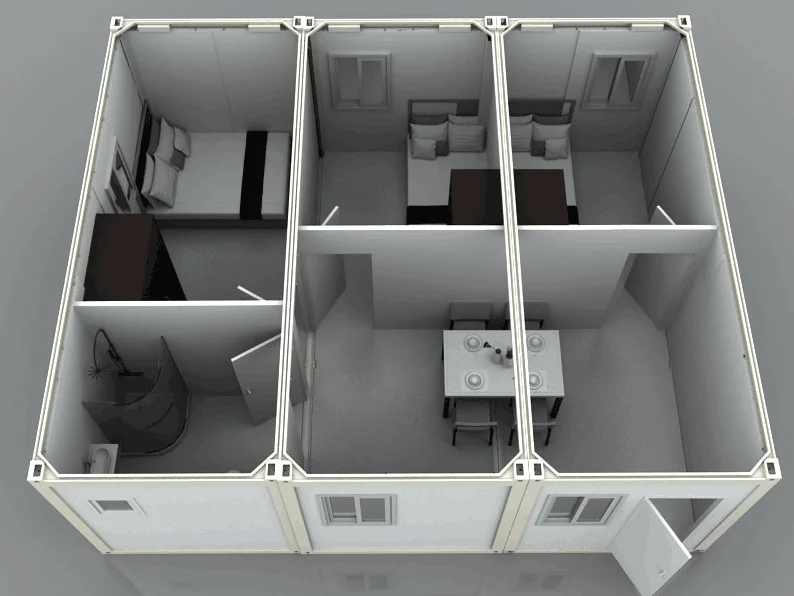

3 bedroom with bathroom and kitchen

Use 3*20ft container house combined together to be the large area and to finish the house layout

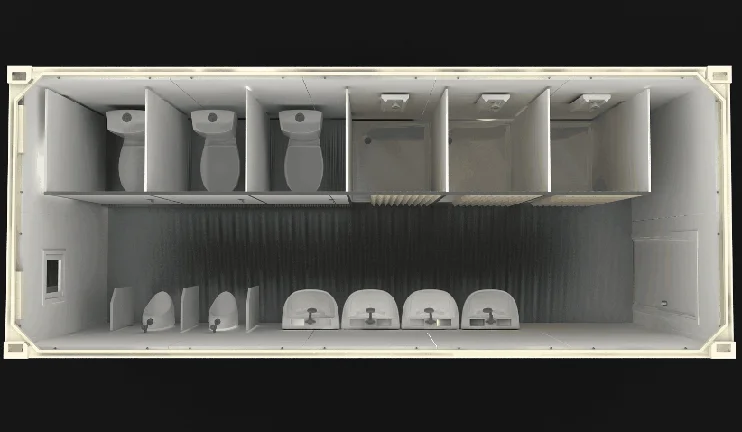

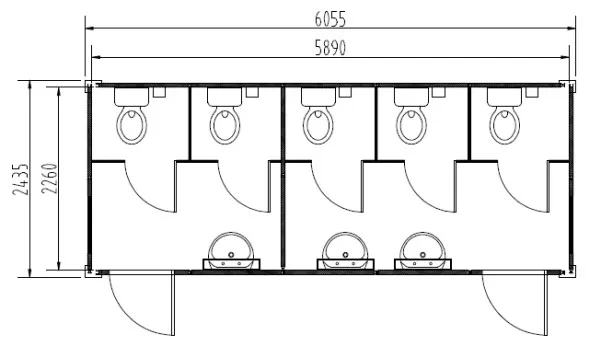

20ft container bathroom and toilet

Portable container toilet

Container toilet

Campsite Portable container toilet for the building site

Packing & Delivery

Flat pack packages

each set in 1 packages , 4 sets bundled together to be the similar size of the 20ft container , loading on the top of the ship .

Loading in the 40 HQ

Materials packed well and loading in the 40 HQ , usually 7-8 set /40 HQ

Loading in 40 HQ

Flat packed packages loading in 40 HQ , 8 units per 40 HQ .

Assemble
Project

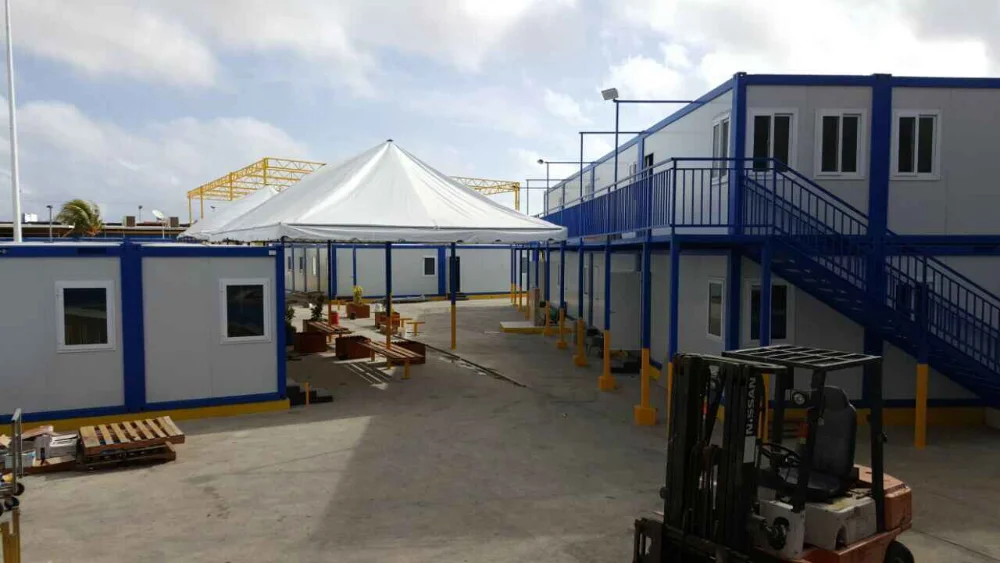

Aruba prefab Container Classroom

Prefab Container offices

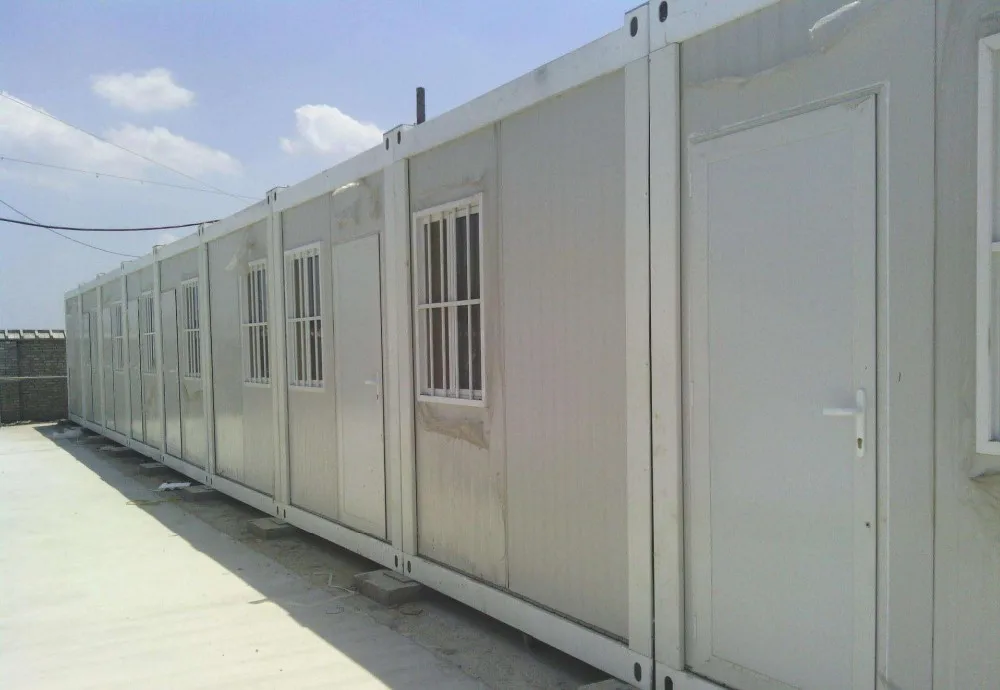

Campe container house at the building site

Use several container house combined together to meet the large area needed

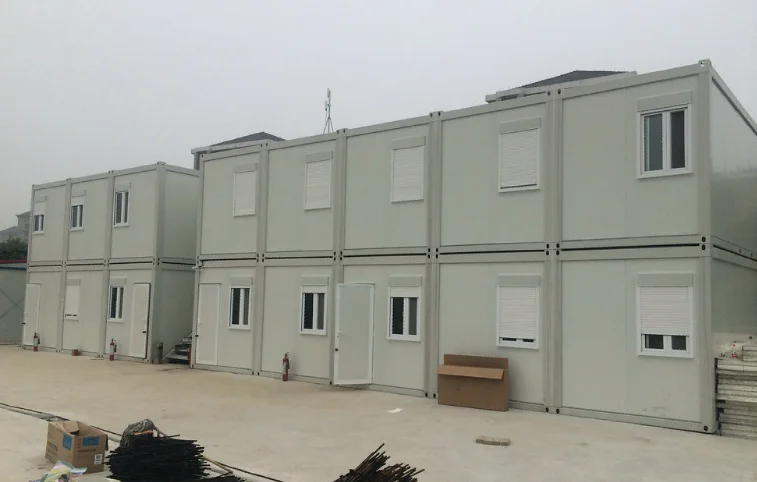

2 Floor design campe container house

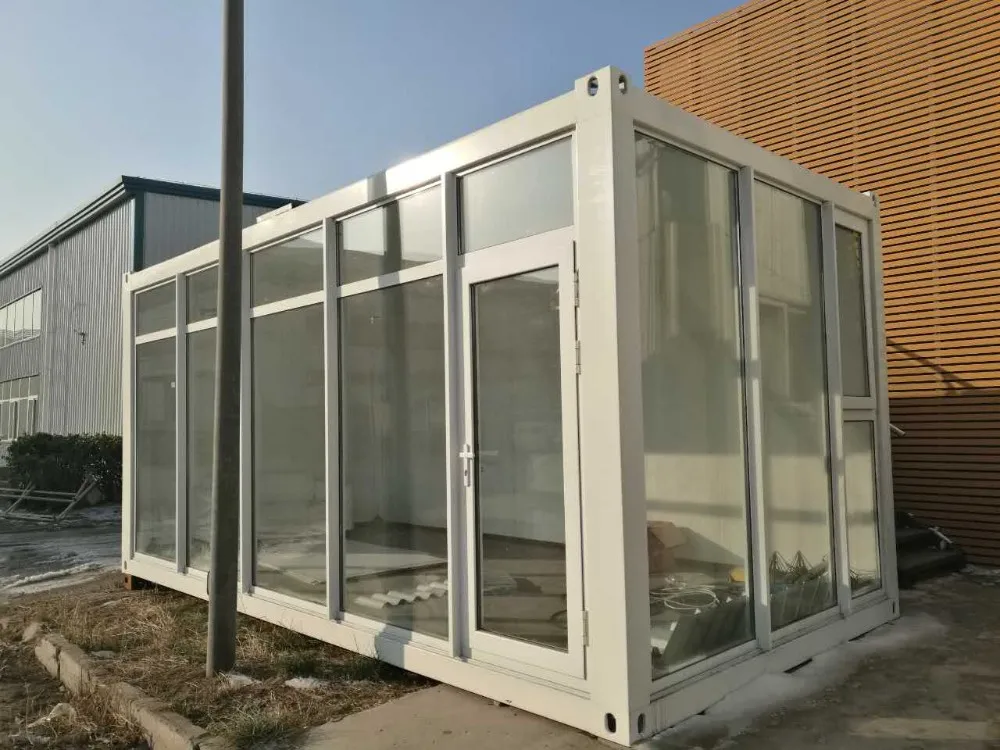

Container house for shop

To use the glass as the wall , make the sun shines goes inside and from outside to see the inside clearaly
