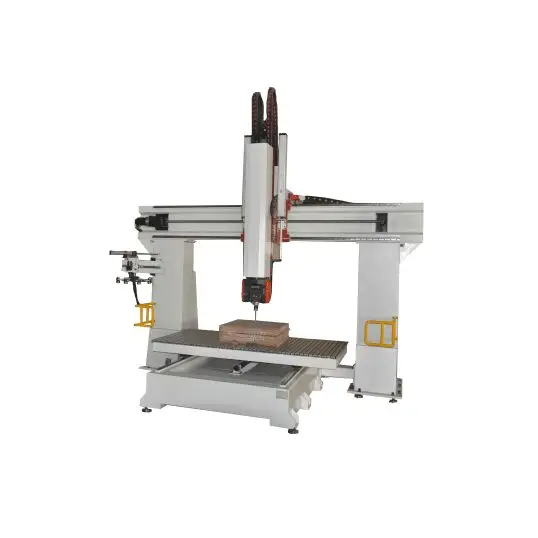

Foam/Wood Engraving/Milling Machine 3D CNC Foam Router 5 Axis

  • 1 - 2 Pieces
    $67,890.00
  • >=3 Pieces
    $67,690.00
Model Number:
BCMS6090-5 Axis
Lead Time:
Quantity(Pieces) 1 - 1 2 - 2 >2
Est. Time(days) 30 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
BCAMCNC
Voltage:
AC220V/50HZ
Power(W):
9.0KW
Dimension(L*W*H):
3600*4000*3500mm
Weight:
7600KGS
Certification:
CE,ISO,FDA
Warranty:
3 years
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Mold:
BCM6090-5 axis
working area:
600*900mm (optional)
spindle:
9.0kw Hitec air cooling spindle
Control system:
Italy OSAI controlling system
Motor& driver:
YASKAWA Servo motor& driver
Inverter:
Taiwan Delta inverter
Certificate:
CE
Package diamension:
3600*4000*3500mm
Gross weight:
7600kgs
Supply Ability
Supply Ability:
20 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.Packed the CNC router machine with plastic sheet for clearing and damp proofing.
2.Then put the CNC router machine in the plywood case for safety and clashing.
3.Transport the plywood case into the container.
Port
Qingdao
Lead Time :
Quantity(Pieces) 1 - 1 2 - 2 >2
Est. Time(days) 30 25 To be negotiated
Video Description

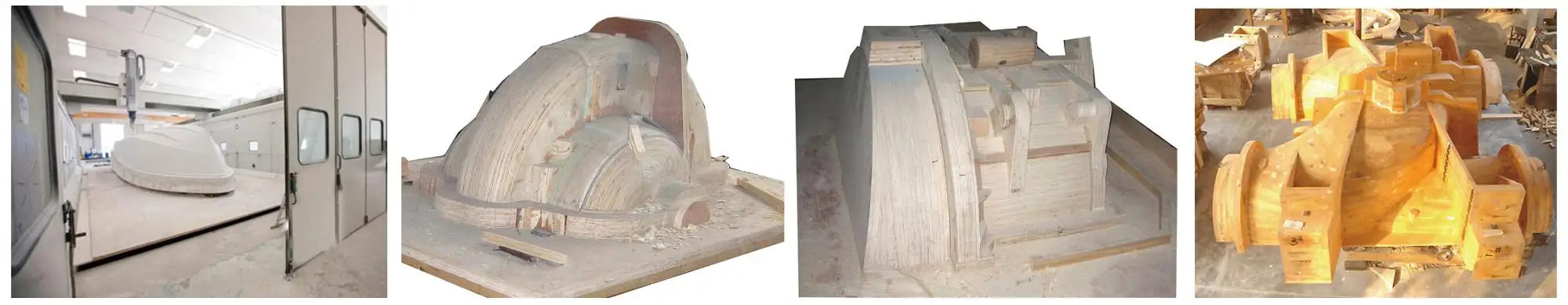

Foam/Wood Engraving/Milling Machine 3D CNC Foam Router 5 Axis

Application industries:

1.The Advertising nidustry: CNC router can engrave all kinds of signage, trademark, nameplates, badge, decorative gift, embossed medal, certificate, souvenir, photo frame, furniture decoration.



2.Small-scale woodworking industry: CNC router can be used for solid wood furniture, mahogany furniture, MDF paint door, solid wood door, composite door, cupboard door and window, bedside cabinet, folding screen etc.



3.Artwork industry CNC router can process wooden carft, mural art of wood, artwood, embossed, jeweery, cometics package, musical instrument.



4.Soft metal processing: CNC router can engrave electronic component, integrated circuit, electronic plastic case, electronic pproduct model, circuit board, electronic Light bix, computer and mobile phone keyboard, engraving a variety of electronic products.


Main configuration:

Working Area: 600*900*650mm
Control system:Taiwan Syntec 200MA control system

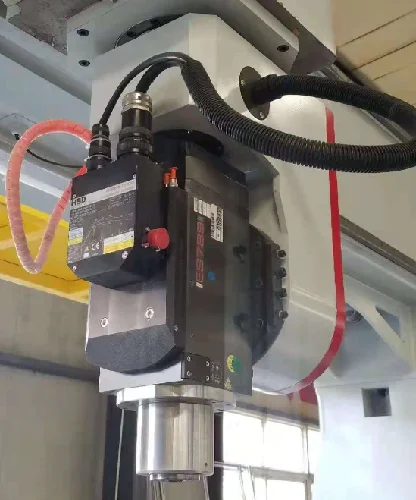

Spindle: 5 axis HSD 9.0kw auto air cooling spindle+C axis: ±360º; A axis: ±120º
Structure:Reinforcing Aluminum Alloy Construction, BoxStructure,Thick-Walled,more-ribbed

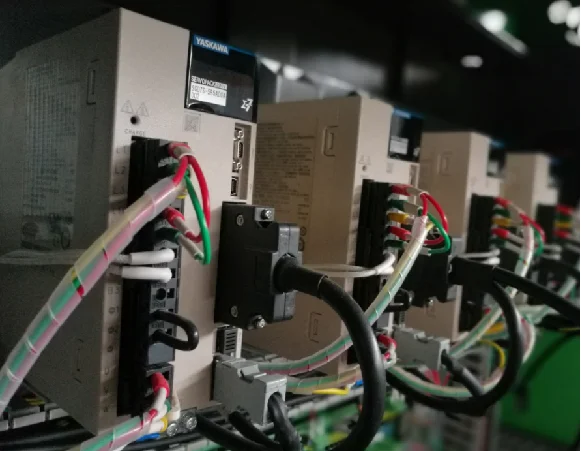

7 series Japan 850W YASKAWA servo motor and drivers:drivers (4 sets)Z axis servo motor with the brake system
Japan SHIMPO reducer reducer X1,Y2
Circle style 8 PCS liner automatic tool system
Rail guide:Taiwan Hiwin guide rails 30mm
X,Y axis transmission :German Herion high precision helical rack and pinion
Z axis transmission:Taiwan TBI 3210 ball screw transmission

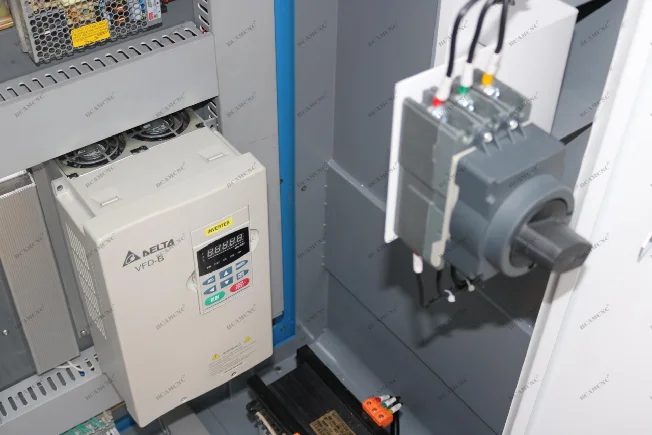

Inverter:Taiwan Delta inverter
Heavy duty body
Electronic components:France Schneider electronic components
Control box:BCAMCNC control box
Table:T-slot working table(with sealing bar)
5HP Dust collector+Dust collector+Dust pipe
Lubrication system:Auto Oil lubrication system
3 sets Engraving toolsJapan Omron high sensitivity limited switch
Newest tools measuring sensor
Tool box (all the standard tools included)
Other products:




1.Why is your machine more expensive than other suppliers' machines?



RE:Our machines are indeed more expensive than some suppliers' machines, but often, the most expensive is the best. Because you made the right choice for the first time, instead of spending some here, spend some there, and at the end, you didn't get the results you want. So at this time, I think it is the most expensive. I think you also understand,we can never buy high-quality products at the lowest price,price differences are used as a proxy for differences in quality.

Then I will tell you why we are expensive and where is expensive.

First of all, our machines are designed in Europe, because most of our agents are from the UK, Germany, etc. We have to admit that the German technology is high-end and advanced and I believe that all customers know the leading edge of German technology in the world.Because of our good cooperation with the German agents, they brought us Advanced European technology and the addition of new European elements, so our machines are in line with the aesthetics of most people and lead the way in technology.



Second,you know if the body of the machine is strong and directly determines the stability of the machine. Our body is made of 10mm thick welded square tube, which is punched and ground by pentahedron metal milling machine, avoiding the grinding and rubbing caused by some manufacturers to drill through the artificial electric drill, and strictly control the mechanical precision of the bed, and we Each bed must be subjected to 48-hour 500 °C high-temperature quenching aging treatment before the assembly of the guide rails, lead screws and side-plate gantry, to ensure that the stress in the bed is released to the minimum value, so that the installation and commissioning and long-term use of the machine after the machine In the middle, it avoids deformation and sinking of the bed, which directly affects whether the machine can be used normally.Therefore, whether it is the material used in the bed of the machine, or the amount of human resources we use and the technology we use to build the machine, that is the most and best.



Finally, I will explain last, this is also the most important point. The successful use of the machine is inseparable from the internal configuration of the machine, so all the configurations we use are the world's most famous and highest configuration. Even the ordinary accessories we all use the world famous accessories, all of which we import from other countries. High-quality configuration requires money to get it, and we also need to pay import fees to pay for high-quality accessories. And all our machines provide two years of after-sales service. During this period, there will be any problems in the machine. We will help customers solve the problem as quickly as possible. Our engineers can communicate in English. These are not all suppliers can do.Because our BCAMCNC focus is on high quality machines with high quality after sales service.



Therefore, these also confirm what I said at the beginning, we can never buy high quality products at the lowest price, but we can buy high quality, high service products at the most suitable price!



2.How do we guarantee the security of our payment?



RE:Usually we have T/T, West Union, L/C, O/A and other payment methods, but if you are worried about the security after payment, then you can choose Alibaba to pay, A safe and big platform, I believe you know Alibaba.You can see the complete information, such as the payment of the deposit, the shipping situation, etc., only after you receive the machine, we will receive your money, otherwise we are not receive any funds, your funds will be used for custody on Alibaba's platform. And you have the right to returned the funds. If there is a problem with the machine, you can also apply for a refund through Alibaba, or negotiate a complaint. So you don't worry at all.





3.This is the first time to use cnc router machine,is it easy to operate?



Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:

1.English guide video and instruction book are sent to you free together with the cnc router.

2.Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side.

3.We have our own after-sales service team,24 hours technical support by calling, video and email.
