Atribut
13.56 MHz & 125 kHzFrequency
Android 10, Android 11, Android 9.0, IOS, Linux, Windows 10, Windows 7, Windows CE, Windows XPOperation System
UL294/cUL**** (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, FIPS-201 Transparent FASC-N Readerprotocol
2-7 cmreading distance
United StatesPlace of Origin
ABSMaterial
Support Card:HID iCLASS, MIFARE, Proximity Cards
Brand Name:HID
Color:Hitam, Red

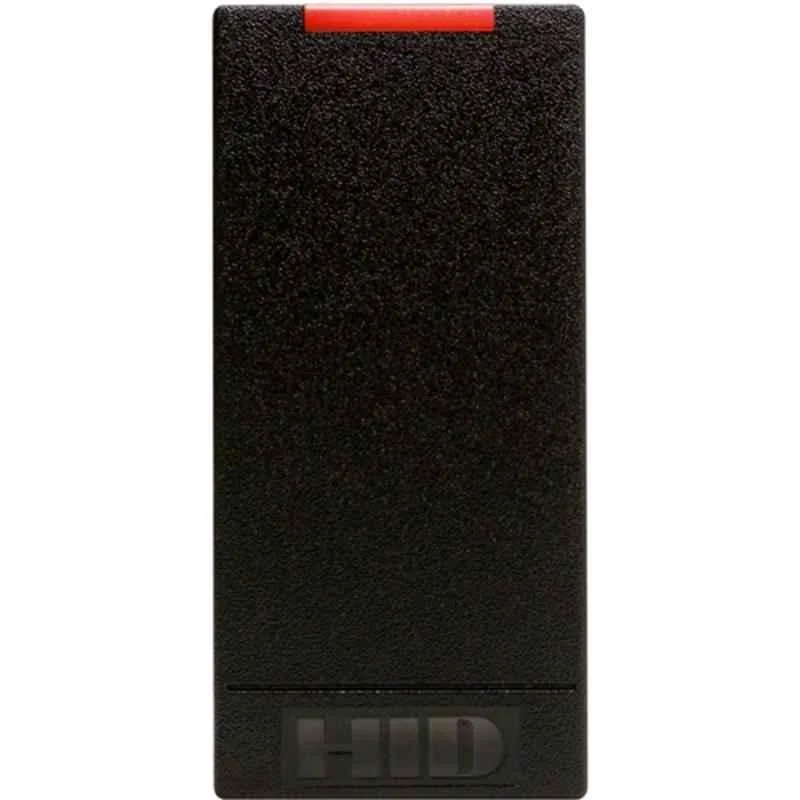

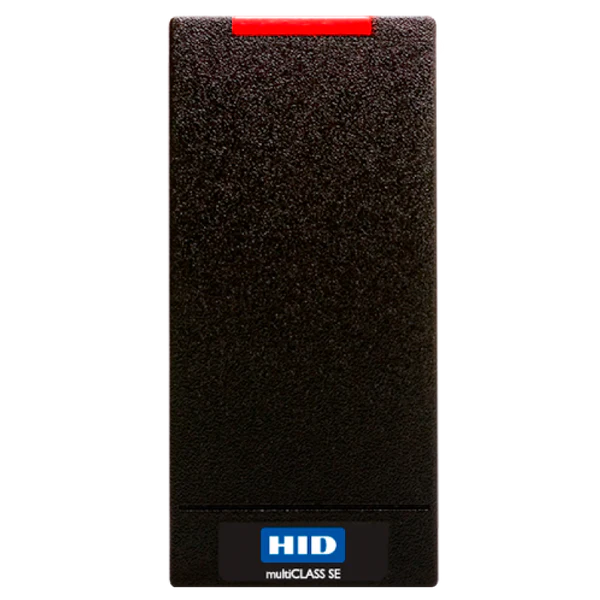

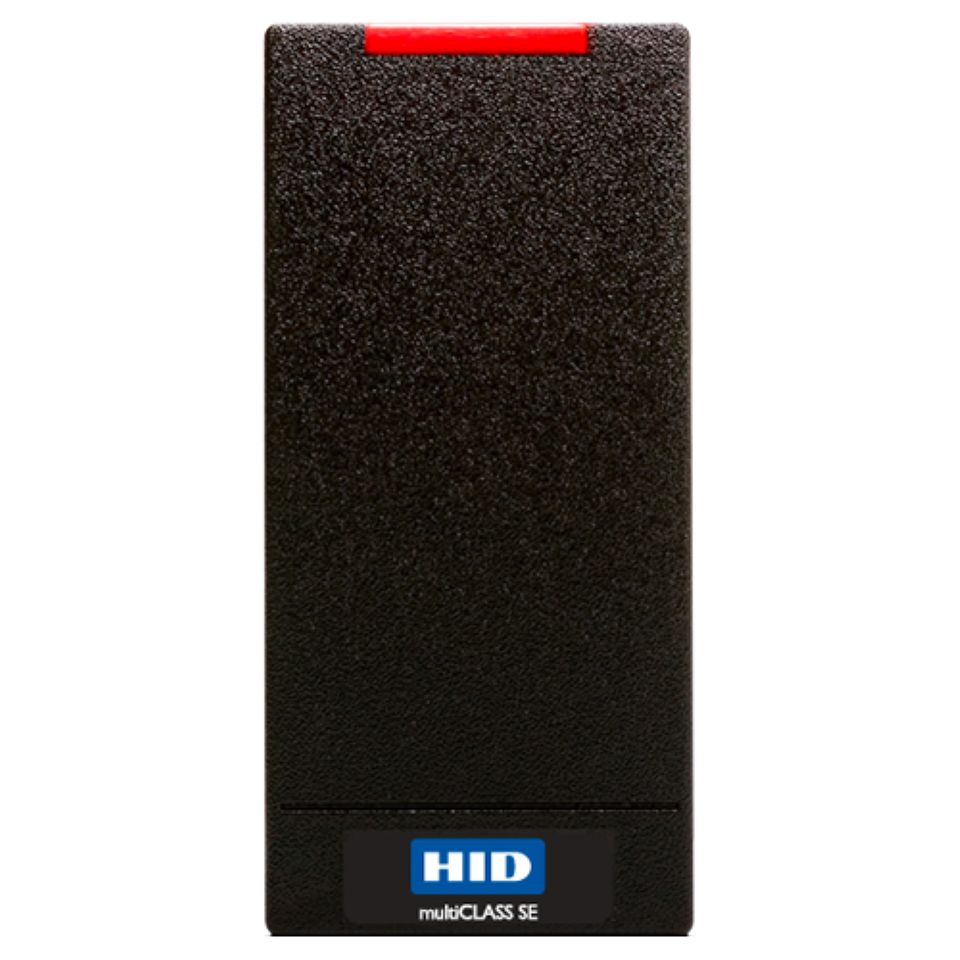

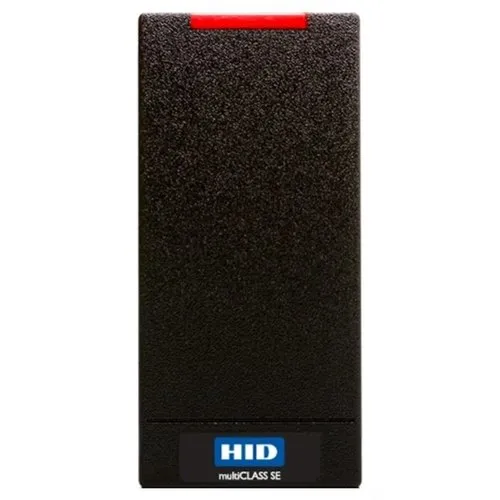

Product Name:HID MultiCLASS SE Readers RP10
Read range:2-7 cm
Dimension:4.8 cm x 10.3 cm x 2.3 cm
Mounting:Mini-Mullion Size
Product Weight (Pigtail):4.0oz (114g)
Product Weight (Terminal Strip):3.0oz (85g)
Operating Voltage Range:5-16 VDC, Linear supply recommended
Current Draw - Standard Power Mode (mA):60
Current Draw - IPM Mode (mA):35
Peak Current Draw - Std. or IPM Mode(mA):100
Operating Temperature:-31 to 150 degree F (-35 to 65 degree C)
Storage Temperature:-67 to 185 degree F (-55 to 85 degree C)
Operating Humidity:5% to 95% relative humidity non-condensing
Environmental Rating:IP55
Transmit Frequency:13.56 MHz & 125 kHz
Cable Distance:Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG)
Panel Connection:Pigtail or Terminal Strip
jual Unit:item tunggal
tunggal berat kotor:2.000 kg
