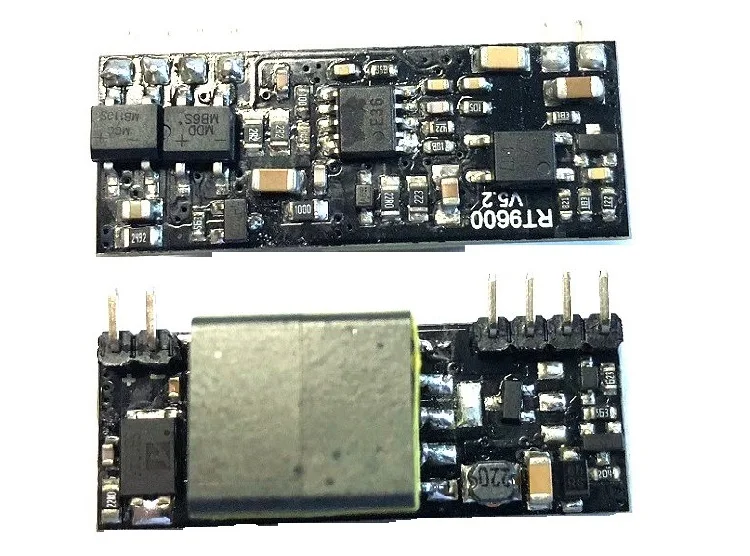

For Banana PI RT9600 POE Module, applies to Banana PI P2 ZERO Board & BPI P2 Maker

Feedback Ratings
  • 2-9 Pieces
    $6.50
  • 10-99 Pieces
    $6.30
  • >=100 Pieces
    $6.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Samples - $11.50 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NONE
Model Number:
Banana PI RT9600 POE Module
Product Name:
Banana PI RT9600 POE Module
Application:
DIY Project
Condition:
Brand Newand Original
Payment term:
Trade Assurance TT \ TT \ Transferwise
Shipping Term:
DHL Fedex TNT EMS UPS
Quality:
100% Original 100% Brand
Warranty:
90 Days
Delivery time:
Within 3 Working Days

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X15X5 cm
Single gross weight:
0.2 kg
Package Type:
POLYBAG CARTOON BOX
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 5 To be negotiated

For Banana PI RT9600 POE Module, applies to Banana PI P2 ZERO Board & BPI P2 Maker

Description

The BPI-9600 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard. The BPI-9600 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The BPI-9600 provides a Class 0 signature.

The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection


The CCS811 is a low-power miniature gas digital sensor for air quality monitoring. A metal oxide (MOX) sensor is integrated to measure the total equivalent volatile organic compound eTVOCs and equivalent eCO2 content. A microcontroller MCU is integrated inside the chip.
The gas content value measured by CCS811 is self-corrected by reading the temperature and humidity value of the HDC1080 sensor and writing it to the CCS811 internal environment temperature and humidity correction register.



Features

  • IEEE802.3af compliant
  • Input voltage range 36V to 57V
  • Integral high efficiency DC/DC converter.
  • Low output ripple and noise
  • High performance with low price
  • Short-circuit protection
  • Adjustable Output
  • Optional multi-voltage output 3.3V 5V 12V 24V
  • Transformer isolation ,1500V isolation (input to output)
  • Easy to use, with a minimum number of external components.

Applications

  • IoT gateway
  • IP Cameras
  • Wireless access point
  • Security and alarm systems
  • VOIP telephone
  • Point of sale network terminal equipment

PBI-9600 PoE Hardware

Module size



Product Selector

BPI-9600 PoE module
Part NumberNominal Output VoltageMaximum Output PowerMarkingPackage
BPI-9600-3.3V3.3V6.6W3.3VSIL
BPI-9600 -5V5V10W5VSIL
BPI-9600 -12V12V12W12VSIL
BPI-9600 -24V24V12W24VSIL
  • At 25°C with VIN = 48V

Pin Description

BPI-9600 PoE module
Pin #NameDescription
1VA1RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive.
2VA2TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive.
3VB1Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive.
4VB2Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive.
5-VDCDC Return. This pin is the return path for the +VDC output.
6+VDCDC Output. This pin provides the regulated output from the DC/DC converter.

Absolute Maximum Ratings

BPI-9600 PoE module
 ParameterSymbolMinMaxUnits
1DC Supply VoltageVCC-0.360V
2DC Supply Voltage Surge for 1msVSURGE-0.680V
3Storage TemperatureTS-40100OC

Note 1: Exceeding the above ratings may cause permanent damage to the product. Functional operation under these conditions is not implied. Maximum ratings assume free airflow.

Recommended Operating Conditions

BPI-9600 PoE module
 ParameterSymbolMinTypMaxUnitsUnits
1Input Supply Voltage1VIN364857VV
2Under Voltage LockoutVLOCK30 36VV
3Operating Temperature2TOP-202570Ta / OCBPI-9600

Note

  • 1: With minimum load
  • 2: See Section Operating Temperature Range
Extended use close to, or at the maximum operating temperature can reduce the life time of the device.

DC Electrical Characteristics

Note

  • 1: Typical figures are at 25°C with a nominal 48V supply and are for design aid only. Not Guaranteed
  • 2: The output ripple and noise can be reduced with an external filter, see application note.
  • 3: Continuous short circuit duration is applicable at 25'C ambient temperature in free air. At higher temperatures or with restricted
airflow (e.g. in a sealed enclosure) the duration will need to be limited to avoid overheating.

Typical Connection Diagram
