Forced mechanical air heat energy recovery ventilation system for VRF AC system

FOB Reference Price:Get Latest Price
$200.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
HOLTOP
Model Number:
XHBQ-D2TH~D13TH
Type:
Ventilation
Product name:
mechanical heat recovery ventilation system
heat exchanger:
crossflow total heat exchanger
airflow:
150-1300m3/h
speed:
3 speeds control
filter:
G3
filter alarm:
timer filter alram
motor:
AC
efficiency:
up to 80%
Application:
residential and commercial
control:
intelligent controller for option
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood
Port
Tainjin
Lead Time :
30days



Product Description

Forced mechanical air heat energy recovery ventilation system for VRF AC system

Fresh air + Energy recovery, reducing running cost of cooling or heating system





 Energy recovery ventilation (ERV) is the energy recovery process of exchanging the energy contained in normally exhausted building or space air and using it to treat (precondition) the incoming outdoor ventilation air in residential and commercial HVAC systems. During the warmer seasons, the system pre-cools and dehumidifies while humidifying and pre-heating in the cooler seasons. The benefit of using energy recovery is the ability to meet the ASHRAE ventilation & energy standards, while improving indoor air quality and reducing total HVAC equipment capacity.







Feature of TH series energy recovery ventilator

1)Airflow from 150-1300m3/h

2)Energy recovery

3) Crossflow heat exchanger

4) Quiet operation

5)Double filters

6)Easy installation to ceiling

7)By-pass function



Effective Ventilation

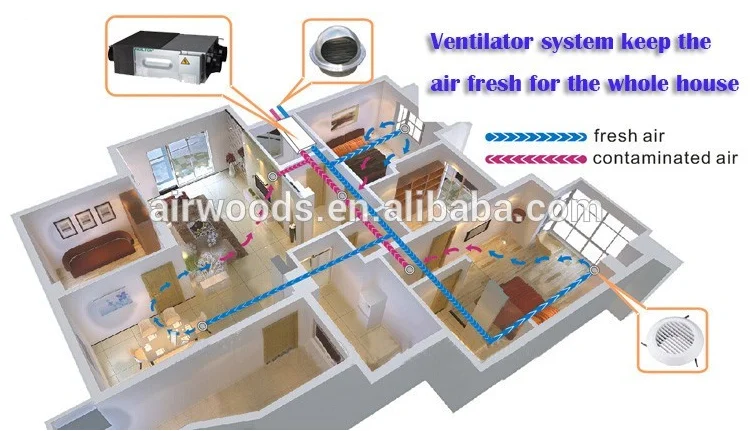

Introduces outdoor fresh air into indoors, meanwhile expels the indoor stale air to outdoor, which makes you feel the comfort of nature.


High efficient energy recovery
The built-in high efficient heat exchanger can recover the energy from outgoing indoor air
to coming fresh air while ventilating. It can recover over 70% energy.


Perfect silence design
It is designed with the worldwide fashionable structure and manufactured by the accurate moldings. According to the principle of hydrokinetics, it achieves the perfect silent effect by using the micro-punch anechoic technology.


Air filtration and purification
The inner air filters are professionally designed to remove the pollutants of the incoming air, providing you the fresh and clean air.


By-pass function
By-pass function enables the unit to make natural ventilation in suitable climates, which can prolong the service life of the heat exchanger.



High airproof feature and easy maintenance
The heat exchanger is connected with the equipment by the in-mold rail, and embedded with the special soft and dense sealing materials. It can be drew out by hand and is easy to maintain. At the same time, it can ensure that the fresh air and exhaust air are completely separated, avoiding the cross pollution.




Control system
Optional Intelligent control system, optional CO 2 and humidity control function, external control and BMS control available


 Installation:



Selection Guide

1. Choose the proper installation types based on the building structure

2. Determine the fresh airflow required according to the use, size and number of persons

3. Select the right specifications and quantity according to the determined fresh airflow







Example

The area of a computer room is 60 sq. meters (S=60), the net height is 3 meters (H=3), and there are 10 per-sons (N=10) in it.

If it is calculated according to “Personal fresh air consumption”, and assume that: Q=70, the result is

Q1 =N*Q=10*70=700(m3/h)

If it is calculated according to “Air changes per hour”, and assume that: P=5, the result is

Q2 =P*S*H=5*60*3=900(m3)

Since Q2 > Q1 , Q2 is better for selecting the unit.



As to special industry such as hospitals (surgery and the special nursing rooms), labs, workshops, airflow re-quired should be determined in conformity with regulations concerned.



Model

Airflow

 m3/h



External

pressure (Pa)



Enthalpy

 Efficiency ( %)



temp. Eff.

 (% )

noise dB(A)

Input

power (W)

       Summer  Winter        volt. (v)current (A)
 LMHLMHLMHLMHLMHLMH
XHBQ-D2TH150200200607075605555635959757070253031.52200.5105
XHBQ-D3TH250300300758285625757656161736868273434.52200.56117
XHBQ-D4TH350400400808588625757656060746969313737.52200.72150
XHBQ-D6TH5006006008992976359596761617670702935392200.96200
XHBQ-D8TH70080080092961005755556357577468683439412201.7355
XHBQ-D10TH900100010008085866058586462627670703438422202.1440
XHBQ-D13TH1000130013007585905856566259597670703841432203.4710
FAQ

1. How to select the suitable models?

Based on the fresh airflow you need. Please send us the room area, room type or application and number of persons, our team will help you select the suitable units.



2. What’s the difference between Miss Slim series, TH series, DCTP series, PMTH series and DMTH series?

  • Miss Slim series is specially design for the residential houses which required slim size for installation, theairflow rate for Miss Slim series is from 100-350cmh. The access door position and configurations are different with TH series and TP series.
  • TH series is equipped with crossflow heat exchangers, the airflow ranges from 150-1300cmh, with features of silent operation and cost effective.
  • DCTP series is equipped with cross counterflow heat exchangers with higher heat exchange efficient and energy saving DC motor.
  • PMTH series is featured with PM2.5 filter.
  • DMTH series is ErP2018 eco design energy recovery ventilator.



3. Why choose Holtop as business partner?

Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments for more than 16 years.



Holtop can supply a full range of products, up to 20 series and 200 specifications. The product range mainly covers heat and energy recovery ventilators, rotary heat exchangers, plate heat exchangers and air handling units.



Holtop has 400 employees and covers an area of more than 30,000 square meters. Annual production ability of heat recovery equipment reaches 100,000 sets. Holtop supplies OEM products for Midea, LG, Hitachi, McQuay, York, Trane and Carrier. As an honor, Holtop was the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010.



Holtop has established business relationships with major countries in Asia, Europe and North America, and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services.



4. How about the product quality?



Holtop assures high quality products with professional R&D team, first-class production facilities and advanced management system.



Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT.



All our products are tested 100% before ex-factory to ensure high quality.
