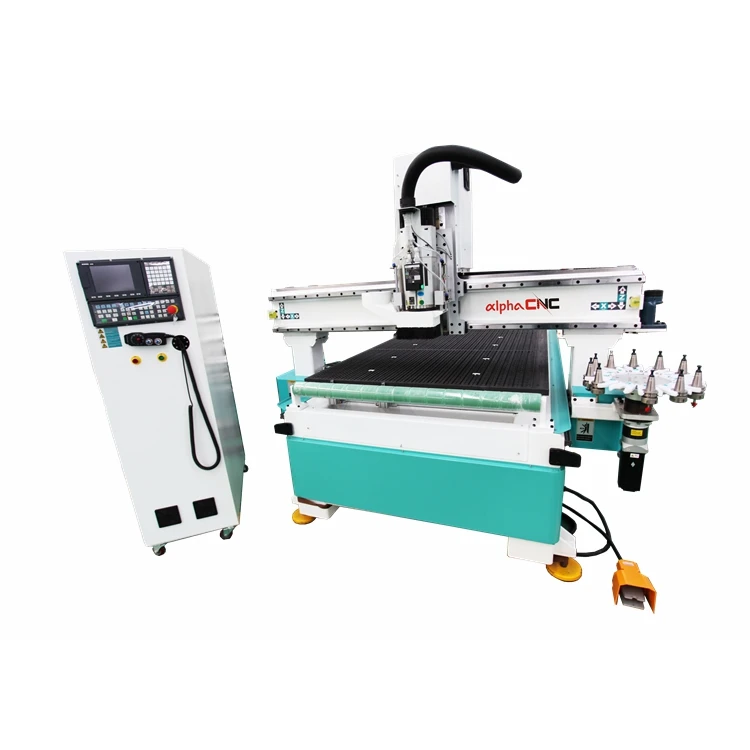

Free Shipping! 12 Tool CNC Rotary Carousel 1325 1530 2030 2040 4*8ft 5*10ft Wood MDF Cabinet Making ATC CNC Router Machine
-
1 - 2 Sets
$17,900.00
-
3 - 4 Sets
$17,500.00
-
>=5 Sets
$17,000.00
- Model Number:
- AIS-1325
- Samples:
- Shipping:
- Support Sea freight
- Lead Time:
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Sets)Customized packaging (Min. Order: 1 Sets)
More
Graphic customization (Min. Order: 1 Sets) Less
- Working Table Size(mm):
-
1300×2500
- Condition:
-
New
- Positioning Accuracy (mm):
-
0.01 mm
- No. of Spindles:
-
Single
- Machine Type:
-
CNC Router
- Travel (X Axis)(mm):
-
1300 mm
- Travel (Y Axis)(mm):
-
2500 mm
- Repeatability (X/Y/Z) (mm):
-
0.01 mm
- CNC or Not:
-
CNC
- Place of Origin:
-
Shandong, China
- Brand Name:
-
Alpha
- Voltage:
-
220V/380V/Customer made
- Dimension(L*W*H):
-
3500*1840*1900mm
- Certification:
-
CE ISO9001
- Weight (KG):
-
1500
- Warranty:
-
2 Years
- Key Selling Points:
-
Multifunctional
- Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
- After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
- Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Australia
- Applicable Industries:
-
Energy & Mining
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor
- Control system:
-
Syntec/Siemens
- Spindle:
-
9KW ATC SPINDLE
- Application:
-
MDF WOOD ACRYLIC ALUMINUM
- Motor:
-
YASKAWA SERVO MOTOR
- Spindle power:
-
9KW
- Software:
-
ARTCAM/ASPIR
- Spindle speed:
-
0-24000RPM
- Keywords:
-
ATC CNC ROUTER
- Weight:
-
2000kg
- Power(W):
-
15KW
- Supply Ability:
- 300 Set/Sets per Month
- Packaging Details
- Plywood Package
- Port
- Qingdao
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 To be negotiated
Online Customization
Product Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Main Features
#9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool rotary carousel
#Maintenance free brushless Japan Yaskawa AC servo motors and drives
#Automatic tool calibration pad
#6-zone vacuum table
#Pneumatic material placement stops
#Syntec industrial AC servo controller
#Hand-held pulse generator


Descriptions
|
Parameters
| ||||
Model
|
AIS-1325
|
AIS-1530
|
AIS-2030
|
AIS-2040
|
Custom made
|
Working area
|
1300*2500mm
|
1500*3000mm
|
2000*3000mm
|
2000*4000mm
|
Custom made
|
Accuracy
|
±0.03mm
| ||||
Table Surface
|
Vacuum & T-slot Combined (or T-slot Table, or vacuum table )
| ||||
Frame
|
Thicken steel Square Tube Heavy structure , 10mm thicken steel
| ||||
X, Y Structure
|
Gear and rack transmission, Taiwan PMI Linear Rail 30mm width
| ||||
Z Structure
|
Taiwan TBI Ball Screw, Taiwan PMI Linear Rail
| ||||
Max. Rapid Travel Rate
|
60000mm/min
| ||||
Max. Working Speed
|
25000mm/min
| ||||
Spindle Power
|
9kw HQD Spindle (Italy HSD for Optional)
| ||||
Spindle Speed
|
0-24000RPM
| ||||
Drive Motors
|
Japan Yaskawa servo motor and driver(Delta optional)
| ||||
Working Voltage
|
Custom made
| ||||
Command Language
|
G Code
| ||||
Operating System
|
Taiwan SYNTEC 6MB control system(German Siemens optional)
| ||||
Computer Interface
|
USB interface
| ||||
Collet
|
ISO30
| ||||
Inverter
|
Taiwan DELTA 11kw
| ||||
Software
|
Vectric Aspire/Type 3 /Artcam /Ucancam
|
Please kindly note the above configuration is standard configuration.
Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.
CNC Tool Rotary Carousel
The use of an 8-12 Tool Rotary Carousel speeds up tool changes assuring faster cycle times increasing production throughput.


Gantry
The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.
9kw High Frequency Automatic Tool Changer Spindle
The Alpha ATC CNC Rouer machine comes standard with a 9kw high frequency automatic tool changer spindle. This precision spindle requires no maintenance, uses industry standard ER collets and ISO 30 tool holders. Fully programmable speeds from 6000 to 24000 RPM, and comes complete with pneumatically retractable vacuum hood.


Drive Motors
The Alpha Series CNC Router utilizes AC Servo motors powered by Japan Yaskawa Drives. These motors require no regular maintenance - therefore, reducing any maintenance downtime.
Drive Train Assembly
The Alpha Series uses precision Helical gear racks on the X and Y axes. The mounting of the rack is inverted to help keep dust and debris from building up on the drive system, this assures smooth motion and long term reliability. The precision gearbox is directly coupled to the Servo motor and pinion. This eliminates belt stretch inaccuracies assuring high-speed machining while the system positions the spindle accurately.


CNC Tool Calibration
Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.
Pneumatic Material Alignment Stops
The Alpha Series CNC machine comes standard with three material pneumatic alignment stops. These pins allow the operator to bank the edge of the material against them precisely aligning the material to the machine origin.


Control System
Friendly interface, easy to learn to operate interface, accelerate the operation of learning
Electrical parts
All the electrical components are housed and wired in a doubled-doored Nema 4 electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

Optional Parts



Becker Rotary Vane vacuum pumps
Alpha offers Becker Rotary Vane vacuum pumps which are quiet, clean, and require minimal maintenance.
4-Axis Rotary Axis
The addition of 4-axis rotary table assembly adds greater functionality to the machine's capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
HSD Aggregate Tool
Alpha CNC offers the HSD Aggregate Tool. Aggregate heads allow you to expand the capabilities of your CNC Router.


Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packaging
| |
Size |
3700 (L) * 2280 (W) * 2100 (D)
|
Weight |
2500KG
|
Packaging Details |
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.
|
Company
Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.
Agent and distributor wanted all over the world!
