Free Shipping 6090 uv flatbed printer cheapest a1 uv printer

Feedback Ratings
$7,700.00 - $8,000.00 / Set | 1 Set (Min. Order)
Model Number:
VY-UV6090 with single Dx5 printhead
$8,000.00
- +
available
VY-UV6090 with two Dx7 printheads
$7,700.00
- +
available
All 5 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $1.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Gross Power:
380W
Color & Page:
MULTICOLOR
Certification:
CE Certification
Usage:
Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Glass,wood,card,acrylic
Plate Type:
Flatbed Printer
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Vanye
Dimensions(L*W*H):
113* 162 *80cm
Weight:
198KG
Automatic Grade:
Automatic
Voltage:
110V/220V
Product name:
UV6090 printer
Ink type:
UV LED Ink
Print size:
600*900mm
Type:
Digital Printer
Printhead:
DX5/DX7 Printheads
UV Curing System:
LED UV lamp (Water Cooling)
Application:
Phone case.Card.Udisk.Mobile Power.Hairpin .personalized Printing
Print speed:
A4 Photo*45S
Printing type:
UV inkjet printing
Colors Printing:
Optional
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single volume:
2 cm 3
Single gross weight:
320.0 kg
Package Type:
Wooden case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Product Application

UV 6090 Printer is a high-tech film-free full color digital printing machine: It is suitable to print on any materials,Such as T-shirts, sliding doors, cabinet doors, wooden doors, glass, plates, signs, crystal, PVC, acrylic , Metal, plastic, stone, leather and other surface color photo-level printing. No need to plate once the printing is completed, rich and colorful colors, abrasion resistance, UV protection, easy operation, printing images fast, in full compliance with industrial printing standards.Free Shipping 6090 uv flatbed printer cheapest a1 uv printer

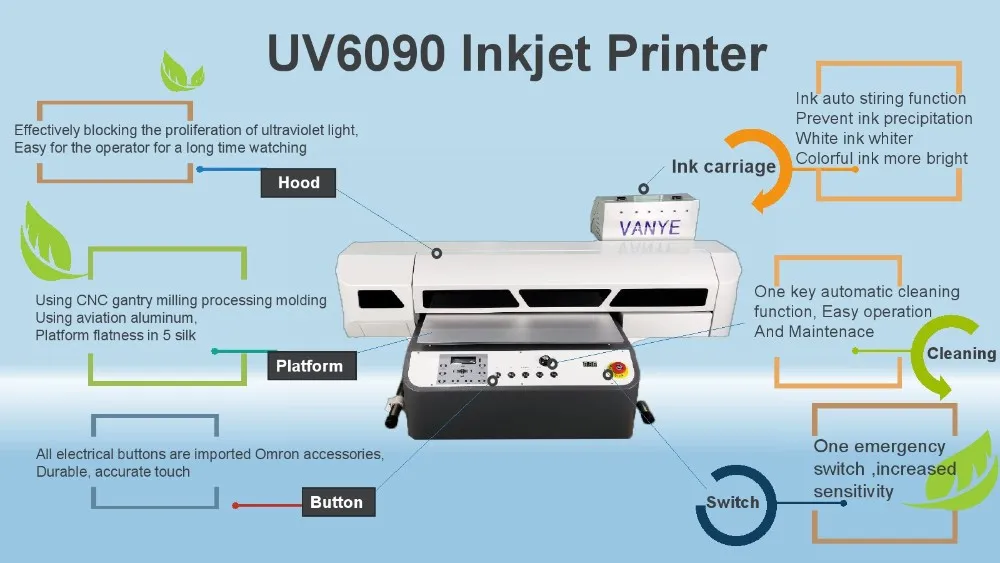

SPECIFICATIONS FOR UV6090 flatbed printer

Print Resolution
Speed model
720*720dpi
>=5m2/per hour
Standard model
720*1440dpi
>=3m2/per hour
High quality model
2880*2880dpi
>=2m2/per hour

Main performance parameters
With Japan Epson
UV Curing System with LED UV lamp (Water Cooling)
Smart Bi-directional Printing Mode Drop-on-demand Piezo Electric Inkjet
Name
Digital UV Flatbed Printer 6090
Model No.
VY-6090-UV
Machine Type
Automatic Flatbed UV digital printer
Features
· The UV light source can be adjusted
· Auto height measurement
. Power clean
· It can print on any material directly
· Ideal for industrial bulk production with high printing speed
· Finished products is Water proof, UV proof, and Scratch proof
· Finished product is suitable for outdoor use
· Max printing Size: 60*90cm
· With Carry handle
· The printing machine can print white color
Materials to Print
· Metal, Plastic, glass, wood, Ceramics,PVC,Steel board,Paper,
· Acrylic, Leather, etc
UV Curing System
LED UV lamp (Water Cooling)
Printing Method
Drop-on-demand Piezo Electric Inkjet
Printing Direction
Smart Bi-directional Printing Mode
Printing Speed
About 180seconds for 720*720dpi, 400mm*600mm size
Max. Print Format
23.6''*35.4'' (60x90cm)
Max. Print Gap
14cm
Power Requirement
50/60HZ 220V(±10%)<5A
Print Quality
True Photographic Quality
Environment
20 ~ 28 ℃ HR40-60%

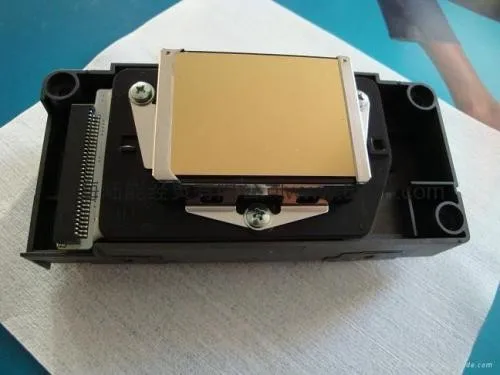

Printer Head
Single/Double Printer Heads
RIP Software
SAi PhotoPrint DX or DX Plus
Operation System
Microsoft Windows 98 / 2000/XP/Win7/Win8
Interface
USB2.0/3.0 Port
Languages
English,Other language available
Ink Type
UV LED curing ink       Free Shipping 6090 uv flatbed printer cheapest a1 uv printer
Ink System
CISS Built Inside With Ink Bottle
Ink Supply
250ml/Bottle
Height Adjustment
Automatic with Sensor.
Driving Power
110 V/ 220 V.
Power Consumption
380W
Media Feeding System
Manual
Ink Consumption
15-30ml/SQM.
Working Environment
20-28 degrees.
Packing
Wooden Case
Machine Net Weight
198Kg
Machine Dimension
113* 162 *80cm
Packing
Wooden Case
Case Size
120*175*99CM
Gross.Weight
320KG
Package:UV6090 Printer*1set ,Water cooling system*1set,SAi PhotoPrint DX software*1pcs, Inner six angle wrench*1set, Small screwdriver*2pcs, Ink absorption mat*1, USB Memory*1pcs ,USB cable*1pcs, Data cable*2pcs,Power wire*2pcs,Syringes*6pcs, Damper*6pcs, User manual*1pcs, Wiper*1pcs, Mainboard fuse*2pcs, Replace screws and nuts,Cleaner*1pcs. Free Shipping 6090 uv flatbed printer cheapest a1 uv printer
Certifications
Detailed Images

Machine Parts

Name: Mechanical transmission

Brand: Hi-Win

Original: Taiwan

Domestic famous engines, strong driving force, low consumption, with

mute slider and stainless steel slideway

Full color uv flatbed printer glass wood phone case wall ceramic leather metal printing machine with Ricohs print heads

Main Features

Name: Chain/Towline
Brand: Igus
Original: Germany
Easy and versatile installation combined with ruggedness - high stability combined with low-noise operation, long service life for cables and manifold mounting options
Full color uv flatbed printer glass wood phone case wall ceramic leather metal printing machine with Ricohs print heads

Machine Parts

Name: Servo motor
Brand:  LS
Original: China
Domestic famous motor,Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, Leadshine's stepper motors are highly reliable and generate low motor heating.

Main Features

Name: Tempering Steel frame
Whole stainless steel  frame to make the machine more stable and wearable .Free Shipping full color uv flatbed printer for vinyl,glass wood printing machineFree Shipping full color uv flatbed printer for vinyl,glass wood printing machine

Stainless Steel Lead Screw

Upgrade the machine with lead screw instead of the belt,make the printer more high precission printing, and high quality,not need to worry the belt broken any more

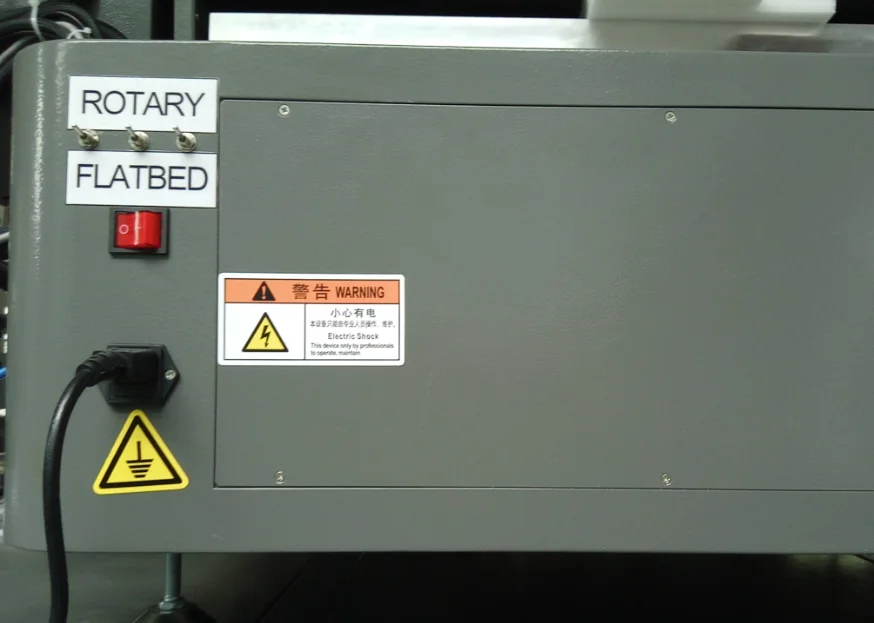

Hybird printing Switch

Upgrade the machine with hybird printing switch,One machine can print Flatbed materials and Rotary materials.Just need to swicth to the function you need.Very easy operation

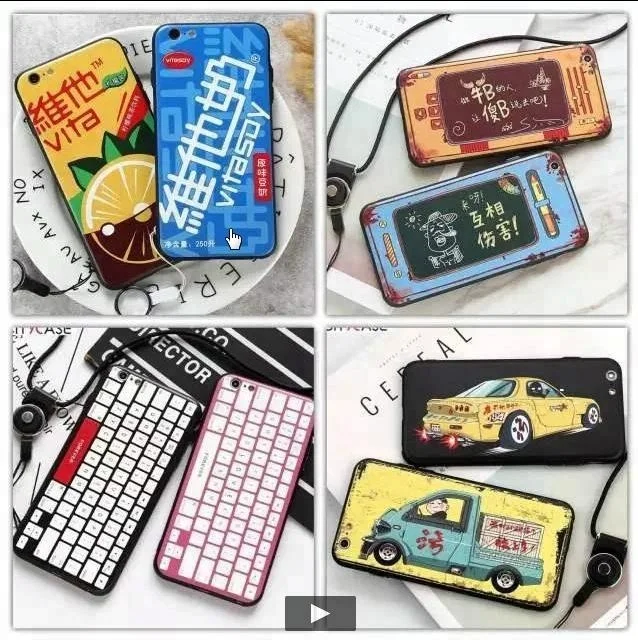

Samples Image

Advertising industry: ABS, Polyurethane, PET, Acrylic, MDF, PVC, etc. for signs, banner, backlight, tags, etc.

Leather industry: Authentic leather, fake leather, PU, etc. for shoes, bags, cases, etc.

Background wall: Glass, tiles, aluminum, wood, paper, etc.

Furniture industry: Wood, glass,Table,Chair,Bench,Cupboard, sofa, doors, etc.

Electronic accessories: Mobile phone cases, industrial products cases, etc.

Gifts printing: Plastics, USB memory card, Stone, Pens, name card case, glass arms, wrist watch belt, wrist bands, etc.

Decoration: Exhibition stand decoration, home decoration, wallpaper, hotel decoration, etc.

Industrial printing: Membrane switch, touch panel, home appliance printing, etc.

Our Service

Protect every online order for free

That's right! Trade Assurance is free for buyers who carry out transactions online via our Alibaba website.

Payment protection

Trade Assurance will cover all payments made during the ordering process up to 30 days after you receive the goods.

Shipping protection uv printing machine uv-led printer neon uv-led printer

Your order will be shipped on time according to the details of your contract with the supplier. In the event of a delay, you will be eligible for a refund.

Product-quality protection

Your order will be covered in the event that the product(s) do not match the details outlined in your contract with the supplier.

Protection period
Your order will be protected up to 30 days after you receive the goods.

Packing & Delivery
Packaging
Size
120 (L) * 180 (W) * 78 (D)
Weight
320KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Full color uv flatbed printer glass wood phone case wall ceramic leather metal printing machine with Ricohs print heads
