Fruit juice production line/fruit juicer processing line/ filling machine

FOB Reference Price:Get Latest Price
$50,000.00 - $500,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CNSW
Type:
Other
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
ShangWang
Voltage:
custom made
Power(W):
custom made
Weight:
custom made
Dimension(L*W*H):
custom made
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Raw material:
Lquild milk
Material:
SUS304/SUS316
Capacity:
custom made
Processing Types:
Biological Technology
weight:
custom made
Supply Ability
Supply Ability:
10 Plant/Plants per Month
Packaging & Delivery
Packaging Details
Wooden case is our usual practice,we can also pack as our client's requirement
Port
shanghai port
Product Description

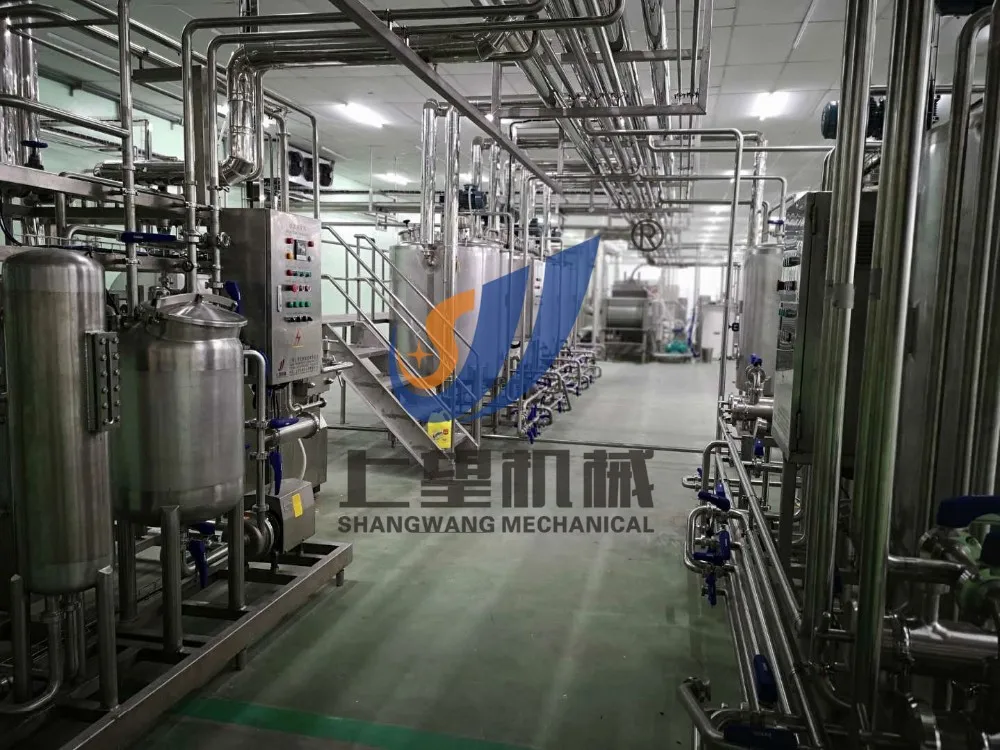

Juice production line
Capacity of plant: 2MT~100MT per day
The whole juice production line consists of the following units:

1. Fresh fruit washing cleaning system
2. Mixing and Sugar Melting Section
3. sterilization and Homogenizer
4. Temporary storage
5. Filling or Packing Unit
6. CIP Cleaning Systems,water treatment system,second sterilization system
7. After Treatment Equipment, like conveyor, package or pallet, etc.
8. There are other assistant equipments used such as steam boilers, air compressor, cold water unit, etc.
9. Installation materials for the process pipline, utility pipeline as well as electrical installation are provided.

**Filling types can be decided by the customer then designed accordingly.
Our company can design customized juice production lines in accordance to the customers' requirements.


Products Details
Material
SUS304/SUS316L
Capacity
1000L/H~20T/H
Voltage
Customzied
Application
Juice, Milk, yogurt
Power
2.95kw~15kw
Max Sterilizing Temperature
65℃~138℃

Steam Control system

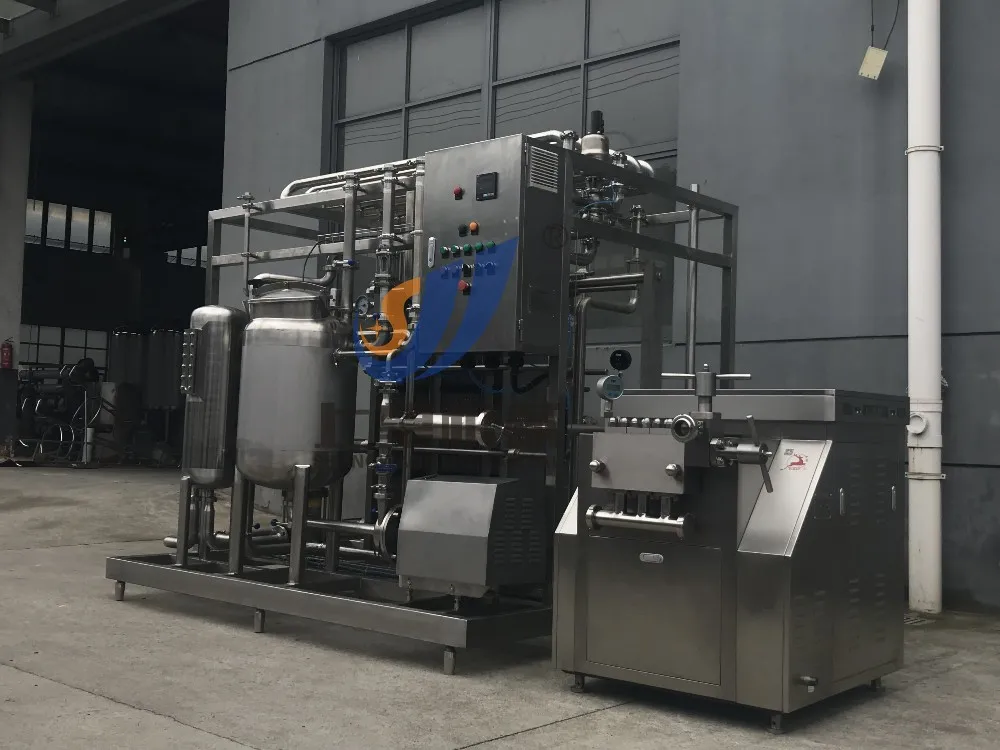

Steam Control System is an inportant part of Pasterurizer, It contains steam rate adjustable valve, plunger valve, steam pressure reducing valve, steam trap and steam filter. A good steam control system can guarantee the machine working stable. All of the steam valves are come from Spirax Sarco (England).

Control Panel

Created for operators of every experience level, our integrated automation software is connected to a 10.1" touch screen interface, which gives operators an overview of the pasteurizer, including temperatures, pressures etc. Its performance is displayed in real time and, if there is a fault, the operator receives an immediate alert. If the automation solution is integrated in the line, the whole line can be viewed from one interface.

Divert System

The temperature of the product is verified both before and after the holding cell. Product can only continue out of the pasteurizer if it has been heated to the right temperature and held for the right length of time in the holding cell. If this is not the case, a signal is automatically sent to the divert valve, and the product is diverted back to the balance tank for recirculation.

Smart Balance Tank

A smart balance tank equipped with CIP washing ball, high level/low level transmitter. When the product at high level in the balance tank, the feeding pump will automaticlly stop. When the product at low level in the balance tank, the product pump will automaticlly stop.

Certifications
Our Company
FAQ

FAQ


Q1: Are you a trading company or a manufactory
A1: We are the manufacture of water/beverage packing machine and water treatment equipment over 5years.We just not only sell machines, we sell our brand and service.
Q2: Do you have technical support after we purchased your machines?
A2: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q3: If you buy our machines, can you offer us wear-out spare pats?
A3: We provide our high quality machine 1 years guarantee , and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
