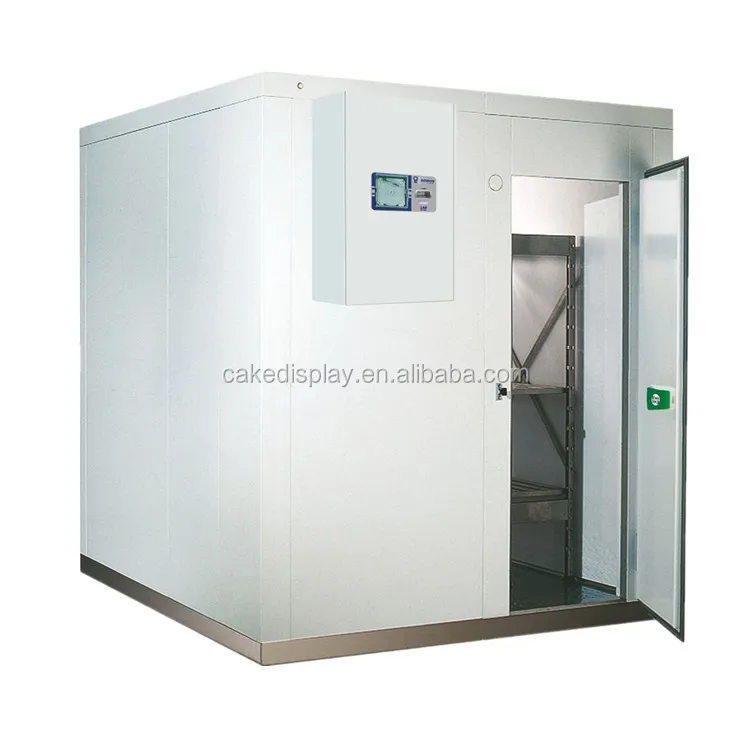

Fruits And Vegetables Cold Storage Cold Room For Fruits And Vegetable

FOB Reference Price:Get Latest Price
$1,350.00 - $6,880.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Temperature:
- 40°C ~ + 20°C, optional
Power(W):
Energy Save
Dimension(L*W*H):
User Requirements
Condition:
New
Place of Origin:
China (Mainland)
Brand Name:
Snowland
Model Number:
22 different models
Voltage:
220V/380V
Weight:
Up to different models
Certification:
CE
Product name:
Fruits and vegetables cold storage
Functions:
Frozen Food Storage
Compressor:
Copeland Bitzer
Refrigerant:
R404A,R22
Product Type:
Cold Stroage Room
Usage:
Meat, Food, Sea Food, Fish, etc
Panel Thickness:
100/120/150/200mm
Panel Material:
High Density PU Foam
Doors:
Hinged door, Sliding door, etc
Defrost Type:
Electric Defrosting
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Supply Ability
Supply Ability:
300 Set/Sets per Month Cold storage room
Packaging & Delivery
Packaging Details
Export Standard Wooden Package
Port
Guangzhou/Shenzhen

Fruits And Vegetables Cold Storage Cold Room For Fruits And Vegetable

Product Description







As quality is our culture,and we are honest factory.

We trust that cooperate with us,  your money will be in safe and your business will be in safe.



Configuration



* Available voltage : 380V/50Hz-3P, 380V/60Hz, 220V/50Hz, 220V/60Hz

* Temperature Range: From - 40°C To + 20°C, optional

* Cooling model : Air cooled / water cooled / evaporation cooled

* Compressor: Original new copeland, Bitzer etc

* Refrigerant: R404A,R22

Defrost Type: Electric defrosting

Panel material: Polyurethane sandwich insulation panel

Panel thickness: 100, 120, 150mm etc

Cold room doors: Hinged door, Sliding door, double swing door etc

Temp controller: Elitech, Dixell thermostat

Specification



Fruits And Vegetables Cold Storage Cold Room For Fruits And Vegetable



Item

Cold room

Voltage(V)

380V/50Hz-3P, 380V/60Hz, 220V/50Hz, 220V/60Hz optional

Cooling model

Air cooled / water cooled / evaporation cooled

Compressor

Original new American copeland, Germany Bitzer etc

Refrigerant

R404A, R22

Dimension(M)

Room size(L*W*H) can be customized

Panel Material

PU panel, 42 kg/m3 density

Panel Thickness

100mm, 120mm, 150mm, etc

Steel Plate Thickness

0.5mm/0.6mm

Cold Room Doors

Hinged door, Sliding door, double swing door etc

Cold Room Door Size

0.8*1.8 meters, door size can be customized

Temp Controller

Elitech, Dixell thermostat

Defrost Type

Electric defrosting

Capacity

3CBM~5000CBM

Applications

Storage Meat, vegetable, Food, Sea Food, Fish, fruits etc



Advantages



* Powerful cooling machines

We adopt original new Bitzer or Copeland compressor condensing unit for fresh-keeping, refrigeration and freezing. So it brings high efficiency to the cold room. Besides, it's safe and reliable.

* Cold room installation is easy

Each panels will be marked with unique number and with cam lock, you just need to lock different panels together, then seal them with silicon, it’s done!

* Fast freezing

From fresh to frozen, only 4~6 hours

* Thermal insulation very well

The polyurethane cold storage board is foamed by high pressure. The PU panel with 42 kg/m3 density, at least 0.5 mm steel two sides color plate, so the cold room can keep long lifetime.

* Temperature accurately and low energy

It's equipped with full automatic intelligent control with temperature setting, temperature controlling and automatic defrosting such functions.





Application:

The cold storage room can be widely used in the food industry, hotels, health, medicine, agriculture, chemical and other industries. Such as agricultural product processing, hotels, supermarket, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling.



Different Temperature:



1) 0 °C ~ + 22°C: Mushroom Plant, Medicines Storage, Processing Room, Packing Room

2) -5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,

3) -10 °C ~ -20 °C: Freezer Storage

4) -25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze

5) -35 °C ~ -40 °C: Blast Freezer, Quick-Freeze

Panel of Cool Room


The polyurethane cold storage board is foamed by high pressure. The PU panel with 42 kg/m3 density, cam-lock inside design, at least 0.5 mm steel two sides color plate, ensure the cold room can keep long years lifetime, and thermal insulation very well.



Item

Cold room panel

Panel Thickness

100mm, 120mm, 150mm, etc

Steel Plate Thickness

0.5mm/0.6mm

Heat Conductivity Coefficient

0.018W/(m.k)

Average Density

42~48 kg/m3

Compression Strength

2kg/cm2

Service temperature

From - 100°C To + 60°C





How to install:



Installation is simple, easy to install.

Modular insulation panel, each panels will be marked with unique number and with cam lock, you just need to lock different panels together. Then seal them with silicon. After the floor, walls, door, roof are installed, a whole cold room is finished.



Condensing Unit



High efficiency condenser and evaporators

Compressor: Original new copeland(American Brand), Bitzer(Germany Brand), internationally famous brand compressor which is forceful and has a long life span.

Condenser: Kewely, long service life, strong cooling performance



Different clod room size and temperature, use different condensing unit as below:





Successful Project



Snowland offers multiple walk in cold rooms, can be customized to fit almost any application or need.

For example, one of successful projects in Philippines which designed to sustain a temperature from +2°C to + 10°C throughout the room. So that able to storage the vegetables & fruits for business.

Please you can refer the specification details as following , tell me your special requirements and

we will surely provide you the best solution.



Project site: Philippines

Use: Storage the vegetables & fruits

Cold room size: 3000*2000*2500mm(L*W*H)

Temperature Require: From +2°C to + 10°C

Voltage: 220V 60Hz

Condensing unit: Original new copeland

Panels thickness: 100mm

Cold Room Door: Hinged door



Successful Project in Philippines(Mar, 2017)



Certificate







Company Introduction



Snowland is the manufacturer and exporter of refrigeration equipment in China. We are specialized in designing, manufacturing and exporting the fruits and vegetables cold storage, blast freezers, cold storage, and other refrigeration equipment.

With more than 10 years experience and the professional engineering & sales team.For now we are cooperating with the customers from UK, USA, South Africa, Peru, Mexico, Chile, Malaysia, Philippines, UAE,Saudi Arabia, India ,etc. whose highly satisfied with our products and service, we will also develop more and more new designs to expand our oversea market share, and establish the long terms business relationship with the customers.



Warmly welcome to visit our factory!



Packaging & shipping:



Wooden box. Our fruits and vegetables cold storage is packed by wooden case, suitable for international transportation.









Our Services



1) Oversea service for installation

2) Accept OEM,ODM

3) 24 hours technical support and after sales services

4) Lifetime with professional engineer support.
5) Within 1 year, supply spare parts for free if the fruits and vegetables cold storage has manufacturer quality problem with convincing evidence.

6) Distributors welcome

Cold Room Drawing For Customer



For more detaisl, Contact us today!
