Full Automatic Interlocking Mud Soil Brick Block Making Machine With Factory Price

  • 1 - 1 Sets
    $9,700.00
  • >=2 Sets
    $9,200.00
Model Number:
HBY4-10 SUPER
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 10 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Brick Raw Material:
Clay
Capacity:
20sets/month
Type:
Interlock Block Making Machine
Power:
11kw, 11kw
Certification:
CE/SGS/ISO9001
Condition:
New
Processing:
Brick Production Line
Method:
Hydraulic Pressure
Automatic:
Yes
Place of Origin:
Shandong, China
Brand Name:
LINGCHUANG
Voltage:
Local Voltage
Dimension(L*W*H):
1600-1400-2100mm
Product Name:
HBY4-10 clay brick making machine
Model:
HBY4-10SUPER
Overall size:
1600*1000*2100mm
Weight:
1600kg
Cycle:
7-10s
Production capacity:
4pcs/mould
Raw material:
clay
Molding method:
hydraulic press
Power modes:
electromotor
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
in steel box for LCL
in nudness for FCL
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 10 20 To be negotiated
Video Description
Product Description

 Allen

Email: allen8888@ hbyjx.com

Mobile/Whatsapp:+86 18353988569




HBY4-10 Super Earth Clay Block Making Machine In China


 HBY4-10 interlocking soil block machine is our newest clay and cement brick making machine.it is automatic operation machine.its material feeding.mould pressing and mould lifting automatically 4 pcs at a time.
You can chose diesel engine or motor power.
 Breif introduction of fully automatic clay brick making machine


1, PLC controlled,which can be easily operated by only one person

2,Four brick would be made in less than 10 sedonds.

3,By adjusting the screws,brick height can be changed.

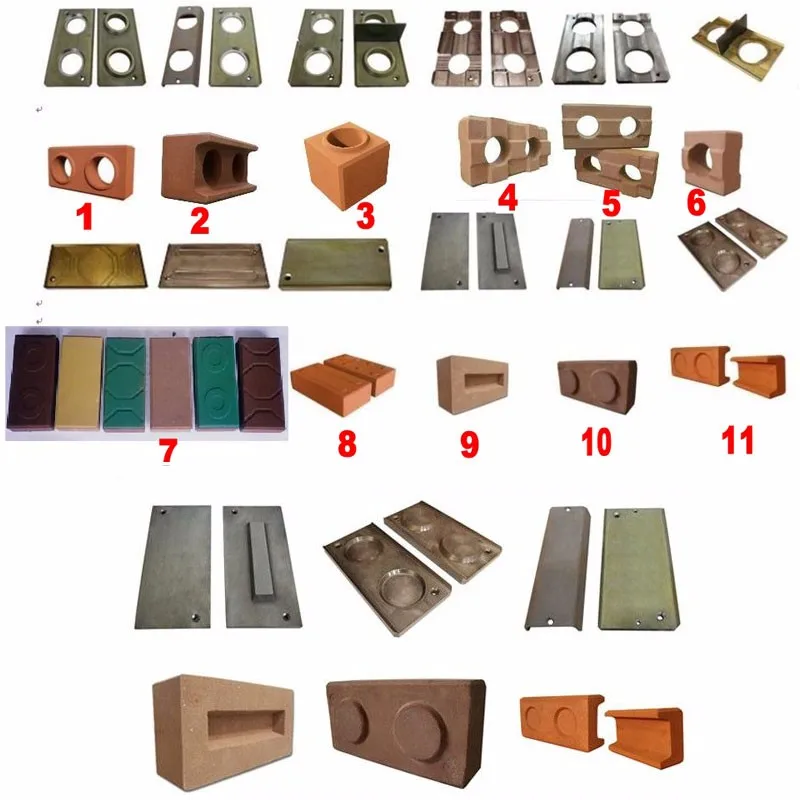

4,Mould can be changed according to cusmer's requirements.

5,High productivity.15000 bricks a day.

6,Double oil cylinder makes the brick much more strong

Overall size
1600(L)×1400(W)×2100(H)mm
Power

11KW

Pressure

15-22Mpa
Total weight

1600kg
Production capacity

4bricks/mould 15000pcs/8 hours
Detailed Images

The Host Machine

Name: HBY4-10 super clay making machine

Brand: LINGCHUANG

Original:China

Automatic hydraulic brick making machine which can produce 4 pcs per mould ,just need 2 people operate.

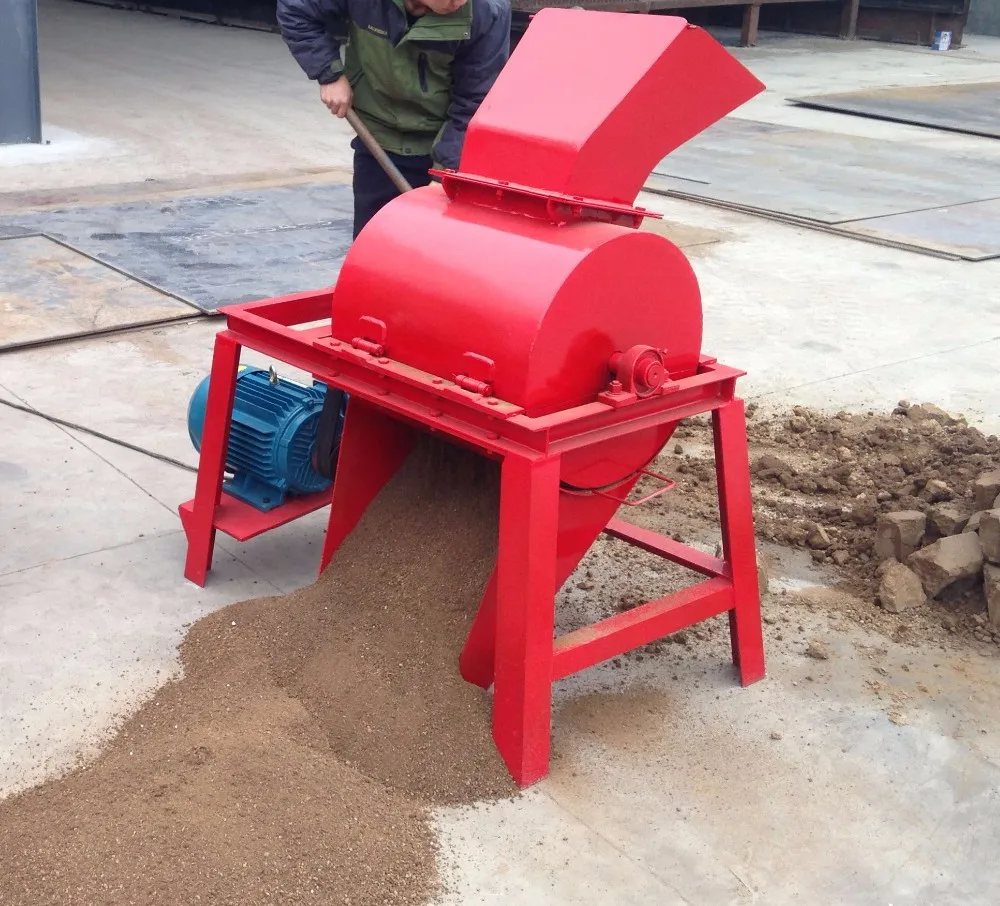

Soil crusher


IT is Crusher for crushing the big stones, sand, stone, etc
Soil crusher
1) Max. Feeding size : 300x400 mm
2) Diameter of main body: 500mm
3) Capacity(t/day): 5-10T
4) Power(kw): 3- 5.5
5) Weight: 290 KGS
6) Over all dimension(mm)(L*W*H): 1200×600×1200

Soil Screening Machine

It is for making the materials become uniform and fine.in order to make so good bricks.
Power 3KW
Capacity 480KGS/h
Rated power 380V or 220V
Size Diameter:500mm
Total weight 320 KGS

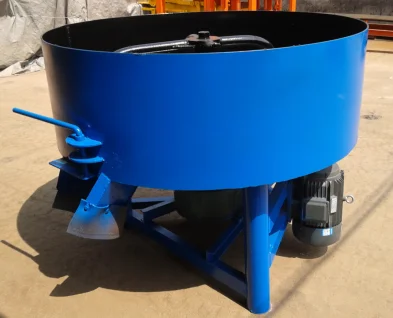

Mixer

Mix all the ingredients together including water, and then let the material to the convey belt.

Model:HY350

Power 5.5KW
Capacity 350L
Rated power 380V or 220Vc
Size Diameter:1200mm
Total weight 500kg

Convey belt

Dimension:300-600(L)X75(W)

Capacity:2m/s

Power:1.1kw(220v-380v)

Total weight:150kg

Our Service
Pre-sale Service:
Analyze the customer's need and market prospect;
Provide perfect solution to set up a factory.

In-Sale Service:
Provide service of installation in customers' country;
Provide training for operator and maintenance person.

After-sale Service:
Provide free consultation;
Supply parts service.
Packing & Delivery

Package:

    1.Iron box for LCL

    2.Nude package for FCL

    3.As your request

Shipping :

     Within 30 days after received deposit.
