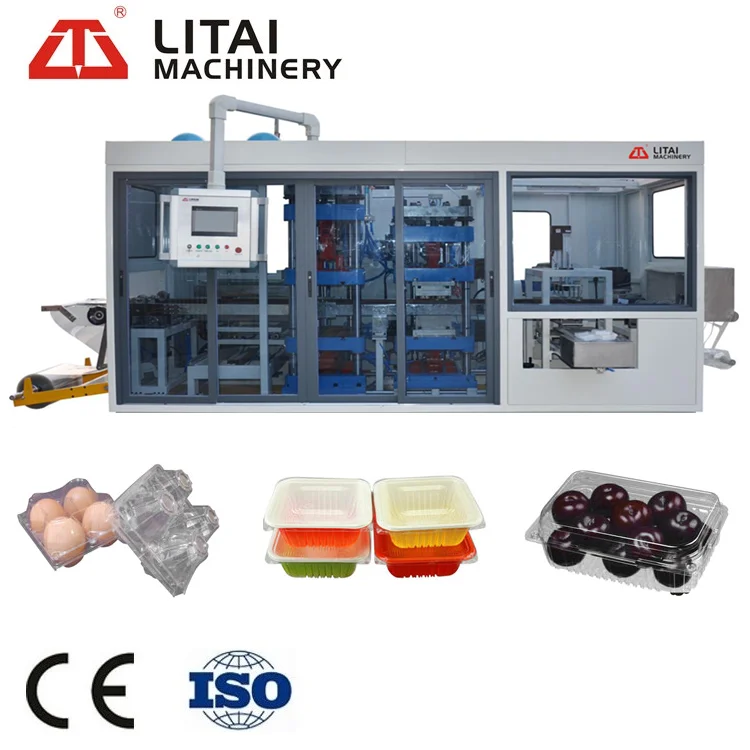

Full Automatic PP/PET Cup/Plate Production Equipment Machine

  • >=1 Sets
    $44,200.00
Model Number:
TQC-650B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Plastic Thermoforming Machine
Plastic Type:
PVC, PS, PP, pet, PP PS PET PVC
Max.Forming Height(mm):
125 mm
Forming Width (mm):
650 mm
Forming Length (mm):
320 mm
Production Speed(Cycles/min):
25
Air Pressure(MPa):
0.8 MPa
Sheet Thickness(mm):
0.3 - 1.8 mm
Heating Power (kW):
65 kW
Air Comsumption(L/min):
2 L/min
Water Comsumption(L/min):
0.5 L/min
Condition:
New
Product Type:
machine
Place of Origin:
Zhejiang, China
Brand Name:
LITAI
Voltage:
380V
Dimension(L*W*H):
7000x2000x3100
Weight (T):
5 T
Power(KW):
98
Certification:
ce
Applicable Industries:
Manufacturing Plant
Key Selling Points:
Famous brand PLC
After Warranty Service:
Field maintenance and repair service
Local Service Location:
malaysia
Showroom Location:
malaysia
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
98KW
Weight:
5T
Application:
Making Plastic Cups
Product name:
Plastic Cup Making Machine
Suitable material:
PP PS PVC PET Sheet
Finished Products:
Disposable Products - Cup
Name:
Full-automatic Plastic Thermoforming Machine
Machine Type:
Plastic Cup Thermoforming Line
Warranty:
13 month
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
The normal package is wooden box(Size: L*W*H). If required fumigated,we will collect extra cost.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated

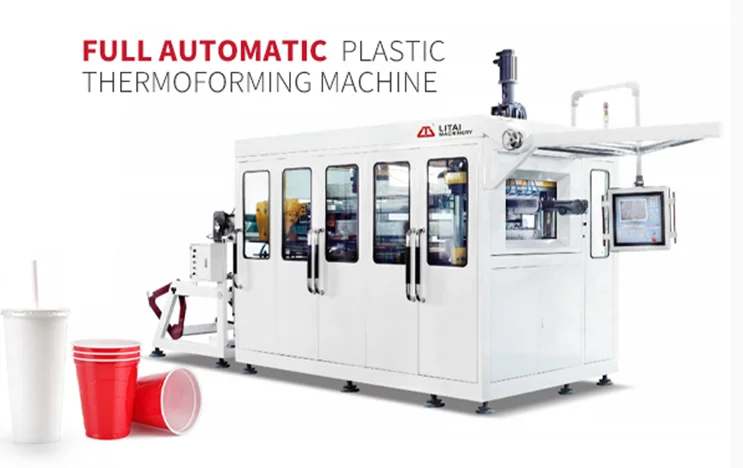

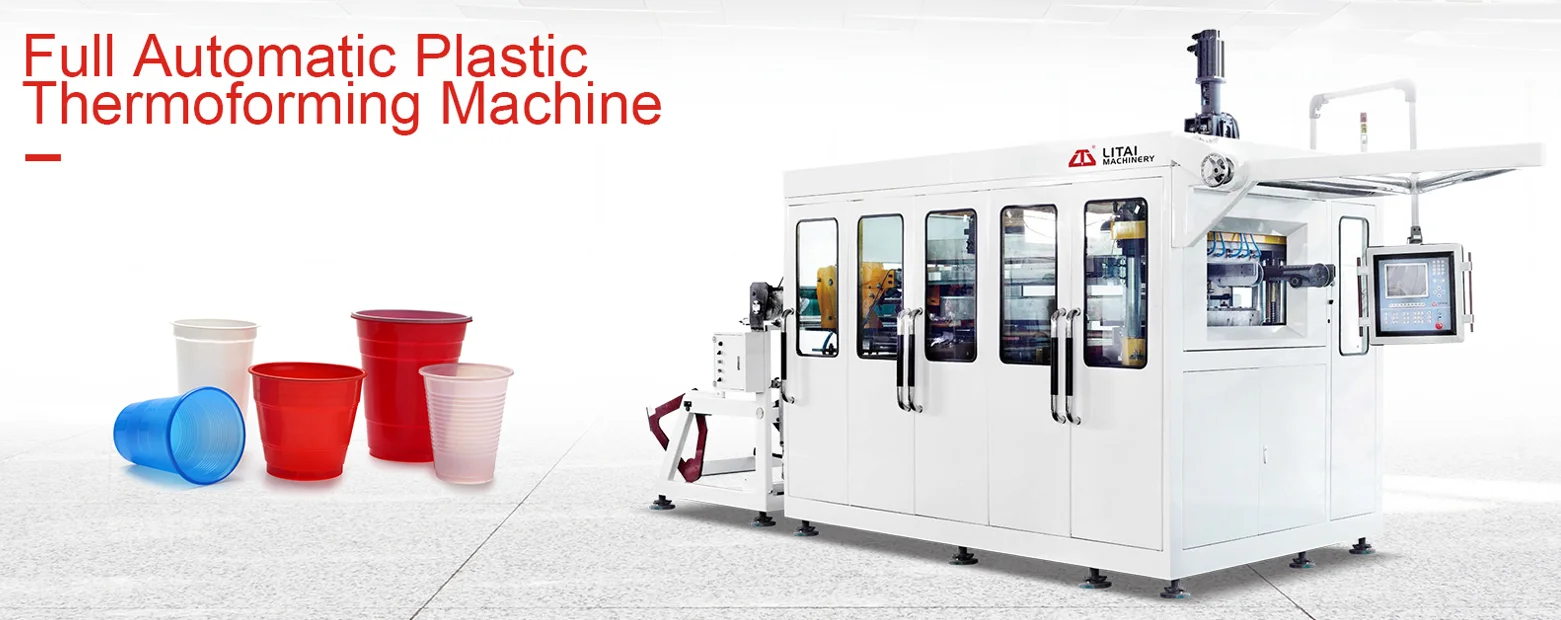

Full Automatic PP/PET Cup/Plate Production Equipment Machine
Product Description

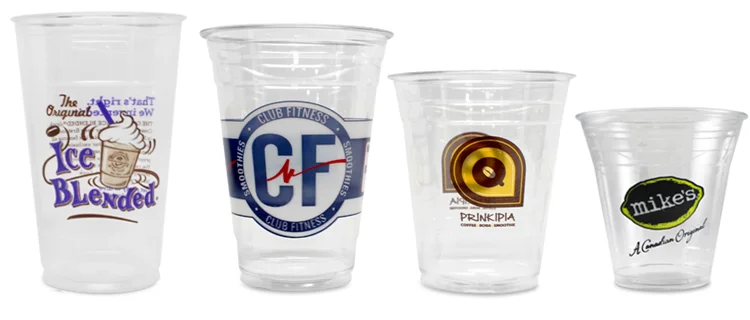

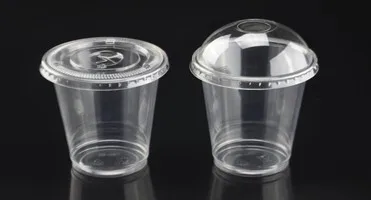

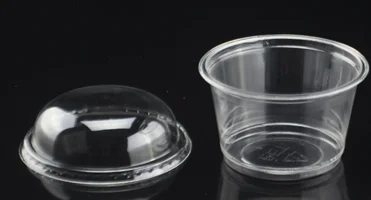

TQC series automatic hydraulic cup thermoforming machine is reached and developed upon the plastic thermoforming craft,which is suitable to produce the PP,PS,PET material plastic food container ,such as cups,bowls,boxes and so on.plastic thermoforming machine (plastic cup glass manufacturing machine) uses servo motor for paper feeding and stretching, PLC is program, touch screen operation, stable, low noise and high efficiency.Suitable for the production of plastic cups, fruit containers, bowls, trays, snack boxes, etc. Efficient, stable machines help to increase the life of the machine. The tension part adopts hydraulic cylinder or servo motor, which is stable in operation and low in power consumption. The paper feed heating stretch forming cut is combined into one process. This machine is suitable for PP, PS, PET material. They are disposable tableware, such as a wide variety of cups, such as ice cream cup,jelly cup.

TECHNICAL PARAMETER
Model
TQC-650B
Max. Forming Area
650*300mm
Max. Forming Depth
125mm
Sheet Thickness
0.3-1.8mm
Sheet Width
650mm
Max. Forming Speed
25 times/min
Air Pressure
0.6-0.8mpa
Air Consumption
2.0m³/min
Water Consumption
0.5m³/h
Rated Power
98Kw
Used Power
69Kw
Power Supply
AC 380V,50Hz, Three-phase, Four-wire
Dimension
L7000*W2000*H3100mm
Weight
About 5T
Industrial manual interface and PLC of SIEMENS (Germany) make the high degree automation, accurate control and convenient
operation.The document storage function simplifies the operational processes.

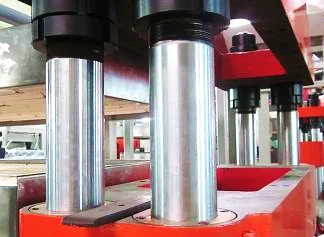

Working stations is driven by stable four guiding-pillars (GCr15 steel, outside is hard chrome plated) structure. Wear resistant,
and extend equipment life.

Main Features

1) Easy for installation and change mould.

2) Adopting advanced world famous brand components in heating parts, electric parts and operation parts.

3) One piece casting of mould bench.

4) Running in a high automatization .

Company show
Detailed Images

Machine Parts

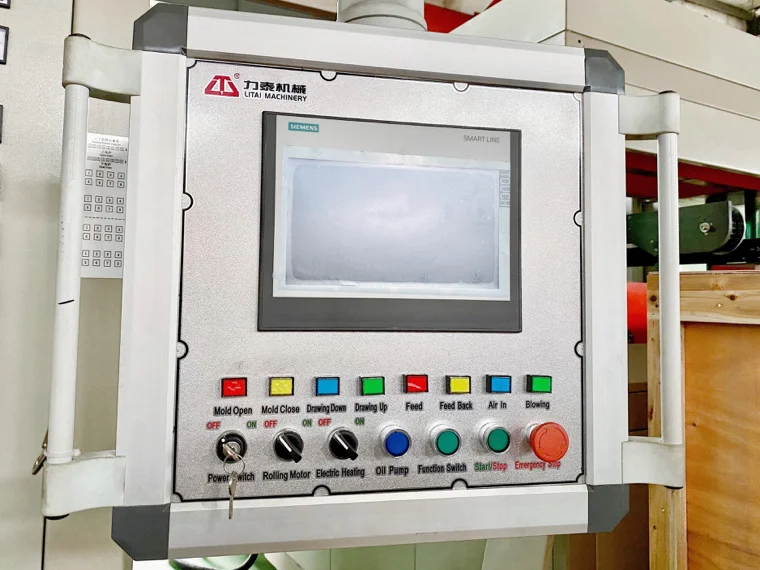

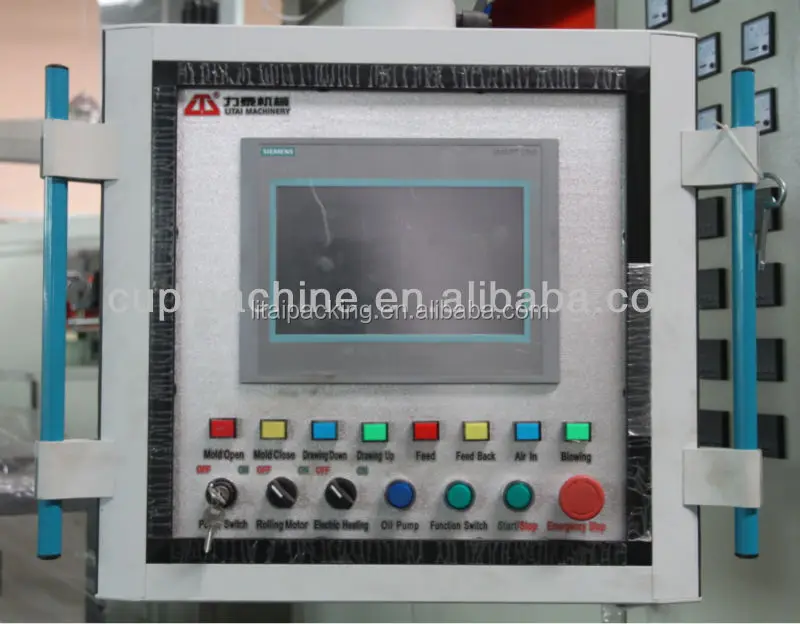

Name: Touch screen

Brand: Siemens

Original: Germany


Main Features

Name: Heater
Brand: Tianbao
Original:
China



Machine Parts

Name: Servo Motor
Brand: Yaskawa
Original: Japan

Main Features

Name: Circuit Breaker
Brand: Schneider
Original: France

Perfect after-sales

1.Q:machine adjustment and installation

A:We can send technicians go to customers' country for mahchine adjustment and installation.

2.Q:gaurantee time and after-sale

A:One year guarantee time, after one year , we have professional after-sales department providing best

service if any problems.

Packing & Delivery
Packaging
Size
3700(L) * 2300 (W) * 2530(D)
Weight
5.5 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If required fumigated,we will collect extra cost.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
