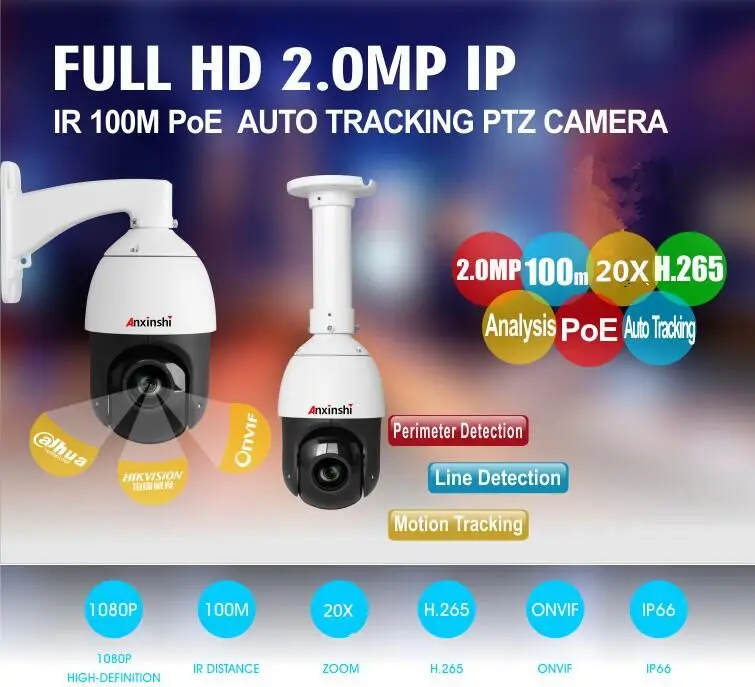

Full HD IP 1080P Face zoom Auto tracking and analysis Mini PTZ Camera

Feedback Ratings
  • 1-8 Pieces
  • >=9 Pieces
IP Camera
Dome Camera PTZ Camera
1920 x 1080
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
4 day(s) after payment received
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 300 Pieces)


Graphic customization (Min. Order: 20 Pieces) Less
Contact Supplier
Samples - $280.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Special Features:
Waterproof / Weatherproof
Key Feature1:
face tracking
Key Feature2:
1/2.8" sony CMOS IMX290
Key Feature3:
Key Feature4:
Auto / Manual
Video Compression:
H.265 Main Profile/H.264 Main Profile/M-JPEG
2.0 Mpixes
Min. Illumination:
Color: 0.05Lux, B/W: 0.005Lux,0 Lux with IR

Packaging & Delivery

Selling Units:
Single item
Single package size:
21X21X32 cm
Single gross weight:
3.0 kg
Package Type:
Standard Paper Box Packing/Carton Packing
Picture Example:
Lead Time :
Quantity(Piece) 1 - 1 2 - 10 >10
Est. Time(days) 4 10 To be negotiated
Video Description
Product Description

Product picture:

1.1/3" 2.0Mpiexls 3516D+ Sony IMX290 CMOS
2.20X optical zoom, 16X Digital zoom
3.2.0MP available
4.POE function(Optional)
5.Support intelligent analysis
6.True Day/Night, 3D DNR, Digital WDR
7.Backlight compensation, and auto gain control (AGC)
Network Features:
1.Main Stream: (1920*1080)30fps
2.Support the iPhone,Windows Mobile, BlackBerry,Symbian, Android
3.Support ONVIF 2.4
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Support Audio IN (Optional), Support DC out for Microphone (Optional), Support Alram in/out(Optional), Support CVBS out(Optional)
6.Support 128G SD card max,CGI,easily to be integrated with other digital systems
7.Support a variety of network protocol such as TCP/IP,HTTP,DDNS,DHCP,NTP,PPPoE,FTP,SMTP,RTSP,RTP
Dome Features:
1. Auto tracking moving target according to movment
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 100M
4. With digital temperature controlling system protecting IR LED
5. 360 degree continued rotation, Horizontal Speed 0.05°~240°/s, Vertical Speed 0.05°~180°/s, Max Speed 240°/S, Preset Speed 256.
6.Built-in surge and lightning protection device, effectively preventing 4000V instantaneous current.
7.IP66 waterproof

Form parameters
ModeName and DescriptionFull HD IP 1080P Face zoom Auto tracking and analysis Mini PTZ Camera
Image Sensor 1/3"  2.0Mpiexls 3516D+ Sony IMX290 CMOS
Effective Pixels2.0 Megapixels
Min. IlluminationColor: 0.05Lux, B/W: 0.005Lux,0 Lux with IR
Zoom4.7-94mm,20X Optical Zoom
Zoom SpeedApprox.3s(Optical Wide~Tele)
Angle of View55.4-2.9 degree(Wide-Tele)
Day/NightAUTO ICR Color to B/W
Noise Reduction2D Noise Reduction
Electronic Shutter1/25~1/100000
3D NDR Support
AGCAuto / Manual
White balanceAUTO, ATW, Indoor, Outdoor, Manual
POE functionPOE supply voltage DC48V
POE supply PIN1,2(+),3,6(-) / 4,5(+),7,8(-) Auto adaptation
NetworkVideo CompressionH.265 Main Profile/H.264 Main Profile/M-JPEG
StreamsDual streams
         Frame RateMain stream: 1920*1080, 1-25(30)fps;  1280*720, 1-25(30)fps
Sub-stream: 480*640, 1-25(30)fps;     480 *360 1-25(30fps 352*288, 1-25(30)fps;     176*144, 1-25(30)fps
MJPEG:1920*1080, 1280*720, Close
BitrateCBR/VBR, bitrate:32Kbps~10Mbps variable
Audio CompressionG711,PCM
Motion detectSupport
Privacy Zone MaskingSupport
OnvifOnvif 2.4
Network10/100M Base-TX Ethernet, RJ45 Connector
Night vision distance100M
IR Parameters LuminaryArray Φ20 8pcs
Lamp controlAuto, Manual, by Zoom
Mini SD CardUp to 128GB(Optional)
Dome FeaturesHorizontal Range0°~360° continuously
Vertical Range(-15°~90°)
Horizontal Speed0.05°~240°/s
Vertical Speed0.05°~180°/s
Max Speed240°/S
Preset points256
Patrol scan4pcs(10 preset for each)
Left and right limit Scan1
Pan Scan1
PARK ActionWatch position/ Area Scan /Horizontal 360°scan/ Cruise
Watch positionSupport
Wide angle speed limitFocus / speed automatic matching function
Power-off memorySupport
 GeneralWork temperature–20℃~60℃
Work Humidity0%~90% (Non condensing)
Protection levelIP66 waterproof,4000V lightning protection
PowerPOE & DC12V±10%; 4A


Product size:

Mobile phone control:

NVR system wiring Digram:
