Full automatic 5 gallon drinking water making filling machine / capping production line / bottle washing system

  • 1 - 1 Sets
    $22,000.00
  • >=2 Sets
    $16,000.00
Power:
8KW
Model Number:
QGF-100 100BPH
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Barrel, Bottles
Packaging Material:
Plastic
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
BAIJI
Voltage:
380v or Customized
Application:
Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Weight:
3500KG
Automatic Grade:
Automatic
Certification:
CE ISO SGS
Driven Type:
Electric
Dimension(L*W*H):
4450*1800*2350mm
Applicable Industries:
Food & Beverage Factory
Bottle type:
5 gallon bottle
Function:
Bottle rinsing Filling Capping
Material:
SUS304 / 316
Capacity:
150-1500bph
Filling material:
pure water / mineral water
control:
PLC & touch screen
bottle rinsing:
Soda washing, disinfectant washing, water washing
bottle size:
17-20L
Name:
5 gallon drinking water making filling machine / production line
Supply Ability
Supply Ability:
5 Set/Sets per Quarter 5 gallon drinking water making filling machine / production line
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai
Video Description
Product Description

Full automatic 5 gallon drinking water making filling machine / capping production line / bottle washing system

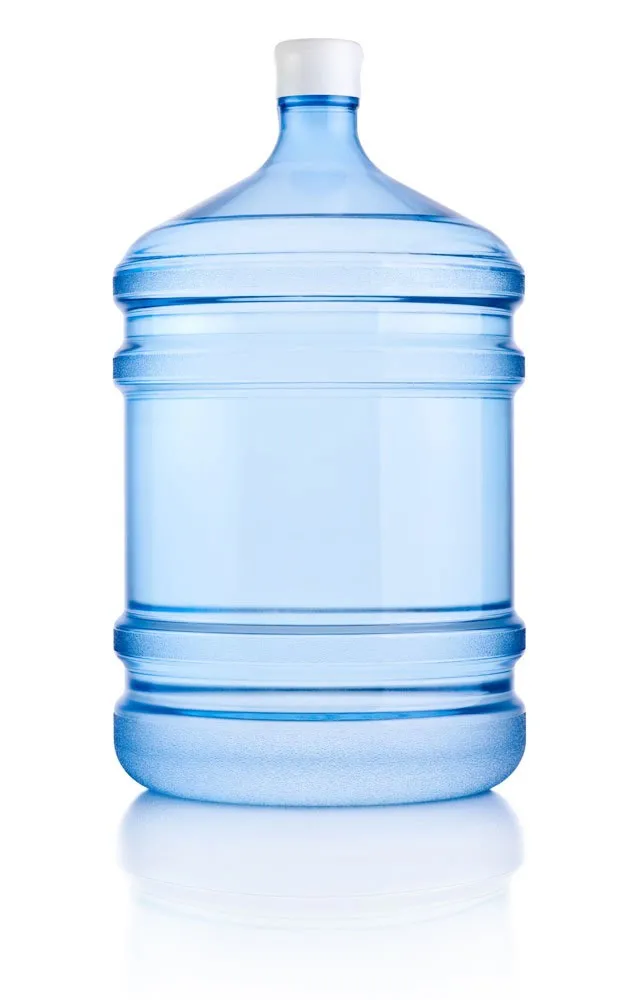

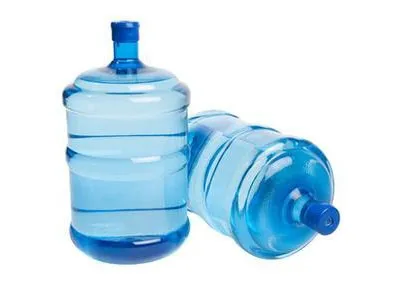

Product Application -- 20 liter bottled water filling machine

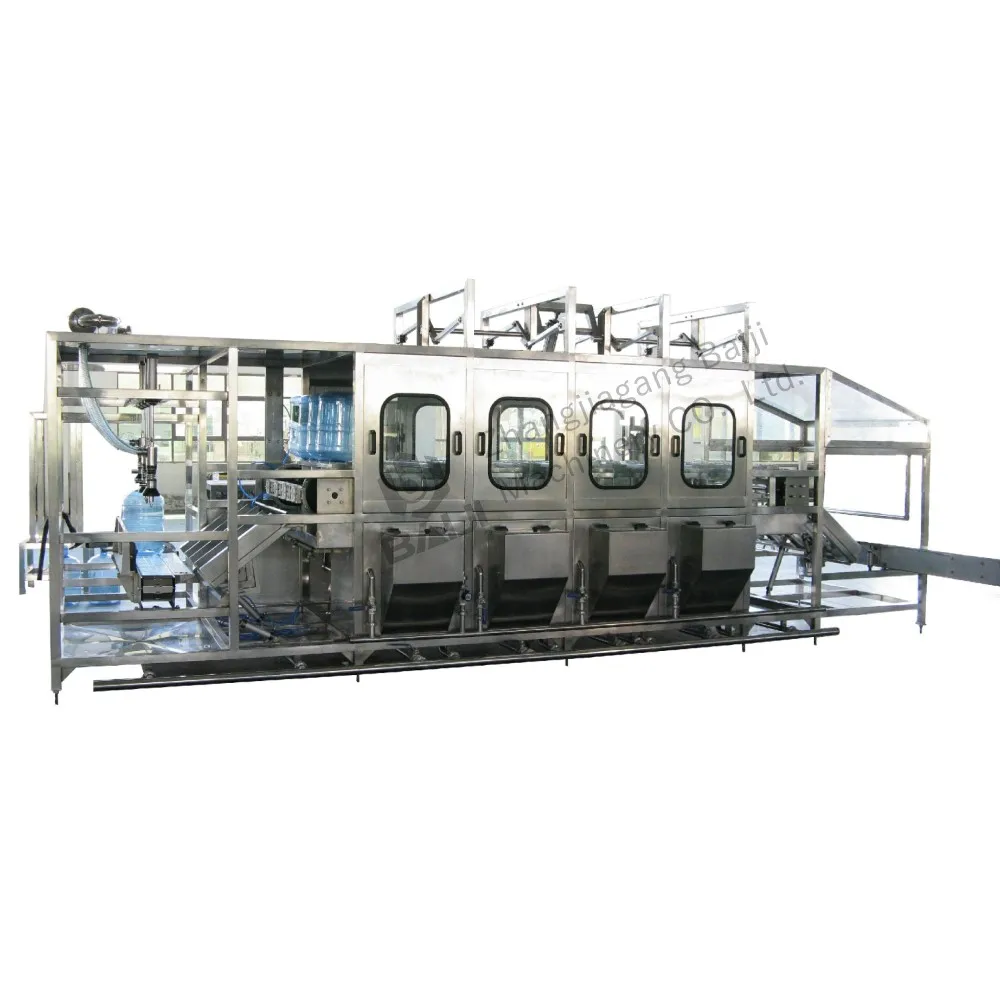

5 gallon water filling machine is specialized for 5 gallon bottle water production. The whole machine include washing machine, filling machine and capping machine. It is ideal equipment for producing mineral water and pure water. The all machines are mainly made of SUS304 stainless steel. The main electric components are chosen from international famous brand, such as OMRON, MITSUBISHI and so on and air channel system are chosen from Taiwan AirTAC brand.

Machine Flow Chart

If you want to know more,please click here.

Detailed Images

Machine Parts

Name: Rinsing parts

Brand: Baiji

Original: China

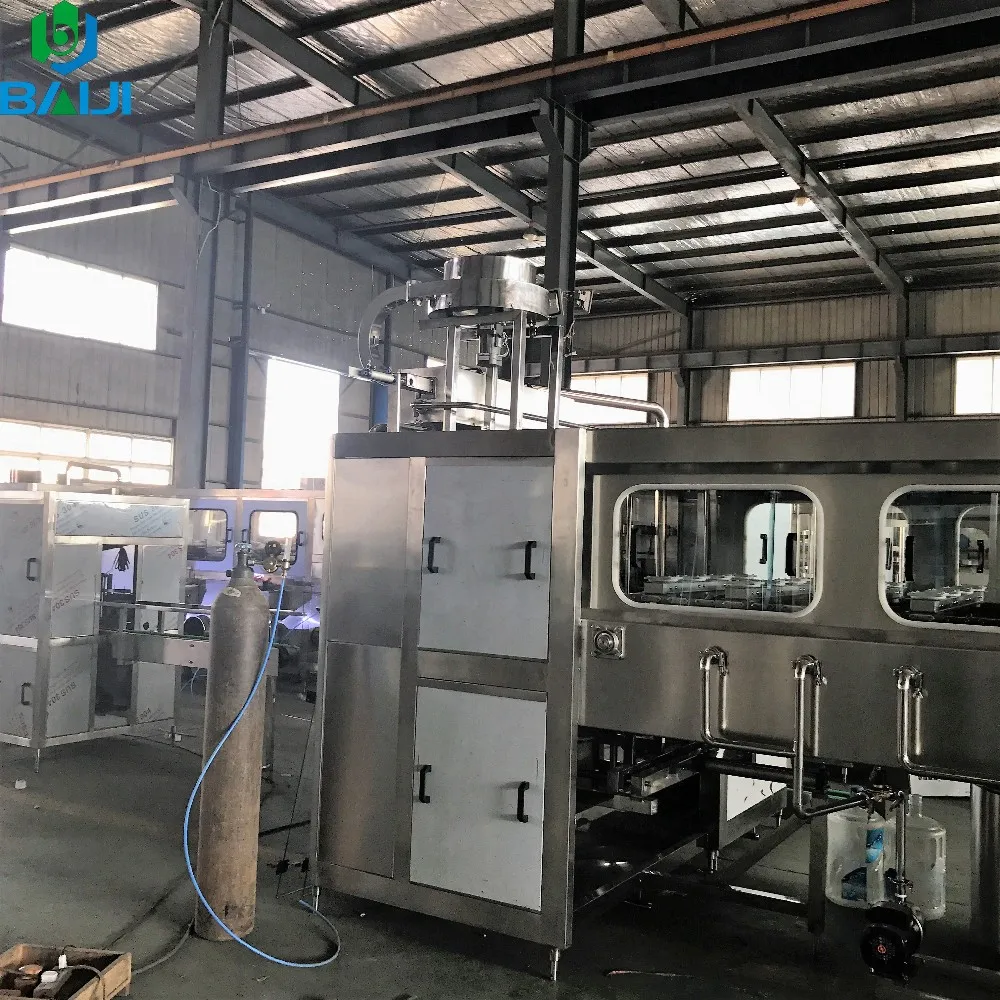

In our rinsing machine, the barrel will be cleaned by multiple liquid, from alkali water to disinfecting water, and then to the pure water, to ensure every barrel can be cleaned absolutely. And then the filling machine and capping machine will start to work automatically

Main Features

Name: Filling parts
Brand: Baiji
Original: China
The barrel water drink filling machine works reliably and efficiently based on the compact structure and high automatic technology. This barrel water drink filling machine is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Machine Parts

Name: capping parts
Brand: Baiji
Original: China
In our capping machine, there is pure water spraying device, to sterilize the caps, avoid any pollution to the beverage;

Main Features

Name: Decapping and washing machine
Brand: Baiji
Original: China
Automatic decapping and washing machine. It is used for recycled barrel decapping and washing.

Main technical parameters: -- 20 liter bottled water filling machine

Model
QGF-100
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
Filling heads
1
2
3
4
6
12
Volume(gal.)
3-5 gallon
Barrel size
(mm)
Dia.270*490
Capacity(BPH)
100
300
450
600
900
1200
Gas pressure
(Mpa)
0.4-0.6
0.6
0.6
0.6
Gas consumption(m3/min)
0.37
0.6
0.8
1
1.5
1.8
Motor power
(kw)
1.38
3.3
3.8
7.5
9.75
13.5
Weight
680
1500
2100
3000
3500
4500

Inquiry us:
If you are interested in our product, please feel free to click the picture to inquiry us!

Our Company

About us

Zhangjiagang Baiji Machinery CO., Ltd is a company which has specifically manufactured beverage machine for mare than 10 years. Our company holds the right of independent import & export, and enjoys a good reputation in national and aboard markets.Our company is specialized in manufacturing carbonated drink production line, mineral water filling labeling and packing machine, pure water filling production line, juice or tea drink hot filling production line, milk filling and packing production line, edible oil filling and capping machine, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) *180 (W) * 220 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 180 (W) * 220(D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
