Full automatic vertical corrugated paper re-board making machine

FOB Reference Price:Get Latest Price
$100,000.00 - $400,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Product Type:
Re-board
Processing Type:
Laminating Machine
Power(W):
45-200KW
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
YALIAN
Model Number:
1600MM
Voltage:
220V/380V
Dimension(L*W*H):
45*35*3.5m
Weight:
25-50tons
Certification:
CE
Application:
Heavy-duty packing
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1-2years
Supply Ability
Supply Ability:
30 Set/Sets per Year
Packaging & Delivery
Packaging Details
Sea shipping packing
Port
Shanghai
Lead Time :
60days
Video Description
Machine Details

Full automatic vertical corrugated paper re-board making machine:

This machine is for Re-board( Vertical corrugated board), the proceed as following:Paper Roll Loading  ->Single Face Corrugated Making -> Slitting-> Gluing ->Standing>Lamination & Drying -> Board Cutting -> Surface Paper Feeding ->Gluing ->Lamination ->Drying ->Roller Lamination ->Cutting ->Conveyor.  It is L shape machine, it can separate into Vertical Corrugated Core and Board making machine .

Max Paper Rolls Width
1600mm
FluteType
A B C
Core Paper GSM
105--180GSM
Surface Paper GSM
Over 250GSM
Core Thickness
10-100mm
Board Thickness
10-100mm
Working Speed For Core
Max 15m/min
Working Speed For Board
Max 10m/min
Glue Type
Starch Glue
Heating Type
Steam or Electric
Power Supply
3-phase, 380V/220V
Installed Power
200KW

Main Features:

1)Working paper rolls width 1600mm, Core width max 700mm

2)High and mature technology in slitting, no strips will break off while standing.

3)Electric or Steam heating both available

4)Superior cutting system with Servo control

5)No bubbles or wrinkles on the board surface

Application
Paper Board for Pallet Making

•Widely using in transportation to replace the pallet

Carton Box

•Widely using in Heavy-duty packing carton box

Paper Funiture

•Widely using in funiture, display stand and so on

Detailed Images

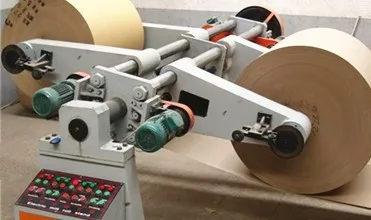

Mechanical Paper Mill Stand

•Paper roll setting with Mechanical control
•Paper roll handling toward up or down and left or right
•With extension structure for different width paper rolls

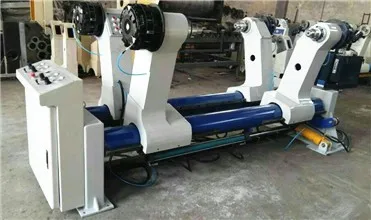

Hudraulic Paper Mill Stand

•Paper roll setting with Hydraulic control
•Paper roll handling toward up or down and left or right
•With auto tension controller- electric control
•With extension structure for different width paper rolls

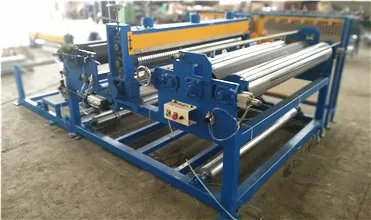

Slitting & Gluing Machine

•Slitting the single face corrugated paper

•Apply glue on it

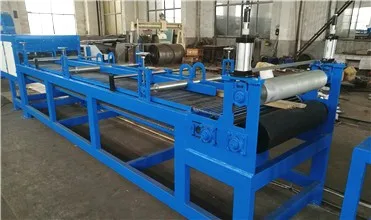

Combined Machine

•Combined the standing paper strips together

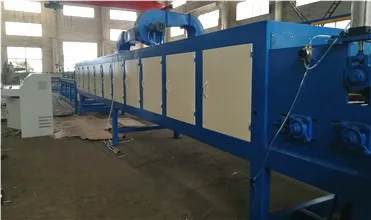

Drying Chamber

•Electric or steam both available,hot air recycle heating
•Normal length 8( length can customize)

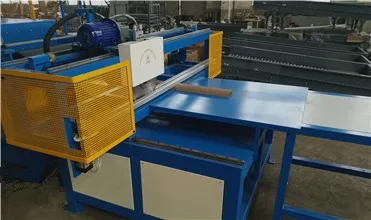

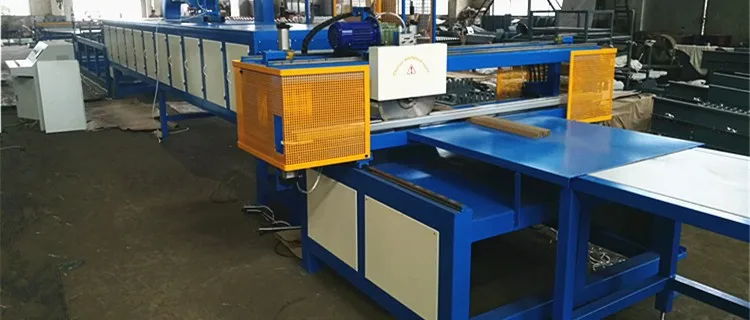

Cross Cutting

•NC control running cutter & Servo system guarantees cutting precise

Packing & Delivery
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Machine Design and Quotation Sheet with Technical Details
* View our Factory and See the Machine Running

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
