Full line aluminium can juice beverage / beer / tea filling machine / sealing equipment / making plant price

  • 1 - 1 Sets
    $34,000.00
  • >=2 Sets
    $22,000.00
Power:
0.37-0.75KW
Model Number:
GF24-4 7000-8000CPH
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Packaging Type:
Cans
Packaging Material:
Other
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Machinery & Hardware
Automatic Grade:
Automatic, Automatic
Driven Type:
Electric
Voltage:
220V/380V 50HZ
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BAIJI
Dimension(L*W*H):
1900x530x1100
Weight:
480KG
Certification:
CE
After-sales Service Provided:
Video technical support, No after-sales service, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Name:
aluminium can juice beverage / filling machine / sealing equipment
Electric componets:
Siemens
machine:
2 in 1 canning line
Material:
SUS304
capacity:
1500-10000CPH
Filling speed:
Adjustable
control:
PLC+touch screen
color:
sliver
Filling material:
liquid
Supply Ability
Supply Ability:
10 Set/Sets per Month can juice beverage / filling machine / sealing equipment
Packaging & Delivery
Packaging Details
wood case for commercial canning equipment
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Full line aluminium can juice beverage / beer / tea filling machine / sealing equipment / making plant price


Introduction of can filling machine

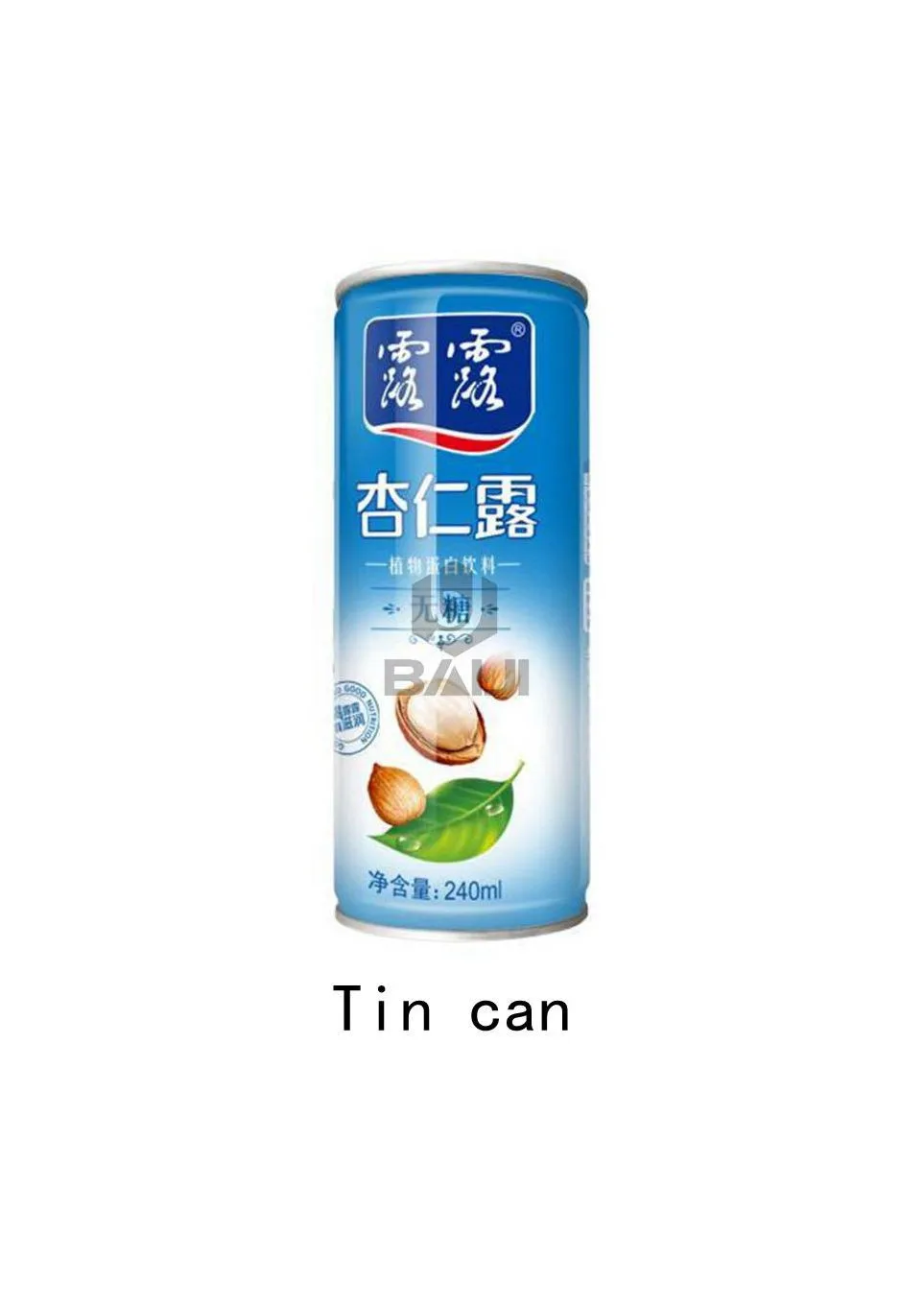

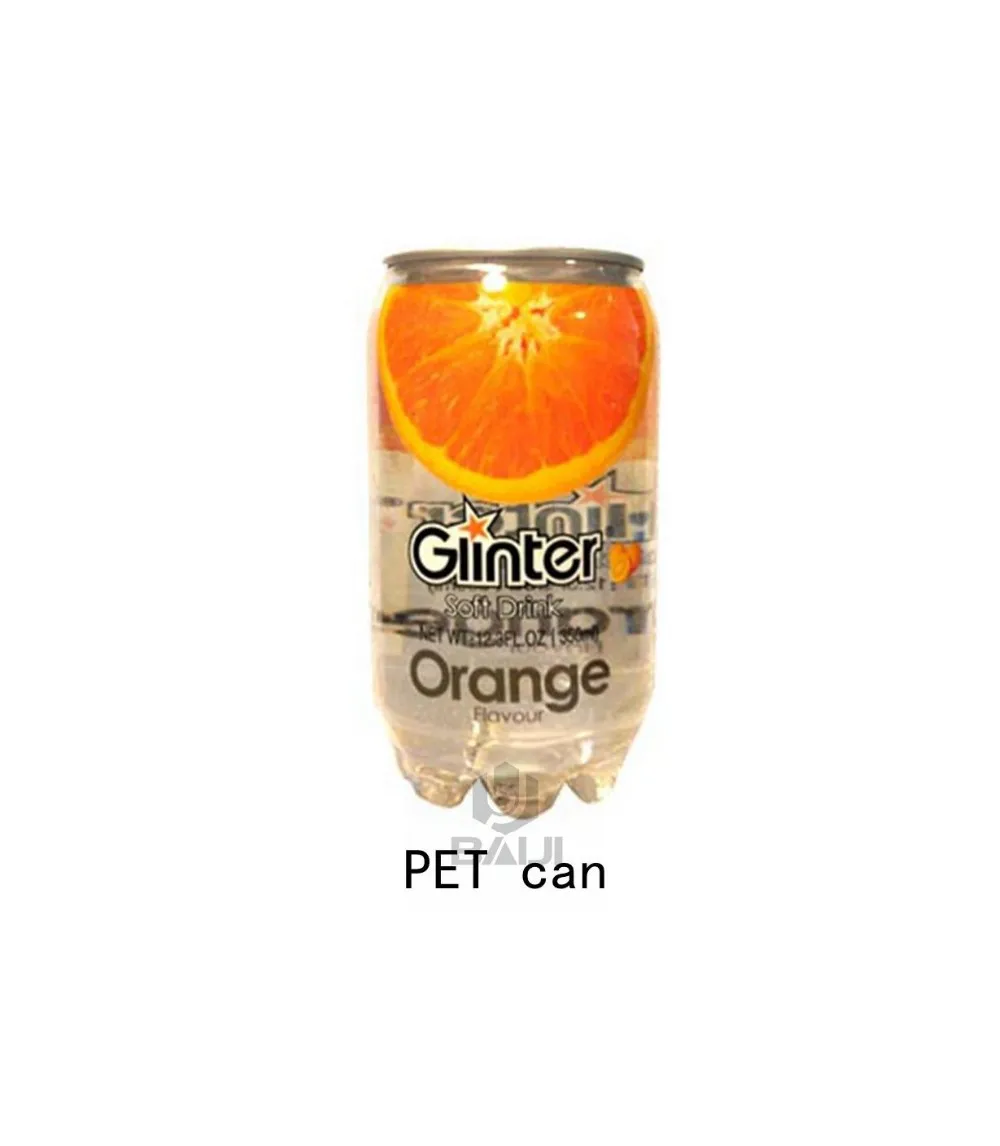

• This equipment can be used for different material of cans, such as metal tin cans and aluminum cans. Stable performance, not easy to wear out.
• Owning a mature canning machine technology, we're expert in all canning ways.
• The inlet valve closes once the specified quantity has been reached. While the can is being fed into the filler, the centering unit is raised.
• Once the magnetic float in the dosing tank has dropped to the preset switching point, the filling process is ended.

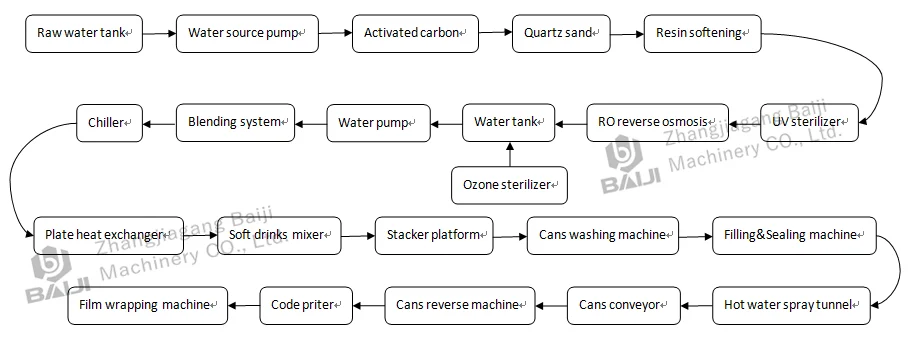

Flow Chart:

If you want to know more, please click here.

Detailed Images

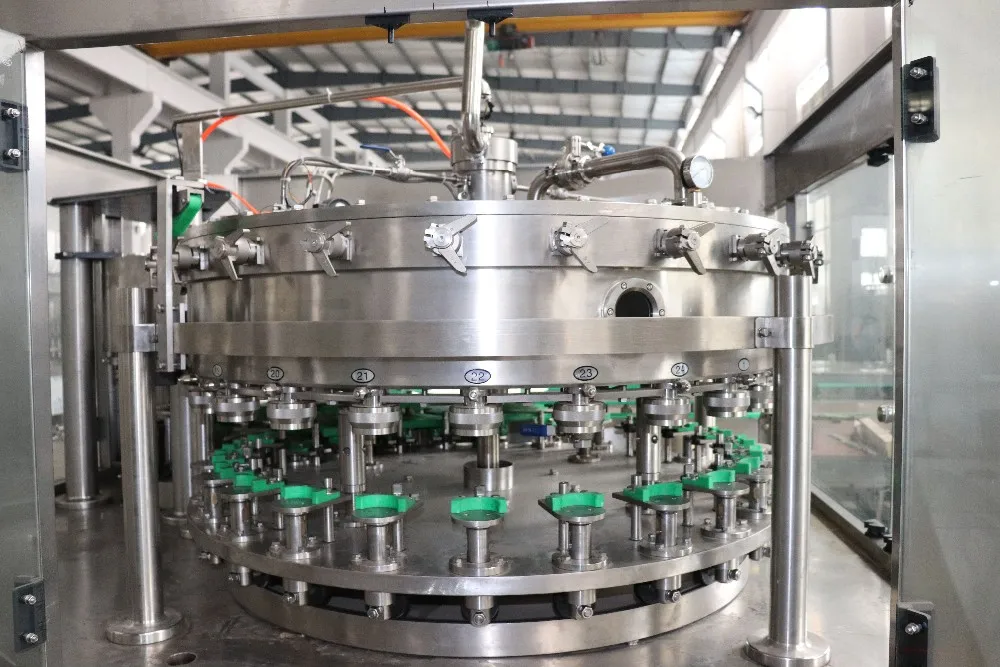

Filling part

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

Sealing part

<1> Place and sealing system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no sealing
<4> Automatic stop when lack of bottle
<5>Sealing effect is stable and reliable ,Defective rate ≤0.2%

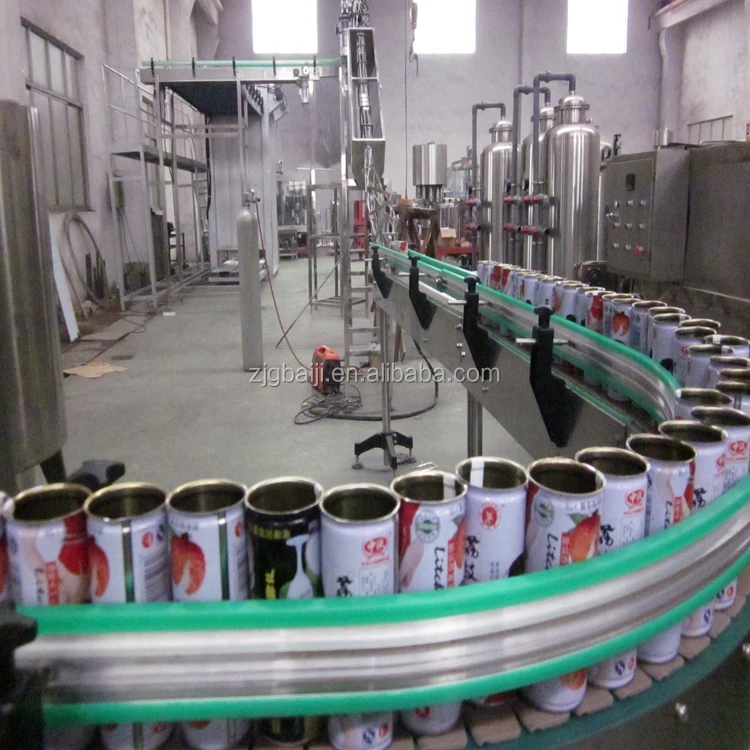

Flat conveyor

1/Energy saving. High efficient. Adapt to customer factory layout
2/Special lubrication system, keep products clean, health, safety
3/Extended service life
4/Electric eyes design keep whole line running safety and quickly
5/Overload protection mechanism to effectively ensure the safety of the machine

Auxiliary equipment

Water treatment system

The Reverse Osmosis process uses a semi-permeable membrane to separate and remove dissolved solids, organics, pyrogens, submicron collodial matter, viruses, and bacteria from water. The process is called "Reverse" Osmosis since it requires pressure to force pure water across a membrane, leaving the impurities behind. Reverse Osmosis is capable of removing 95 - 99% of the total dissolved solids (TDS) and 99% of all bacteria, thus providing safe, pure water.

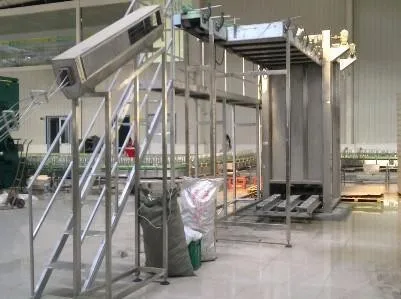

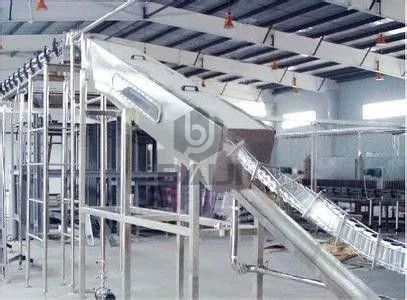

Cans depalletizer

This machine is based on the introduction of foreign advanced technology, combined with the new products developed after years of production experience.
This machine design science is reasonable, modelling is beautiful.
Convenient operation and maintenance, high degree of automation.
This machine is mainly used in the unloading process of the can.

Cans washing

The can turnover 180° in the washing tunnel and then the washing valves opened, use the pure water rinsing inside and outsid bottle. in order to make sure the bottles clean enough before filling. if you have high request for washing. we can customized two or three times washing.

Carbonated mixer

Here we can provide single tank mixer, two tanks mixer, three tanks mixer and five tanks mixer according to your different Co2 content request. For example 2.5, 2.8, 3, 3.5, 3.8, 4, 4.5 ... g/l.

Spray sterilizing chiller

including local control cabinet,electrical control device
1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3/Nozzles are manufactured using U.S. technology and spray water evenly
4/Conveyor belt adopts Rexnor technology, flat surface with small wear

Packing machine

1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product

Model
GF12-1
GF18-4
GF24-6
GF36-6
Capacity (can/Hour)
1500-3000
5000-9000
10000-15000
15000-20000
Suitable can size ( ml )
150ml-500ml
φ53-φ72.9mm
height 65-190mm
φ52.5-φ83.3mm
height 70-133mm
Can size
200/202/206/209
Heads of filling
12
18
24
36
Heads of sealing
1
4
6
6
Filling way
whole machine bottom lifting up, and normal pressure filling
Filling temperature
(℃ )
65℃ -95℃ Normal temp or 65-95° C
Power source specification
AC380V/50HZ
Power (kw)
2.2
3
4
5.5
Overall dimension(mm)
2200x1600x2200
2500x2000x2350
2850x1800x2200
3200x2100x2350
Weight(kg)
2500
3800
3850
4200
Our services

1.Find our products through https://zjgbaiji.en.alibaba.com/
2.One year warranty for the whole system.
3.Free equipment installation and debugging.
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.
5.Every 3 years,we can help to overhaul the machine freely(Labor).
6.We can provide internship servise and help you train the operator and mechanic.
7.Free production technology and process configuration.
8.We can help you to design the production line,workshop and provide turnkey project.

Certifications

Notes: A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.

80% of the main parts of our products are provided by world's famous suppliers.

Packing & Delivery
Packaging
Size
180(L) *218 (W) * 220(D)
Weight
1.2 T


Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

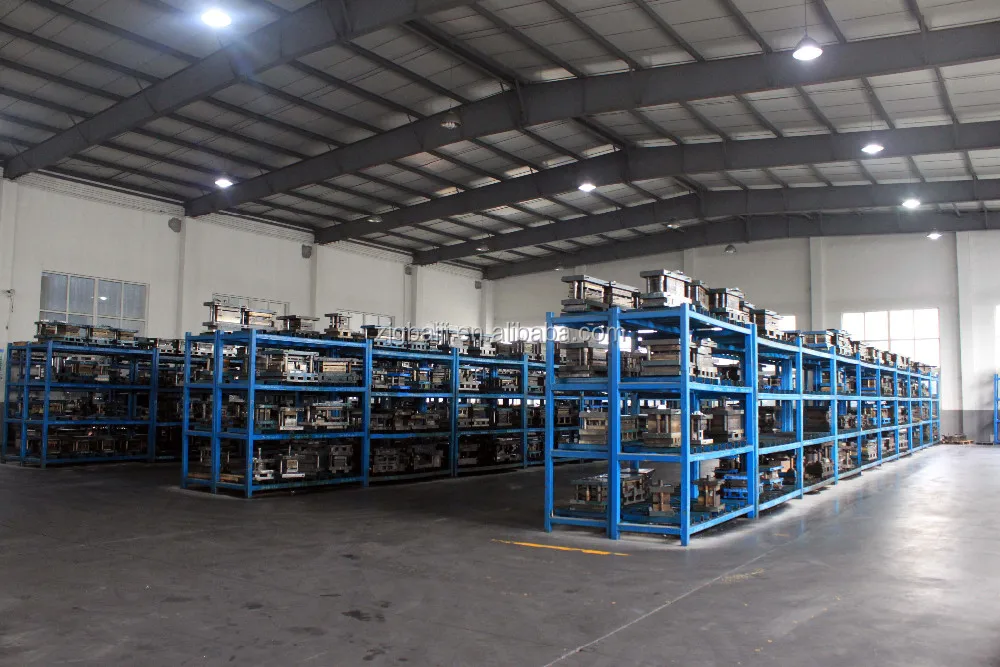

Our Company

About Us

Our company is specialized in manufacturing all machines in carbonated drink, mineral water, pure water, juice, tea drink, soy milk, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.
Our beverage filling equipments export to Japan, Russia, Indonesia, Malaysia and many others countries. Professionalisthe foundation of an enterprise.
