Fully automatic transmission track overhead hanging conveyor chain

FOB Reference Price:Get Latest Price
$12.00 - $25.00 / Meters | 10 Meter/Meters (Min. Order)
Type:
Bucket Conveyor
Load Capacity:
1-100KG
Model Number:
UH-5075
Lead Time:
Quantity(Meters) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Material:
Carbon steel
Material Feature:
Heat Resistant
Structure:
Roller Conveyor
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
THD
Voltage:
220V/380V
Power(W):
2.2kw
Dimension(L*W*H):
standard
Certification:
ISO
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Online support, No overseas service provided
Product name:
track overhead hanging conveyor chain
pitch:
150-200mm
Color:
Black
accessories:
drive, take up, track, hook etc
Application:
work plant,powder coating,ganging
model:
5075
Keyword:
chain
Motor:
1.5KW-4.8KW
Supply Ability
Supply Ability:
1000000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
overhead conveyor chain package: wooden box
Port
shenzhen
Lead Time :
Quantity(Meters) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Fully automatic transmission overhead overhead hanging conveyor chain

The traditional 5T conveyor chain (UH-5075) is the most widely used with largest sales number in overhead conveyor. The chain has the small pitch can run small curved track. Also it's hanging more workpiece, many kinds of type for choice, great varietyof chain accessories and installation is easy. The 5T chain has always been the first choice of overhead conveyor. Effe We created UH-7075 5T cross type overhead conveyor chain. According to the traditional 5T chain for overall reform, Is not only change the new appearance, The most important is the mechanical properties are greatly improved.UH-7075 chain in all respects with excellent performance. It is the best choice of overhead conveyor chain.

Conveyor catalogue

Fully automatic transmission overhead overhead hanging conveyor chian

Model type
Chain pitch (mm)
Loading ability (KG)
Working temperature
(≤℃)
Moving speed (M/min)
Chain's weight (KG/m)

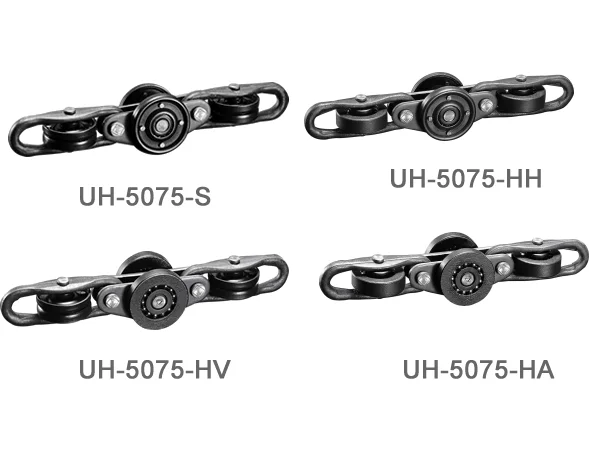

UH5075-S
150
30
250
0-12
4.2
UH5075-HH
150
35
250
0-12
4.58
UH5075-HV
150
40
250
0-12
4.83
UH-5075-HA
150
45
250
0-12
5.3
Detailed Images
Products features

Fully automatic transmission overhead overhead hanging conveyor chain

1. The perfect compatibility with traditional 5T accessories: The driver unit, horizontal curved track, vertical curved track and hanger are 100% compatibility with traditional 5T conveyor.

2. More streamline of shape and structure: Strengthened the steering structure: Forging cross-head as main part of steering, so the chain to become a real universal structure. When the chain conveying to the horizontal & vertical track, the chain would not distorted and offset the track. Also reduce the wear and resistance.

3. The tensile strength increased dramatically: Except the chain wheels & rivet which are independent of tensile strength.All the other parts are made of middle carbon steel in model S45C with quenched hardening treatment. The chain would not deformation in strong tension and the conveyor chain reduce the elongation about 50%.

4. Efficient design of driving: Improved the chain's transmission of structure, to reduce the component force substantially of driving direction. And make the driver gear more efficient to pushing the chain, so the conveyor line running more fluent, energy saving and the using life of driving unit also extend.

5. Lightweight, flexible and more energy saving: The new 5T cross-type chain, improve the old problems and strengthen many mechanical properties. While also reducing the weight of 8% to reduce the force of chain, the load of conveyor motor becomes small and less power consumption, The design fully meet of environmental protection and energy saving.

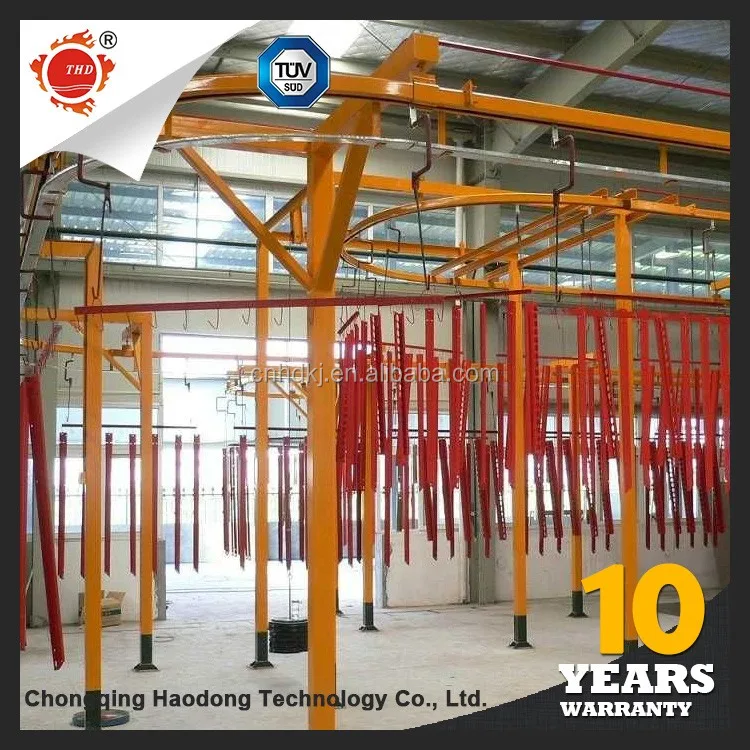

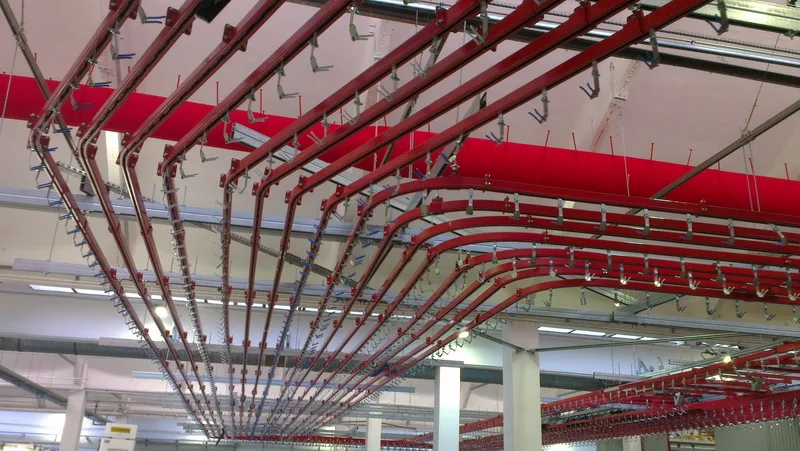

Application
Accessory parts
Shot blasting system overhead trolley conveyor parts.

Track: Straight track, Bush track,Vertical curve track, Horizontal curve Track

Driver Device:Limit-load Caterpillar Driver Device, Caterpillar Driver Device, Sprocket Driver

Take up Device:Heavy Bob type take up device

Hanger:Cross type disk hanger, sprocket wheel hanger, Y type hanger, Cross type hanger, electroplating hanger,

U type Hanger,Bearing hanger

Other Accessories: hanger turner, track flange, track install hanger,check track, Manual /automatic oil feeding cup

Automatic oil sprayer


We have professional engineer to design you a whole overhead conveyor chain line. Please send your details to us, we custon for you.
