G-GP240BTS trangel or pyramidshaped bag multi function automatic food machinery packing system for chocolate candy Snack Food

  • >=1 Sets
    $20,000.00
Power:
customized
Model Number:
GP240/240B
Shipping:
Support Sea freight
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Packaging Material:
film
Packaging Type:
Bags, Film, Pouch, Stand-up Pouch
Function:
Sealing, Wrapping
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, United States, Indonesia
Showroom Location:
Egypt, United States, Indonesia
Condition:
New
Application:
Chemical, Commodity, Food, Machinery & Hardware, MEDICAL, automatic meat,granule,grain,pet food packing
Automatic Grade:
Automatic
Driven Type:
dual servo
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
GREAT PACK
Dimension(L*W*H):
L1433*W1702*H2044
Certification:
CE/ISO9001
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Warranty:
1 Year
Key Selling Points:
Flexible Manufacturing
Material:
304 /316 stainless steel, carbon steel
Packing material:
Heatsealed Composite Film Etc,Laminated Film(PE)
Film material:
OPP/CPP OPP/PE BOPP/VMPET/PE
Combined machine:

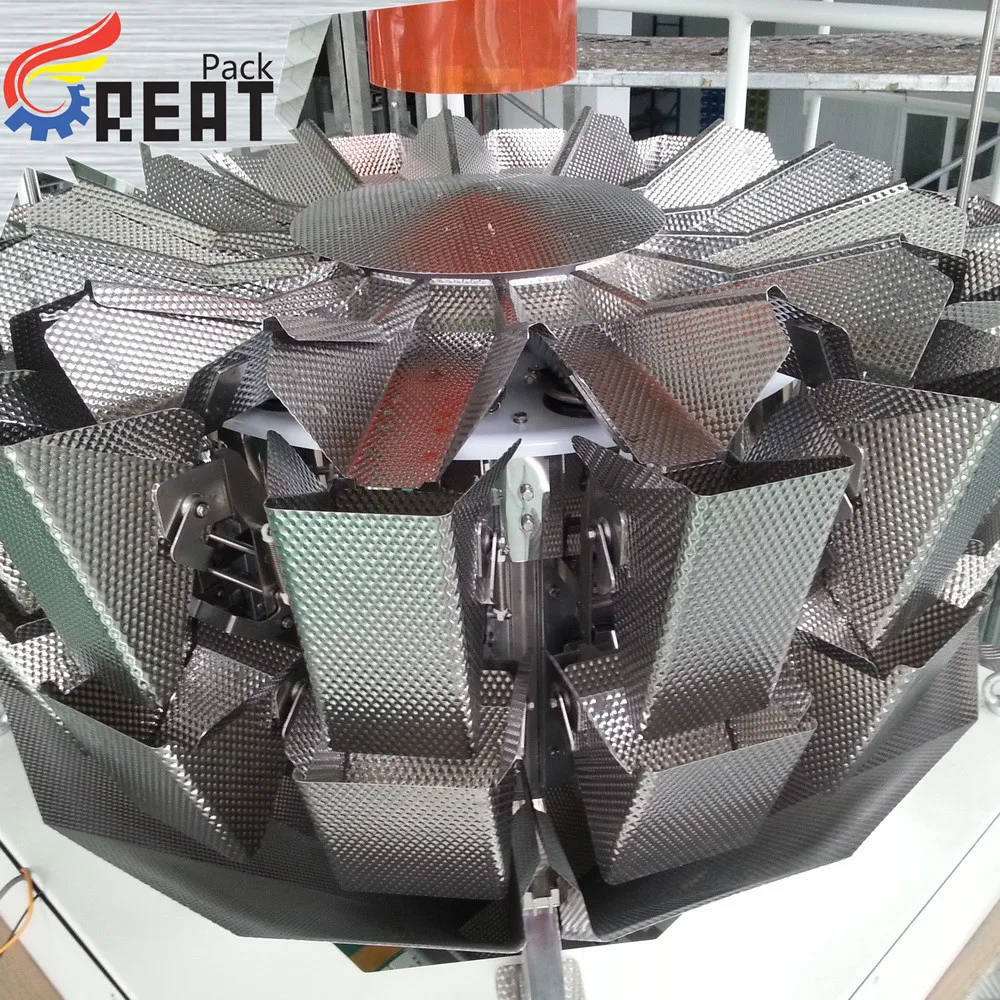

Multi Head Weigher,Chain Bucke Elevator,conveyor,volume cup
Optional function:
Gas filling, hole pouching, date print and etc.
Bag Type:
Pillow bag,Pouch,Stand up pouch,gusset bag
Film thickness::
0.04-0.12mm
Packing speed:
60-120 bags/min
Supply Ability
Supply Ability:
1 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box
Port
Shanghai
Video Description
Product Description

Product Application

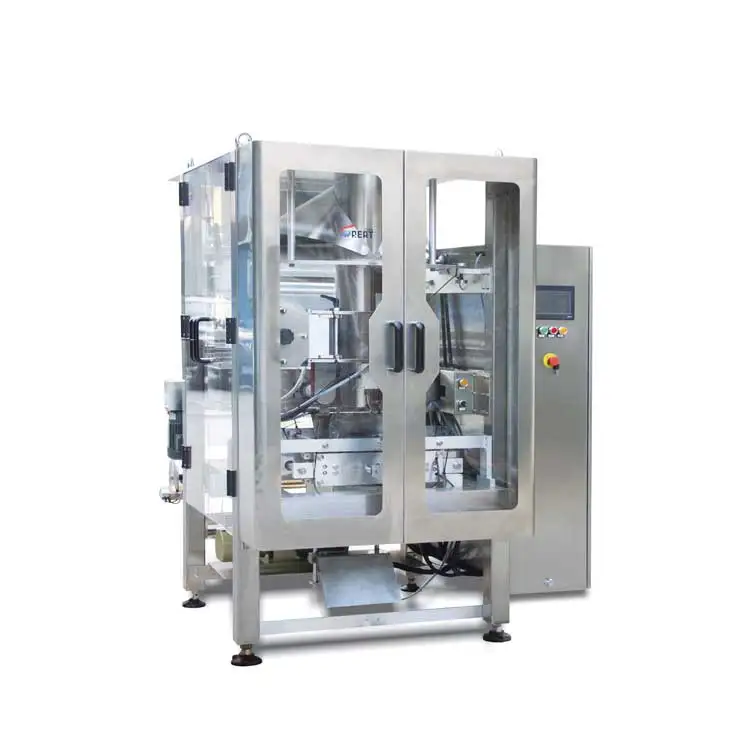

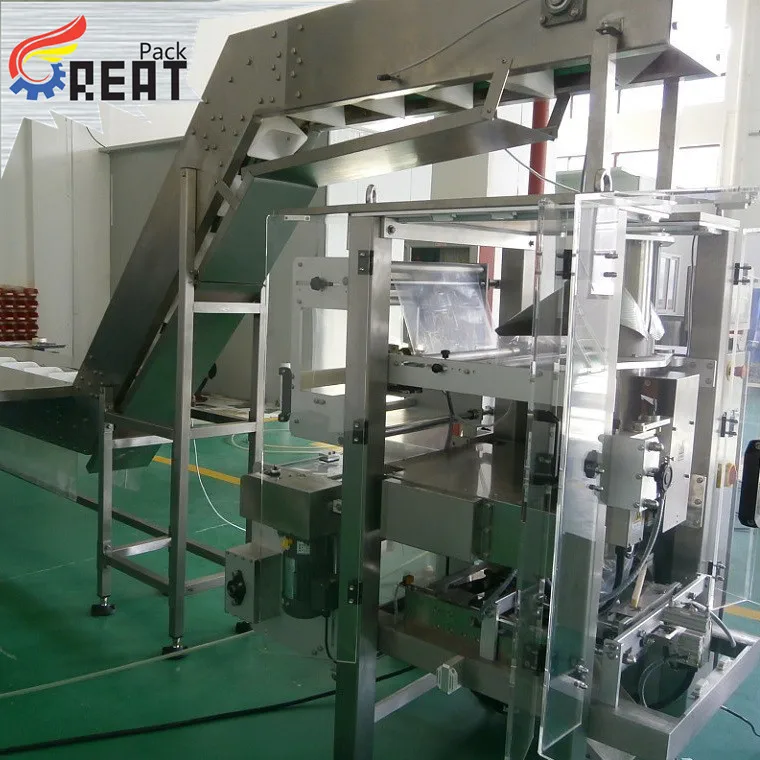

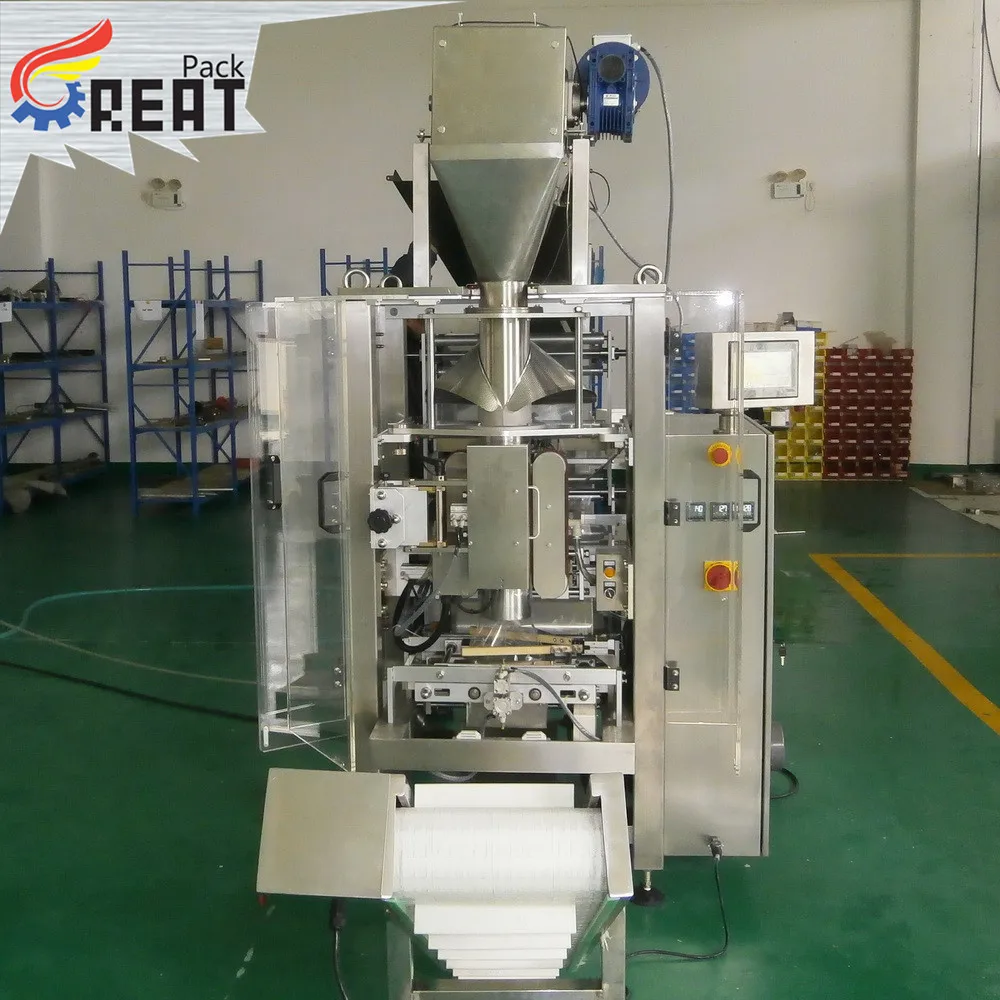

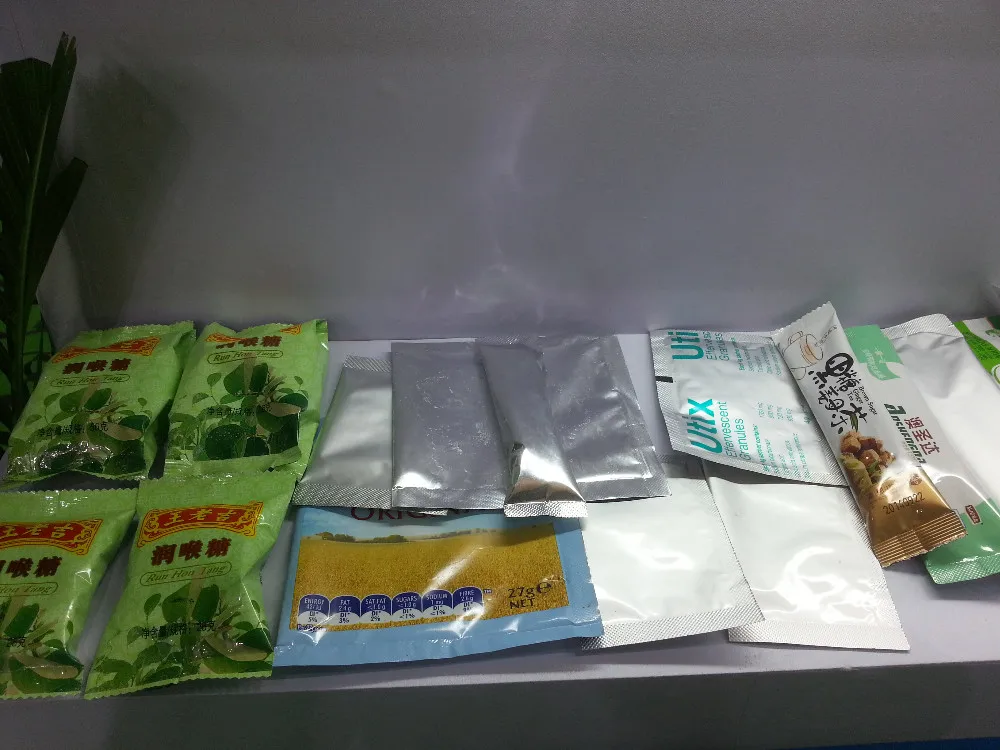

GP240 /240B  vertical form fill seal packaging machine can package small bags, stick bags,pillow bags,trangle bag, pyramid shaped bag pyramid bag, linked bag with different film for different solid matters such as powder，chips，grain，granular matter， frozen food，snack food， dried food, pet food, confections, and Kinds of powder ( milk powder, coffee powder), Oat, Seasonings, Chocolate, Seed, Salt, Nuts, Sugar, etc.

MODEL
GP240B  TECHNICAL DATA
GP240BT TECHNICAL DATA
GP240BS TECHNICAL DATA

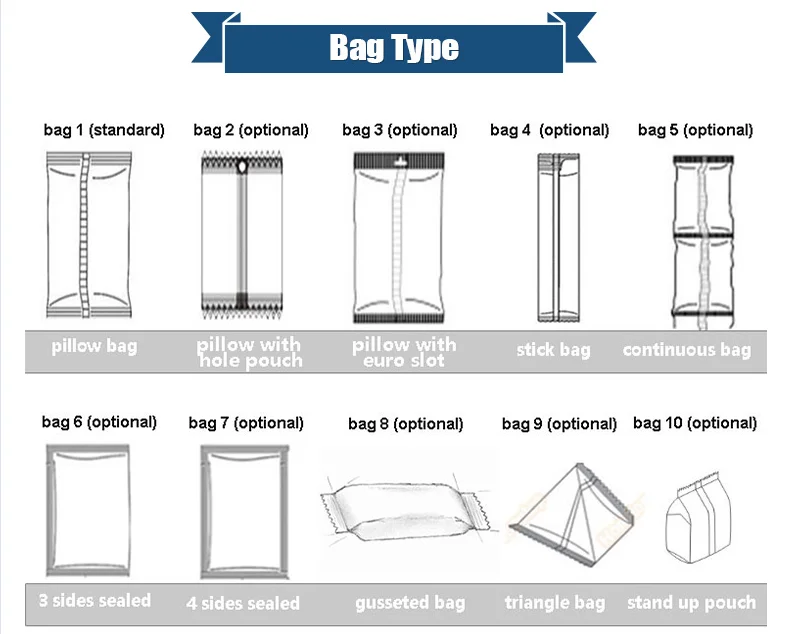

Bag type
3 side seal, 4 side seal, pillow bag, stick pack bag, triangle bag, .
Triangle bag
stick pack with round-corner bag
Max.film width
240mm
240mm
240mm
Bag Length
55-150mm
50-150mm
50-200mm
Bag Width
40-120mm
40-100mm
20-70mm
Packing speed
10-100bags/min(single head)
10-70bags/min(single head)
10-40bags/min(single head)
Power supply
3 phase 4 wire, AC380V/220V, 50-60HZ, 4.5KW
3 phase 4 wire, AC380V/220V, 50-60HZ, 4.5KW
3 phase 4 wire, AC380V/220V, 50-60HZ, 4.5KW
Air requests
0.6Mpa, 400L/min
0.6Mpa, 400L/min
0.6Mpa, 400L/min
Weight
Approx. 550kg
Approx. 550kg
Approx. 550kg
Dimension
Approx. L1582*W1362*H1626mm
Approx. L1582*W1362*H1626mm
Approx. L1582*W1362*H1626mm

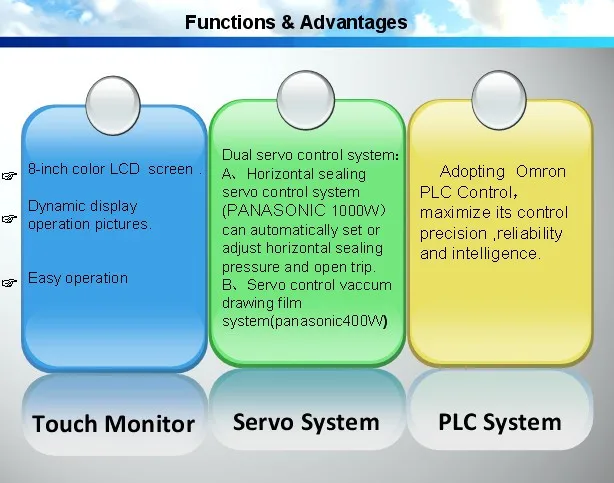

Technical Feature

PLC controller with touch screen interface.
Servo drive for film pulling system.
Pneumatic driven end sealing.
Intelligent temperature control, sealing more perfect.
Eye mark sensor for film tracking.

Function and advange

1.  Wide range of application， such as powder，chips，grain，granular matter， frozen food，snack food， dried food, pet food, confections.
2.. High performance packaging solution with dual servo                          3.  Custom Designed machine,user-friendly
4. Multi-function machine with various bag shape                                        5. Affordable and reasonable price …..

Optional Device

1.Tear notch device                                 2.Hole punch device.                                  3.Static eliminator.                       4.Gusset device.
5.Date printing.                                       6.Prevention broken bag device.               7.3 side seal device.                     8.Nitrogen gas flushing.
9.Air flushing & Air exhaust device.      10.Heavy product bag support device.    11.PE film sealing device.          12.Prevention broken bag device.

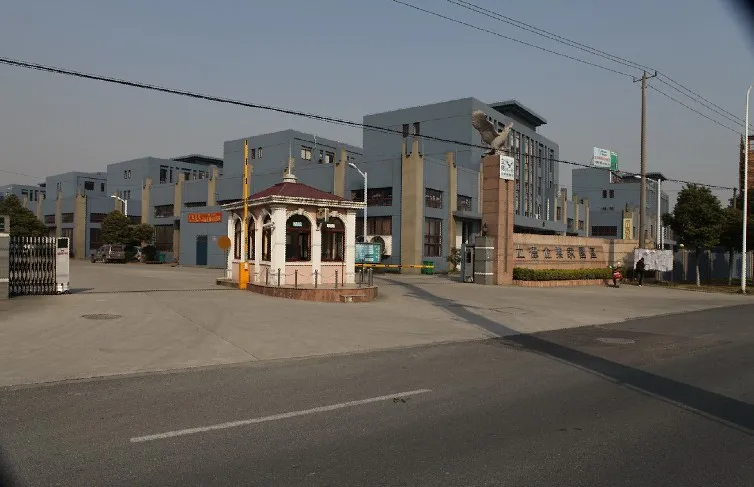

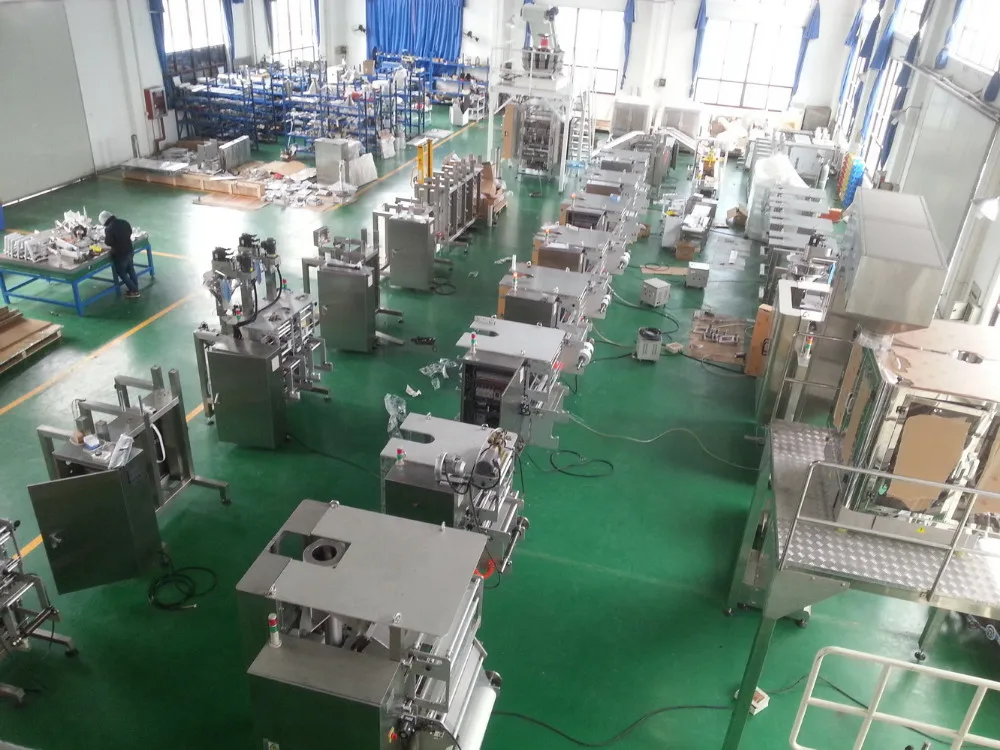

Our factory
OUR CERTIFICATION



                        CE



                      PATENTS



    HIGH AND NEW TECHNOLOGY

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Related Products

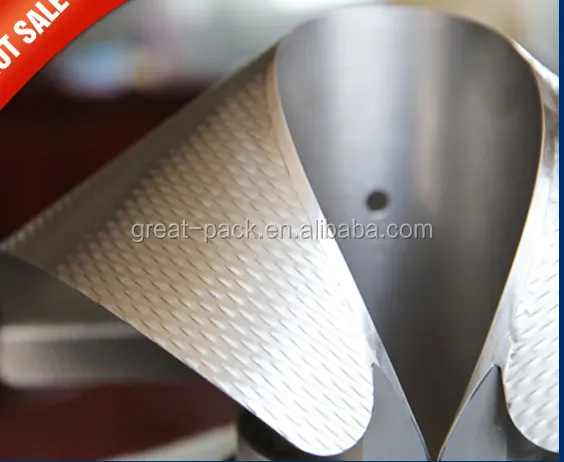

BAG FORMERS
