G2V-5/3.5~150 100% Oil Free 150bar Carbon Dioxide CO2 Gas Diaphragm Compressor

FOB Reference Price:Get Latest Price
$10,000.00 - $58,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
11 KW 60 KW 160 Kw 315 KW 132 KW 110 kw 7.5 KW 44.7 KW 18.6 kW 15.7 kw 90 KW 5.5 KW 250 kw 55 kw 185 kw 280 kw 70 KW 92 KW 37 KW 17.2 kw 15 KW 200 kW 450KW 775KW 1000KW 13200KW
Samples:
$20,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
South Africa, Kyrgyzstan
Showroom Location:
South Africa, Kazakhstan, Uzbekistan
Type:
Diaphragm
Configuration:
Stationary
Power Source:
AC POWER
Lubrication Style:
Oil-free
Mute:
yes
Place of Origin:
China
Brand Name:
Keepwin
Voltage:
380V/415V/440V/600V/660V,etc
Dimension(L*W*H):
1550*900*1050mm
Weight:
3500kgs
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Working Pressure:
14 bar, 7 bar, 8 bar, 0.8 bar, 2 bar, 20 bar, 13 bar, 6 bar, 12 bar, 10 bar, 35 bar, 5 bar, 0.4 bar, 0.6 bar, 150bar
Air capacity:
5Nm3/h
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1.5 years
Core Components:
Pressure vessel, Motor, Pump, Bearing, Diaphragm
Product Name:
CO2 Gas Diaphragm Compressor
Model:
G2V-5/3.5~150
Compressed medium:
carbon dioxide gas
F.A.D (Nm3/min):
5Nm3/h
Power (KW):
5.5KW
Inlet Pressure ( Mpa):
0.35Mpa(G)
Exhuast Pressure (Mpa):
15Mpa(G)
Cooling method:
Water Cooling Customized
Usage:
for Petroleum, Chemical textile, Gas Separation
Drive Mode:
Direct Drive
Supply Ability
Supply Ability:
2000 Set/Sets per Month

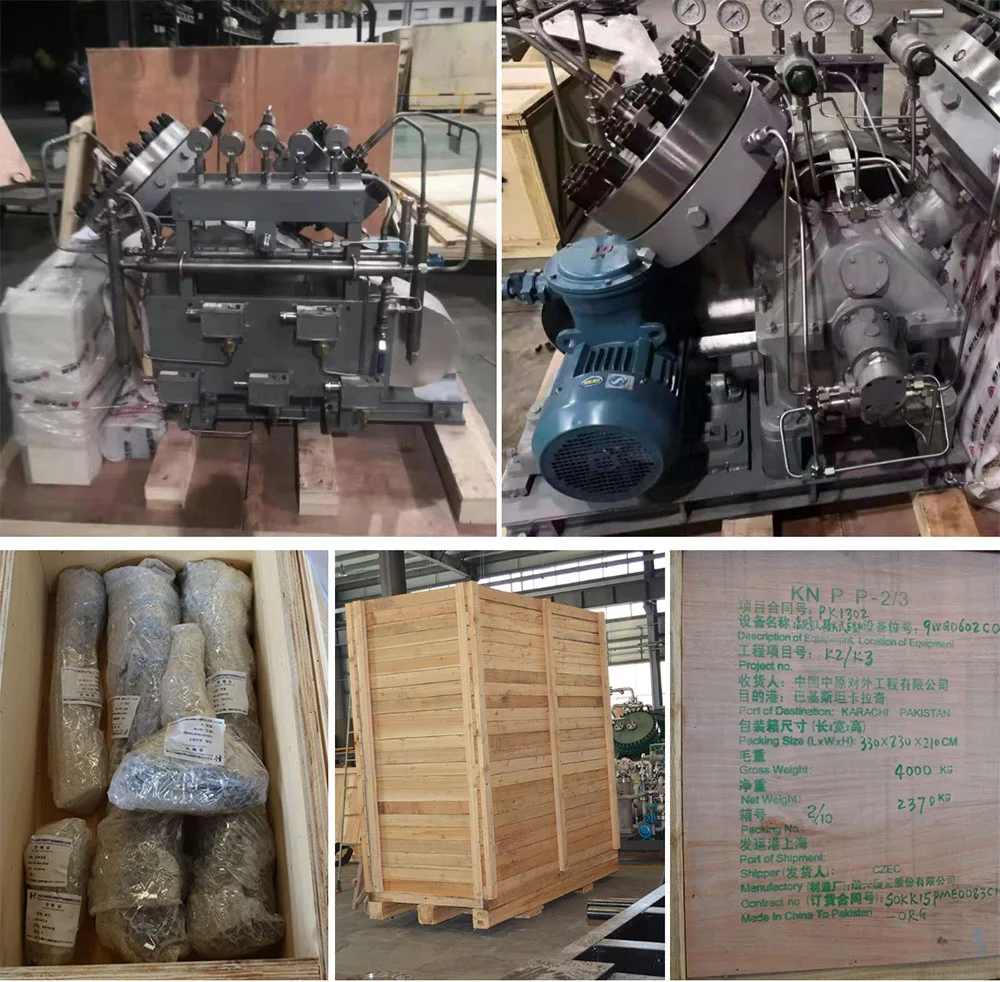

Packaging & Delivery
Packaging Details
Standard export wooden case and waterproof bags or bubble film ,better protection for air compressor.
Port
Tianjin
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Video Description
Product Details

G2V-5/3.5~150 100% Oil Free 150bar Carbon Dioxide CO2 Gas Diaphragm Compressor

The diaphragm compressor booster is a special structure of the volume-type compressor with high compression ratio, good leak tightness, compressed gas without lubricating oil and other solid impurities contaminated features, So it's suitable for high purity compression, rare, valuable, inflammable, explosive, toxic, harmful, corrosive, and high pressure gas


Keepwin produced Helium compressor, Oxygen Compressor, Hydrogen Compressor, Nitrogen Compressor, Recovery H2 Gas compressor, Argon compressor, cylinder filling booster compressor, etc widely used in Petrochemicals / Fine Chemicals / Pharmaceutical Chemicals / Energy Chemicals / Machinery Industry / Electronics Industry / Agriculture / Animal Husbandry and Defense Industry /Astronomy /Aerospace / Medical and other fields.
.

Note:for the other customizing process gas compressor, please kindly send below information to our factory to calculate the producing cost for your item.
Clients' inquiries should contain related parameters
A. The gas compression medium
B. Gas composition? or the gas purity?
C. The flow rate: _____Nm3/hr
D. Inlet pressure: _____ Bar (gauge pressure or absolute pressure)
E. Discharge pressure: _____ Bar (gauge pressure or absolute pressure)
F. Inlet temperature
G.Discharge temperature
H. Cooling water temperature as well as other technical requirement.

Product Introduction

GZ Type Diaphragm Compressor Features

The diaphragm compressor booster is a special structure of the volume-type compressor with high compression ratio, good leak tightness, compressed gas without lubricating oil and other solid impurities contaminated features, So it's suitable for high purity compression, rare, valuable, inflammable, explosive, toxic, harmful, corrosive, and high pressure gas

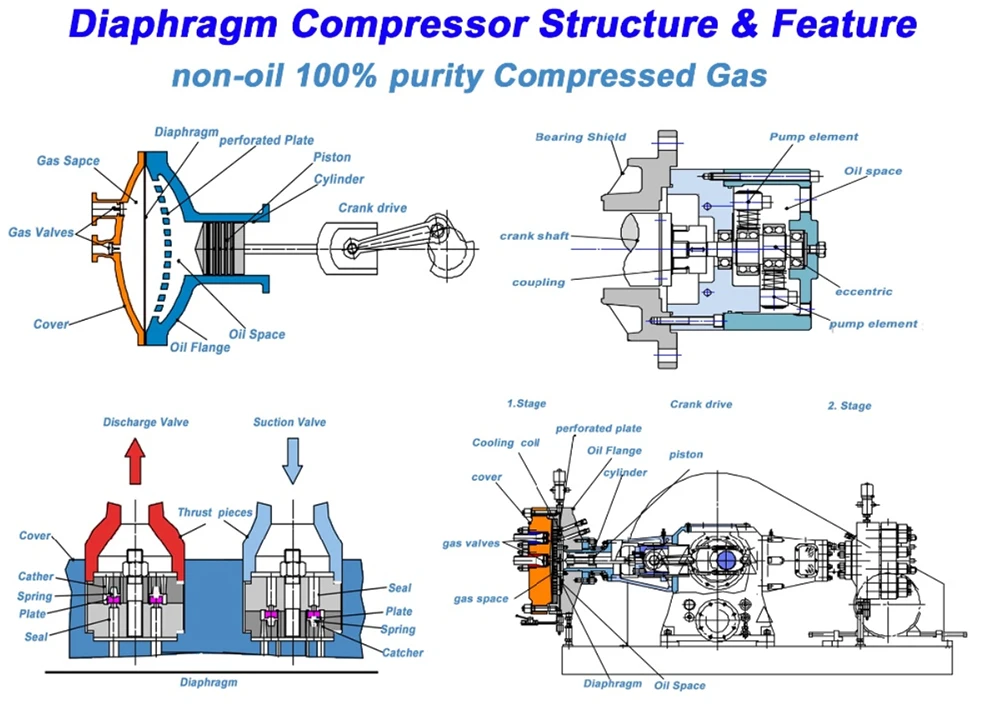

Advantages of Diaphragm compressor:
1. Oil-free compression due to the
hermetic separation between gas and oil chamber.
2. Abrasion-free compression due to
static seals in the gas stream
3.

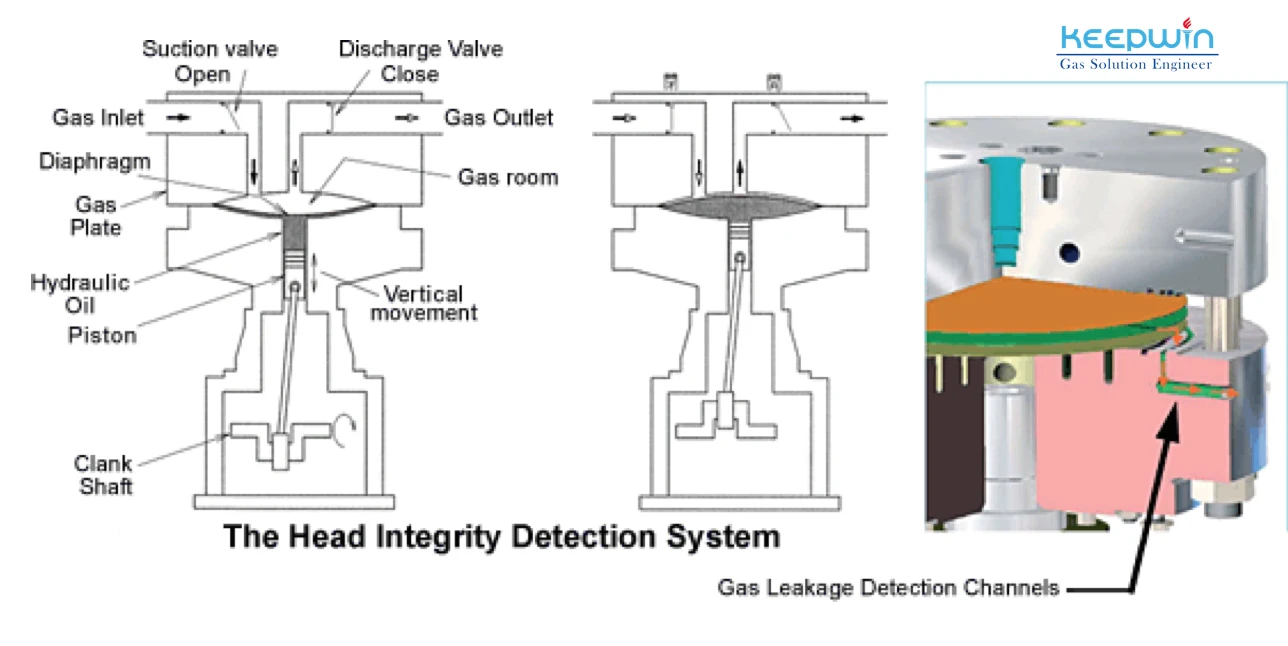

Automatic shutdown in case of a diaphragm failure prevents damage
4. High Compression Ratios-
Discharge pressure up to 1000bar.
5.
Contamination Free Compression
6. Corrosion Resistance
7. High Reliability

As a displacement compressor with special, diaphragm compressor is characterized by large compression ratio, good sealing performance
, and that the compress air will not be polluted by lubricant or other solid impurities.Therefore diaphragm compressor is applicable to compress high-purity, rare and precious, flammable and explosive, toxic and hazardous, corrosive and high pressure

gases.

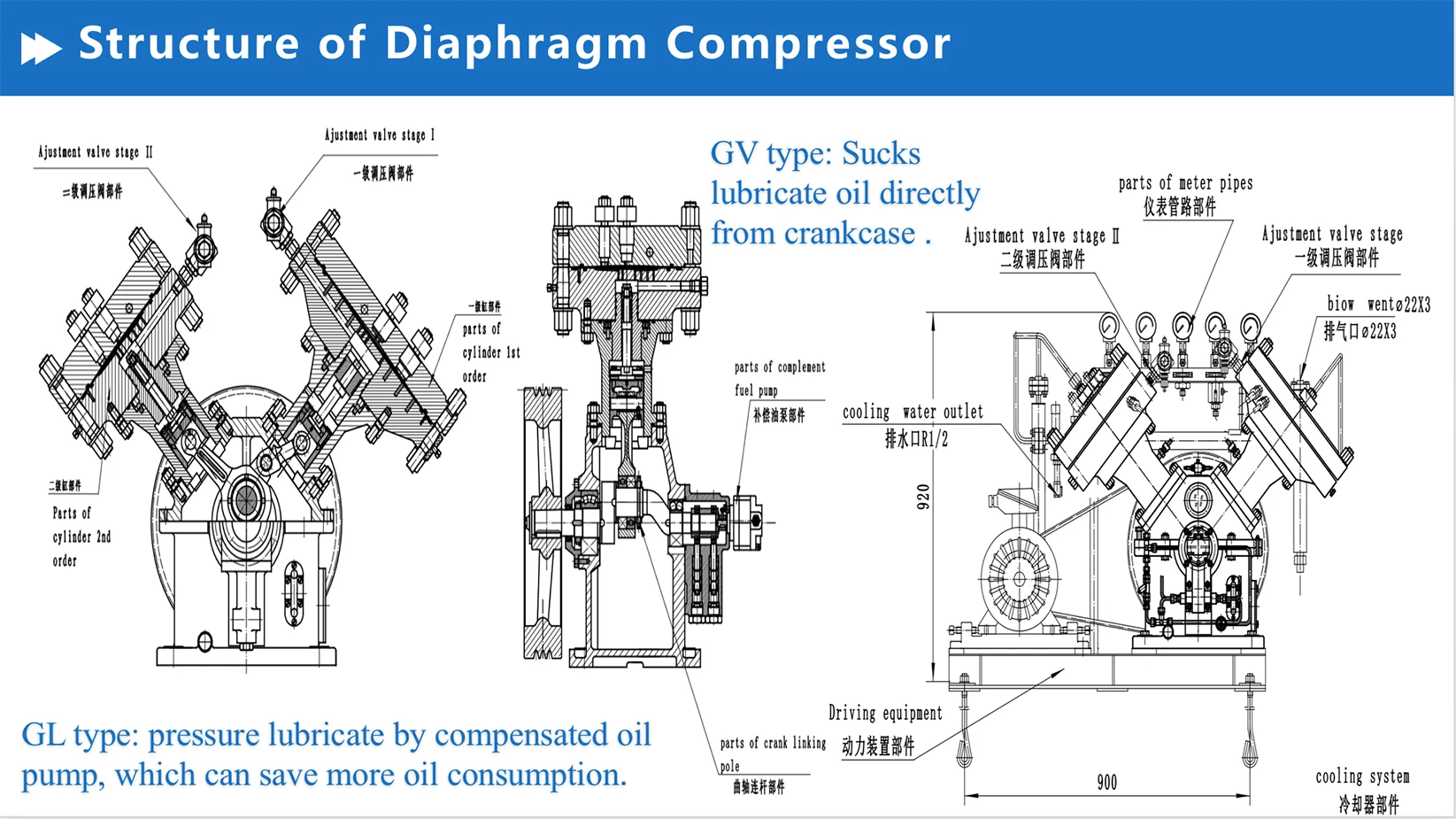

Keepwin diaphragm compressors consist of four types that are Z,V,L and D type.The exhaust pressure ranges from 1.3 to 100 Mpa. The products are widely used in the industries of national defense, scientific research, petrochemical, nuclear power,parmaceutical,food-stuff and gas separation.

Product Parameters
Product Name
G2V-5/3.5~150 100% Oil Free Carbon Dioxide Gas Diaphragm Compressor
Compress Medium
Carbon Dioxide Gas ,CO2
Model No.
G2V-5/3.5~150
Type
V type diaphragm compressor
Rated flow rate (F.A.D)
5Nm3/min
Power
5.5KW
Suction pressure(G)
0.35Mpa
Rated outlet pressure
15Mpa
Lubricating mode
Oil Lubricate
Oilless lubricate
Non oil lubricate
Transmission mode
Belt Driven
Cooling method
Industrial circulating water cooling tower
Dimension
1550*900*1050mm
Weight
0.8t
Motor Speed
400 r/min
Voltage
380V, other voltage for special customize for each order
After-sales Service
Engineers available to service overseas
OEM
Welcomed (we have 5professional R&D engineers to do design & customizing service according to client's different requirement)
Product Details Show
Why Choose Us

About us

1, the company since 2002 professional to do special design & customize process gas compressor

Equipment & technology

2, the quality of the diaphragm compressor 's important spare part was produced by our own plant

Service

3, stable product quality , supply, the good faith management, and can do oversea after sales service

Product Packing
Main Products

G2V-10/8-160 100% Oil Free high purity compressed gas Oxygen Reciprocating Diaphragm Compressor

F.A.D:10Nm3/min Suction pressure: 8bae, Exhaust Pressure: 160Bar

GL4-240/20~200 Belt Drive L type Propylene Gas Diaphragm Compressor

F.A.D:240Nm3/min Suction pressure: 20bar, Exhaust Pressure:200Bar

G3Z-85/100~350 Direct Driven Hydrogen compressor Diaphragm Compressor

F.A.D:85Nm3/min Suction pressure: 100bar, Exhaust Pressure:350Bar

 G3V-30/5~315 Analytical gas Tetrafluoroethylene gas Diaphragm Compressor

F.A.D:30Nm3/min Suction pressure: 5bar, Exhaust Pressure:315Bar

G2V-10/8-160 Crude oil stabilized Gas Mixture gas Diaphragm Compressor

F.A.D:10Nm3/min Suction pressure: 8bar, Exhaust Pressure:160Bar

G2Z-45/150~350 Liquid gas CO2 Oxygen Diaphragm Compressor

F.A.D: 45Nm3/min Suction pressure: 150bar, Exhaust Pressure:350Bar

FAQ

Q1: What's your delivery time?
A: Generally 5-10 days if the goods are in stock. Or it is 20-35 days if the goods are not in stock, it is according to quantity.

Q2: How long is your air compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.

Q3: How long could your air compressor be used?
A: Generally, more than 10 years.

Q4: Can you do OEM for us?
A: Yes, of course. We have around two decades OEM experience.And also we can do ODM for you.

Q5: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, Trade Assurance and etc. Also we could accept USD, RMB, GBP, Euro and other currency.

Q6: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.

Q7: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.

Q8. Are you factory?
A4: Absolutely! You have touched the primary sources of Air /Gas Compressor. We are factory.
