Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Automatic Liquid Filling Machine
Filling Sealing Date Printing
Automatic Filling Sealing Machine
Stainless Steel 304/316
10 Set/Sets per Month
Packaging & Delivery
in wooden package

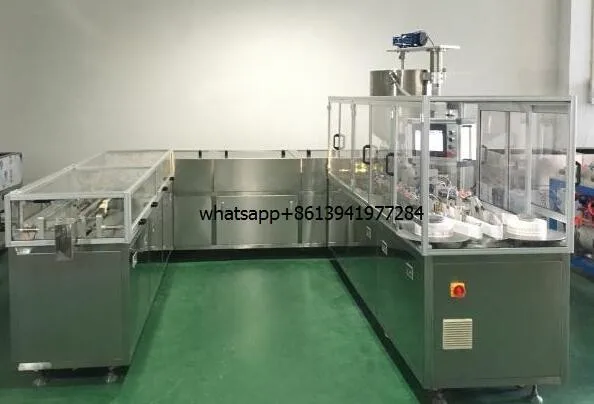

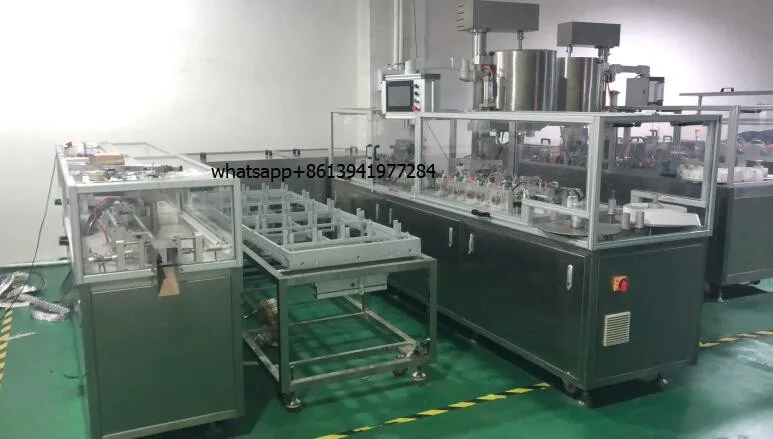

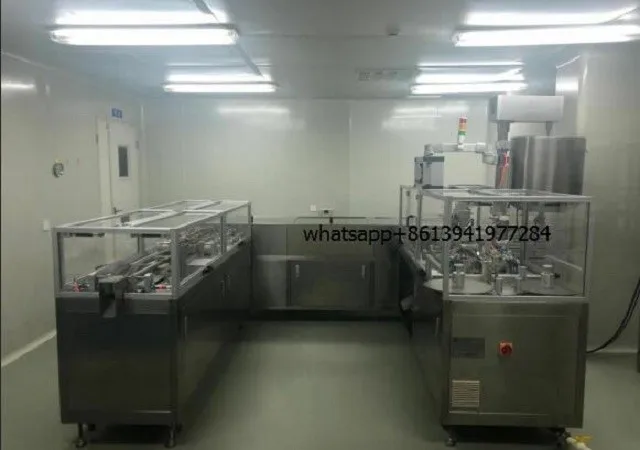

suppository filling and sealing machine
It is widely used and can fill substrate and Chinese medicine production with high viscosity.
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric heating insulation system, with stirring motor at the top to make the drug in a uniform state, material barrel pump into the drugs by the high precision of filling head, filling a residual drugs through the other end of the cycle to the raw material filling barrel again next time.
Drugs into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the cooling box of four condenser suppository of cooling rack to cool.
sealing and part code:
4. Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.

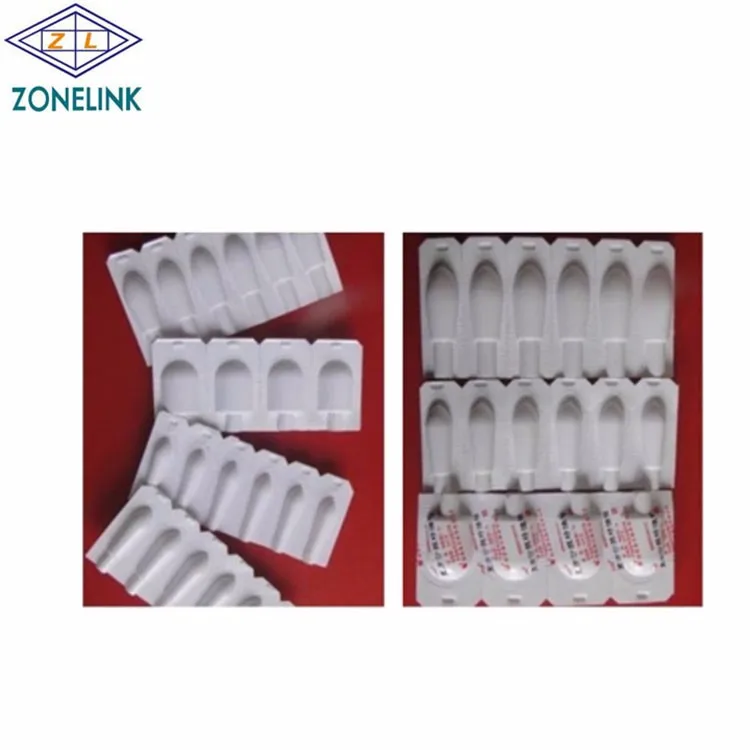

The pvc/pe suppository shell is finished by suppository production line
