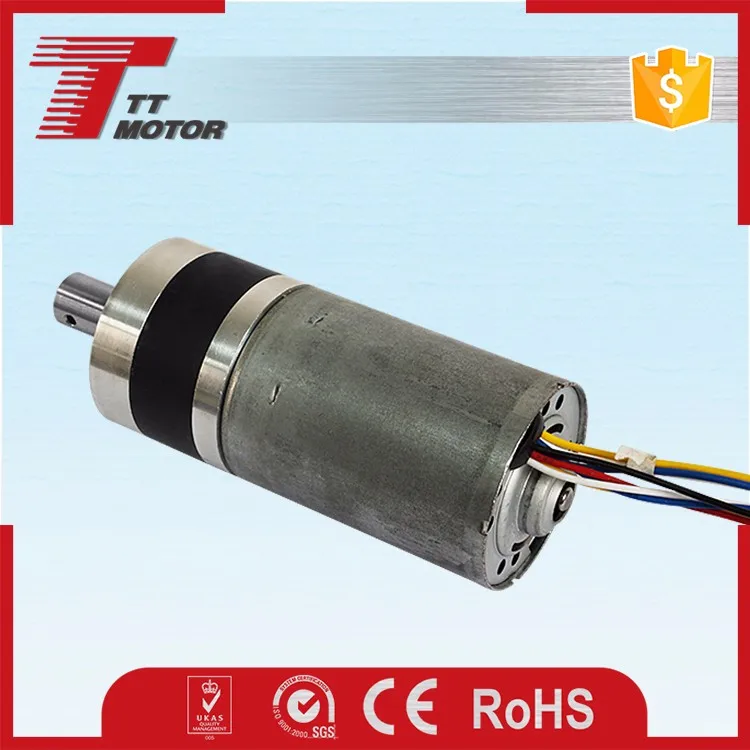

GMP28-TEC2838 electric 24v dc brushless motor with 28mm gearbox

FOB Reference Price:Get Latest Price
US $15.39-20.39 / Piece | 100 Piece/Pieces dc gear motor (Min. Order)
Supply Ability:
50000 Piece/Pieces per Month dc gear motor
Port:
Hong Kong
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
dc gear motor GMP28-TEC2838
Usage:
Electric Bicycle, Industrial equipment
Certification:
CE, ROHS, ISO9000
Type:
Gear Motor
Torque:
820-1150 g/cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
2200-4400r/min
Continuous Current(A):
1.8-2.0A
Output Power:
1.8-5.9W
Voltage(V):
6V/12V/24V
Efficiency:
65%
size:
28*42 mm
Product name:
dc planetary brushless motor GMP28-TEC2838
No-load speed:
9-1450 r/min
No-load current:
80-220mA
Rated torque:
0.26-20 kg.cm
Output power:
1.8-5.9W
Stall torque:
300-600 g.cm
Stall current:
1.8-2.0A
Rated voltage:
6VDC-24V DC
Application:
Automatic Product
Packaging & Delivery
Packaging Details
dc gear motor:100-1000pcs or as you wish
Delivery Time
Shipped in 25 days after payment
Product Description

 GMP28-TEC2838 electric 24v dc brushless motor with 28mm gearbox

Main Features

28mm planetary gearbox plus 28mm brushless motor
Small size dc gear motor with low speed and big torque
28mm gear motor provide 2.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio:4、14、19、27、51、71、100、139、189、264、369、516、720

Model:Gear Motor GMP28-TEC2838

TEC2838-0630
Rated voltage:6V DC
Rated speed:2200r/min
Output power:1.8W
No-load speed:3000r/min
Rated torque:80g.cm
Stall torque:300g/cm
No-load current:220mA
Rated current:450mA
Stall current:2.0A

TEC2838-1245
Rated voltage:12V DC
Rated speed:3600r/min
Output power:4.1W
No-load speed:4500r/min
Rated torque:110g.cm
Stall torque:430g/cm
No-load current:200mA
Rated current:550mA
Stall current:1.8A

TEC2838-2460
Rated voltage:24V DC
Rated speed:4400r/min
Output power:5.9W
No-load speed:6000r/min
Rated torque:130g.cm
Stall torque:600g/cm
No-load current:80mA
Rated current:180mA
Stall current:2.0A
GMP28-TEC2838-0630-x
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.58
36
36
43
43
50
50
50
50
No-load speed rpm
700
150
105
55
28
16
11
8
6
Rated speed rpm
550
115
80
43
22
12
8
6
4
Rated torque kg.cm
0.26
1.1
1.5
2.4
4.8
8.3
12
20
20
Max.momentary tolerance torque kg.cm
1.0
4.0
4.9
9.2
18
30
30
30
30
GMP28-TEC2838-1245-x
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.58
36
36
43
43
50
50
50
50
No-load speed rpm
1050
225
160
86
43
23
17
12
9
Rated speed rpm
900
190
135
70
36
19
14
10
8
Rated torque kg.cm
0.26
1.9
2.6
4.3
8
16
20
20
20
Max.momentary tolerance torque kg.cm
1.4
5.7
8
13
26
30
30
30
30
GMP28-TEC2838-2460-x
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.58
36
36
43
43
50
50
50
50
No-load speed rpm
1450
305
215
110
58
30
24
17
12
Rated speed rpm
1100
230
163
85
44
23
18
14
10
Rated torque kg.cm
0.4
1.9
2.6
4.3
8.4
15
20
20
20
Max.momentary tolerance torque kg.cm
1.9
8
11
18
30
30
30
30
30

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
