GPS BEIDOU Antenna with RG174 Cable and SMA Connector

FOB Reference Price:Get Latest Price
$1.85 - $2.10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Antenna
Use:
Hand Held
Screen Size:
GPS Antenna
Function:
GPS antenna
Place of Origin:
Guangdong, China
Brand Name:
HR
Model Number:
GPS-BD001
Warranty:
1 Years
Frequency:
1575MHz±2 MHz 1561MHz±2 MHz
Size:
46x14mm
Gain:
18.5 dBi
V.S.W.R:
≤1.5
Connector:
SMA/FAKRA/MCX/MMCX/SMB/customized
Cable:
RG174
Color:
Black
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Standard Carton
Port
Shenzhen or Hongkong, China

GPS BEIDOU Antenna with RG174 Cable and SMA Connector

Product Images





Product Description
1. Electrical Characteristics
1.1 Antenna
1Antenna modelTA-212(25x25x4)
2Frequency Range1575MHz±2 MHz   1561MHz±2 MHz
3V.S.W.R≤1.5
4Band Width24 MHz
5Impendence50Ω
6Gain3.5dBic Based on 25×25mm ground plane
7PolarizationRHCP

1.2 LNA
1Frequency Range1575MHz±2 MHz   1561MHz±2 MHz
2DC Voltage3~5V(3.3V)
3Gain(Typical)18.5dB
4INput VSWR(Typical)<1.5
5Noise Figure(Typical)≤1.5
6DC current(Typical)4~7mA

1.3 Overall (Complete module including RF connector)
NOPart NameSPEC
1Frequency Range1575MHz±2 MHz   1561MHz±2 MHz
2Output VSWR≤1.5
3Gain27±1.5dB
4Impendence50Ω
1.4 Installation
1InstallationSticker and Screw
NoPart NameSPEC
1AntennaDielectric Ceramics
2PCBFR4
3ShieldingTinplate
4RF CableRG174 Attenua tion:-1.4dB/m
L=1500±10MM
5RF ConnectorSMA-C-J1.5-2
6LNA,FILTERXW2659A;SAFEB1G57KE0F00
7The shell sizeφ46*14


Environment  Condition
1Working Temp-40℃~+80℃
2Storage Temp-45℃~+85℃
3VibrationSine sweep 1g(0-p)
  10~55~10Hz each axis
4International Protection  IP65~IP67
Patch Test Curve
1) S11  SWR
2)S22 SWR

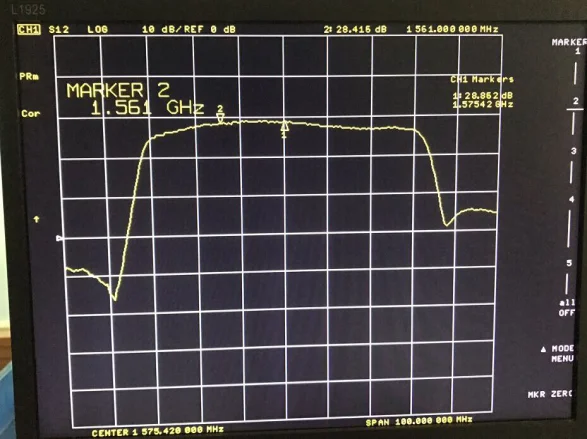

LNA Test Curve
1)  Gain
2)Noise Figure

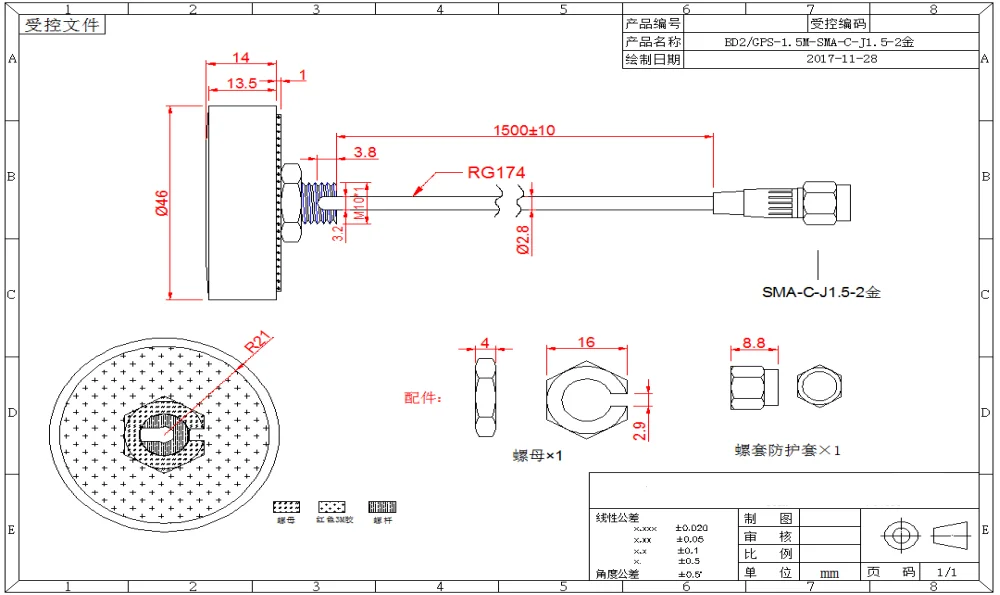

Drawing
