GPS/GPRS Tracking system device AVL / Fleet RS232*2 DB9 windows CE displayer,Taxi Dispatch system,Connected PND MDT100 NR024

FOB Reference Price:Get Latest Price
$55.00 - $80.00 / Piece | 5 Piece/Pieces GPS/GPRS Tracking system device AVL / Fleet RS232*2 DB9 windows (Min. Order)
Screen Size:
gps tracker car
Memory Capacity:
gps tracker car
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Noran gps tracker
Model Number:
NR024 gps tracker car
Type:
Gps Tracker
Function:
GPS&LBS
Use:
Automotive
Warranty:
2 Years
Size:
137*75*29mm
Tracking:
GPS/LBS
Network:
GSM/GPRS
Communication protocol:
UDP/TCP (customizable)
Working voltage:
6-40V
GPS chip:
SiRF Star 4
GSM Module:
SIM900
Out Power:
0.6W
Customized/OEM:
Can Do
Name:
GPS/GPRS Tracking system device NR024
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month GPS/GPRS Tracking system device AVL / Fleet RS232*2 DB9 windows
Packaging & Delivery
Packaging Details
1.Colour Box,10pcs/carton
2.Carton Size:50*43*31cm
3.Passed packing drop test
GPS/GPRS Tracking system device AVL / Fleet RS232*2 DB9 windows CE displayer,Taxi Dispatch system,Connected PND MDT100 NR024
Port
ShenZhenGPS/GPRS Tracking system device AVL / Fleet RS232*2 DB9 windows CE displayer,Taxi Dispatch system,Connected PND MDT100 N
Lead Time :
1-3daysGPS/GPRS Tracking system device AVL / Fleet RS232*2 DB9 w
Product description

Specification


Size
92*65*26mm
Working Voltage
DC:6.3~24V
Input Fuse
2A
Working Temperature
-40~85°C
Humidity
10% to 90%
CPU
TI:MSP430F149(16MHz)
GSM Module
GSM Module: Simcom
Band:850/900/1800/1900MHz 2100MHz(3G)
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg

GPS Module
GPS chip set: SiRF Star III / IV
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Sensitivity: To-159Bm Tracking, Superior Urban Canyon Performance
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s

Input I/O
3 I/O Ports:
1 Port for check the engine ( ACC check)
1 Port for SOS connection
1 Free Port for Extend
1 analog port for fuel monitoring

Output I/O
1 port (Control car engine)
Microphone
3.5mm Single track
Earphone
3.5mm
Current
Standby Current:16mA
working Current:60~150mA
Charging current: Max<500mA

Battery
Lithium battery :400mA( working time is about 3.5 hours)
Accessories

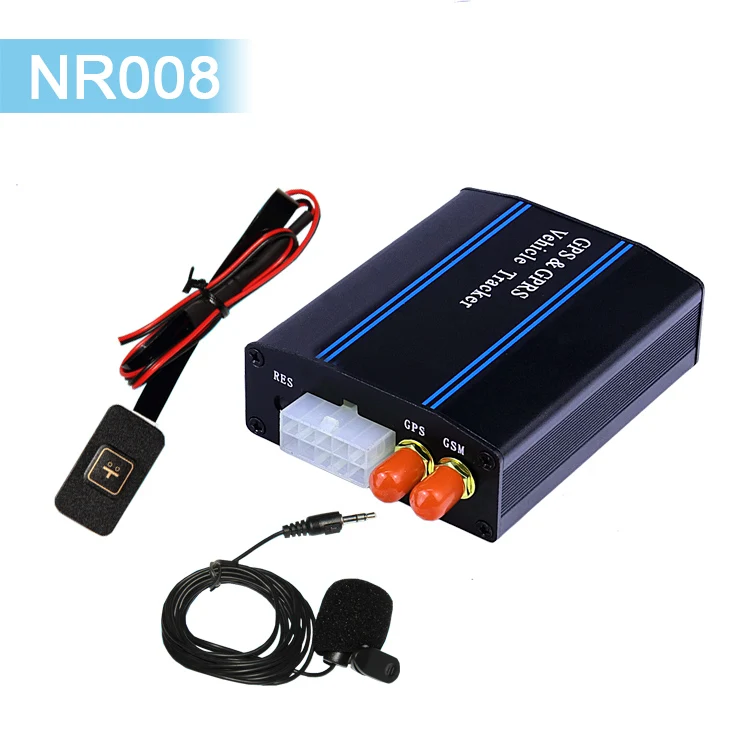

Device, Connecting cable ,GPS antenna ,GSM antenna, Engine controller, SOS button, Microphone

Main Features:
1. Real-time Positioning & Tracking
2. Over Speed Alarm
3. SOS Function & Geo-fence
4. Audio Monitoring

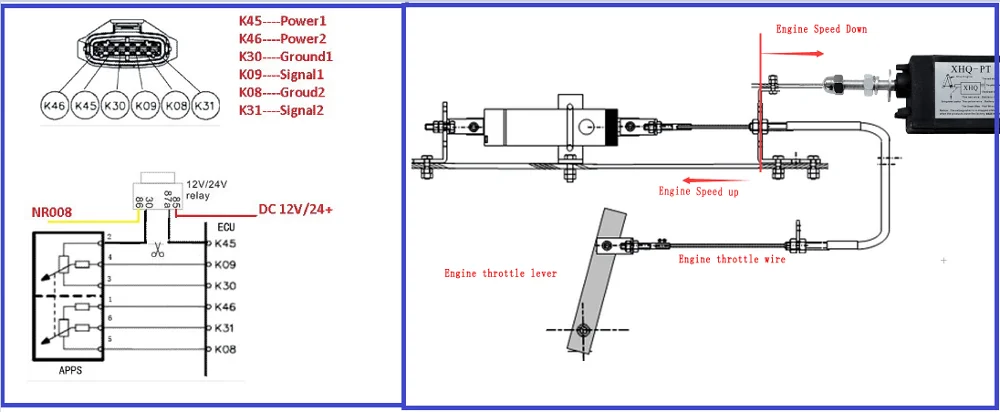

5. Remote control engine
6. Inbuilt Backup Battery
7. External Power Cut Alarm
8. Compatible with the original anti-theft alarm
9. GPS & A-GPS (LBS-location based service)
10. Real time uploads position by time/distance/direction interval

Optional Features:

1. Add temperature sensor
2. ACC ON/OFF send SMS message
3. Support TCP/UDP protocol
4. Report position by angle/distance change
5. Support customized firmware

Main Features

1. Real time uploads location information via time/distance interval
2. Image transmit (take photos by digital camera)
3. Real-time Positioning & Tracking by SMS or internet
4. SOS Function & Power-cut Alert
5. Audio Monitoring
6. Geo-fence & Over Speed Alert
7. Fuel level Monitoring
8. Remote controlling oil & circuit by SMS or internet


9. ACC/Door/Trunk/bonnet/shock Alert
10. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
11. Built-in backup battery ,low battery alert ,unauthorized dismantle alert
12. GPS & A-GPS (LBS-location based service)
13. Fuel sensors ,Temperature sensor, Flash memory (optional)
14.Support google map
15.Show location directly on mobile phone with HTTP google map link
16.Absolute street address request by SMS.

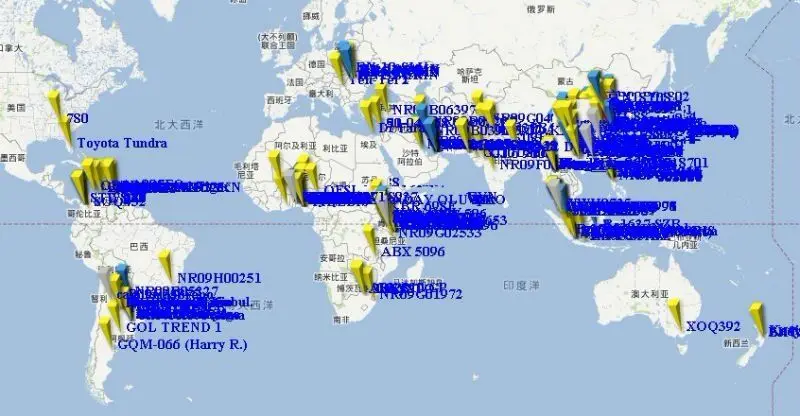

Positioning and tracking:

 through the on-line positioning platform or the cell
phone to locate at anytime, and get the working status. You can choose the
positioning Platform by yourself

Geo-fence Mode:

Set up a geo-fence for the unit to restrict its movements
within a district. The unit will send the message to the authorized numbers
then it breaches the district

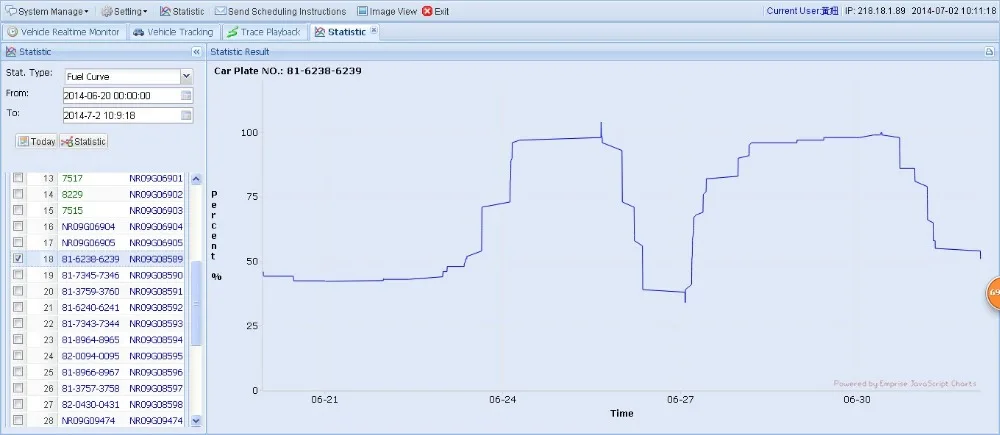

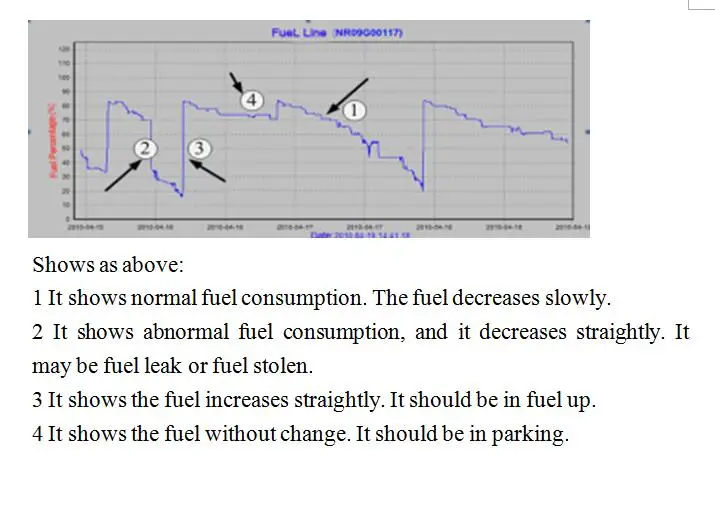

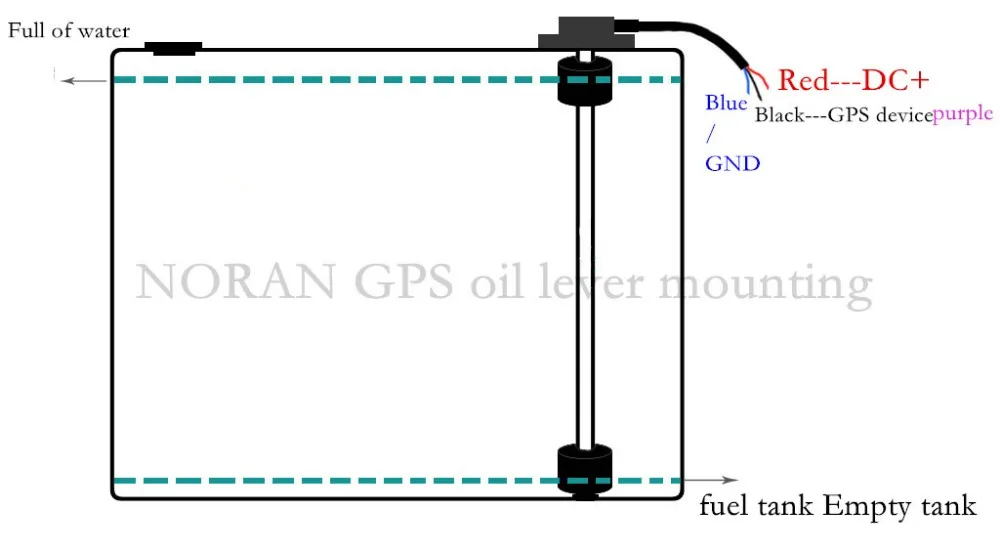

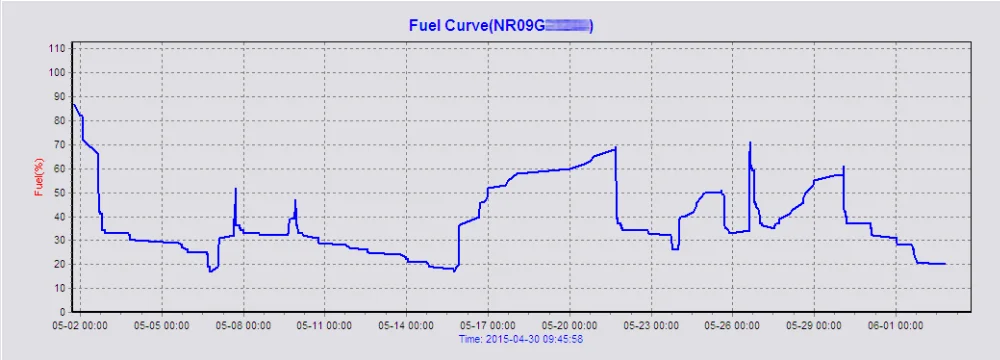

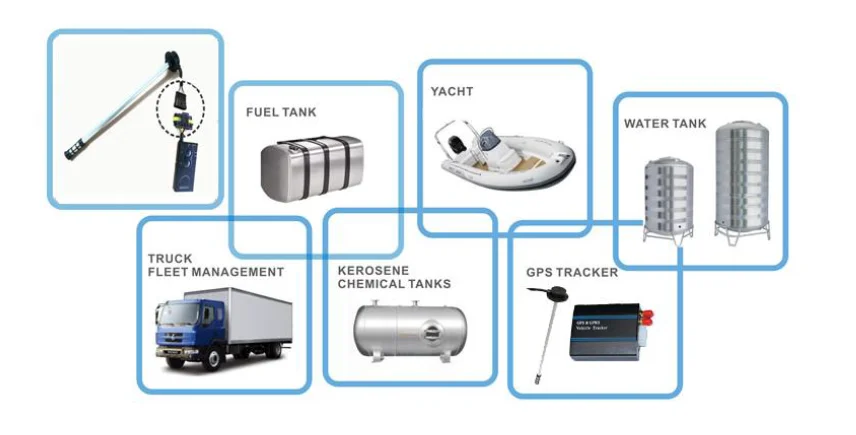

Fuel Monitoring:

Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.)

Detailed Images
Installation

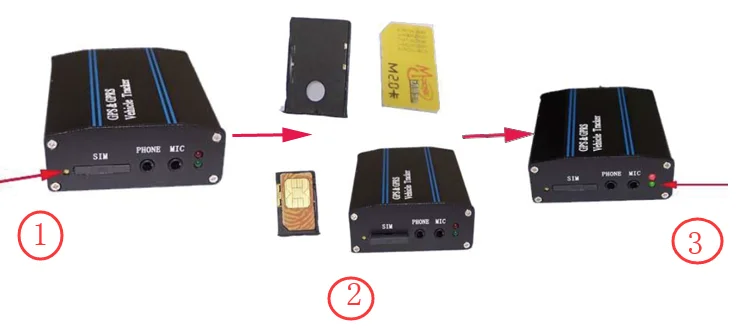

Step1: insert the simcard into the device

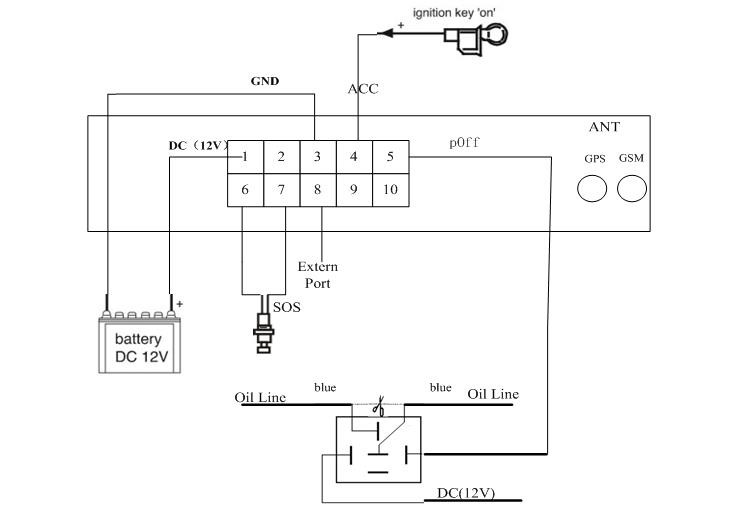

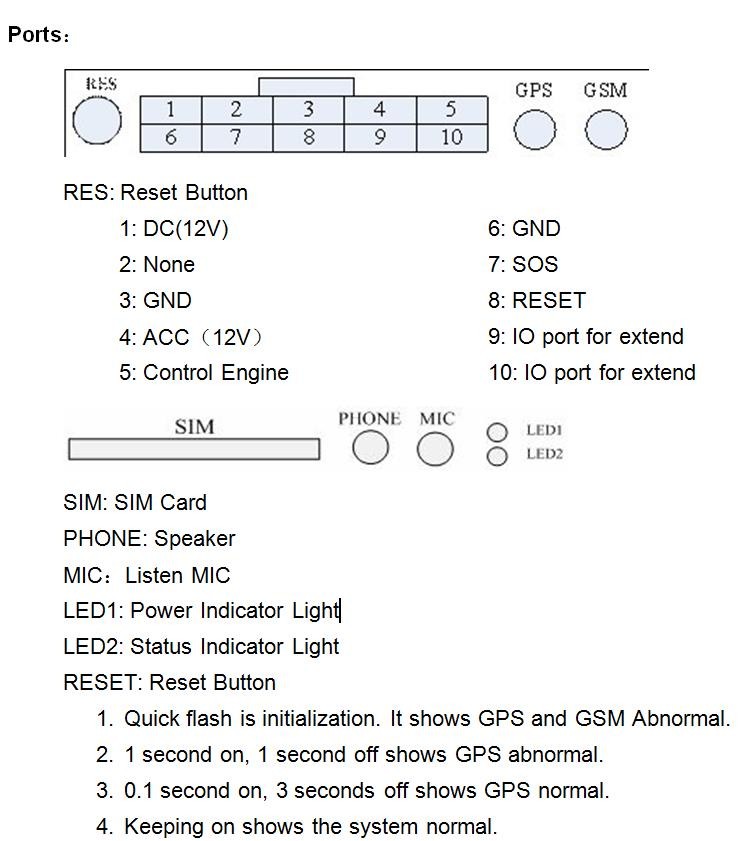

Step2: Connect the device into the vehicle by 10PIN cable

Step3: Set Parameters of GPRS, let the device connect to internet

Step4: Tracking on mobile app,website,fleet management

OEM & ODM available

We have many software engineer and skilled technicians, customize main PCB board/firmware/protocol, support OEM/ ODM, support HTTP protocol, customize protocol, compatible HTTP/TCP/UDP protocol.


Application range

Application

1. Used in vehicle rental, outer equipment etc.
2. Monitor and protect the child, old, disabled, pet etc.
3. Provide peace-of-mind for businessmen.
4. Manage on-errand personnel.
5. Track criminals

packing & shipment

package

Unit Weight: 1.0kg (2.20lb.) Package Size: 10*7* 3cm ;10pcs/carton Carton Size:40*36*30cm


delivery time

1. In 2-3 days after got T/T if under 100pcs.
2. In 3-5 days after got T/T if less than 500pcs.
3. In 1 week after got T/T if less than 1000pcs.
4. More than 1000pcs, delivery will be made in 7-15 days after got T/T.
For samples, we will make delivery at the same day of receipt T/T.
Usually we deliver goods by DHL, FedEx or EMS. You can also appoint other ways for delivery.
Delivery time:1-3days after payment be confirmed. It takes 3-5days to reach you normally.

Our Service

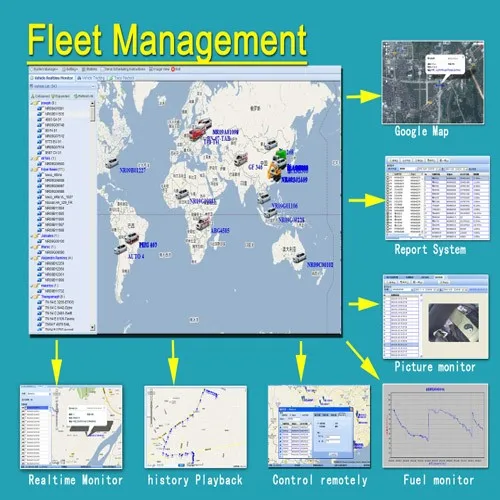

1. We provide web tracking system, Android APP and IOS App free.

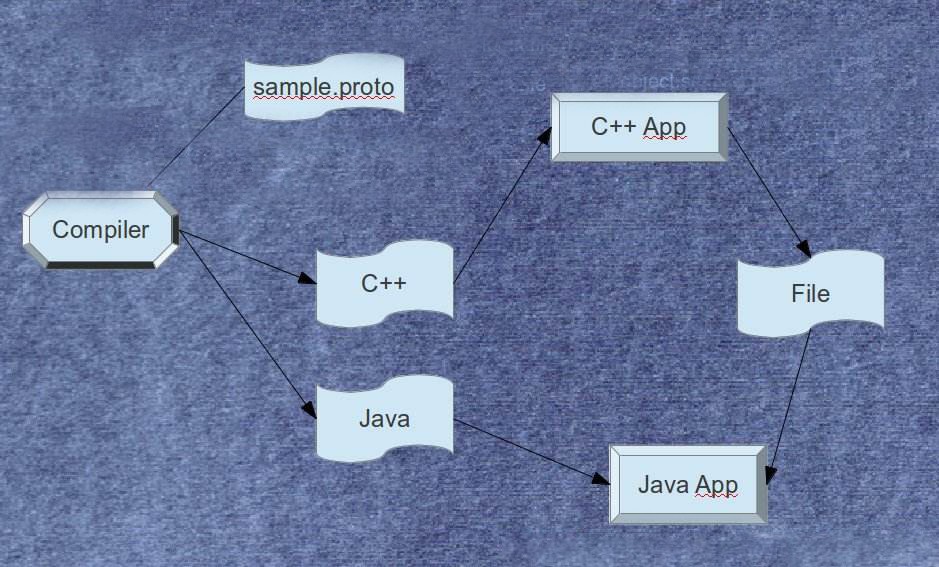

2. Our device can send data to your own server, we will provide SDK and API for integrate (sample source code:C/C++,Java,C#)
3. we will install the tracking system into your server if you have own server
4. We provide OEM and ODM services, it is free if you only add logo and company name.
5. Warranty: 24-month
