GRBL control CNC 3018 PRO engraving machine DIY desktop CNC router for Plastic, wood, acrylic, PVC, PCB

$85.00 - $255.00 / Piece | 1 Piece (Min. Order)
Model Number:
3018pro-No laser
$85.00
- +
available
3018pro-0.5w
$106.00
- +
available
3018pro-2.5w
$132.00
- +
available
All 10 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Positioning Accuracy (mm):
0.1 mm
No. of Spindles:
Single
Working Table Size(mm):
300x180
Machine Type:
CNC Router
Travel (X Axis)(mm):
300 mm
Travel (Y Axis)(mm):
180 mm
Repeatability (X/Y/Z) (mm):
0.1 mm
CNC or Not:
CNC
Place of Origin:
Henan, China
Brand Name:
LUNYEE
Voltage:
24V
Dimension(L*W*H):
33*40*24CM
Certification:
CE
Weight (KG):
8
Warranty:
1 Year
After-sales Service Provided:
Online support
Key Selling Points:
Easy to Operate
Local Service Location:
Russia, Spain
After Warranty Service:
Online support
Showroom Location:
None
Applicable Industries:
Building Material Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Step motor::
1.3A 0.25N.m
Spindle::
775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
Control software:
GRBL control
Construction:
Aluminum + Bakelite

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X35X20 cm
Single gross weight:
8.000 kg
Package Type:
1.Outer packing: Standard export carton with required shipping marks 2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded 3.As per the clients requirements
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 To be negotiated
Video Description
Product Description

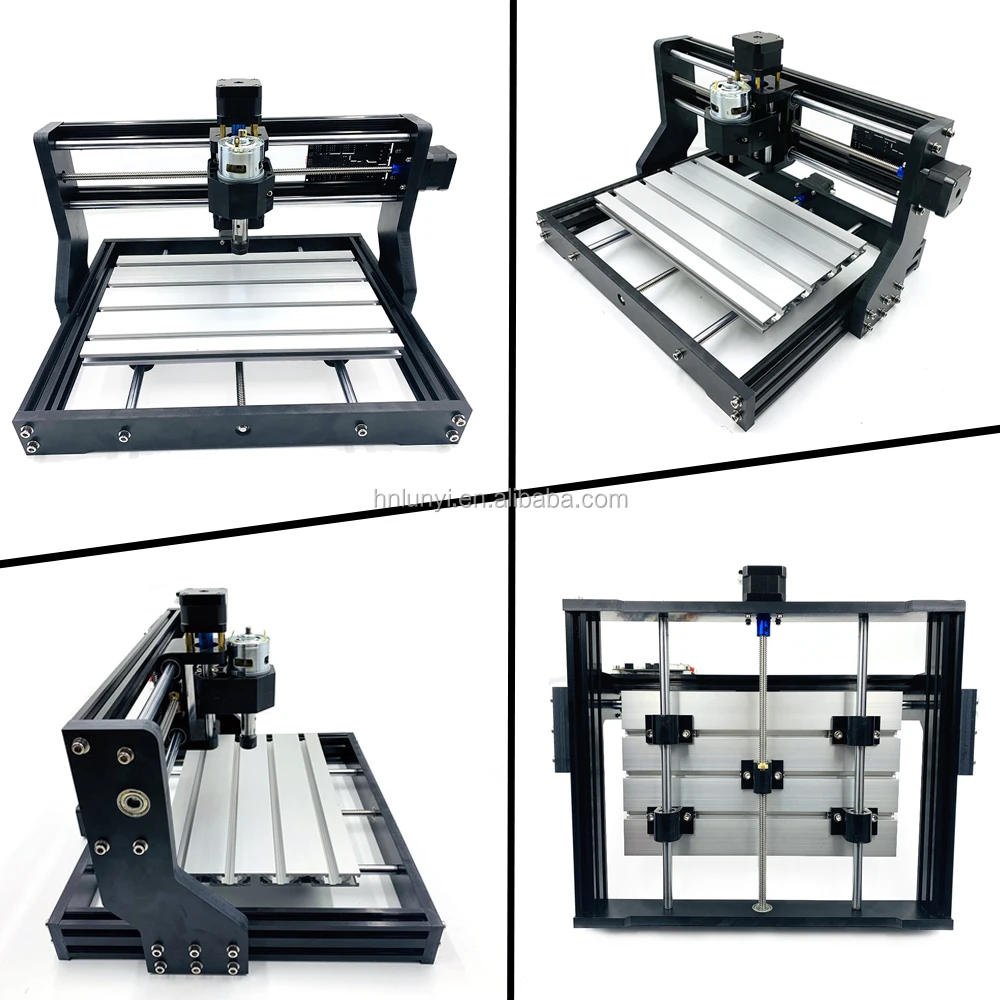

GRBL control CNC 3018 PRO engraving machine DIY desktop CNC router for Plastic, wood, acrylic, PVC, PCB
1. The laser can be carved including: mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc
2. We have 15,000mw laser , which can engrave metal materials such as stainless steel and alumina.
3. The blade can be engraved plastic, cork wood, acrylic, pvc, pcb, plywood or the like material
4. ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to be minus tolerence to
spindle so you cannot put it on directly.
5. Offline controller supports offline work, you will not need to connect to a computer
6. You can choose offline controller or laser
7. We have EU , US, AU, UK adapters and I will send the correct plugs according to your country.(Please leave the message to tell
me which one you need) Without message, we will send the EU plug。
8. If you need more accessories, please contact me.
Control software
GRBL control
Construction
Aluminum + Bakelite
Working area
300*180*40mm
Frame size
400*330*240mm
Spindle
775 spindle motor 24V: 10000r/min

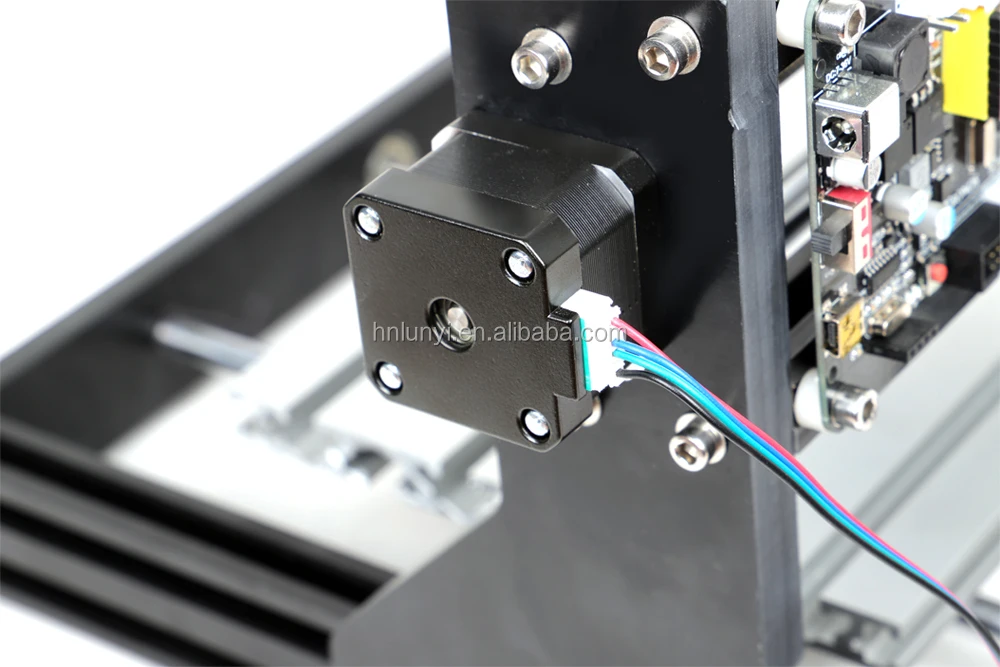

Step motor
1.3A 0.25N.m
Power supply
24V 5A
Supported system
Windows XP/ Win 7/ Win 8/ Win10
Laser (options)
500MW/2500MW/3500MW/5500MW/7500MW/15000MW
5500MW & 15000MW Can engrave metal such as 304 stainless steel
3018 Pro

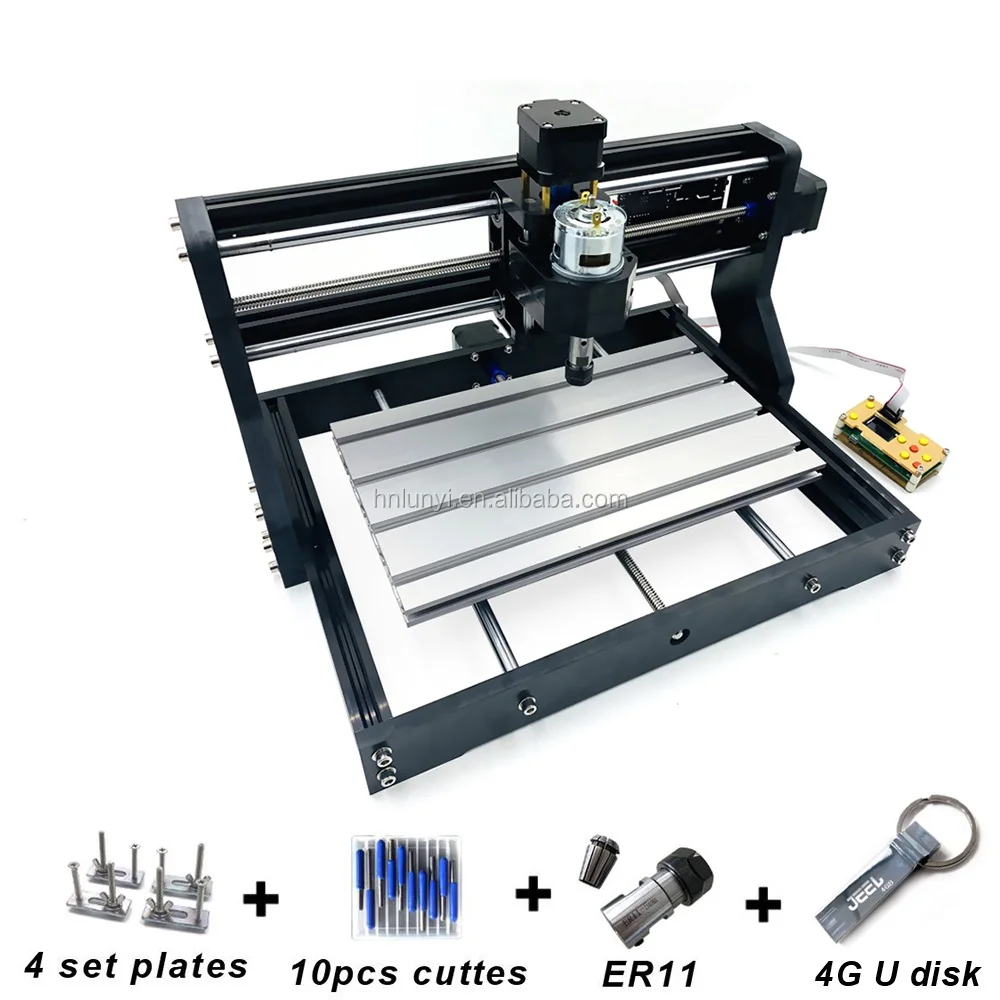

No laser: CNC3018PRO +10pcs cutter +4pcs plates +1pcs ER11 +4G U disk
500MW : CNC3018PRO +10pcs cutter +4pcs plates +1pcs ER11 +4G U disk +500MW laser +goggle
2500MW: CNC3018PRO +10pcs cutter +4pcs plates+1pcs ER11 +4G U disk +2500MW laser +golggle
5500MW: CNC3018PRO +10pcs cutter +4pcs plates +1pcs ER11 +4G U disk +5500MW laser +goggle
15000MW: CNC3018PRO +10pcs cutter +4pcs plates +1pcs ER11 +4G U disk +15000MW laser +goggle

3018 Pro with Offline
No laser : CNC3018PRO +1pcs offline + 10pcs cutter +4pcs plates +1pcs ER11 +4G Udisk
500MW: CNC3018PRO +1pcs offline + 10pcs cutter +4pcs plates +1pcs ER11 +4G Udisk +500MW laser +goggle 2500MW: CNC3018PRO +1pcs offline + 10pcs cutter +4pcs plates +1pcs ER11 +4G Udisk +2500MW laser +goggle 5500MW : CNC3018PRO +1pcs offline + 10pcs cutter +4pcs plates +1pcs ER11 +4G Udisk +5500MW laser +goggle 15000MW : CNC3018PRO +1pcs offline + 10pcs cutter +4pcs plates +1pcs ER11 +4G Udisk +15000MW laser +goggle
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

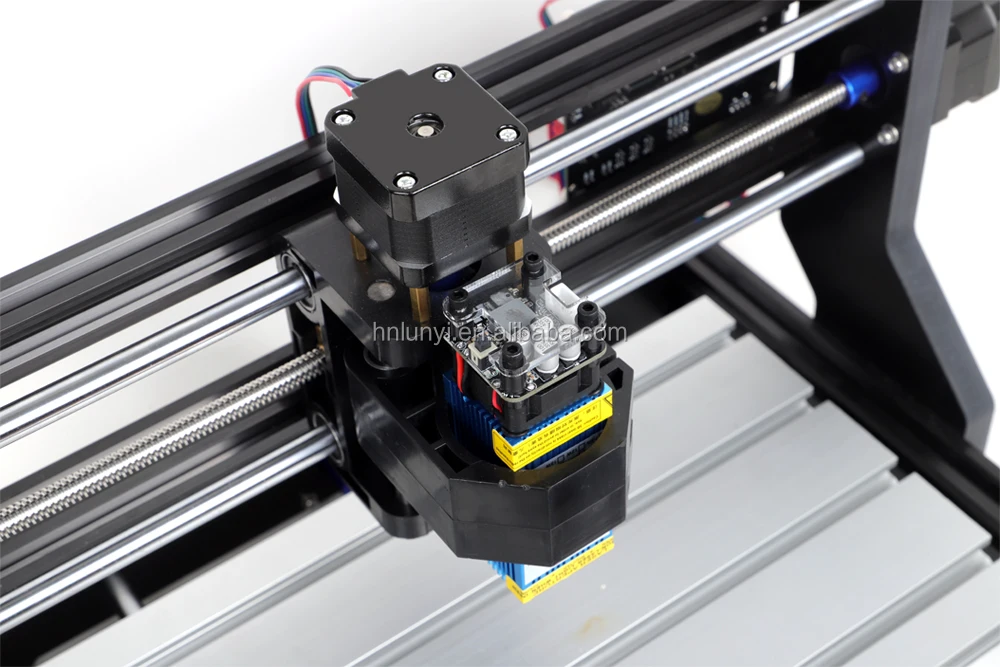

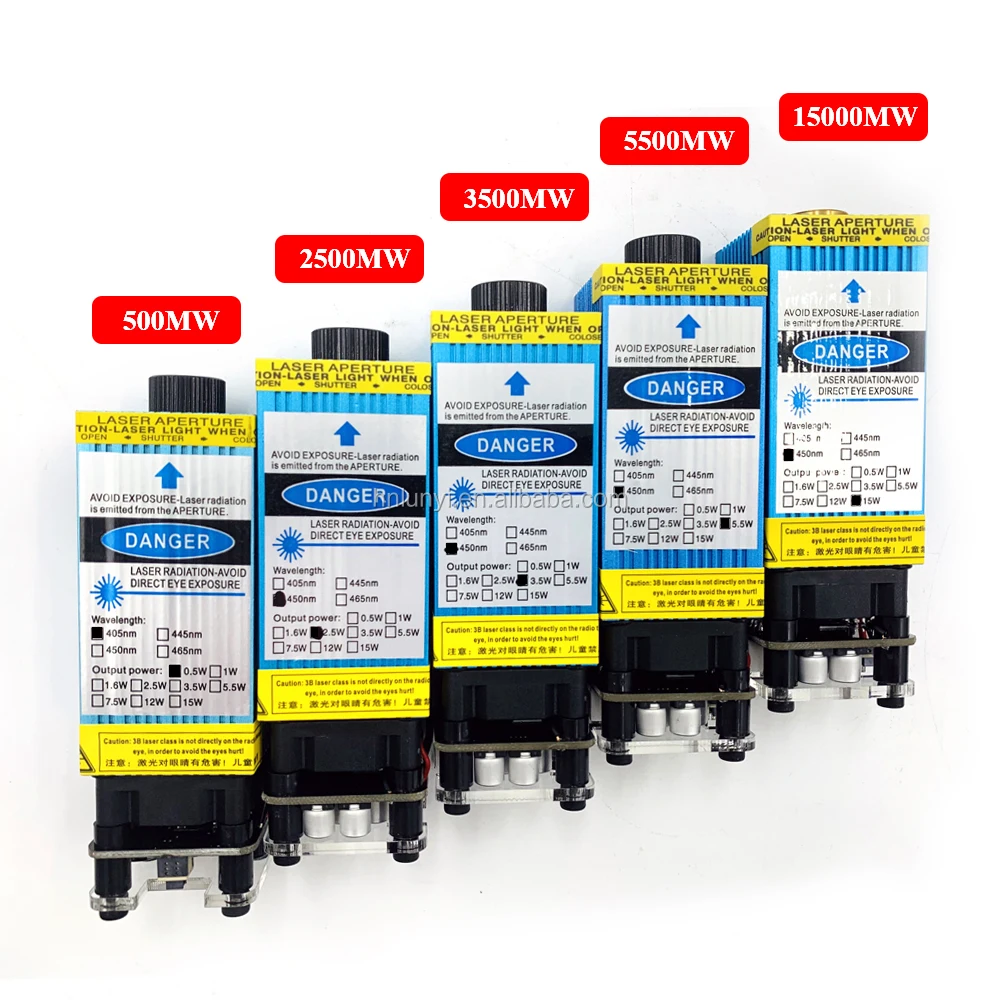

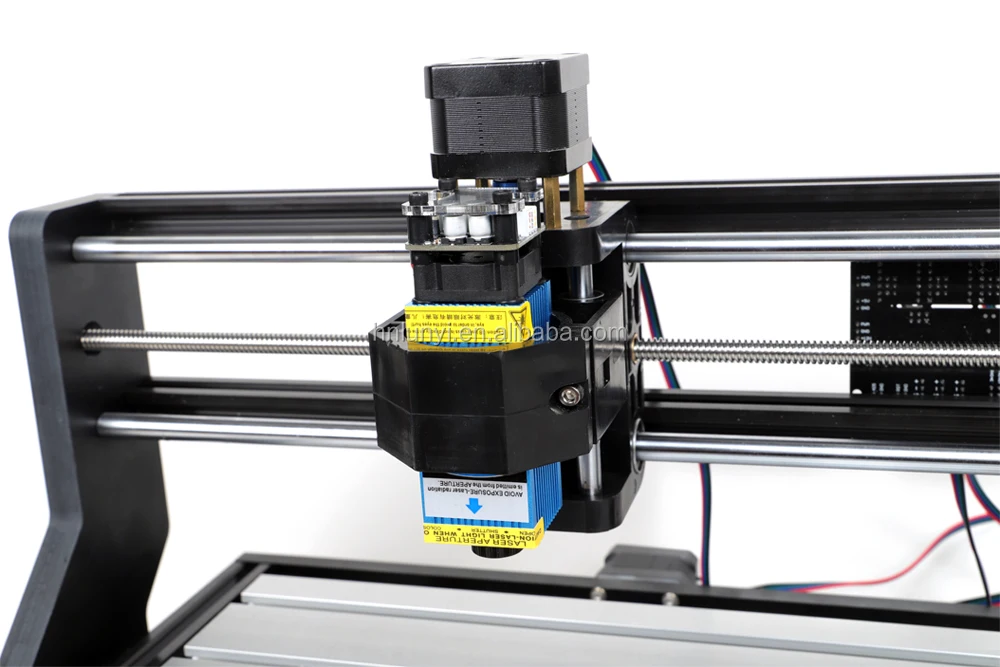

The laser

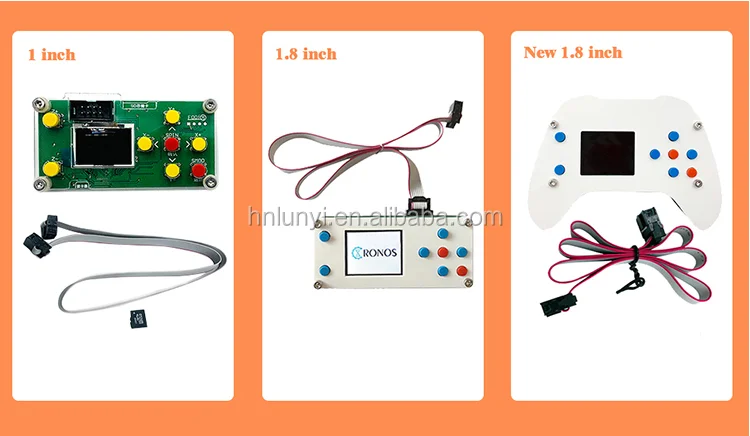

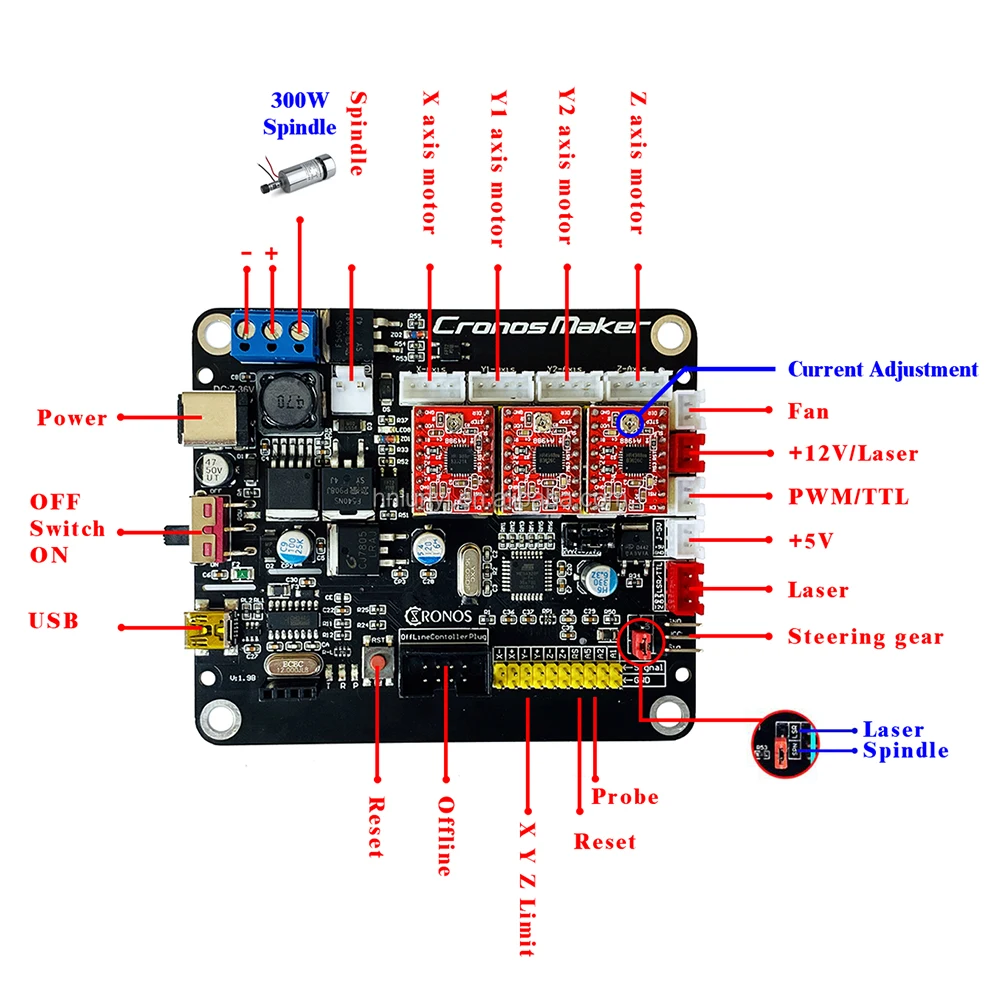

The controller:

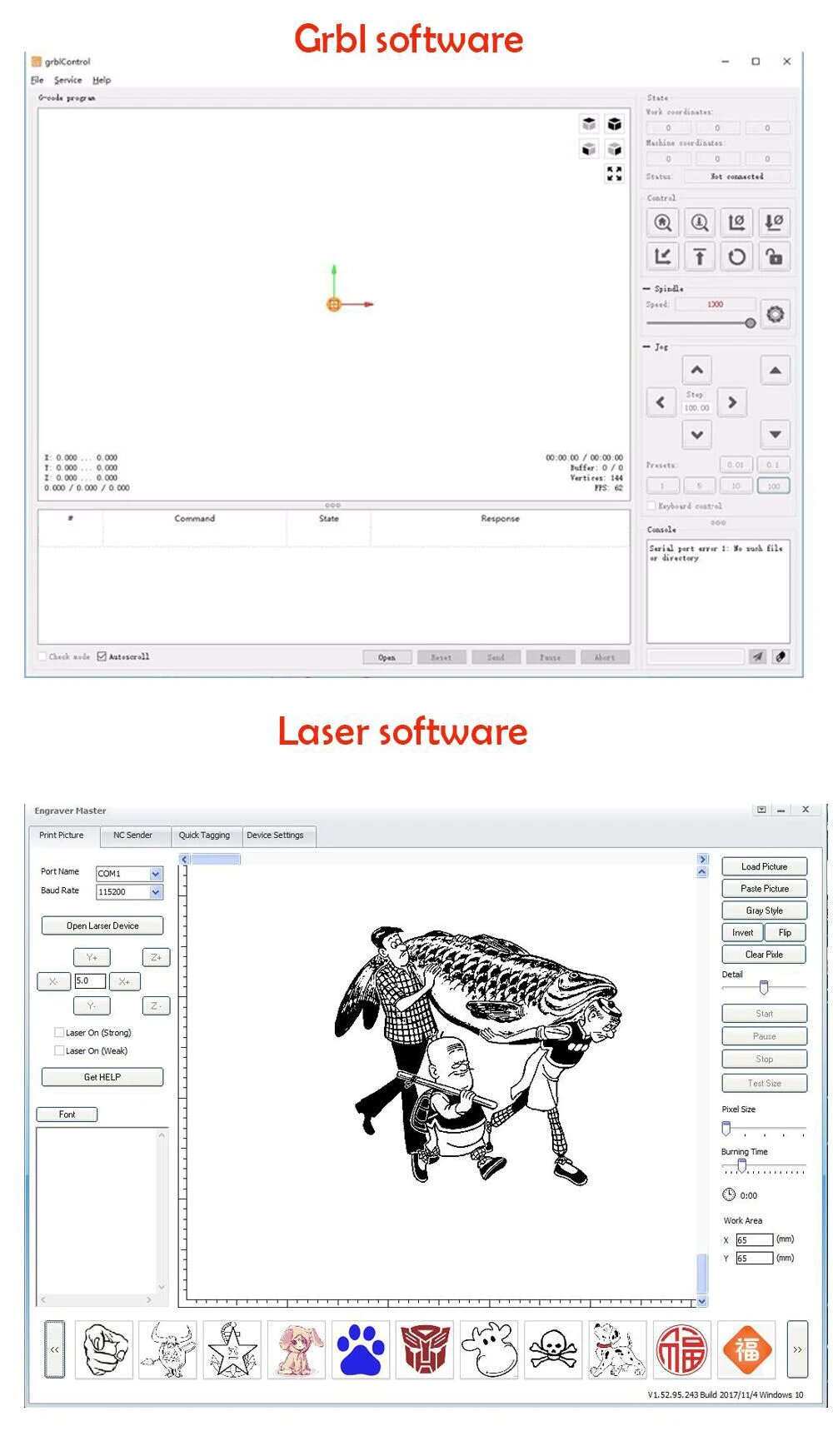

The products includes the software and we gives the detailed explanation
Product Effect
Related Products

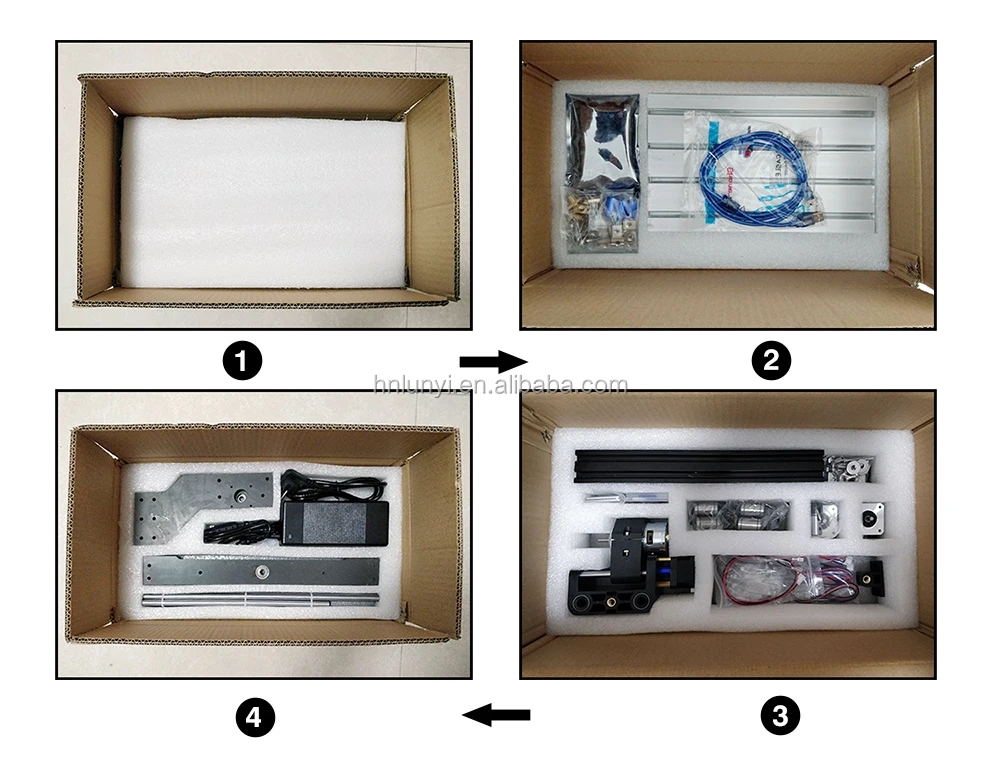

Packing&Shipping
Company Introduction
FAQ
Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit. We will provide you the detaied manual.
Q: Are there software and instructions can I get it?
A:The sets includesthe software and instructions
Q: Whick type computer system can run its software?
A:The software only support the Windows system.
Q: What's the laser's lifetime?
A: The laser module have over 6,000 hours lifetime.
Q: What material can it engrave?
A:Wood, bamboo, plastic, paper, leather, rubber, etc
Q:What material can it cut?
A:cork wood, paper, thin leather.
Q:Can I use it to cut or engrave on metal?
A:It can engrave stainless steel
Q: How long can the machine work continuously?
A: It can work continuously about 45 minutes, after the laser mould cool down(about half of an hour), then start work again.
Long time work continuously with shorten the laser module liftetime.
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then installl the software and the driver, power supply the machine,that's all.
Any question or help needed, you can contact us freely
