GSM 3G Patch 800-2100Mhz Antenna

  • 1-49 Pieces
    $3.00
  • 50-99 Pieces
    $2.00
  • 100-4999 Pieces
    $1.50
  • >=5000 Pieces
    $0.85
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Yetnorson
Model Number:
YNX-TLB-01
Frequency:
1900-2100MHz
Gain(dBi):
3.5dBi
Supply Voltage:
DC 3.3-5.0V
V.S.W.R:
≤1.5
Input Impendence:
50 OHM
Polarization Inten:
R.H.C.P
Service:
OEM&ODM
Connector Type:
SMA
Max Input Power:
75 OHM
products name:
GSM 3G Patch 800-2100Mhz Antenna

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X10X0.9 cm
Single gross weight:
0.06 kg
Package Type:
One product with one PE bag packaging of GSM 3G Patch 800-2100Mhz Antenna
Lead Time :
Quantity(Piece) 1 - 1 2 - 5 >5
Est. Time(days) 3 10 To be negotiated

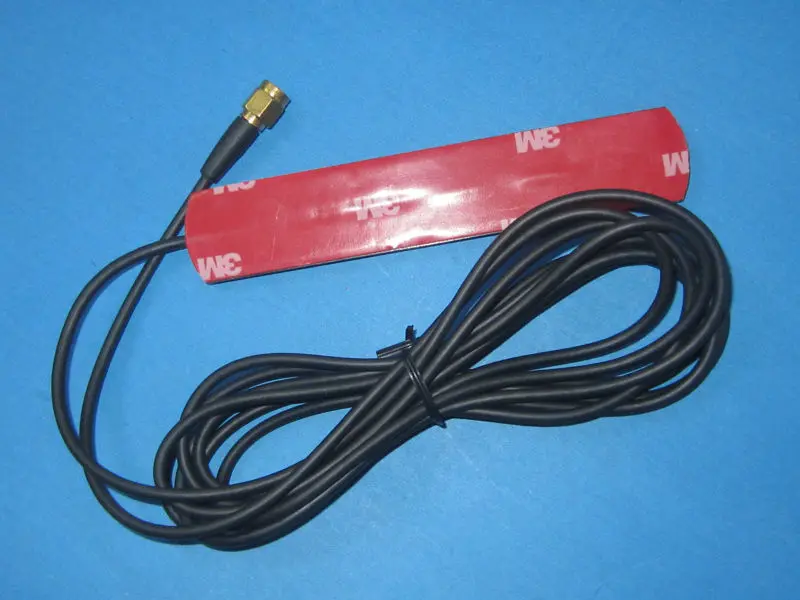

                GSM 3G Patch 800-2100Mhz  Antenna



Electrical Specifications
Frequency1900-2100MHz
Input Impendence (Ω)50
V.S.W.R≤1.2
Gain (dBi)3.5dBi
F/B Ratio≥15dB
Horizontal Beam width60°-90°
Vertical Beam width70°-70°
Polarization TypeVertical
Power Capacity (w)100
Mechanical Specifications
Antenna Dimension210mm*180mm*45mm
ConnectorSMA
Weight50g
Mounting Mast DiameterØ30~Ø50mm
Rated Wind Velocity210Km/h
Operating Temperature-40°C to+80°C
Radome MaterialUV protected ABS
Radome Colourblack
Storage Temperature-65°C to+85°C










Company Information




Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series





Welcome come to our website select your satisfied products ,if you  have any question about our products pls feel free contact us we are always be ready anytime!!!
